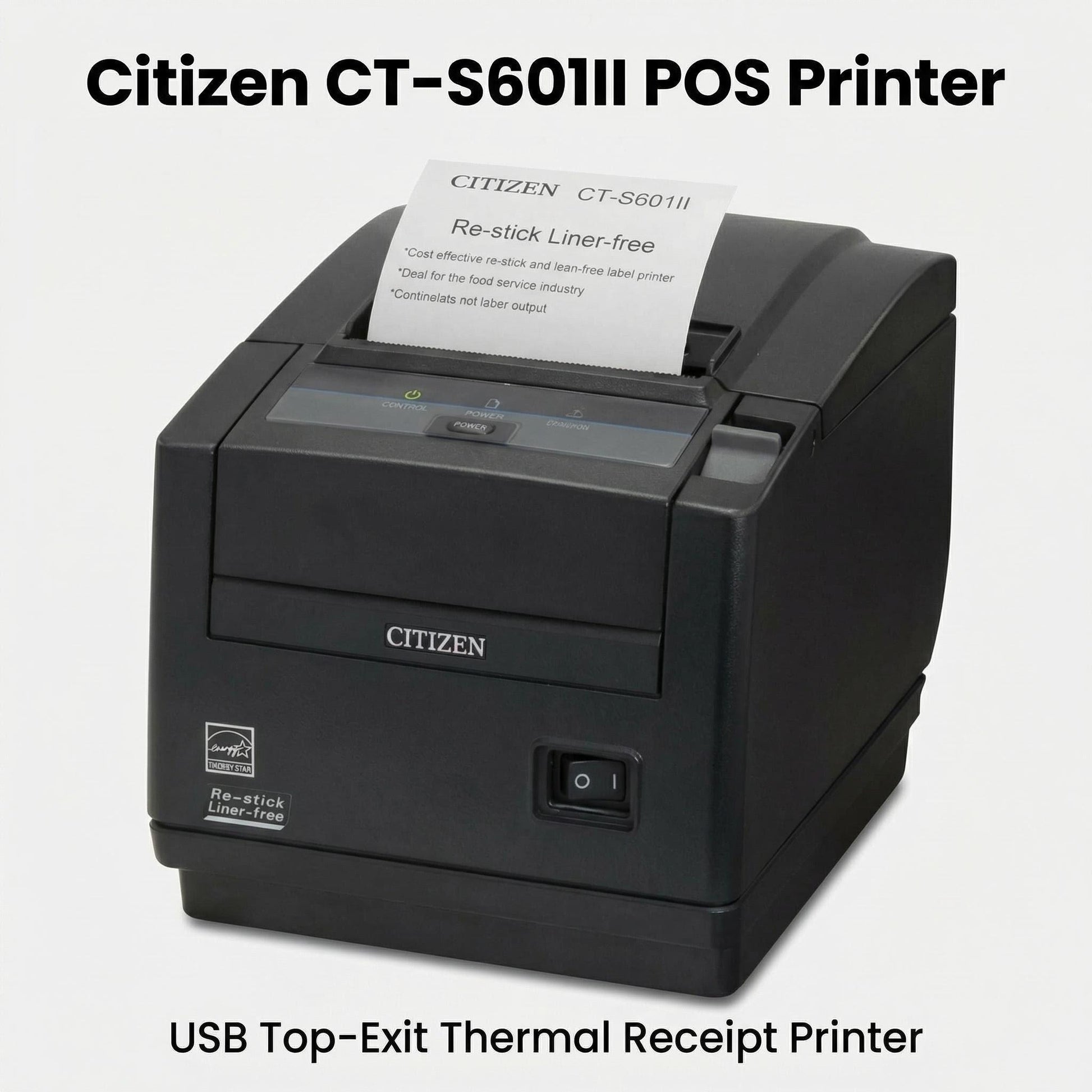

Citizen CT-S601IIS3UBUBKP Thermal POS Printer - CT-S600 Type II, Top Exit, USB, Black

Name: Citizen CT-S601IIS3UBUBKP Thermal POS Printer - CT-S600 Type II, Top Exit, USB, Black
Rating: 5.0 (1 reviews)

Delivery Time: 0-3 days

Product Highlights

【Exact USB black configuration】: This CT-S601IIS3UBUBKP configuration is identified as a CT-S600 Type II thermal point-of-sale printer with USB connectivity and a black housing.

【Top-exit retail design】: The top-exit paper path is built for retail and front-counter use where clean receipt presentation and compact placement matter.

【Fast receipt printing】: The CT-S601II platform supports fast thermal receipt output for busy hospitality, journal, kitchen, and retail environments.

【Integrated power design】: The platform includes an internal power supply design that helps support a cleaner workstation layout.

【Auto cutter and easy maintenance】: It uses a guillotine cutter with full and partial cut support, and the cutter release design supports tool-free maintenance.

【End-of-life model】: This SKU is identified as end of life, which matters for replacement planning and procurement decisions.

Overview
Specifications
FAQ
User Guides
Reviews

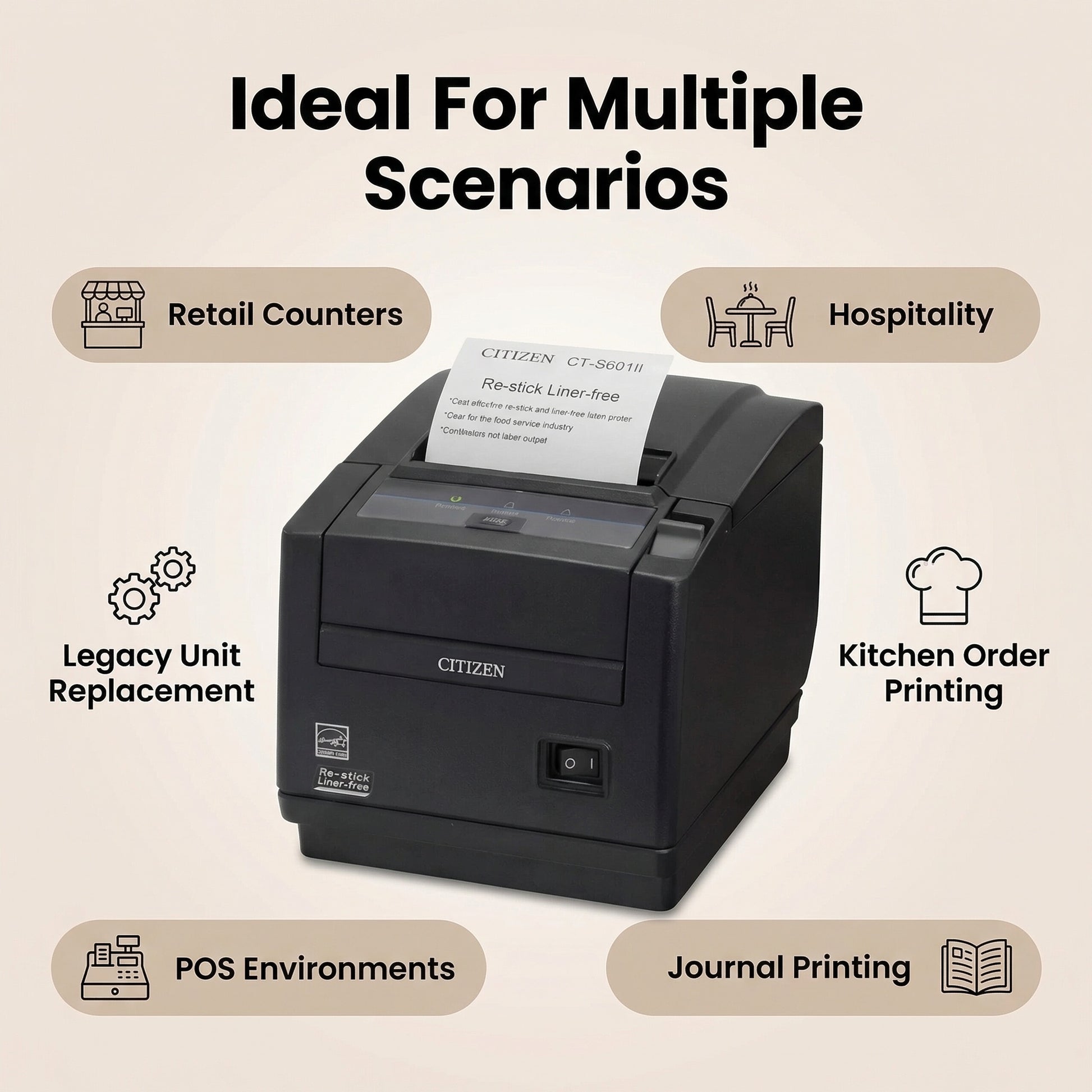

Best For:

-Retail receipt printing

-Hospitality counters

-Kitchen order printing

-Journal printing workflows

-Point-of-sale environments needing USB connectivity

-Businesses needing a top-exit thermal receipt printer

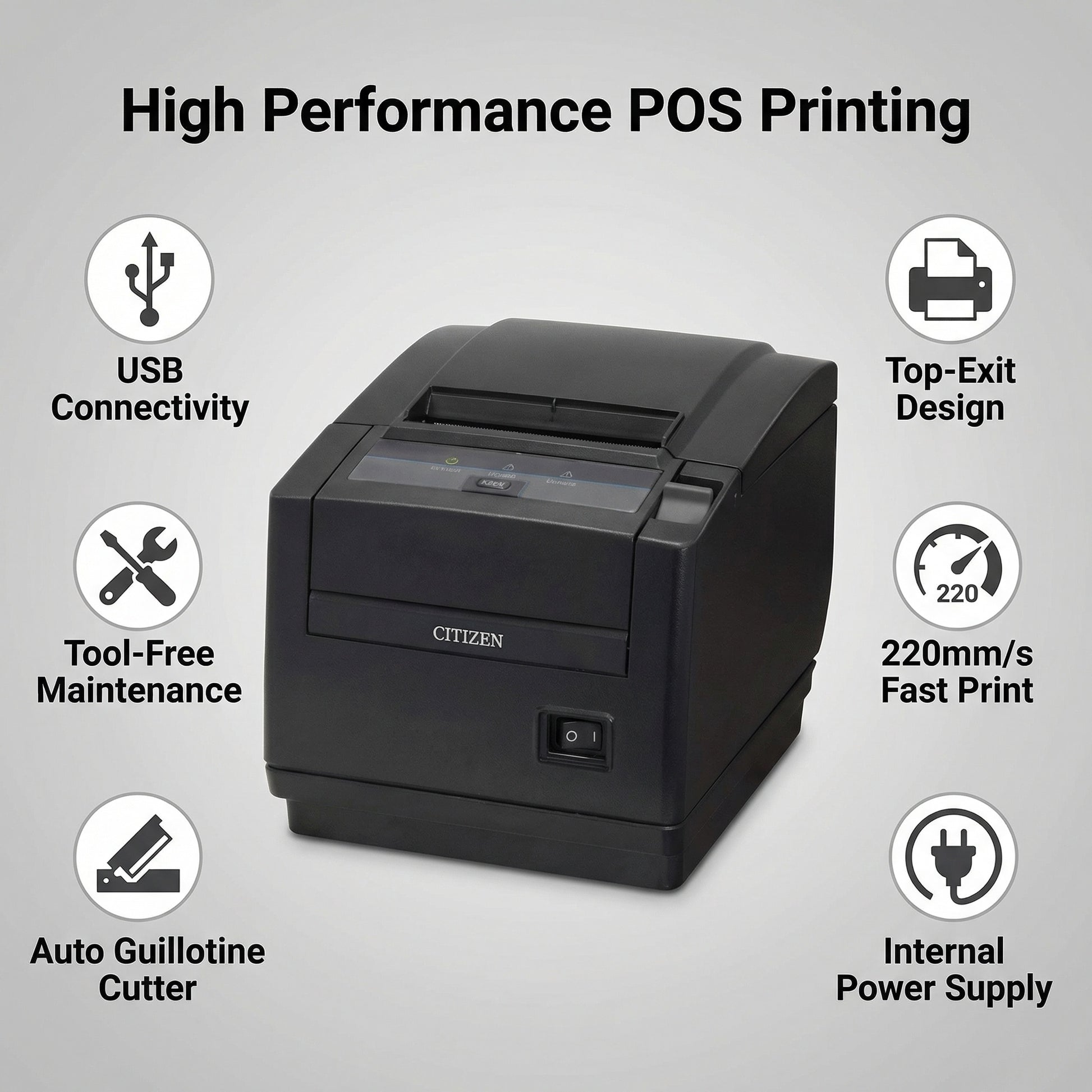

Key Features:

-Direct thermal point-of-sale printer platform

-Top-exit paper design for retail applications

-USB interface on the provided configuration

-Black housing

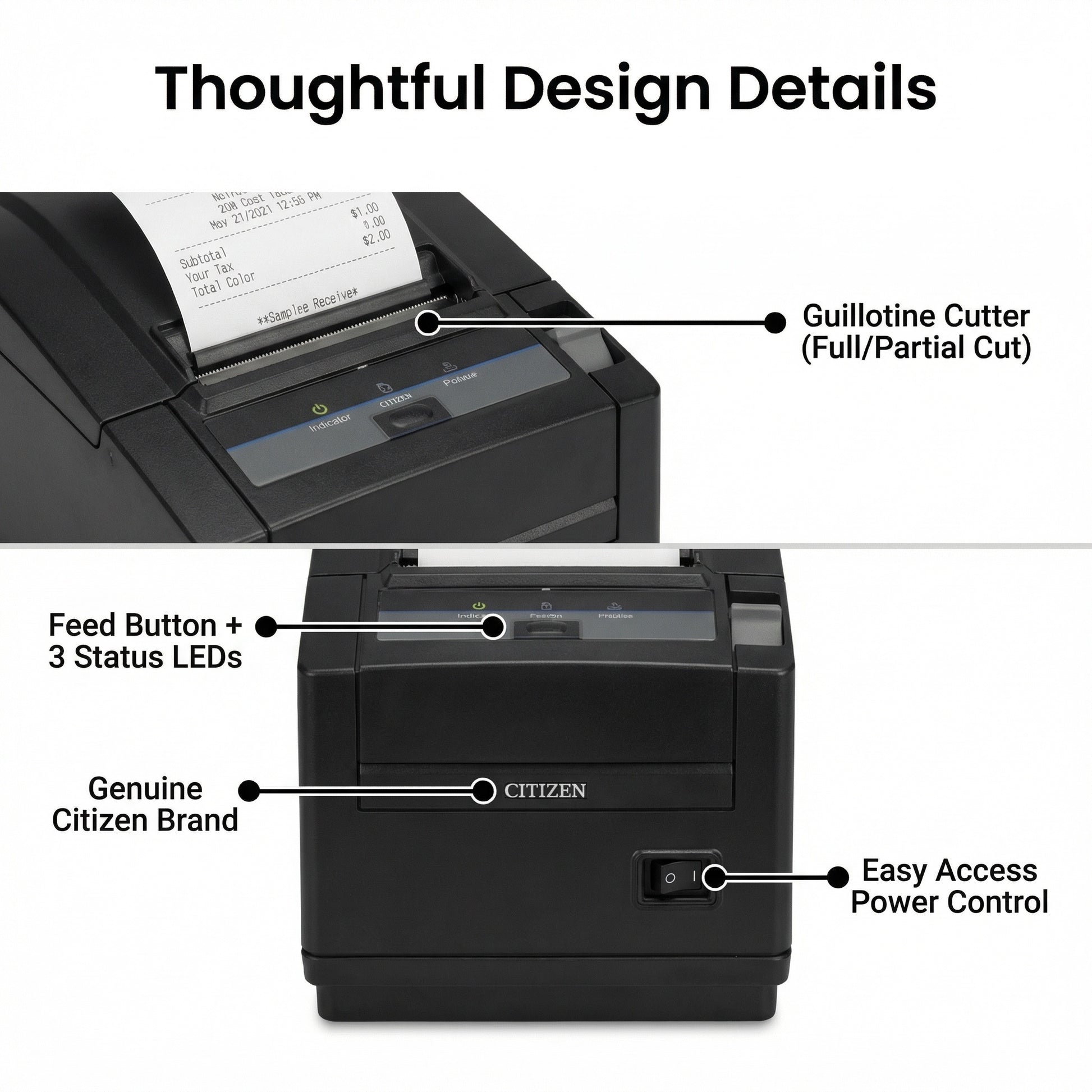

-Guillotine cutter with full and partial cut

-Internal power supply platform design

-Feed button with 3 light-emitting diode status indicators

-ESC/POS emulation support

-Tool-free maintenance design

Quick Specs:

Brand: Citizen

Series: CT-S600 Type II

Product Type: Thermal POS printer

Paper Exit: Top exit

Interface: USB

Color: Black

Print Technology: Direct thermal

Resolution: 203 dots per inch

Print Speed: Up to 220 millimeters per second

Maximum Print Width: 80 millimeters

Media Width: 58 / 60 / 80 / 83 millimeters (+/- 1 millimeter)

Media Thickness: 65 to 75 micrometers or 75 to 85 micrometers

Cutter: Guillotine type, full and partial

Control Panel: Feed button, 3 light-emitting diodes

Emulation: ESC/POS

Dimensions: 145 x 192 x 148 millimeters

Weight: 2 kilograms

Power Supply: 100 to 240 volts, 50 to 60 hertz

Status: End of life

What’s Included:

Printer

Power supply

General Specifications
Brand	Citizen
Model No.	CT-S601IIS3UBUBKP

Product Details
Color	Black
Connection Type	USB
Print Technology	Thermal transfer
Printer Functions	Print

General Specifications

Model: Citizen CT-S601
Type: POS Thermal Receipt Printer
Color Options: Black, White, Optional Gray
Applications: Receipt, Coupon, Ticket, Daily Report, Kitchen, Delivery Slip, Barcode, Weigh Scales, Kiosk, Queue Management

Performance & Features

Print Method: Line thermal dot printing
Print Speed: Up to 200 mm/sec (1600 dot-lines/s)
Max Print Width: 80mm (640 dots)
Dot Pitch: 8 x 8 dots/mm (203 dpi)
Paper Widths: 83mm, 80mm, 60mm, 58mm (selectable)
Paper Roll Diameter: Max Ø83 mm

Character Printing

Number of Columns: Varies by paper width and font type (e.g., Font A: up to 53 columns on 83mm paper)
Character Sizes: Font A: 1.5 x 3.0 mm, Font B: 1.13 x 2.13 mm, Font C: 1.00 x 2.00 mm
Character Sets: Alphanumeric, International, PC437/850/852/857/858, Katakana, Thai, etc.

Barcode Support

1D Barcodes: UPC-A/E, JAN-13/8, Code 39, Code 128, CODABAR, Code 93
2D Barcodes: PDF417, QR Code

Paper & Cutter

Paper Thickness: 65–150 μm depending on core tube
Cutter Type: Snap-in (Auto retracting full/partial)
Cutter Life: 2 million cuts

Connectivity & Interfaces

Standard Interfaces: Serial (RS-232C), Parallel, USB, USB with hub, Ethernet, Powered USB
Exchangeable Interfaces: Parallel (PA), RS-232 (RS), USB (UB), Powered USB (UP), USB w/Hub (UH), Ethernet (ET, ES)

User Interface & Operation

Panel: 3 LEDs, Feed button
Buzzer: Built-in for alert sounds
Maintenance: Tool-free cutter removal (Snap-in design)

Power & Environmental

Power Supply: Built-in or external (AC 100–240V, 50/60Hz, 150 VA → DC 24V, 2.1A)
Operating Temp: 5°C to 45°C, 10–90% RH (non-condensing)
Storage Temp: -20°C to 60°C

Reliability

Print Head Life: 150 km, 200 million pulses (using recommended paper)
Certifications: UL, FCC Class A, CE, TUV-Bauart

Software & Drivers

Drivers: Windows 2000/XP/Vista/2003 Server, OPOS, Java POS, CUPS
Utilities: Printer customization software, Receipt Layout Designer

📥 Download Product Manual (PDF)

What is the printing technology used in the CT-S601IIS3UBUBKP?
The printer utilizes direct thermal printing technology, eliminating the need for ink or toner cartridges.

What is the maximum printing speed of this printer?
It offers high-speed printing of up to 220 mm per second, ensuring quick transaction processing.

What paper widths are supported by the CT-S601IIS3UBUBKP?
The printer supports variable paper widths, including 58 mm, 60 mm, 80 mm, and 83 mm, accommodating various receipt sizes.

Does the printer come with an auto-cutter?
Yes, it features a guillotine-type auto-cutter capable of both full and partial cuts, enhancing operational efficiency.

What interfaces are available for connectivity?
The CT-S601IIS3UBUBKP model includes a USB interface. The CT-S601II series also offers optional interfaces like Serial, Parallel, Ethernet, Bluetooth, and Wireless LAN, providing flexibility for different setups.

Is the printer compatible with various operating systems?
Yes, it supports multiple operating systems, including Windows, Mac OS X, Linux, iOS, and Android, ensuring broad compatibility.

What is the print resolution of the CT-S601IIS3UBUBKP?
The printer delivers a resolution of 203 dpi, producing clear and legible receipts.

Does the printer have an integrated power supply?
Yes, it comes with an integrated power supply, reducing cable clutter and saving space at the point of sale.

What are the dimensions and weight of the printer?
The printer measures 145 mm (W) x 192 mm (D) x 148 mm (H) and weighs approximately 2 kg, making it compact and suitable for various retail environments.

What is the reliability of the print head and cutter?
The thermal print head is rated for 200 million pulses or 150 km of printing, and the auto-cutter is rated for 2 million cuts, ensuring long-term durability.

Is the printer ENERGY STAR® compliant?
Yes, the CT-S601II series is ENERGY STAR® compliant, promoting energy efficiency.

What accessories are included with the printer?
The package includes the printer, a power supply, a USB cable, and a test roll of thermal paper, providing everything needed to get started.
