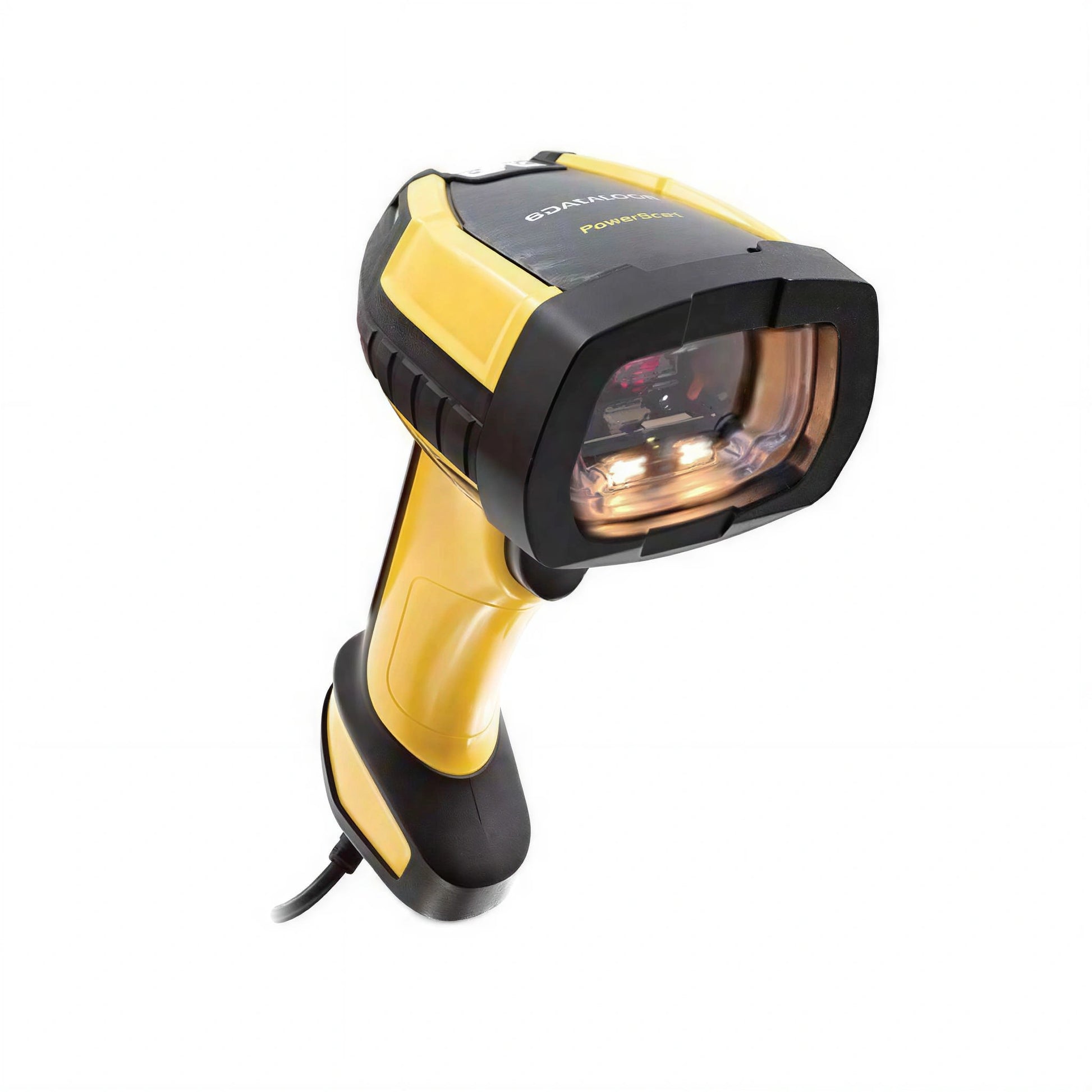

Datalogic PowerScan PD9630-HPK1 Industrial Barcode Scanner with Extended Range and Dual Camera

Datalogic PowerScan PD9630-HPK1 Industrial Barcode Scanner with Extended Range and Dual Camera

Name: Datalogic PowerScan PD9630-HPK1 Industrial Barcode Scanner with Extended Range and Dual Camera
Brand: Datalogic
SKU: DS-PD9630-HPK1

Delivery Time: 0-3 days

Brand Datalogic

Model Number PD9630-HPK1

EpicRise Warranty First Year

Product Highlights

• High-performance dual camera system delivers extended scanning range for reading barcodes at greater distances

• IP65 and IP67 rated housing withstands 2.5-meter drops and survives harsh warehouse, manufacturing, and logistics environments

• Reads damaged, low-contrast, and poorly printed 1D and 2D barcodes including GS1 DataBar and all standard symbologies

• 3GL technology with Green Spot and dual Good Read LEDs provides clear visual feedback from any operator angle

• Motionix motion-sensing technology automatically switches between handheld and presentation scanning modes based on operator movement

Overview
Specifications
FAQ
User Guides
Reviews

The Datalogic PowerScan PD9630-HPK1 is an industrial-grade handheld barcode scanner engineered for operations that demand extended reading range and reliability in challenging environments. This kit includes the high-performance PD9630-HP scanner with dual camera optics, USB cable CAB-553, and USB/RS-232 multi-interface for flexible deployment across warehouse, manufacturing, and logistics operations.

Built to survive the most demanding industrial conditions, the PD9630-HPK1 combines exceptional scanning performance with rugged construction. The dual camera configuration enables reading barcodes at extended distances while maintaining accuracy on damaged or low-quality codes. Enterprise IT teams benefit from multi-interface connectivity that simplifies integration with existing systems, while operators gain productivity through intuitive motion-sensing technology that adapts scanning modes to their natural workflow.

Best For

The PowerScan PD9630-HPK1 excels in industrial environments where extended range scanning and durability are critical requirements. Its combination of long-range optics, rugged construction, and intelligent feedback systems makes it ideal for high-volume operations.

- Warehouse receiving and shipping: Extended range enables scanning from ladders or forklifts, while IP65/IP67 rating protects against dust and moisture in loading dock environments

- Manufacturing production lines: Dual camera system reads codes on fast-moving items and survives 2.5-meter drops in busy assembly areas

- Retail backroom operations: Motionix technology automatically switches between handheld scanning for individual items and presentation mode for processing multiple packages

- Transportation and logistics: Reads damaged shipping labels and low-contrast codes on packages while withstanding continuous daily use in sorting facilities

- Cold storage and outdoor yards: Sealed housing protects internal components from condensation and dust in temperature-variable and outdoor environments

Key Features

- Dual camera high-performance optics deliver extended scanning range beyond standard imagers for reading codes at greater distances

- IP65 and IP67 ingress protection ratings ensure scanner operates reliably in dusty, wet, and harsh industrial environments

- 2.5-meter drop specification and trigger rated for 10 million actuations provide long-term reliability in demanding daily use

- Datalogic 3GL technology with Green Spot directly on code and dual Good Read LEDs ensure operators receive clear scan confirmation from any viewing angle

- Motionix motion-sensing automatically detects operator movement to switch between handheld and presentation scanning modes without button presses

- Multi-interface connectivity supports RS-232, USB, and optional Ethernet for integration with diverse enterprise systems

- Advanced 2D imaging engine reads Aztec Code, Data Matrix, MaxiCode, QR Code, Micro QR, Dot Code, and all standard 1D symbologies including GS1 DataBar

- Ergonomic balanced design with 318-gram weight reduces operator fatigue during extended scanning sessions

Quick Specs

Model	PD9630-HPK1
Scanner Type	High-performance dual camera 2D imager
Barcode Symbologies	1D (all standard including GS1 DataBar), 2D (Aztec, Data Matrix, MaxiCode, QR, Micro QR, Dot Code)
Ingress Protection	IP65, IP67
Drop Specification	2.5 meters (8.2 feet)
Trigger Durability	10 million actuations
Interfaces Included	USB/RS-232 multi-interface (optional Ethernet available)
Power Requirements	USB powered, 5-30V DC, 280 mA
Feedback	3GL (3 Green Lights), Green Spot, dual Good Read LEDs, beeper, vibration
Dimensions	79 mm W × 140 mm D
Weight	318 grams
Connection Type	Wired (corded)

What's Included

- PowerScan PD9630-HP scanner with dual camera high-performance optics

- USB cable CAB-553

- USB/RS-232 multi-interface module

Product Details
Color	Black
Connection Type	Wired
Scanner Interface	USB, RS-232
Barcode Supported	1D, 2D
Scanner Sensor Type	2D imager
Power Source	USB

What types of operations is the PD9630-HPK1 best suited for?

The PD9630-HPK1 is designed for industrial environments requiring extended range scanning and rugged durability. It excels in warehouse receiving/shipping where operators scan from ladders or forklifts, manufacturing lines with fast-moving items, retail backrooms processing multiple packages, logistics sorting facilities with damaged labels, and cold storage or outdoor yards with dust and moisture exposure. The IP65/IP67 rating and 2.5-meter drop specification make it reliable in harsh daily conditions.

How does the PD9630-HPK1 high-performance model differ from other PowerScan 9600 series scanners?

The PD9630-HPK1 features dual camera optics that provide extended scanning range beyond standard PowerScan 9600 models, enabling reads at greater distances. This makes it ideal when operators need to scan from elevated positions, across conveyor belts, or in situations where bringing the scanner close to the code is impractical. The HP designation indicates high-performance optics optimized for long-range applications compared to standard range models in the same series.

Is the PD9630-HPK1 worth the investment for facilities already using standard-range scanners?

The PD9630-HPK1 delivers value when extended range scanning reduces operational inefficiencies or safety risks. Facilities where operators frequently climb ladders, reach across conveyors, or scan pallets from forklifts will see productivity gains and reduced injury risk. The dual camera system also improves first-pass read rates on damaged or low-quality codes, reducing costly rescans. The 10-million-actuation trigger and industrial housing provide long-term reliability that lowers total cost of ownership in demanding environments.

What systems and software is the PD9630-HPK1 compatible with?

The PD9630-HPK1 kit includes a USB/RS-232 multi-interface that connects to most enterprise systems including Windows, Linux, and legacy platforms using serial communications. The USB interface operates as a keyboard wedge for plug-and-play compatibility with inventory management, WMS, ERP, and point-of-sale software without requiring specialized drivers. Optional Ethernet connectivity is available for network-based deployments and fixed-mount applications requiring TCP/IP integration.

How does the Motionix motion-sensing technology work in practice?

Motionix automatically detects operator hand movements and switches the scanner between handheld and presentation modes without requiring button presses. When the operator lifts and aims the scanner, it activates handheld mode for targeted scanning. When placed on a surface or held stationary, it switches to presentation mode for continuous scanning as items pass by. This eliminates the need to manually toggle modes during workflow transitions.

What maintenance does the PD9630-HPK1 require during its service life?

The corded PD9630-HPK1 eliminates battery replacement maintenance. The sealed IP65/IP67 housing allows cleaning with standard industrial wipes and disinfectants. The exit window should be cleaned periodically if scanning performance degrades due to dust or residue accumulation. The 10-million-actuation trigger rating suggests the scanner will maintain mechanical reliability through years of daily use in most enterprise environments.

What is the actual scanning range of the PD9630-HPK1 dual camera system?

The official product information confirms extended range capability beyond standard models but does not provide specific distance measurements. Actual scanning range varies based on barcode size, print quality, and ambient lighting conditions. Contact Datalogic or consult the complete technical datasheet for precise range specifications for your barcode symbologies and sizes.

Can the PD9630-HPK1 be used in cold storage facilities?

The IP65 and IP67 ratings protect against condensation and moisture when moving between temperature zones, and the sealed housing prevents dust ingress. The scanner operates reliably in environments with temperature variation and humidity. However, the official specifications provided do not list specific operating temperature ranges. Verify the complete temperature specifications for your cold storage requirements before deployment.
