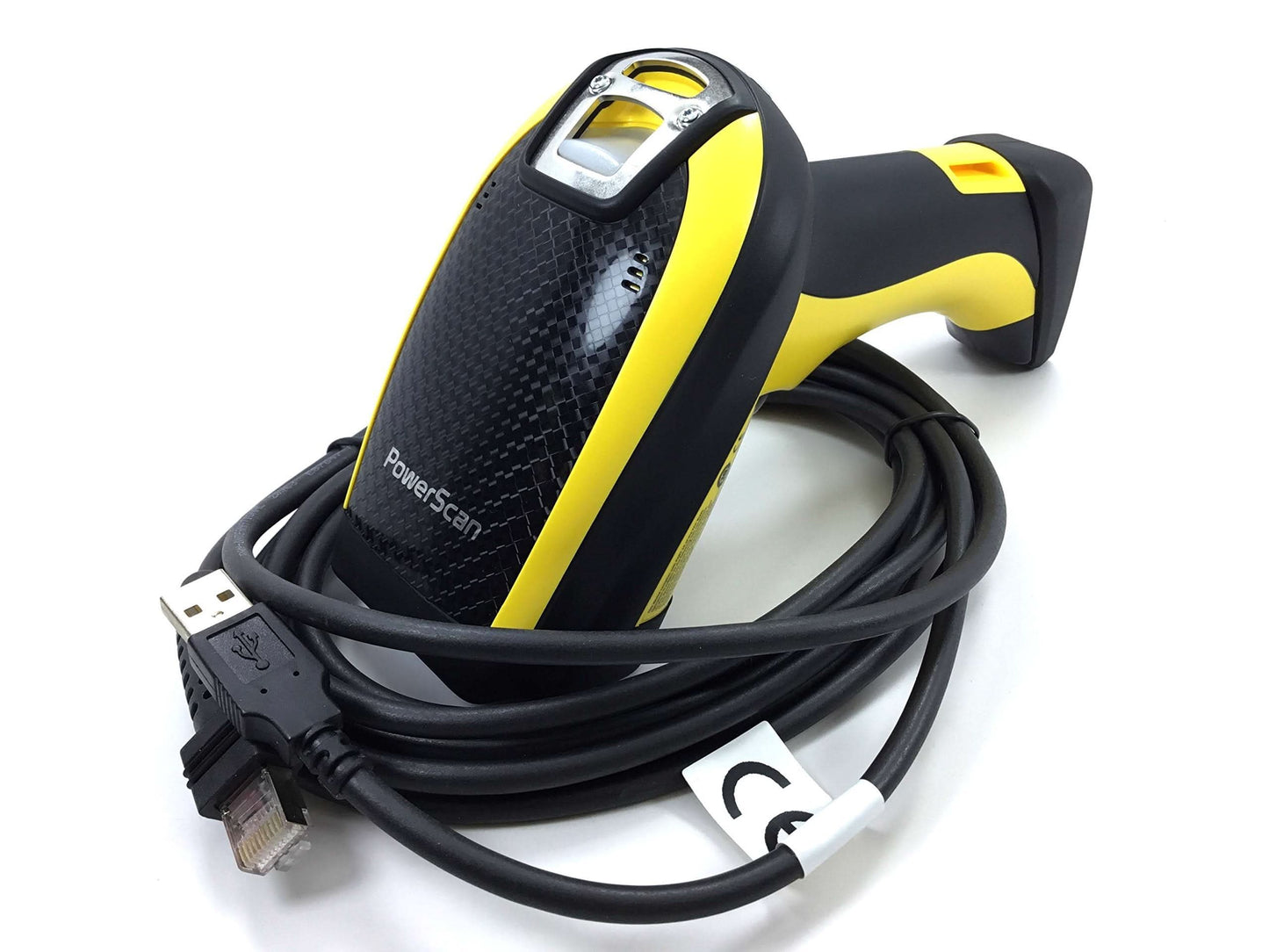

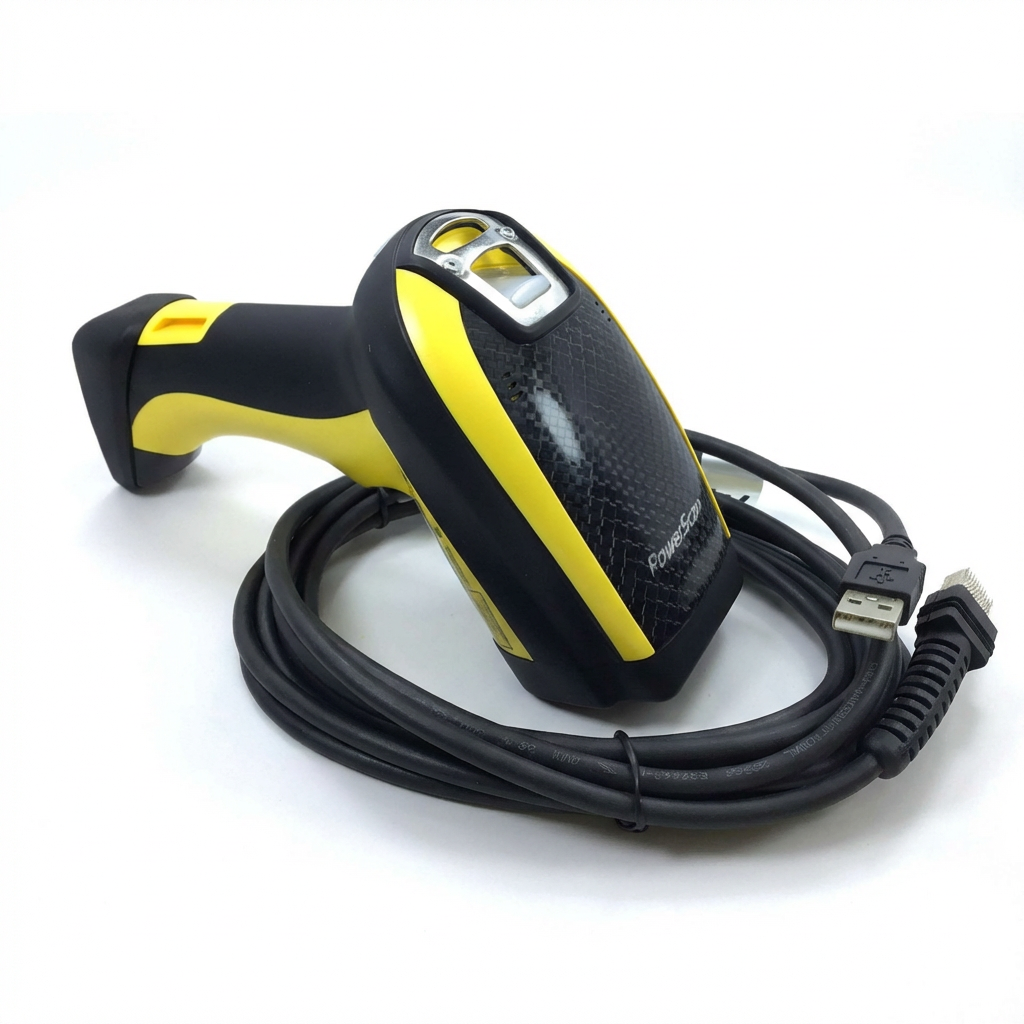

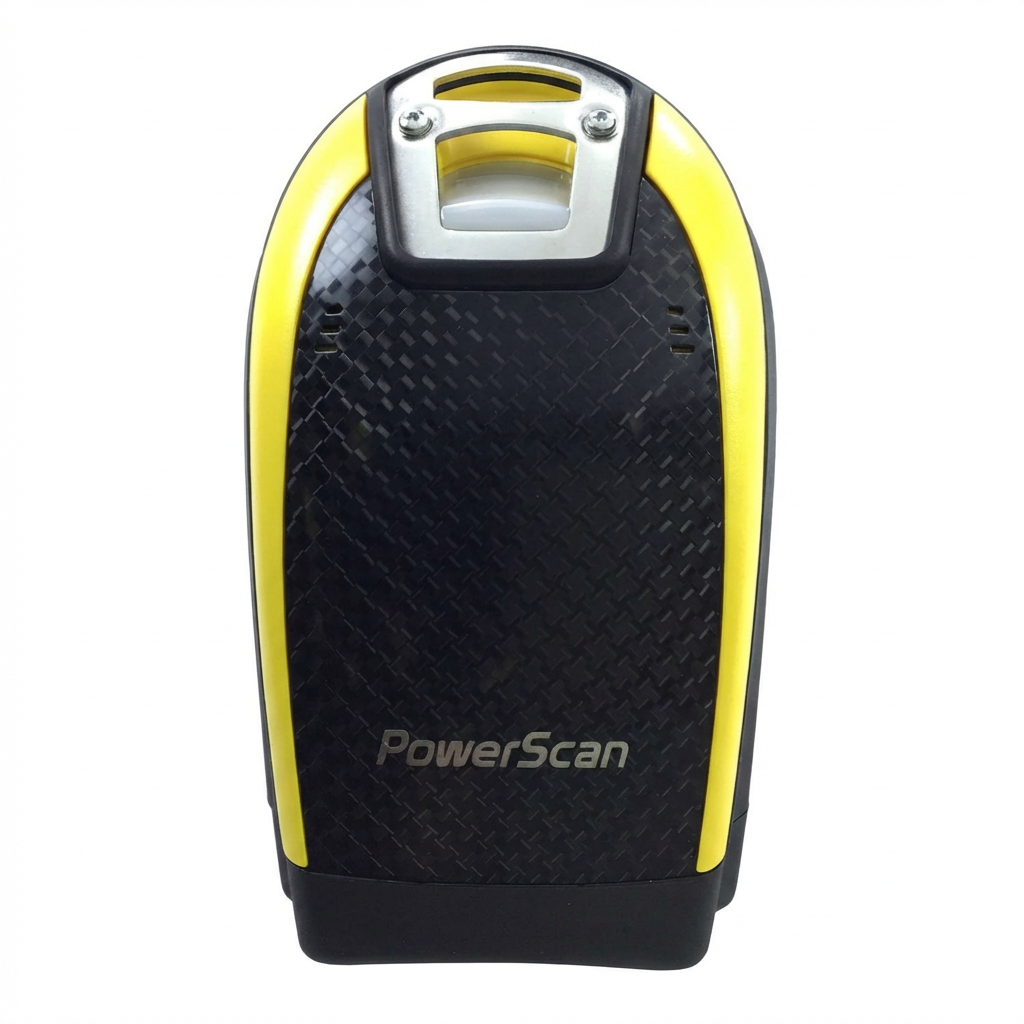

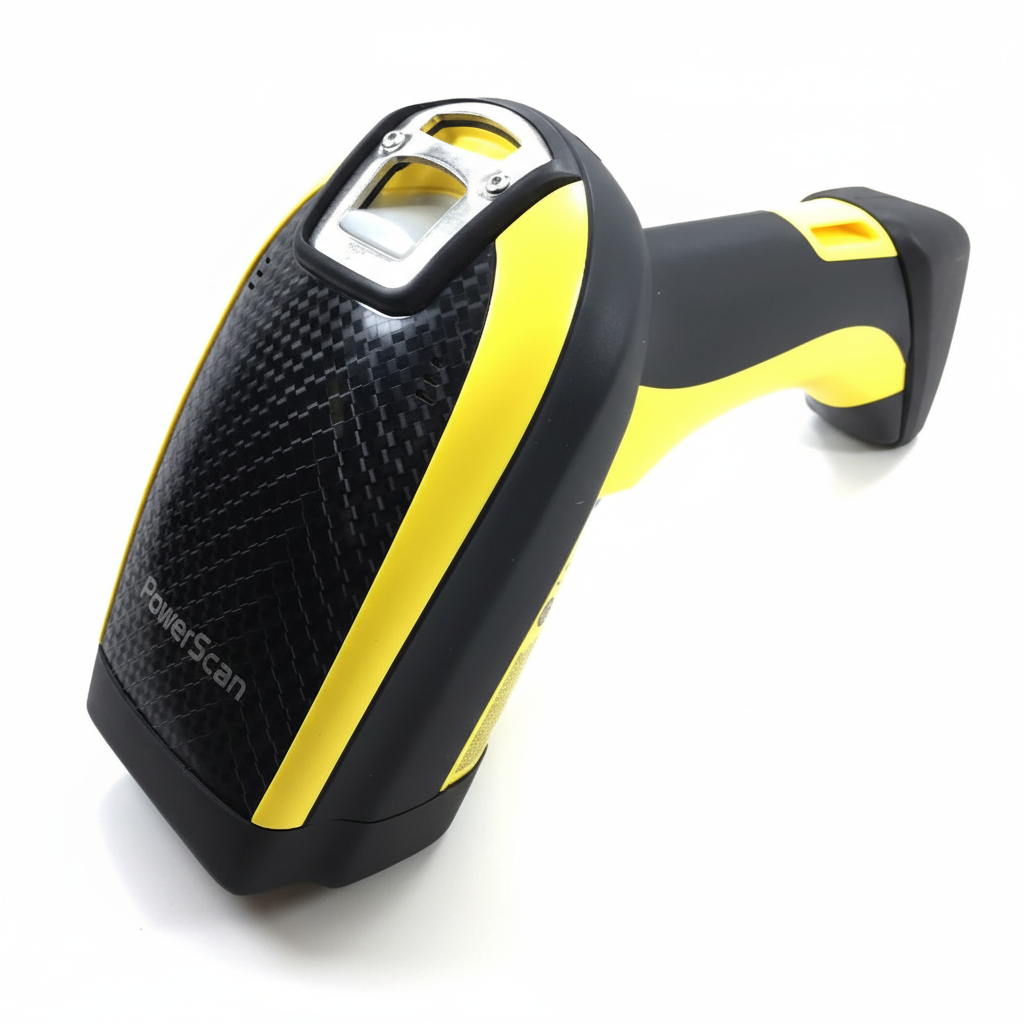

Datalogic PowerScan PD9531-HP Corded Rugged 2D Barcode Scanner - Omnidirectional Area Imager, USB, Yellow

Name: Datalogic PowerScan PD9531-HP Corded Rugged 2D Barcode Scanner - Omnidirectional Area Imager, USB, Yellow
Rating: 5.0 (1 reviews)

Delivery Time: 0-3 days

Product Highlights

【Built for rugged industrial scanning】: The PowerScan PD9531 series is designed for demanding environments with IP65 sealing and resistance to 50 drops from 2.0 m onto concrete.

【Reads 1D, 2D and PDF codes】: Supports standard 1D barcodes, 2D symbologies such as Data Matrix and QR Code, plus stacked formats including PDF417.

【Omnidirectional area imaging】: Snappy omnidirectional reading and intuitive aiming help improve first-pass scan performance in fast-paced workflows.

【Engineered for DPM and standard labels】: Enhanced decoding is built to read direct part marks while still handling traditional printed barcodes on labels.

【Clear good-read confirmation】: Datalogic 3GL technology, dual good-read LEDs, Green Spot feedback, and a loud beeper make scan confirmation easier on noisy shop floors.

Overview
Specifications
FAQ
User Guides
Reviews

Best For:

Manufacturing shop floor operations

Work-in-progress tracking

Component and sub-assembly tracking

Quality control workflows

Industrial environments requiring rugged corded scanning

Key Features:

-Corded handheld omnidirectional 2D area imager built for industrial use.

-Reads standard 1D, 2D, postal, and stacked barcodes including PDF417.

-Supports direct part marking applications including laser, chemical etching, ink jet, and dot-peened Data Matrix.

-White LED illumination is easier on the eyes than harsher scan lighting.

-Motionix motion-sensing technology helps automatically switch scanning behavior based on operator movement.

-Multi-interface support includes RS-232, USB, and Keyboard Wedge.

-Image sensor is 864 x 544 with maximum resolution of 2.5 mil for 1D and 4 mil for 2D codes.

-Yellow/black housing is available as a standard color option.

Quick Specs:

Brand: Datalogic

Model: PowerScan PD9531

Product Type: Corded handheld rugged barcode scanner

Scan Engine: Omnidirectional 2D area imager

Barcode Support: 1D, 2D, postal, stacked, PDF417

Interfaces: RS-232 / USB / Keyboard Wedge multi-interface

Sealing Rating: IP65

Drop Resistance: 50 drops from 2.0 m / 6.6 ft

Operating Temperature: -20 to 50 °C

Color: Yellow/Black

What’s Included:

PowerScan PD9531 scanner

General Specifications
Brand	Datalogic PowerScan
Model No.	PD9531-HP

Product Details
Color	Yellow
Power Source	USB
Connection Type	USB, Wired
Scanner Interface	USB, Keyboard wedge
Barcode Supported	1D, 2D
Scanner Sensor Type	2D imager

📚PD9531-HP User Guide

Q: Is this a rugged industrial scanner?
A: Yes. The datasheet positions the PowerScan 9501 series for manufacturing applications and lists IP65 sealing plus 50 drops from 2.0 meters onto concrete.

Q: What barcode types can it read?
A: It reads standard 1D codes, 2D codes such as Data Matrix and QR Code, postal codes, and stacked symbologies including PDF417 and MacroPDF.

Q: Is this scanner suitable for direct part marking applications?
A: Yes. The product sheet is explicitly built around DPM capability and says it can read codes marked by laser or chemical etching, ink jet printing, and dot-peened Data Matrix.

Q: Does it support USB?
A: Yes. The corded PD9531 supports RS-232, USB, and Keyboard Wedge through its multi-interface platform.

Q: What kind of scan confirmation does it provide?
A: It offers a loud beeper, Datalogic 3GL good-read feedback, Green Spot on the code, and dual good-read LEDs.

Q: What color is this model available in?
A: The datasheet lists yellow/black as an available color.

Q: Is this cordless?A: No. PD9531 is the corded model in the family. The cordless variants shown in the datasheet are the PBT9501 and PM9501 series, not PD9531.
