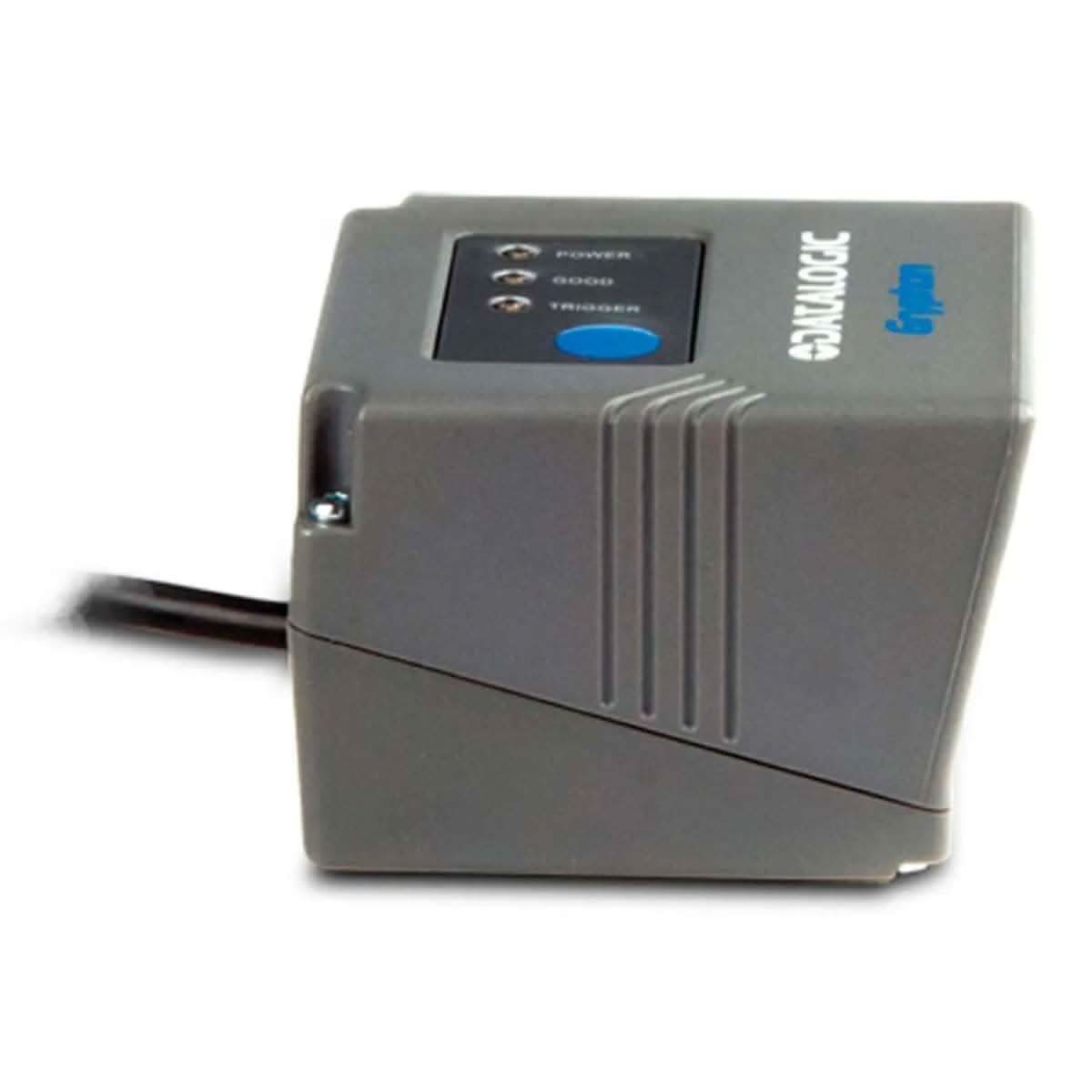

Datalogic Scanning GFS4470 Gryphon GFS4400 Fixed Scanner, 2D, USB

Name: Datalogic Scanning GFS4470 Gryphon GFS4400 Fixed Scanner, 2D, USB
Rating: 5.0 (2 reviews)

Delivery Time: 0-3 days

Brand Datalogic

Model Number GFS4470

UPC 767261273832

EpicRise Warranty 1 Year

Product Highlights

2D imager
Fixed scanner
Manufactured by Datalogic Scanning

Overview
Specifications
FAQ
User Guides
Reviews

The gryphon GFS4400 and Gfe4400 2D bar Code scanners are for OEM use in automated self-service kiosks and for general use in any hands-free scanning activity. The GFS4400 fixed mount area imager is a complete, self-contained OEM scan module with a plastic case and cable, while the Gfe4400 is just the electronic engine. Both models are designed to be easy to integrate by system designers with little expertise in scanning technology. The GFS4400 OEM module supports several modes that can be used as a trigger. This module has the ability to automatically sense objects and trigger itself. A continuous scan mode captures data whenever a bar code passes into its field-of-view. The reader can also be triggered remotely through software commands or via hardware input from programmable logic controller (PLC) or sensor. The GFS4400 OEM module supports an RS-232 serial interface or a USB (USB-HID or USB COM) interface. Available in two models, the GFS4450-9 model supports an RS-232 serial interface, or the GFS4470 features a USB interface.

2D imager
Fixed scanner
Manufactured by Datalogic Scanning

2D imager

Product Details
Color	Black
Connection Type	USB
Scanner Interface	USB
Barcode Supported	2D
Scanner Sensor Type	2D imager

General Specifications

Model Number: Gryphon GFS4400 2D
Scanner Type: Fixed Mount 2D Imager
Supported Symbologies: 1D, 2D, Postal, Stacked and Composite Codes
Connectivity: RS-232, USB (USB COM, USB HID Keyboard)
Input Voltage: 5 VDC ± 5%
Operating Current: < 180 mA (typical)
Standby Current: 115 mA (Automatic Object Sense Mode), 65 mA (Online & Serial Online Modes)
Water and Dust Sealing: IP54
Drop Resistance: Withstands drops from 0.76 m / 2.5 ft onto concrete

Performance Characteristics

Imager Sensor: Wide VGA 752 x 480 pixels
Image Capture: BMP, JPEG, TIFF formats; Greyscale: 256, 16, 2 levels
Light Source: 650 nm Visible Laser Diode (VLD)
Print Contrast Ratio (Minimum): 25%
Motion Tolerance: Advanced optics for fast reading
Reading Angle: Pitch ±40°, Roll 180°, Skew ±40°
Resolution (Maximum):

1D Linear: 0.102 mm / 4 mils
Data Matrix: 0.178 mm / 7 mils
PDF417: 0.102 mm / 4 mils
Code 39 5 mil: 4.7 to 17.7 cm / 1.8 to 7.0 in
Code 39 10 mil: 1.7 to 33.2 cm / 0.7 to 13.1 in
Data Matrix 10 mil: 2.7 to 17.1 cm / 1.0 to 6.7 in
Data Matrix 15 mil: 1.2 to 24.6 cm / 0.5 to 9.7 in
EAN 13 mil: 2.5 to 41.9 cm / 1.0 to 16.5 in
PDF417 10 mil: 2.2 to 23.9 cm / 0.9 to 9.4 in
QR Code 10 mil: 3.5 to 16.0 cm / 1.4 to 6.3 in

User Interface

Good Read Indicators: Beeper (adjustable tone), Green Spot visual indicator, LED indicator

Physical Characteristics

Dimensions: 3.9 × 5.7 × 5.8 cm / 1.5 × 2.2 × 2.3 in
Weight (with Cable):

USB: 170 g / 6.3 oz
RS-232: 204 g / 7.2 oz

Environmental

Operating Temperature: -20°C to 50°C / -4°F to 122°F
Storage Temperature: -20°C to 70°C / -4°F to 158°F
Ambient Light Immunity: 0 to 100,000 lux
Humidity (non-condensing): 5% to 95%
