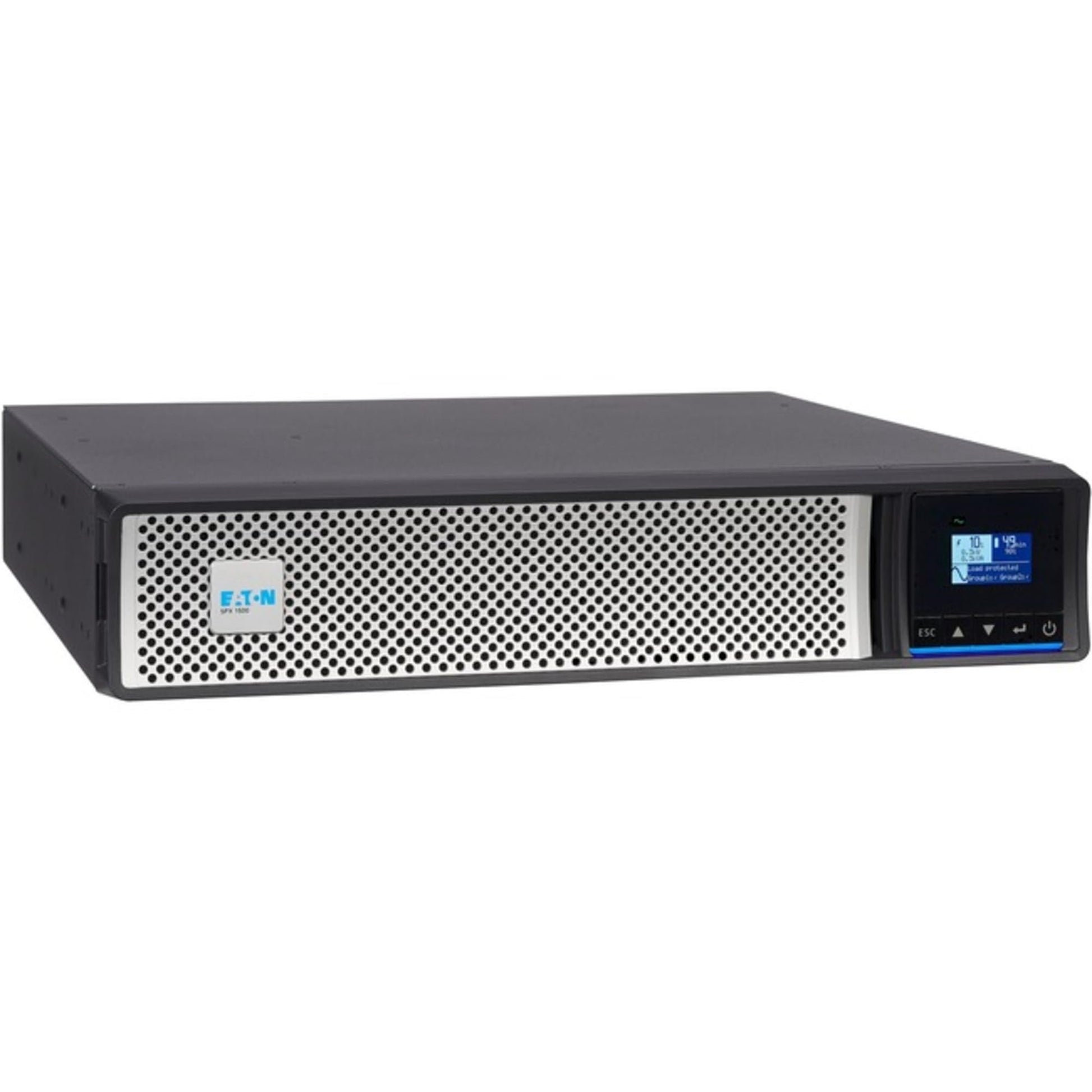

Eaton 5PX1500RTNG2 1440VA/1440W 2U Rack/Tower Line-Interactive UPS with Pre-Installed NETWORK-M3 Network Card

Brand Eaton
Model Number 5PX1500RTNG2
UPC 743172105684
EpicRise Warranty First Year
Product Highlights

• NETWORK-M3 Gigabit Network Card included and pre-installed, so remote monitoring works out of the box.

• Line-interactive UPS rated 1440 VA / 1440 W with 98% efficiency at max load to keep heat and energy use low.

• Eight 5-15R outlets and a 5-15P plug on a 10 ft cord for server racks and network closets.

• Up to four 5PXEBM48RTG2 extended battery modules for longer runtime during extended outages.

• User-replaceable battery with ABM charging that extends battery service life by 50%.

• 2U rack/tower with rack hardware and tower stands included, plus RK4PRS ship-in-rack support.

  • Overview
  • Specifications
  • FAQ
  • User Guides
  • Reviews

The Eaton 5PX1500RTNG2 is a 1440 VA / 1440 W line-interactive UPS from the Eaton 5PX G2 family that ships with a NETWORK-M3 Gigabit Network Card included and pre-installed. It is built for server racks and remote sites where the UPS must be monitored and managed over the network from day one.

The 2U rack/tower chassis provides eight 5-15R outlets from a 5-15P plug on a 10 ft cord and delivers 98% efficiency at maximum load. It ships with rack-mounting hardware and tower support stands, can ship installed in a rack with the RK4PRS 4-post rail kit, and supports wall mounting with the WMNTKIT kit.

Eaton Advanced Battery Management (ABM) three-stage charging extends battery service life by 50%, the internal battery is user replaceable, and up to four 5PXEBM48RTG2 extended battery modules can be added for longer runtime. The UPS works with the Brightlayer Data Centers suite and also provides USB and RS-232 ports.

Best For

The 5PX1500RTNG2 fits sites that need efficient battery backup for up to 1440 W with network management ready on arrival.

- Remote and branch sites: Monitor and manage the UPS over the network without installing a card on site.

- Server racks: Protect a server, storage and switching on eight 5-15R outlets in 2U.

- Managed network closets: Bring UPS status into your monitoring tools through the pre-installed NETWORK-M3 card.

- Packaged and pre-built racks: Ship the UPS installed in the rack with the RK4PRS 4-post rail kit.

Key Features

- Line-interactive topology: Rated 1440 VA / 1440 W with 98% efficiency at maximum load to keep energy and heat low.

- 2U rack/tower design: Ships with rack-mounting hardware and tower support stands, and fits Eaton wall-mount and rail kits.

- Ship-in-rack ready: With the RK4PRS 4-post rail kit, the UPS can ship installed in a rack for packaged deployments.

- ABM battery technology: Three-stage charging extends battery service life by 50% and provides advance warning for battery replacement.

- Expandable runtime: Add up to four 5PXEBM48RTG2 extended battery modules; the internal battery is user replaceable.

- Network management: Gigabit Network Card (NETWORK-M3) included and pre-installed in the expansion slot, with USB and RS-232 ports and Brightlayer Data Centers suite software compatibility.

- Selectable output voltage: Nominal output voltage of 100, 110, 120 or 125V at 50/60 Hz.

- LCD graphical display: Shows UPS status and load information at a glance.

Quick Specs

Model 5PX1500RTNG2
Capacity 1440 VA / 1440 W
Topology Line-interactive
Nominal Output Voltage 100/110/120/125V
Nominal Frequency 50/60 Hz
Output Receptacles (8) 5-15R
Input Connection 5-15P, 10 ft cord
Input Nominal Voltage 120 VAC
Input Power Factor 1
Battery Type Valve regulated lead acid (VRLA)
Battery Replacement User replaceable
Extended Battery Modules Up to 4 x 5PXEBM48RTG2
Network Card NETWORK-M3 included and pre-installed
Software Brightlayer Data Centers suite
User Interface LCD graphical display
Efficiency at Max Load 98%
Heat Dissipation Normal operation 106 BTU/hr; Battery 699 BTU/hr
Form Factor 2U rack/tower
Dimensions (H x W x D) 3.4 x 17.2 x 17.6 in
Weight 50.7 lb

What's Included

- Eaton 5PX G2 1440VA 1440W 120V line-interactive UPS with 8 outlets

- NETWORK-M3 Gigabit network card

- USB cable

- RS-232 cable

- Rack-mounting hardware

- Tower support stands

- Safety guide

- Quick start guide

Product Details
Color Black
What environments is the Eaton 5PX1500RTNG2 best suited for?
The Eaton 5PX1500RTNG2 suits server racks, remote sites and managed network closets that need efficient line-interactive protection for up to 1440 W. Its 2U chassis installs in a rack, stands as a tower or mounts on a wall with the WMNTKIT kit.
What is the difference between the Eaton 5PX1500RTNG2 and the 5PX1500RTG2?
Both are 1440 VA / 1440 W 5PX G2 line-interactive UPS units with eight 5-15R outlets. The 5PX1500RTNG2 ships with the NETWORK-M3 Gigabit Network Card included and pre-installed, while on the 5PX1500RTG2 the card is optional.
Is the Eaton 5PX1500RTNG2 a good value?
The 5PX1500RTNG2 is a strong value for equipment that runs well on line-interactive protection, with 98% efficiency at maximum load and ABM charging that extends battery service life by 50%. If the load needs online double-conversion with a true sine wave output, consider the Eaton 9PX line instead.
What is the Eaton 5PX1500RTNG2 compatible with?
The 5PX1500RTNG2 plugs into a standard 5-15 receptacle through a 5-15P plug on a 10 ft cord and provides eight 5-15R outlets. Nominal output voltage can be set to 100, 110, 120 or 125V, and it works with NETWORK-M3, INDGW-M2 and RELAY-MS cards and 5PXEBM48RTG2 extended battery modules.
Can the runtime of the Eaton 5PX1500RTNG2 be extended?
Yes. The 5PX1500RTNG2 supports up to four 5PXEBM48RTG2 extended battery modules, which add runtime for longer outages.
What battery does the Eaton 5PX1500RTNG2 use?
The 5PX1500RTNG2 uses a user-replaceable valve regulated lead acid (VRLA) internal battery. ABM three-stage charging extends battery service life by 50% and warns you before replacement is due.
How is the Eaton 5PX1500RTNG2 managed over the network?
The 5PX1500RTNG2 ships with the NETWORK-M3 Gigabit Network Card pre-installed, so it is ready for remote monitoring out of the box. It also has USB and RS-232 ports and works with the Brightlayer Data Centers suite.
What mounting options are available for the Eaton 5PX1500RTNG2?
The 5PX1500RTNG2 ships with rack-mounting hardware and tower support stands. Eaton also offers the RK4PRS 4-post rail kit for ship-in-rack deployments, a 2U two-post rail kit and the WMNTKIT wall-mount kit.
What are the dimensions and weight of the Eaton 5PX1500RTNG2?
The 5PX1500RTNG2 is a 2U unit measuring 3.4 in high, 17.2 in wide and 17.6 in deep and weighs 50.7 lb.
How efficient is the Eaton 5PX1500RTNG2?
The 5PX1500RTNG2 reaches 98% efficiency at maximum load. Heat output is 106 BTU/hr in normal operation and 699 BTU/hr on battery.
