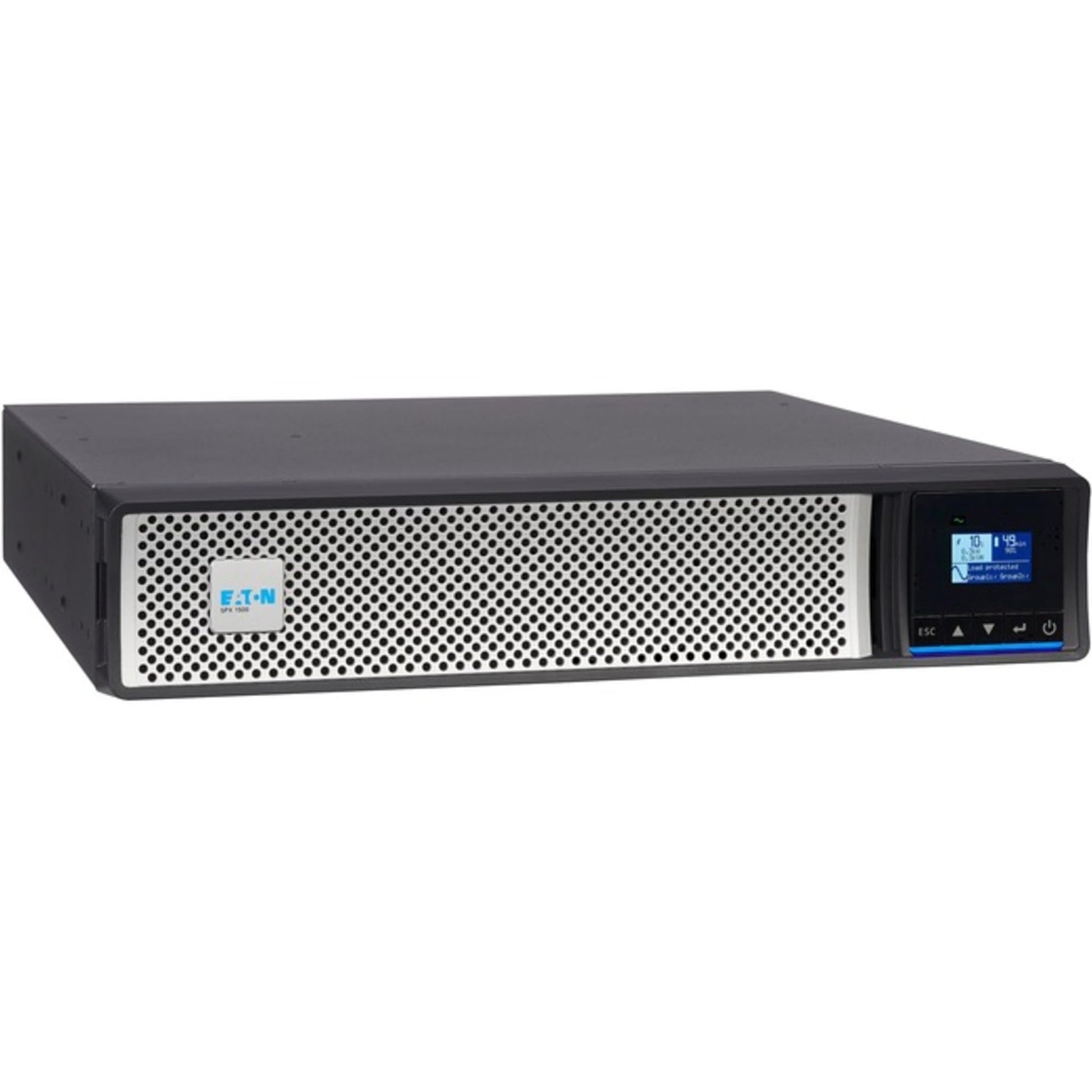

Eaton 5PX1500RTG2 1440VA/1440W 2U Rack/Tower Line-Interactive UPS with Eight 5-15R Outlets for Server Racks

Brand Eaton
Model Number 5PX1500RTG2
UPC 743172105776
EpicRise Warranty First Year
Product Highlights

• Line-interactive UPS rated 1440 VA / 1440 W that runs from a standard 5-15P plug for easy installation.

• Eight 5-15R outlets on a 10 ft input cord for server racks, network closets and edge deployments.

• 98% efficiency at max load keeps energy use and heat output low in crowded racks.

• Up to four 5PXEBM48RTG2 extended battery modules for longer runtime when outages run long.

• User-replaceable EBP-1613 battery with ABM charging that extends battery service life by 50%.

• 2U rack/tower with rack hardware and tower stands included, plus an optional NETWORK-M3 card slot.

  • Overview
  • Specifications
  • FAQ
  • User Guides
  • Reviews

The Eaton 5PX1500RTG2 is a 1440 VA / 1440 W line-interactive UPS from the Eaton 5PX G2 family, built in a 2U rack/tower chassis for server racks, network closets and edge deployments. It runs from a standard 5-15P plug on a 10 ft cord and delivers 98% efficiency at maximum load.

Eight 5-15R outlets cover a server, storage and switching in a single rack. The UPS ships with rack-mounting hardware and tower support stands, can ship installed in a rack with the RK4PRS 4-post rail kit, and supports wall mounting with the WMNTKIT kit.

Eaton Advanced Battery Management (ABM) three-stage charging extends battery service life by 50%, the EBP-1613 battery is user replaceable, and up to four 5PXEBM48RTG2 extended battery modules can be added for longer runtime. An expansion slot accepts the optional NETWORK-M3 Gigabit Network Card for remote monitoring with the Brightlayer Data Centers suite.

Best For

The 5PX1500RTG2 fits rack installations that need efficient, expandable battery backup for up to 1440 W on a standard 120V receptacle.

- Server racks: Protect a server, storage and top-of-rack switching on eight 5-15R outlets.

- Network closets: Back up core switching and firewalls with a UPS that plugs into a standard 5-15 receptacle.

- Edge and branch deployments: Add the NETWORK-M3 card to monitor the UPS remotely where IT staff are not on site.

- Packaged and pre-built racks: Ship the UPS installed in the rack with the RK4PRS 4-post rail kit.

Key Features

- Line-interactive topology: Rated 1440 VA / 1440 W with 98% efficiency at maximum load to keep energy and heat low.

- 2U rack/tower design: Ships with rack-mounting hardware and tower support stands, and fits Eaton wall-mount and rail kits.

- Ship-in-rack ready: With the RK4PRS 4-post rail kit, the UPS can ship installed in a rack for packaged deployments.

- ABM battery technology: Three-stage charging extends battery service life by 50% and provides advance warning for battery replacement.

- Expandable runtime: Add up to four 5PXEBM48RTG2 extended battery modules; the internal battery is user replaceable.

- Network management: One expansion slot for an optional NETWORK-M3 Gigabit Network Card, with USB and RS-232 ports and Brightlayer Data Centers suite software compatibility.

- Selectable output voltage: Nominal output voltage of 100, 110, 120 or 125V at 50/60 Hz.

- LCD graphical display: Shows UPS status and load information at a glance.

Quick Specs

Model 5PX1500RTG2
Capacity 1440 VA / 1440 W
Topology Line-interactive
Nominal Output Voltage 100/110/120/125V
Nominal Frequency 50/60 Hz
Output Receptacles (8) 5-15R
Input Connection 5-15P, 10 ft cord
Input Nominal Voltage 120 VAC
Input Power Factor 1
Battery Type Valve regulated lead acid (VRLA)
Battery Replacement User replaceable EBP-1613
Extended Battery Modules Up to 4 x 5PXEBM48RTG2
Network Card NETWORK-M3 optional (one slot)
Software Brightlayer Data Centers suite
User Interface LCD graphical display
Efficiency at Max Load 98%
Heat Dissipation Normal operation 106 BTU/hr; Battery 699 BTU/hr
Form Factor 2U rack/tower
Dimensions (H x W x D) 3.4 x 17.2 x 17.6 in
Weight 50.7 lb

What's Included

- Eaton 5PX G2 1440VA 1440W 120V line-interactive UPS with 8 outlets

- USB cable

- RS-232 cable

- Rack-mounting hardware

- Tower support stands

- Safety guide

- Quick start guide

Product Details
Color Black
What environments is the Eaton 5PX1500RTG2 best suited for?
The Eaton 5PX1500RTG2 suits server racks, network closets and edge deployments that need efficient line-interactive protection for up to 1440 W. Its 2U chassis installs in a rack, stands as a tower or mounts on a wall with the WMNTKIT kit.
How does the Eaton 5PX1500RTG2 compare with other Eaton 5PX G2 models?
The 5PX1500RTG2 raises output to 1440 W from the 1000 W of the 5PX1000RTG2 while keeping the same 5-15P plug and 5PXEBM48RTG2 battery module. The 5PX1500RTNG2 is the same capacity with the NETWORK-M3 card pre-installed, and the 5PX2000RTG2 moves to a 5-20P plug.
Is the Eaton 5PX1500RTG2 a good value?
The 5PX1500RTG2 is a strong value for equipment that runs well on line-interactive protection, with 98% efficiency at maximum load and ABM charging that extends battery service life by 50%. If the load needs online double-conversion with a true sine wave output, consider the Eaton 9PX line instead.
What is the Eaton 5PX1500RTG2 compatible with?
The 5PX1500RTG2 plugs into a standard 5-15 receptacle through a 5-15P plug on a 10 ft cord and provides eight 5-15R outlets. Nominal output voltage can be set to 100, 110, 120 or 125V, and it works with NETWORK-M3, INDGW-M2 and RELAY-MS cards and 5PXEBM48RTG2 extended battery modules.
Can the runtime of the Eaton 5PX1500RTG2 be extended?
Yes. The 5PX1500RTG2 supports up to four 5PXEBM48RTG2 extended battery modules, which add runtime for longer outages.
What battery does the Eaton 5PX1500RTG2 use?
The 5PX1500RTG2 uses user-replaceable Eaton battery pack EBP-1613, a valve regulated lead acid (VRLA) battery. ABM three-stage charging extends battery service life by 50% and warns you before replacement is due.
How is the Eaton 5PX1500RTG2 managed over the network?
The 5PX1500RTG2 has one expansion slot for the optional NETWORK-M3 Gigabit Network Card for remote monitoring. It also has USB and RS-232 ports and works with the Brightlayer Data Centers suite.
What mounting options are available for the Eaton 5PX1500RTG2?
The 5PX1500RTG2 ships with rack-mounting hardware and tower support stands. Eaton also offers the RK4PRS 4-post rail kit for ship-in-rack deployments, a 2U two-post rail kit and the WMNTKIT wall-mount kit.
What are the dimensions and weight of the Eaton 5PX1500RTG2?
The 5PX1500RTG2 is a 2U unit measuring 3.4 in high, 17.2 in wide and 17.6 in deep and weighs 50.7 lb.
How efficient is the Eaton 5PX1500RTG2?
The 5PX1500RTG2 reaches 98% efficiency at maximum load. Heat output is 106 BTU/hr in normal operation and 699 BTU/hr on battery.
