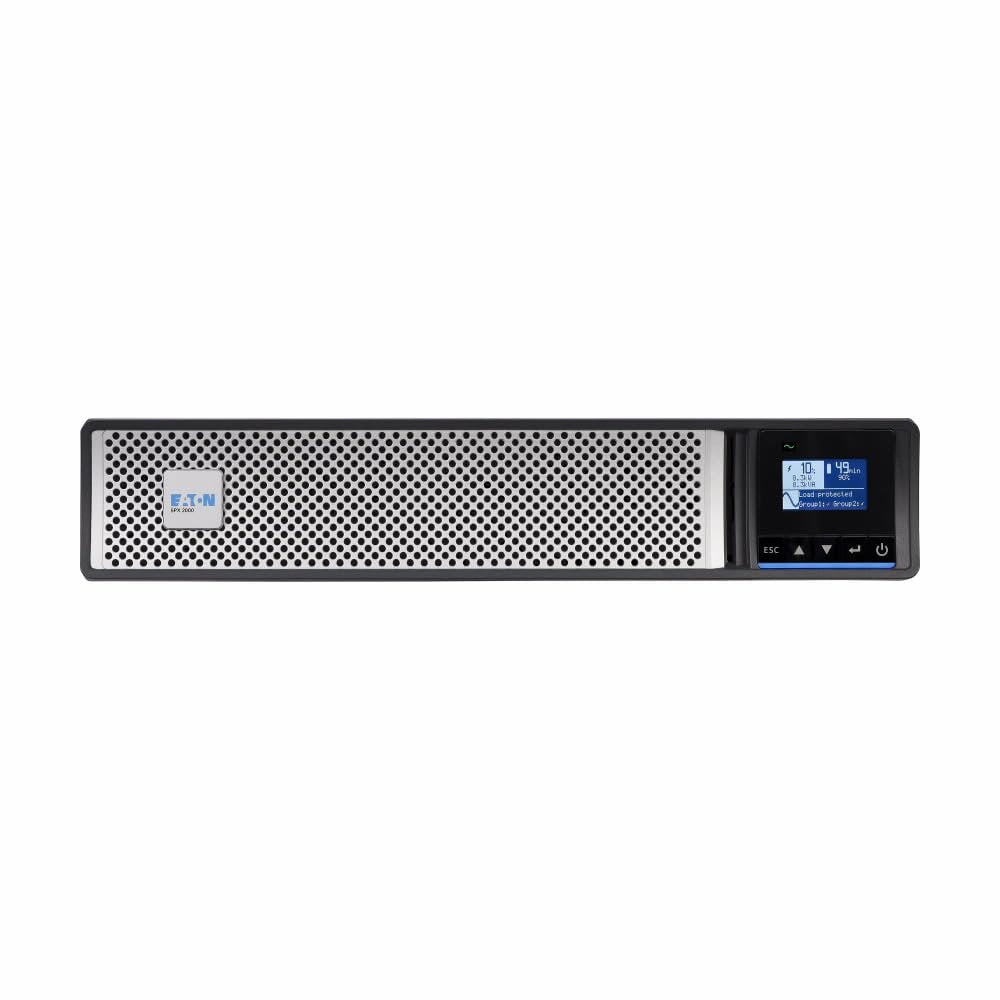

Eaton 5PX2000RTG2 1950VA/1950W 2U Rack/Tower Line-Interactive UPS with 5-20R and L5-20R Outlets for Servers

Brand Eaton
Model Number 5PX2000RTG2
UPC 743172105691
EpicRise Warranty First Year
Product Highlights

• Line-interactive UPS rated 1950 VA / 1950 W with 98% efficiency at max load for dense server racks.

• Six 5-20R outlets and one L5-20R outlet, powered by a 5-20P plug on a 10 ft input cord.

• Up to four 5PXEBM72RTG2 extended battery modules for longer runtime during extended outages.

• User-replaceable EBP-1616 battery with ABM charging that extends battery service life by 50%.

• 2U rack/tower with rack hardware and tower stands included, plus RK4PRS ship-in-rack support.

• Expansion slot for an optional NETWORK-M3 Gigabit Network Card, with USB and RS-232 ports built in.

  • Overview
  • Specifications
  • FAQ
  • User Guides
  • Reviews

The Eaton 5PX2000RTG2 is a 1950 VA / 1950 W line-interactive UPS from the Eaton 5PX G2 family, built in a 2U rack/tower chassis for server racks and network cores with a heavier load. It delivers 98% efficiency at maximum load, keeping energy use and heat output low in dense racks.

Power comes in through a 5-20P plug on a 10 ft cord and goes out through six 5-20R outlets and one L5-20R outlet. The UPS ships with rack-mounting hardware and tower support stands, can ship installed in a rack with the RK4PRS 4-post rail kit, and supports wall mounting with the WMNTKIT kit.

Eaton Advanced Battery Management (ABM) three-stage charging extends battery service life by 50%, the EBP-1616 battery is user replaceable, and up to four 5PXEBM72RTG2 extended battery modules can be added for longer runtime. An expansion slot accepts the optional NETWORK-M3 Gigabit Network Card for remote monitoring with the Brightlayer Data Centers suite.

Best For

The 5PX2000RTG2 fits racks with a 5-20 receptacle that need efficient, expandable battery backup for close to 2000 W.

- Server racks: Protect multiple servers and storage with up to 1950 W across 5-20R and L5-20R outlets.

- Network cores: Back up core switches and firewalls with 98% efficiency at maximum load.

- Sites that need longer runtime: Add up to four 5PXEBM72RTG2 extended battery modules.

- Packaged and pre-built racks: Ship the UPS installed in the rack with the RK4PRS 4-post rail kit.

Key Features

- Line-interactive topology: Rated 1950 VA / 1950 W with 98% efficiency at maximum load to keep energy and heat low.

- 2U rack/tower design: Ships with rack-mounting hardware and tower support stands, and fits Eaton wall-mount and rail kits.

- Ship-in-rack ready: With the RK4PRS 4-post rail kit, the UPS can ship installed in a rack for packaged deployments.

- ABM battery technology: Three-stage charging extends battery service life by 50% and provides advance warning for battery replacement.

- Expandable runtime: Add up to four 5PXEBM72RTG2 extended battery modules; the internal battery is user replaceable.

- Network management: One expansion slot for an optional NETWORK-M3 Gigabit Network Card, with USB and RS-232 ports and Brightlayer Data Centers suite software compatibility.

- Selectable output voltage: Nominal output voltage of 100, 110, 120 or 125V at 50/60 Hz.

- LCD graphical display: Shows UPS status and load information at a glance.

Quick Specs

Model 5PX2000RTG2
Capacity 1950 VA / 1950 W
Topology Line-interactive
Nominal Output Voltage 100/110/120/125V
Nominal Frequency 50/60 Hz
Output Receptacles (6) 5-20R, (1) L5-20R
Input Connection 5-20P, 10 ft cord
Input Nominal Voltage 120 VAC
Input Power Factor 1
Battery Type Valve regulated lead acid (VRLA)
Battery Replacement User replaceable EBP-1616
Extended Battery Modules Up to 4 x 5PXEBM72RTG2
Network Card NETWORK-M3 optional (one slot)
Software Brightlayer Data Centers suite
User Interface LCD graphical display
Efficiency at Max Load 98%
Heat Dissipation Normal operation 154 BTU/hr; Battery 744 BTU/hr
Form Factor 2U rack/tower
Dimensions (H x W x D) 3.4 x 17.2 x 23.7 in
Weight 65.3 lb

What's Included

- Eaton 5PX G2 1950VA 1950W 120V line-interactive UPS with 7 outlets

- USB cable

- RS-232 cable

- Rack-mounting hardware

- Tower support stands

- Safety guide

- Quick start guide

Product Details
Color Black
What environments is the Eaton 5PX2000RTG2 best suited for?
The Eaton 5PX2000RTG2 suits server racks and network cores that need efficient line-interactive protection for up to 1950 W. Its 2U chassis installs in a rack, stands as a tower or mounts on a wall with the WMNTKIT kit.
How does the Eaton 5PX2000RTG2 compare with other Eaton 5PX G2 models?
The 5PX2000RTG2 steps up from the 1440 W 5PX1500RTG2 to 1950 W and a 5-20P plug. It shares the 5PXEBM72RTG2 battery module and 2U depth with the 5PX3000RTG2, which raises output to 3000 W on an L5-30P plug.
Is the Eaton 5PX2000RTG2 a good value?
The 5PX2000RTG2 is a strong value for equipment that runs well on line-interactive protection, with 98% efficiency at maximum load and ABM charging that extends battery service life by 50%. If the load needs online double-conversion with a true sine wave output, consider the Eaton 9PX line instead.
What is the Eaton 5PX2000RTG2 compatible with?
The 5PX2000RTG2 plugs into a 5-20 receptacle through a 5-20P plug on a 10 ft cord and provides six 5-20R outlets and one L5-20R outlet. Nominal output voltage can be set to 100, 110, 120 or 125V, and it works with NETWORK-M3, INDGW-M2 and RELAY-MS cards and 5PXEBM72RTG2 extended battery modules.
Can the runtime of the Eaton 5PX2000RTG2 be extended?
Yes. The 5PX2000RTG2 supports up to four 5PXEBM72RTG2 extended battery modules, which add runtime for longer outages.
What battery does the Eaton 5PX2000RTG2 use?
The 5PX2000RTG2 uses user-replaceable Eaton battery pack EBP-1616, a valve regulated lead acid (VRLA) battery. ABM three-stage charging extends battery service life by 50% and warns you before replacement is due.
How is the Eaton 5PX2000RTG2 managed over the network?
The 5PX2000RTG2 has one expansion slot for the optional NETWORK-M3 Gigabit Network Card for remote monitoring. It also has USB and RS-232 ports and works with the Brightlayer Data Centers suite.
What mounting options are available for the Eaton 5PX2000RTG2?
The 5PX2000RTG2 ships with rack-mounting hardware and tower support stands. Eaton also offers the RK4PRS 4-post rail kit for ship-in-rack deployments, a 2U two-post rail kit and the WMNTKIT wall-mount kit.
What are the dimensions and weight of the Eaton 5PX2000RTG2?
The 5PX2000RTG2 is a 2U unit measuring 3.4 in high, 17.2 in wide and 23.7 in deep and weighs 65.3 lb.
How efficient is the Eaton 5PX2000RTG2?
The 5PX2000RTG2 reaches 98% efficiency at maximum load. Heat output is 154 BTU/hr in normal operation and 744 BTU/hr on battery.
Regular price
$1,850.00
Sale price
$1,850.00
Regular price
$1,850.00
Sale price
$1,850.00
Temporarily Out of Stock

1–2 weeks lead time may apply
