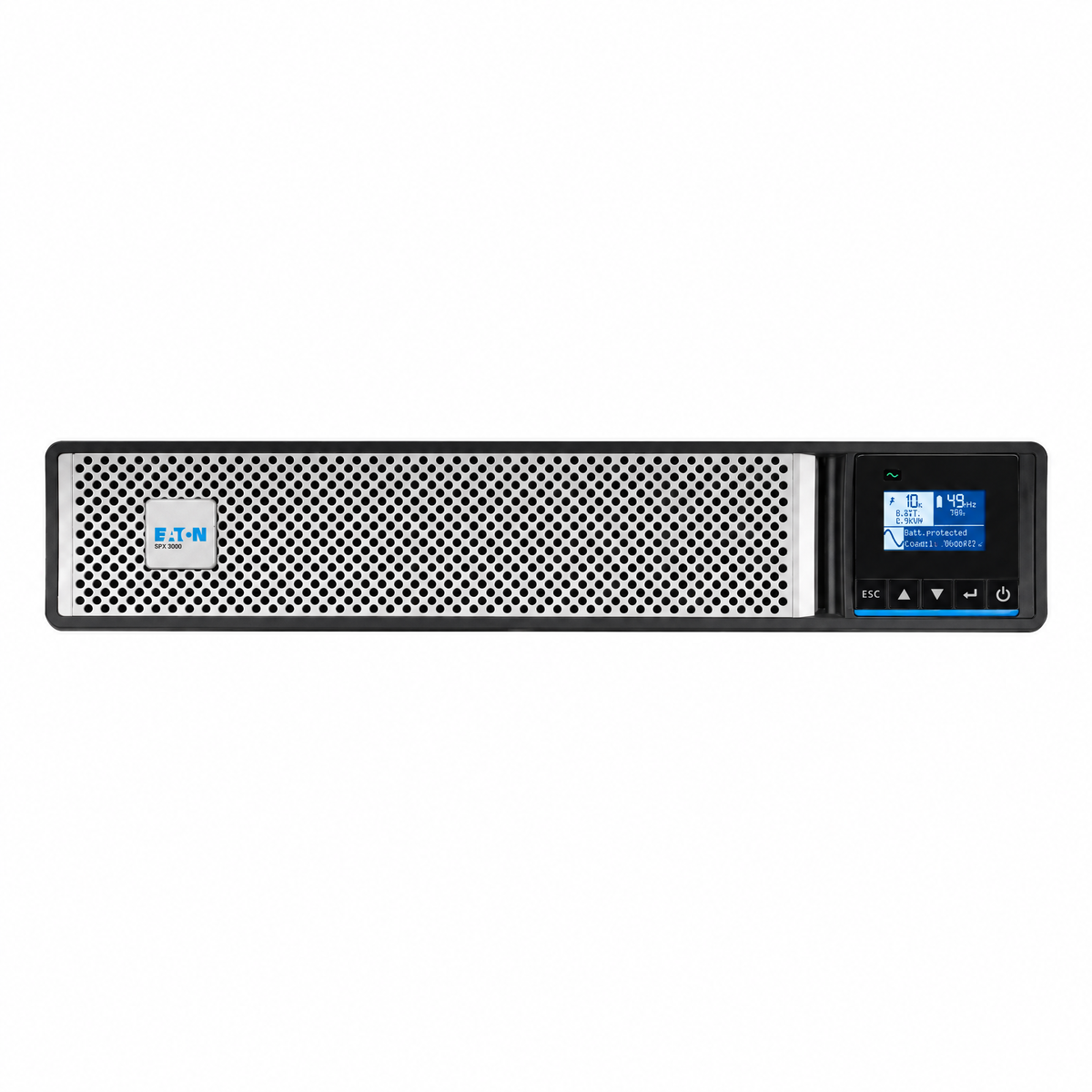

Eaton 5PX3000RTNG2 G2 3000VA/3000W Line-Interactive Rack/Tower UPS with Network Card

Eaton 5PX3000RTNG2 G2 3000VA/3000W Line-Interactive Rack/Tower UPS with Network Card

Name: Eaton 5PX3000RTNG2 G2 3000VA/3000W Line-Interactive Rack/Tower UPS with Network Card
Brand: EATON
SKU: EAT-5PX3000RTNG2

Brand EATON

Model Number 5PX3000RTNG2

EpicRise Warranty First Year

Product Highlights

• 3000VA/3000W power factor 1 performance delivers 11% more power in 2U rack space compared to previous generation models

• Pre-installed gigabit network card (NETWORK-M2) meets UL 2900-1 and IEC 62443-4-2 cybersecurity standards for secure remote management

• Energy Star 2.0 certified with up to 98% efficiency reduces energy consumption and cooling costs in always-on data center environments

• Pure sine wave line-interactive topology with enhanced surge protection safeguards networking equipment and servers

• Expandable runtime supports up to 4 external battery modules with hot-swappable user-replaceable batteries for extended uptime

Overview
Specifications
FAQ
User Guides
Reviews

The Eaton 5PX3000RTNG2 G2 UPS delivers enterprise-grade line-interactive power protection for distributed IT infrastructure. With 3000VA/3000W output capacity and power factor 1 performance, this 2U rackmount/tower UPS maximizes power delivery in compact installations while protecting networking equipment, servers, and edge computing devices from power disruptions, surges, and voltage fluctuations.

Featuring a pre-installed gigabit network card and LCD graphical interface, the 5PX G2 provides comprehensive remote monitoring and management capabilities. The line-interactive topology with pure sine wave output ensures clean, reliable power for sensitive IT equipment while achieving up to 98% efficiency to minimize operating costs. Advanced battery management technology extends service life by 50% and supports expansion with up to four external battery modules for mission-critical applications requiring extended runtime.

Best For

The Eaton 5PX3000RTNG2 is engineered for distributed IT environments requiring reliable power protection with advanced network management capabilities.

- Network Closets and Wiring Rooms: Protects switches, routers, and patch panels in telecommunications spaces with 2U rackmount design and remote monitoring via pre-installed network card

- Branch Office IT Infrastructure: Safeguards servers, storage devices, and networking equipment at remote locations with expandable runtime and automated shutdown capabilities

- Retail Point-of-Sale Systems: Ensures transaction continuity for POS terminals, payment processors, and back-office servers with pure sine wave output and surge protection

- Edge Computing Deployments: Powers edge servers and IoT gateways in wall-mount racks with reduced depth profile and high-density installation flexibility

- Small Data Center Environments: Delivers enterprise-class power protection for rack-mounted servers and storage arrays with 98% efficiency and cybersecurity-compliant network management

Key Features

- Power factor 1 (W=VA) architecture provides full 3000W output capacity with 11% more usable power than previous generation 5PX models

- Pre-installed NETWORK-M2 gigabit network card meets UL 2900-1 and IEC 62443-4-2 cybersecurity standards for secure SNMP monitoring and remote firmware updates

- Line-interactive topology with automatic voltage regulation maintains clean power without switching to battery during minor voltage fluctuations

- Pure sine wave output on battery mode ensures compatibility with active PFC power supplies and sensitive electronic equipment

- ABM 3-stage charging technology extends battery service life by 50% and provides advanced warning for battery replacement needs

- Expandable runtime architecture supports up to 4 external battery modules (5PXEBM72RTG2) with hot-swappable user-replaceable batteries

- Energy Star 2.0 certified with up to 98% efficiency at full load reduces energy consumption and heat generation in conditioned spaces

- Enhanced surge protection meeting IEC C62.41 standards safeguards connected equipment from transient voltage spikes and electrical noise

- LCD graphical display with tri-color LED status bar provides real-time load, battery, and alarm information with streamlined status indicators

- Rack/tower convertible form factor with included mounting hardware and tower support stands adapts to cabinet or floor installation requirements

- Remote firmware upgrade capability via network card enables mass updates across multiple units without load interruption or downtime

- DHCP-enabled network interface simplifies initial configuration and integration with existing network infrastructure management systems

Quick Specs

Model Number	5PX3000RTNG2
Output Power Capacity	3000 VA / 3000 W
Topology	Line-interactive
Output Waveform	Pure sine wave (battery mode)
Input Voltage	120V (nominal), 100-125V supported
Input Connection	L5-30P plug, 10 ft cord
Output Receptacles	(1) L5-30R + (6) NEMA 5-20R
Form Factor	2U rackmount / tower convertible
Dimensions (W×H×D)	17.2" × 3.4" × 23.7"
Weight	74.5 lb
Battery Type	Sealed lead-acid VRLA, user replaceable
Runtime (Full/Half Load)	3 min @ 3000W / 9 min @ 1500W
External Battery Support	Up to 4 EBMs (5PXEBM72RTG2)
Network Management	NETWORK-M2 gigabit card pre-installed
Communications Interfaces	Ethernet (pre-installed), USB HID, RS-232
Management Software	Brightlayer Data Centers suite compatible
Display	LCD graphical with tri-color LED status bar
Efficiency	Up to 98% at full load
Input Power Factor	1.0
Operating Temperature	Online: 208 BTU/hr, Battery: 1136 BTU/hr

What's Included

- Eaton 5PX3000RTNG2 G2 UPS with 7 output receptacles

- NETWORK-M2 gigabit network card (pre-installed)

- USB communications cable

- RS-232 serial cable

- Rack-mounting hardware kit

- Tower support stands

- Quick Start Guide

- Safety documentation

Product Details
Power Source	AC-powered

What types of IT environments is the Eaton 5PX3000RTNG2 designed for?

The 5PX3000RTNG2 is purpose-built for distributed IT applications including network closets, branch offices, retail stores, and edge computing deployments. Its 2U rackmount/tower design with pre-installed network card makes it suitable for protecting switches, servers, routers, and storage devices in locations requiring remote monitoring. The 3000VA/3000W capacity handles typical loads for small server racks, telecommunications equipment, and point-of-sale systems.

How does the 5PX G2 series compare to the previous generation 5PX models?

The 5PX G2 delivers 11% more output power than the original 5PX through power factor 1 performance, meaning 3000VA equals 3000W usable capacity. G2 models feature reduced depth for high-density wall-mount installations, at least 25% longer runtime on 1.5-2kVA models, enhanced surge protection meeting IEC 62041, and remote firmware upgrade capability. The new LCD display and tri-color LED status bar provide clearer diagnostics, while quieter fan operation with auto-shutoff improves acoustic performance.

Is the 3000VA capacity justified for typical branch office or network closet applications?

The 3000VA/3000W capacity provides headroom for multiple servers, switches, and network equipment while maintaining efficiency and expandability. This model supports mixed loads including active PFC power supplies common in modern servers, with seven output receptacles for flexible equipment connection. The included network card, expandable runtime capability, and 98% efficiency make it cost-effective for installations requiring 2000-2500W protection with growth capacity, versus running smaller units at maximum load.

What equipment and management systems is the 5PX3000RTNG2 compatible with?

The pre-installed NETWORK-M2 card provides SNMP compatibility with network management systems and works with Eaton Brightlayer Data Centers suite software for monitoring and automated shutdown. USB and RS-232 interfaces support direct server connections for local shutdown coordination. The pure sine wave output ensures compatibility with active PFC server power supplies, networking equipment, and telecommunications devices. External battery modules 5PXEBM72RTG2 are compatible for runtime expansion, and 10-foot extension cables (EBMCBL72) allow remote EBM placement.

How long will the UPS run my equipment during a power outage?

Internal batteries provide 3 minutes runtime at full 3000W load, or 9 minutes at half load (1500W). Runtime extends significantly with lighter loads or by adding external battery modules. Each location can add up to 4 EBMs (part number 5PXEBM72RTG2) to achieve extended runtime for mission-critical applications requiring graceful shutdown time or ride-through capability for brief outages.

Can the batteries be replaced without shutting down connected equipment?

Internal batteries are user-replaceable but require shutting down the UPS and connected equipment. The simplified bezel design makes battery access easier than previous models. Hot-swap capability is not available on this model for internal batteries, though external battery modules can be serviced with proper procedures. ABM battery management technology provides advance warning for replacement planning, typically extending service life to reduce replacement frequency.

What network management capabilities does the pre-installed card provide?

The NETWORK-M2 gigabit card enables remote monitoring via web browser, SNMP integration with network management platforms, email notifications for power events, and remote firmware updates without dropping the load. It meets UL 2900-1 and IEC 62443-4-2 cybersecurity standards for secure deployment. DHCP is enabled by default for simplified network integration. The card supports environmental monitoring when paired with optional EMPDT1H1C2 probe for temperature and humidity tracking.

Can multiple 5PX3000RTNG2 units be managed together for larger installations?

Brightlayer Data Centers suite software enables centralized monitoring and management of multiple UPS units across distributed locations. The network cards support SNMP for integration with enterprise management platforms. Mass firmware upgrades can be performed remotely via the network interface without load interruption. Each unit operates independently for power protection, but management functions can be consolidated for simplified administration across branch offices or multiple network closets.
