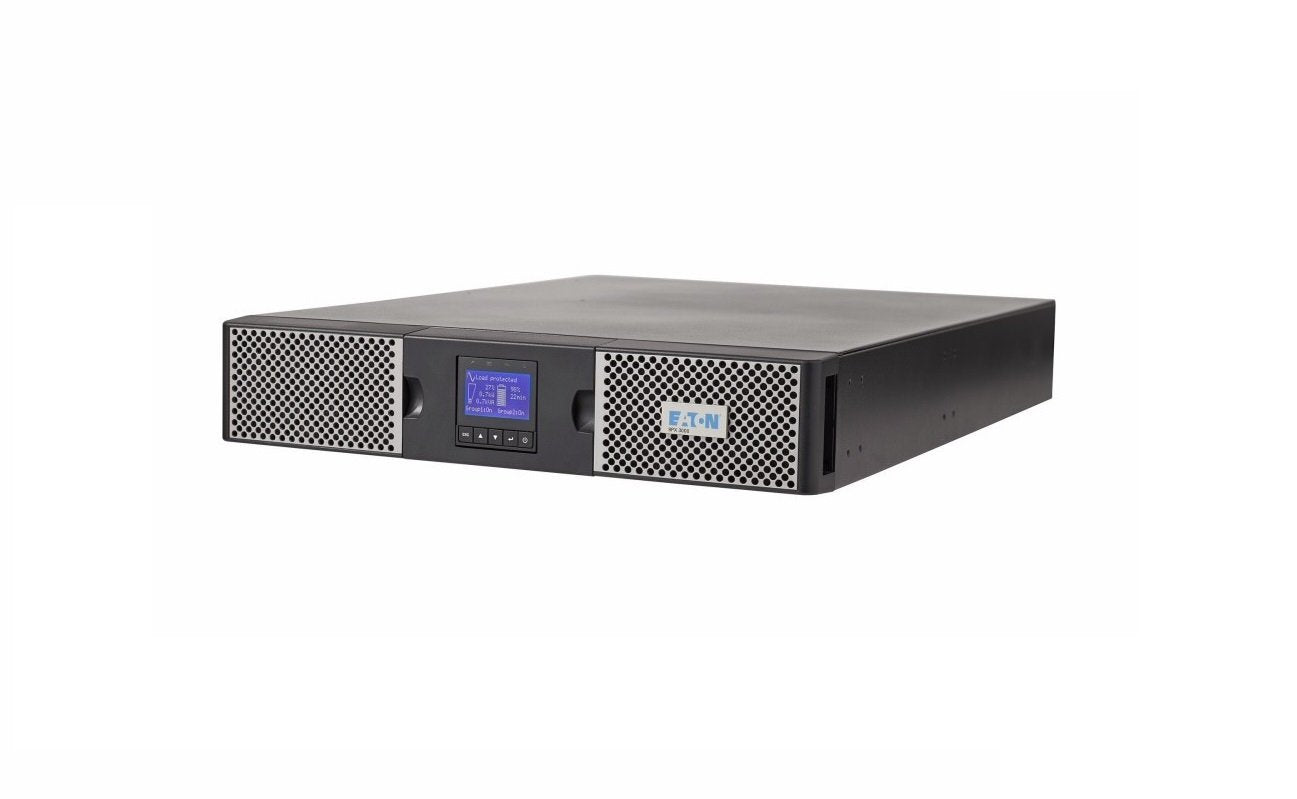

Eaton 9PX 1000 RT 1000VA/900W 2U Rack/Tower Online Double-Conversion UPS — 120V, 5-15P Input, 8x 5-15R Output, 90% Efficiency, 36.4 lbs, Mini-Slot Network Card Ready

Brand Eaton

Model Number 9PX

UPC 743172081254

EpicRise Warranty First Year

Product Highlights

• [True Online Double-Conversion at 2U]: Delivers complete power isolation with zero transfer time to battery in a 2U rack/tower form factor — ideal for small-to-medium server deployments.

• [900W at 0.9 Power Factor]: Higher power factor compared to conventional 0.8 PF designs provides more usable watts from a 1000VA rating for modern server and networking loads.

• [8 Battery-Backed Outlets]: Eight NEMA 5-15R receptacles provide protected power for servers, switches, storage, and connected devices — no PDU required for typical rack configurations.

• [90% High-Efficiency Operation]: Achieves up to 90% efficiency in online mode, reducing heat output and energy costs in high-density rack environments.

• [Mini-Slot Network Card Ready]: Built-in Mini-Slot bay accepts Eaton NETWORK-M2 and compatible cards for SNMP, web, Modbus, and BACnet remote monitoring and managed shutdown.

Overview
Specifications
FAQ
User Guides
Reviews

The Eaton 9PX1000RT is a 1000VA/900W online double-conversion UPS in a 2U rack/tower convertible chassis, designed for servers, network switches, and storage systems on 120V circuits. Its double-conversion topology continuously regenerates output power, providing complete isolation from input voltage sags, surges, spikes, and frequency deviations with zero transfer time to battery during power events.

The 9PX1000RT measures 3.4” H x 17.3” W x 17.7” D and weighs 36.4 lbs, fitting standard 19” server racks or deploying as a tower. Eight NEMA 5-15R receptacles accommodate common IT loads, and the Mini-Slot expansion bay supports optional Eaton network management cards for centralized remote UPS management.

Best For:

- Small server rooms and IT closets requiring true online UPS protection at 1000VA

- Rack deployments where 2U footprint and online double-conversion topology are both required

- IT teams managing UPS fleets via Eaton NETWORK-M2 and Intelligent Power Manager

- Environments with poor power quality where line-interactive protection is insufficient

- Server and networking equipment operating on standard 15A, 120V circuits

Key Features:

- Online double-conversion topology — zero transfer time to battery

- 1000VA / 900W, 0.9 power factor

- Input: NEMA 5-15P, 120V

- Output: (8) NEMA 5-15R battery-backed receptacles

- Efficiency: up to 90% in online mode

- 2U rack/tower convertible form factor

- Dimensions: 3.4” H x 17.3” W x 17.7” D

- Weight: 36.4 lbs

- Mini-Slot bay for optional network management card

- Eaton model: 9PX1000RT

Quick Specs:

- Model: 9PX1000RT

- Capacity: 1000VA / 900W

- Topology: Online Double-Conversion

- Power Factor: 0.9

- Input: NEMA 5-15P, 120V

- Output: (8) NEMA 5-15R

- Efficiency: Up to 90%

- Form Factor: 2U Rack/Tower

- Dimensions: 3.4” H x 17.3” W x 17.7” D

- Weight: 36.4 lbs

- Communication: USB, Serial, Mini-Slot

Product Details
Color	Black

What topology does the 9PX1000RT use?

Online double-conversion — the inverter continuously supplies load power, providing zero transfer time to battery and complete isolation from input power quality issues.

How many outlets does the 9PX1000RT have?

Eight NEMA 5-15R battery-backed receptacles.

What runtime can I expect at full load?

Approximately 6.3 minutes at full load (900W) from internal batteries. Runtime increases significantly at partial loads or with compatible Eaton external battery modules.

Can I add network monitoring?

Yes. The Mini-Slot bay accepts optional Eaton network management cards (e.g., NETWORK-M2) for SNMP, web, Modbus, and BACnet remote monitoring and graceful shutdown management.

Is the 9PX1000RT rack-mountable?

Yes. It installs in a standard 19” rack as a 2U unit and can also be configured as a tower.

What is the input plug type?

NEMA 5-15P — standard 15A, 120V plug for connection to a standard 15A or 20A wall or PDU receptacle.
