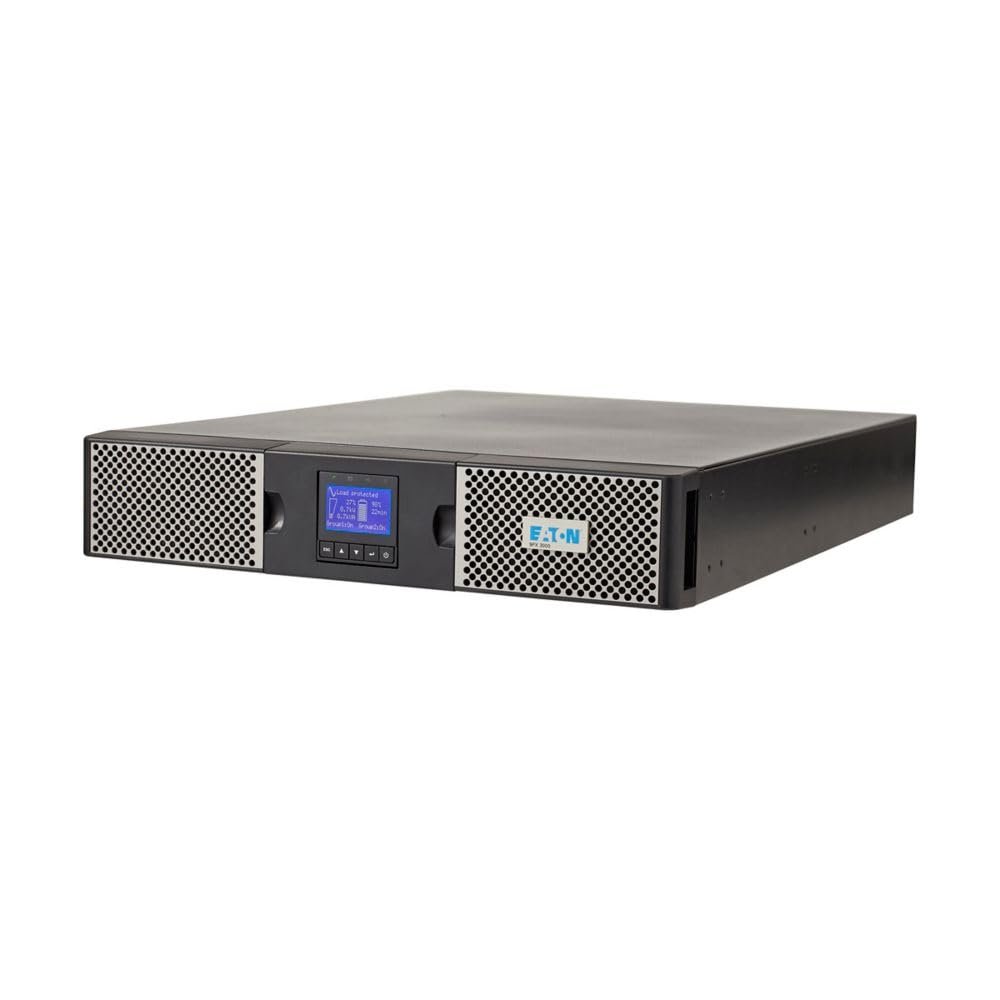

Eaton 9PX2000RT 2000VA/1800W 2U Rack/Tower Online Double-Conversion UPS with 5-20R and L5-20R Outlets

Brand Eaton
Model Number 9PX2000RT
UPC 743172081278
EpicRise Warranty First Year
Product Highlights

• Online double-conversion with true sine wave output and ±1% voltage regulation for up to 1800 W of rack equipment.

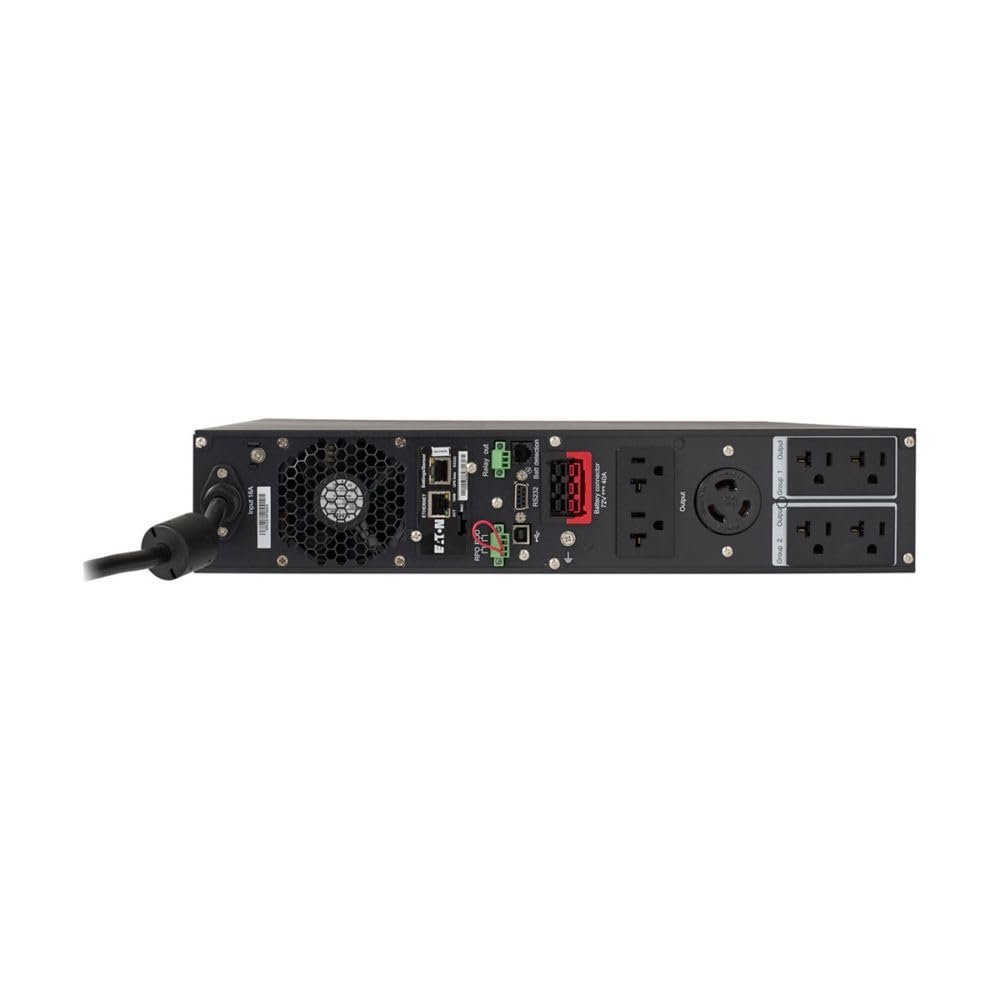

• Six 5-20R outlets and one L5-20R outlet in switched banks, fed by a 5-20P plug on an 8 ft cord.

• Rated 8 minutes at full load, expandable with up to four 9PXEBM72RT extended battery modules.

• Hot-swappable EBP-1616 battery with ABM charging that extends battery service life by 50%.

• 2U rack/tower chassis with rack-mounting hardware and tower stands included for flexible installation.

• 91% efficiency at max load and a MiniSlot bay for NETWORK-M3, INDGW-M2 or RELAY-MS cards.

  • Overview
  • Specifications
  • FAQ
  • User Guides
  • Reviews

The Eaton 9PX2000RT is a 2000 VA / 1800 W online double-conversion UPS in a 2U rack/tower chassis, built for server racks and network cores with a heavier load. It delivers a true sine wave output with a 0.9 output power factor and ±1% steady-state voltage regulation, and it is rated for 8 minutes of runtime at full load.

The 9PX2000RT draws power through a 5-20P plug on an 8 ft cord and provides six 5-20R outlets and one L5-20R outlet, split into separate switched banks for managed load shedding. Eaton Advanced Battery Management (ABM) three-stage charging extends battery service life by 50%, and the 72 VDC, 648 Wh internal battery is hot-swappable.

Up to four 9PXEBM72RT extended battery modules can be added for longer runtime. A MiniSlot bay, USB and RS-232 ports, remote ON/OFF and remote power off terminals, and an output relay terminal support remote monitoring and automated shutdown with Eaton Intelligent Power Software Suite.

Best For

The 9PX2000RT fits rack and tower installations with a 5-20 receptacle that need online-grade protection for a larger load.

- Server racks: Protect multiple servers, storage and switching with up to 1800 W in 2U of rack space.

- Network cores: Keep core switches and firewalls on regulated power, with switched banks to shed non-critical loads.

- Sites that need longer runtime: Start with 8 minutes at full load and add up to four 9PXEBM72RT modules.

- Remote and industrial sites: Manage the UPS with a NETWORK-M3 card or report status through an INDGW-M2 Modbus card.

Key Features

- Online double-conversion topology: True sine wave output at 0.9 output power factor with ±1% steady-state output voltage regulation, rated 2000 VA / 1800 W.

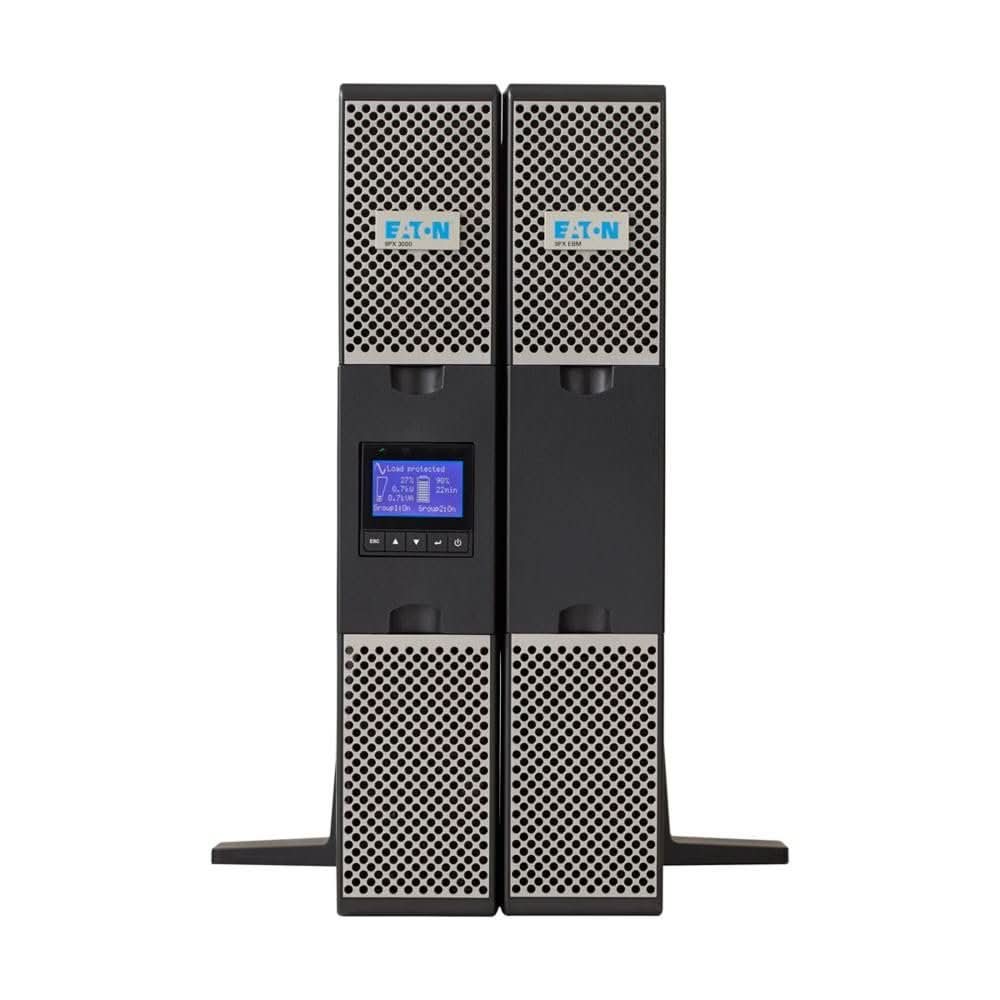

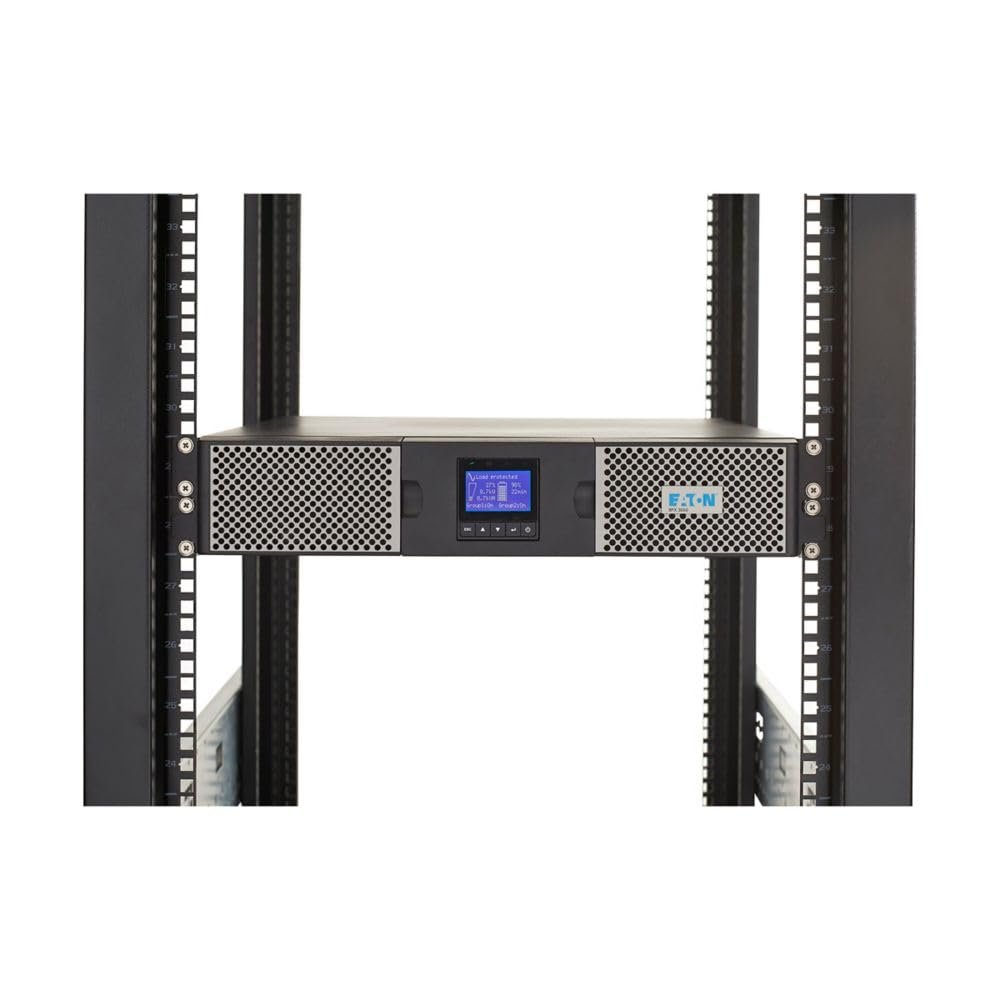

- 2U rack or tower installation: Mounts in a rack with the included hardware or stands upright on the included tower stands.

- Switched outlet banks: Outlets are split into separate switched banks for managed load shedding during an outage.

- ABM battery technology: Three-stage charging extends battery service life by 50% and provides advance warning for battery replacement.

- Hot-swappable batteries and up to 4 EBMs: Replace the internal battery without shutting down and add up to four 9PXEBM72RT extended battery modules.

- Remote management ready: One MiniSlot bay for NETWORK-M3, INDGW-M2 or RELAY-MS cards, plus USB, RS-232, remote ON/OFF, remote power off and output relay terminals.

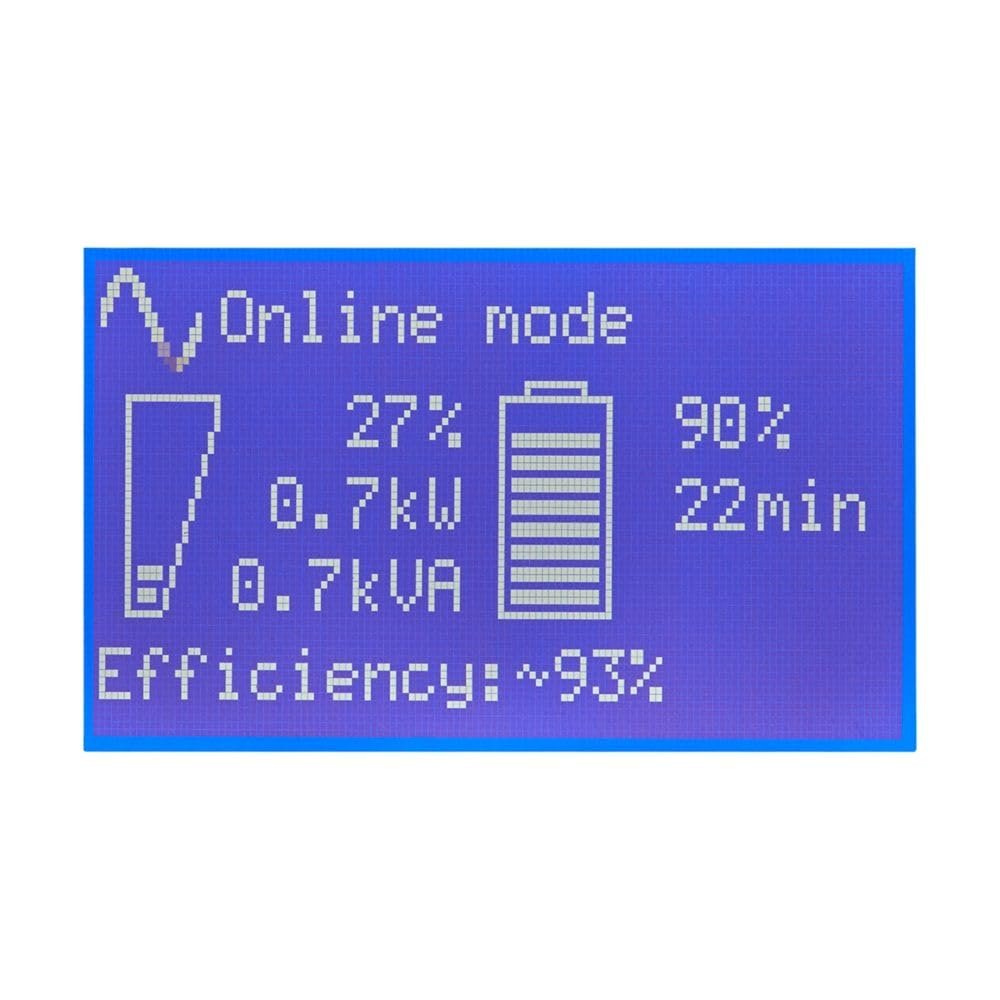

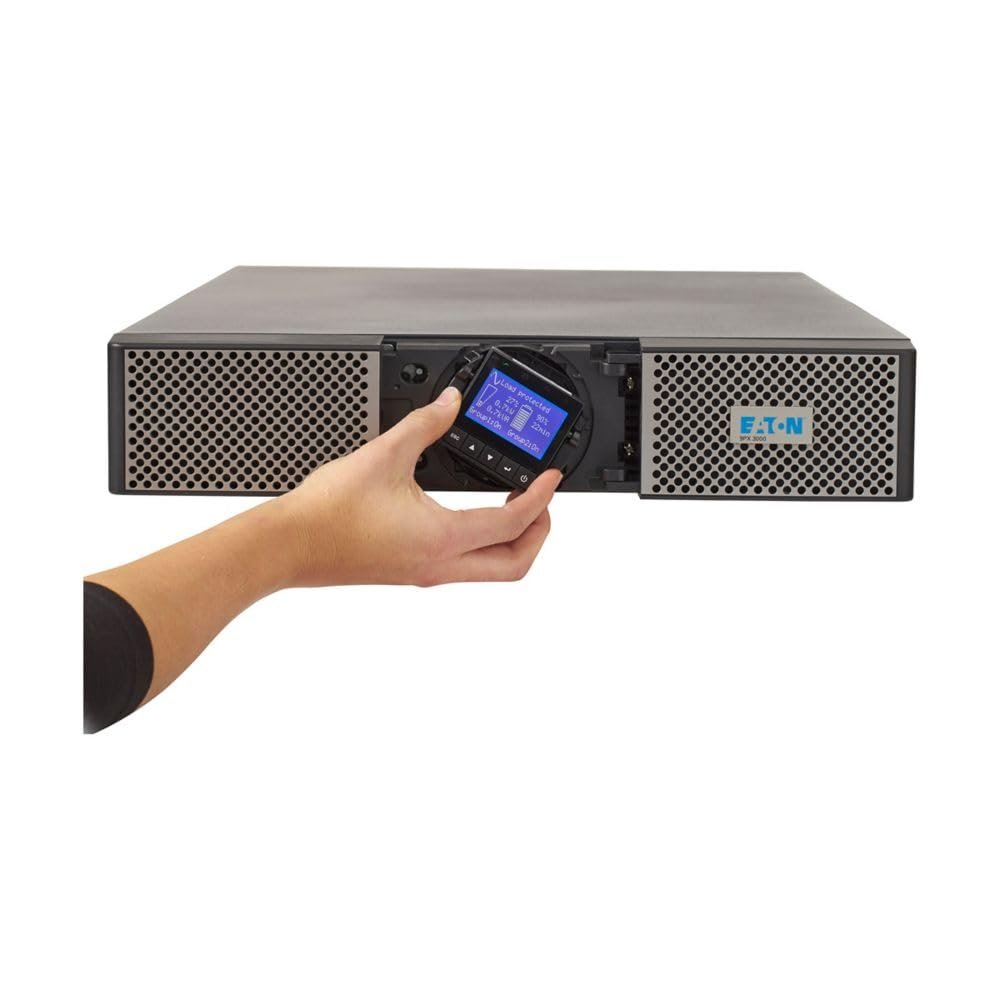

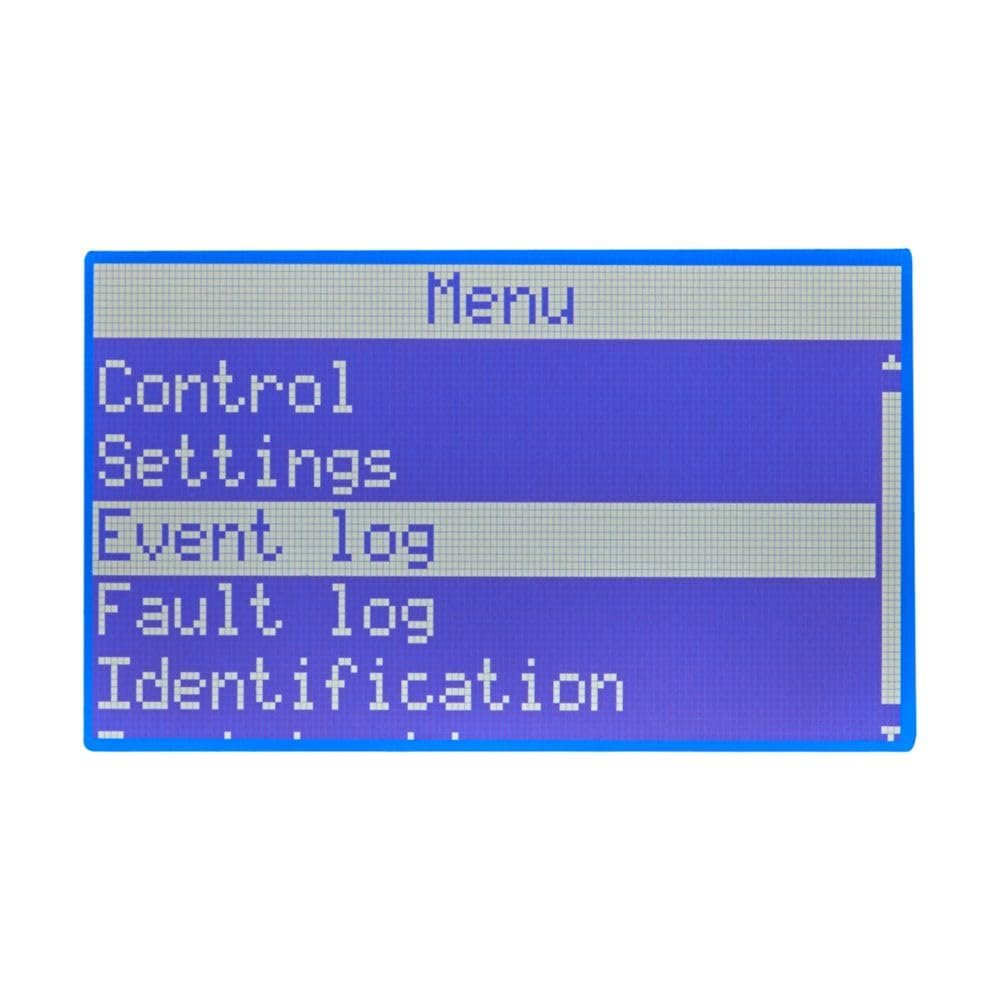

- Graphical LCD: Graphical display with a 5-button programmable menu keeps you updated on critical load information.

- Efficient, quiet operation: 91% efficiency at maximum load and a noise level below 47 dB at 1 m.

Quick Specs

Model 9PX2000RT
Capacity 2000 VA / 1800 W
Topology Online double-conversion
Output Waveform True sine wave
Output Power Factor 0.9
Output Voltage 120V default (100/110/120/125V selectable)
Output Voltage Regulation ±1% steady-state
Output Frequency 50/60 Hz
Output Receptacles (6) 5-20R, (1) L5-20R
Input Connection 5-20P, 8 ft cord
Input Frequency Range 60 Hz: 50–70 Hz; 50 Hz: 40–60 Hz
Input Power Factor >0.99 typical
Battery Type Valve regulated lead acid (VRLA)
Internal Battery 72 VDC, 9 Ah, 648 Wh
Runtime at Full Load 8 min
Replacement Battery EBP-1616
Extended Battery Modules Up to 4 x 9PXEBM72RT
Communications (1) MiniSlot, (1) USB, (1) RS-232, remote ON/OFF, remote power off and output relay terminals
Optional Cards NETWORK-M3 (Gigabit Web/SNMP), INDGW-M2 (Modbus), RELAY-MS (relay)
Software Intelligent Power Software Suite
User Interface Graphical display, 5-button programmable menu
Efficiency at Max Load 91%
Heat Dissipation Online 578 BTU/hr; Battery 974 BTU/hr
Noise Level <47 dB at 1 m
Operating Temperature 0° to 40°C (32° to 104°F)
Altitude 0–1500 m at 0° to 40°C; 1500–3000 m at 0° to 35°C
Relative Humidity 0–96% non-condensing
Form Factor 2U rack/tower
Dimensions (H x W x D) 3.4 x 17.3 x 23.8 in
Weight 61.5 lb

What's Included

- Eaton 9PX 2000VA 1800W 120V online double-conversion UPS with 7 outlets

- USB cable

- RS-232 cable

- Rack-mounting hardware

- Tower support stands

- Safety guide

- Quick start guide

What environments is the Eaton 9PX2000RT best suited for?
The Eaton 9PX2000RT suits server racks, network cores and branch sites that need online double-conversion protection for up to 1800 W. Its 2U chassis installs in a rack or stands as a tower, and it requires a 5-20 receptacle.
How does the Eaton 9PX2000RT compare with other Eaton 9PX models?
The 9PX2000RT steps up from the 9PX1500RT to 1800 W and a 5-20P plug, and it shares the 72 VDC battery and 9PXEBM72RT extended battery module with the 9PX3000RT. The 9PX3000RT raises output to 2700 W on an L5-30P plug.
Is the Eaton 9PX2000RT worth choosing over a less expensive UPS?
The 9PX2000RT is worth it when equipment needs true sine wave output with ±1% voltage regulation, switched outlet banks and a hot-swappable battery. It also reaches 91% efficiency at maximum load, and ABM charging extends battery service life by 50%. For less sensitive loads where budget comes first, a line-interactive UPS is the more economical choice.
What is the Eaton 9PX2000RT compatible with?
The 9PX2000RT plugs into a 5-20 receptacle through its 5-20P plug and provides six 5-20R outlets and one L5-20R outlet at 120V by default, selectable to 100, 110, 120 or 125V. It accepts NETWORK-M3, INDGW-M2 and RELAY-MS MiniSlot cards and up to four 9PXEBM72RT extended battery modules.
How long will the Eaton 9PX2000RT run on battery?
Eaton rates the 9PX2000RT at 8 minutes of runtime at full load on its internal 72 VDC, 9 Ah, 648 Wh battery. Adding up to four 9PXEBM72RT extended battery modules extends runtime further.
What is the replacement battery for the Eaton 9PX2000RT?
The 9PX2000RT uses Eaton replacement battery EBP-1616, a valve regulated lead acid (VRLA) pack. The internal battery is hot-swappable, so it can be replaced without shutting down connected equipment.
How can the Eaton 9PX2000RT be monitored and managed remotely?
The 9PX2000RT has one MiniSlot bay for the NETWORK-M3 Gigabit network card, the INDGW-M2 Modbus card or the RELAY-MS relay card. It also provides USB and RS-232 ports, remote ON/OFF, remote power off and output relay terminals, and works with Eaton Intelligent Power Software Suite.
Can the Eaton 9PX2000RT be installed in a rack and as a tower?
Yes. The 9PX2000RT is a 2U rack/tower UPS measuring 3.4 in high, 17.3 in wide and 23.8 in deep and weighing 61.5 lb, and it ships with rack-mounting hardware and tower support stands.
What operating conditions does the Eaton 9PX2000RT support?
The 9PX2000RT operates from 0° to 40°C (32° to 104°F) up to 1500 m and from 0° to 35°C between 1500 and 3000 m, at 0–96% non-condensing relative humidity. Heat output is 578 BTU/hr online and 974 BTU/hr on battery.
What is the efficiency and noise level of the Eaton 9PX2000RT?
The 9PX2000RT reaches 91% efficiency at maximum load. Its noise level is below 47 dB at 1 m.
