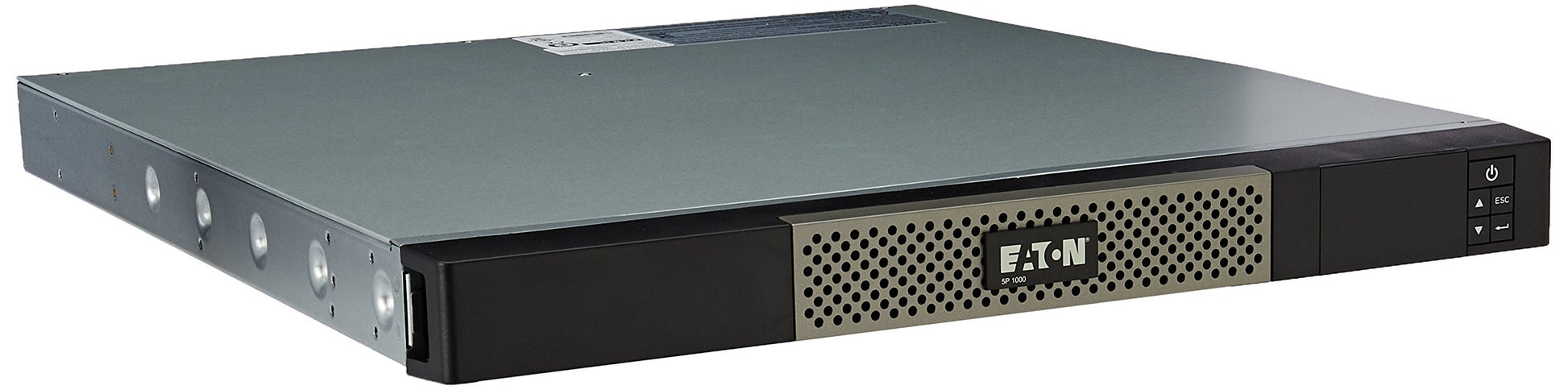

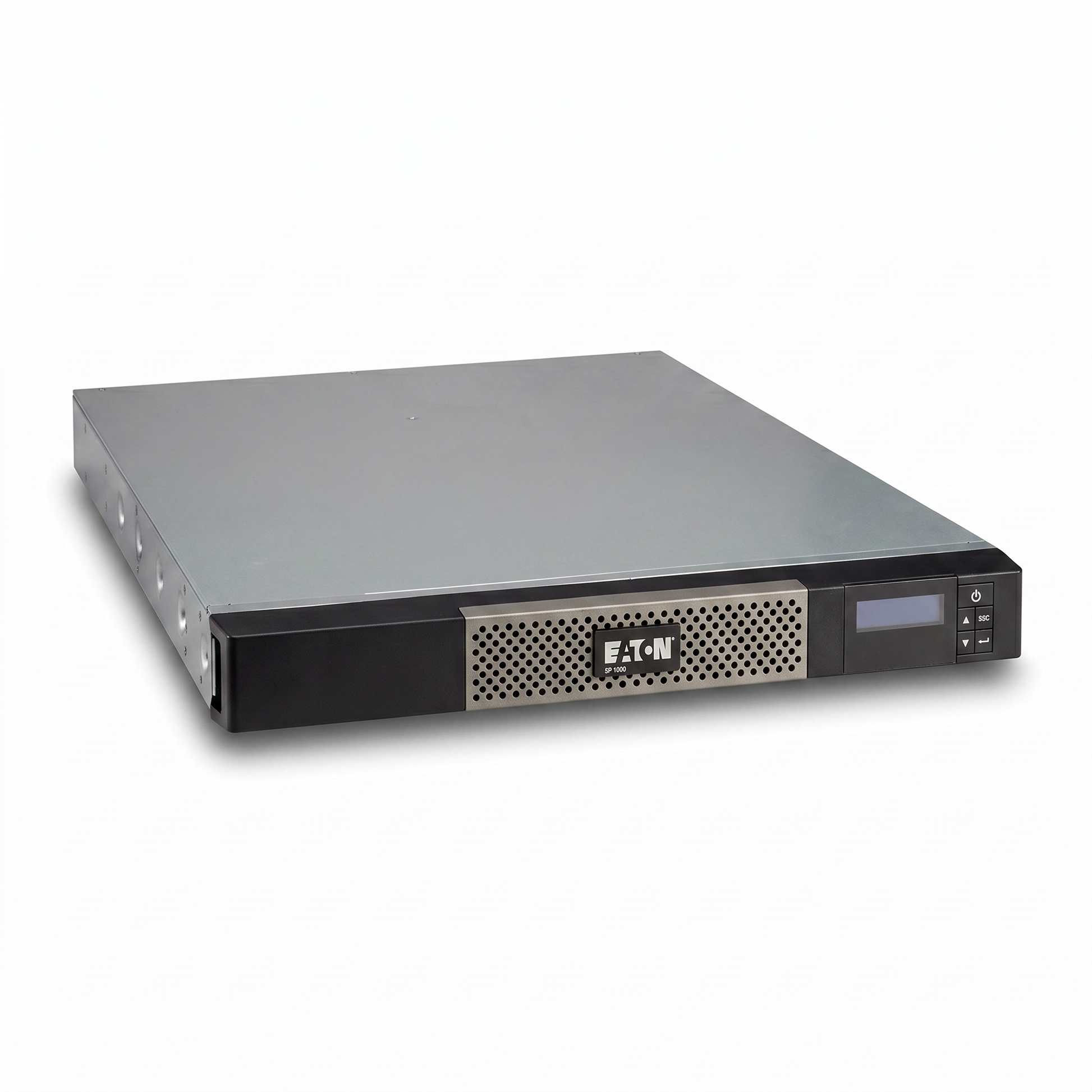

Eaton Electrical 5P1000R UPS Rack, Mountable

Name: Eaton Electrical 5P1000R UPS Rack, Mountable
Brand: Eaton
SKU: EAT-UPS-5P1000R-NEW
Price: 870.0 USD
Availability: InStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

• 【Space-Saving Size】: Fits easily into tight rack spaces.

• 【Stable Power Protection】: Helps protect equipment from power swings and keeps it running safely.

• 【Helpful Backup Time】: Gives you time to shut down equipment safely during outages.

• 【Five Protected Outlets】: Powers multiple devices from one unit.

• 【Easy System Monitoring】: Lets you track UPS status and manage shutdown more easily.

Overview
Specifications
FAQ
User Guides
Reviews

The Eaton 5P1000R is a 1000VA/770W 1U rack line-interactive UPS designed for space-constrained server racks and telecommunications installations. Its line-interactive topology with automatic voltage regulation (AVR) corrects incoming voltage conditions without transferring to battery, reducing battery wear and extending service intervals compared to standby UPS designs.

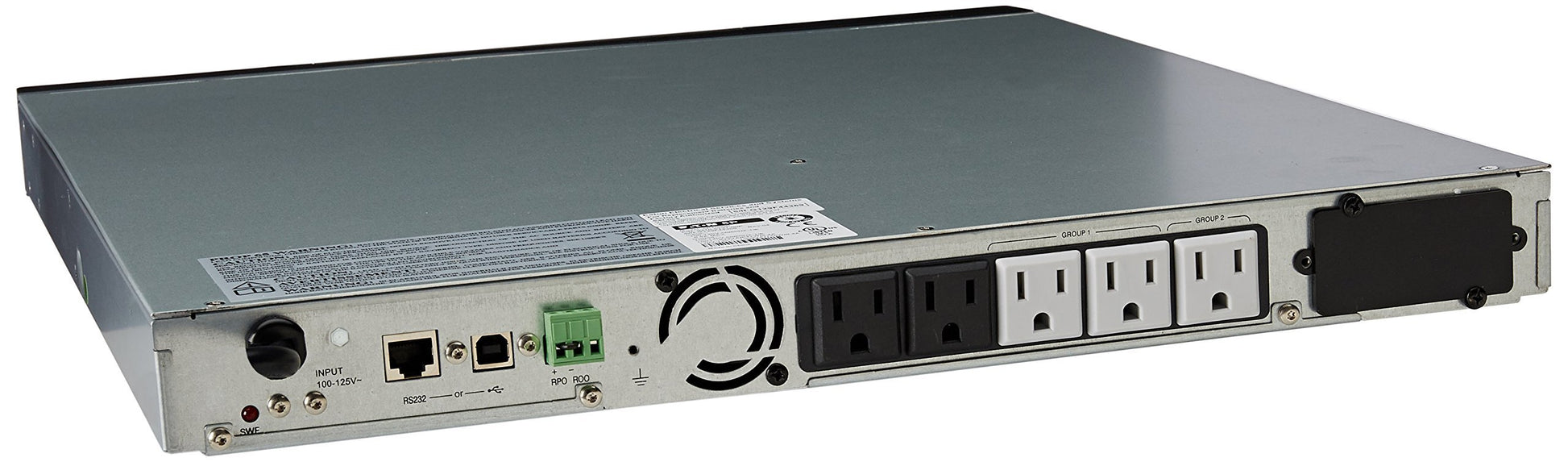

Measuring 1.7” H x 17.2” W x 20.0” D and weighing 32.5 lbs, the 5P1000R fits standard 19” EIA racks in a single rack unit. Five NEMA 5-15R receptacles provide battery-backed power for connected equipment, and USB/serial ports support local UPS management and graceful shutdown integration.

Best For:

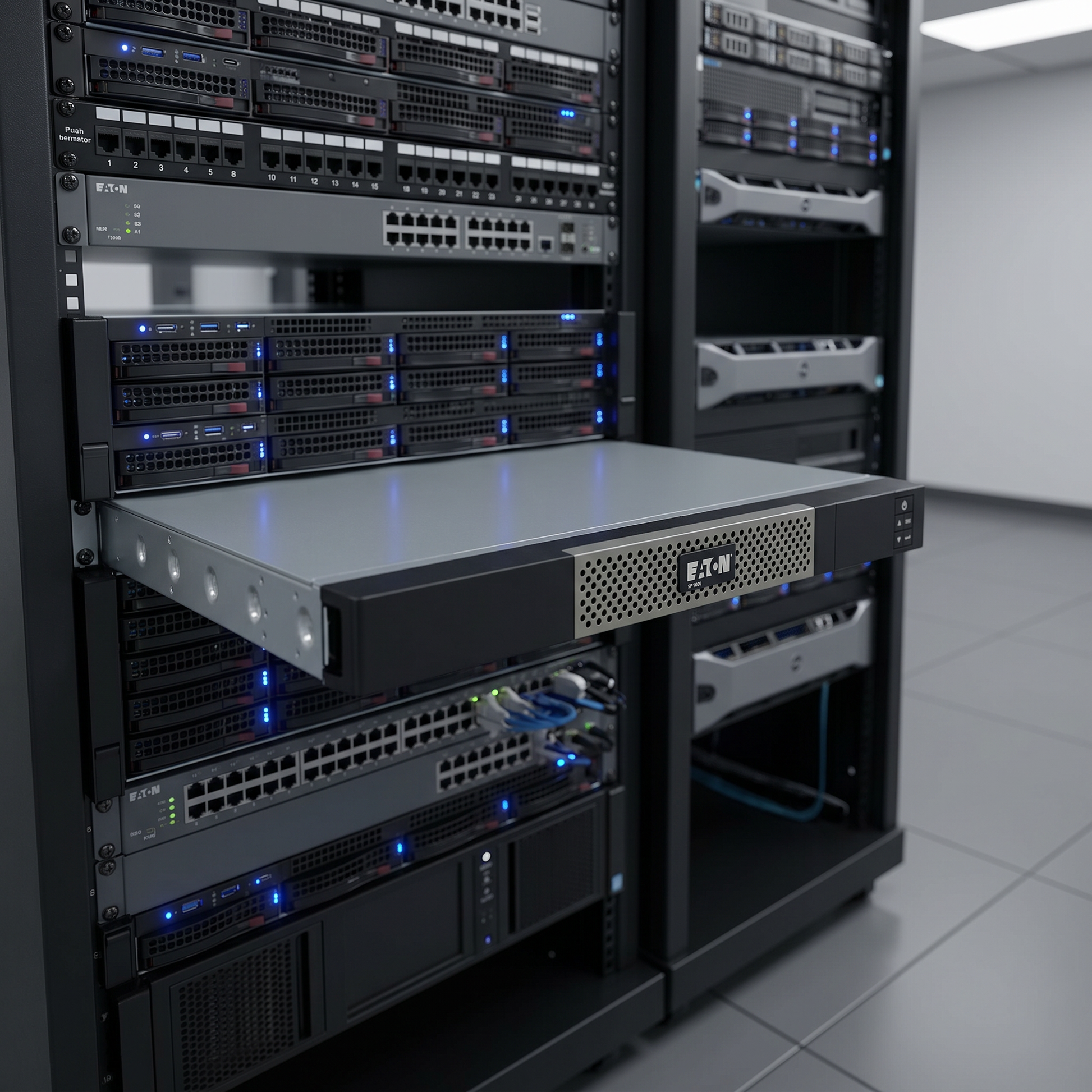

- 1U rack deployments where every rack unit of space matters

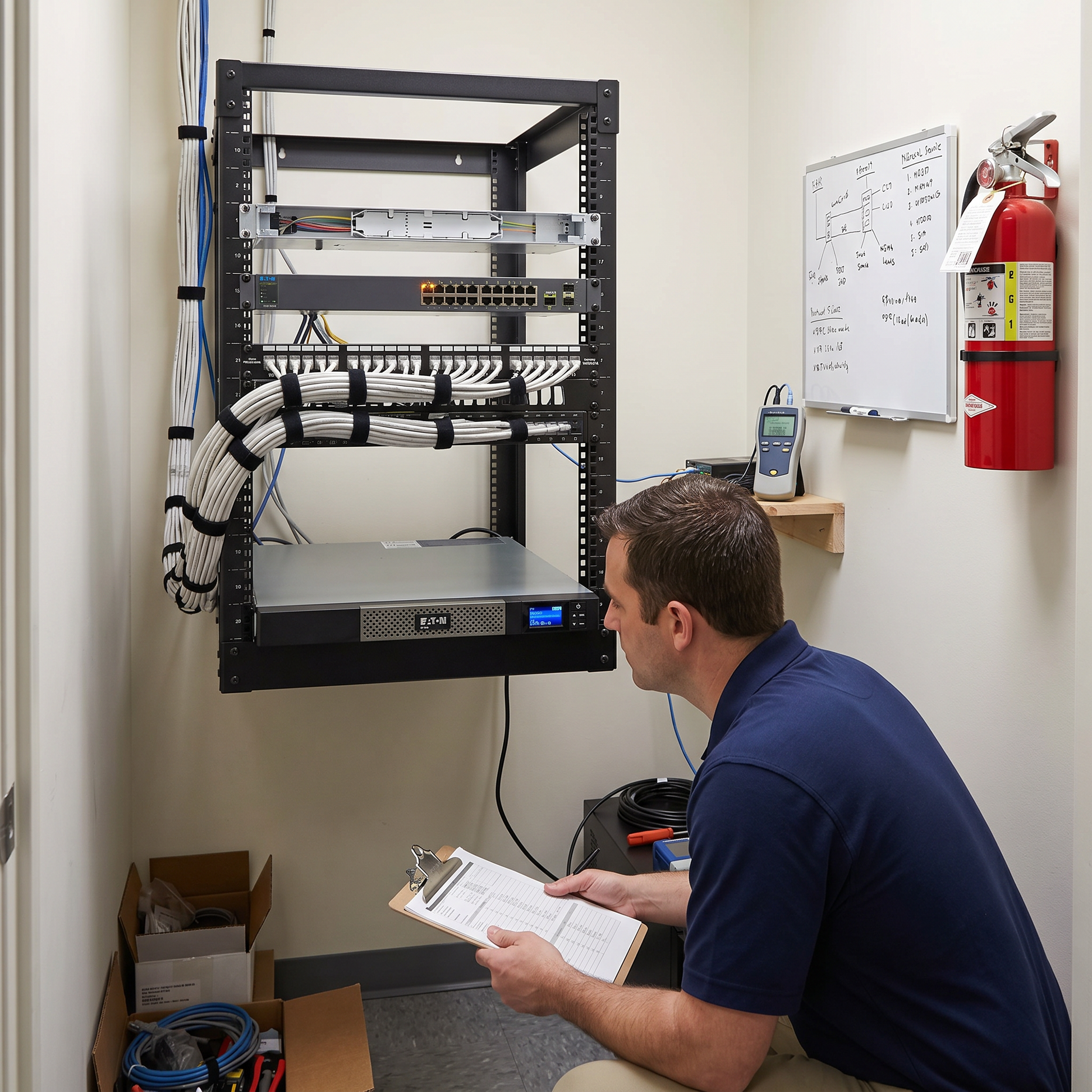

- Small server rooms, network closets, and telecom installations at 120V

- Environments with voltage sags and surges where AVR extends battery life

- IT teams requiring graceful server shutdown via USB/serial UPS communication

- Replacement of aging 1U rack UPS units in 15A, 120V rack environments

Key Features:

- Line-interactive topology with automatic voltage regulation (AVR)

- 1000VA / 770W output

- Input: NEMA 5-15P, 120V

- Output: (5) NEMA 5-15R battery-backed receptacles

- Runtime: ~5 min at full load (770W); 17 min at half load (385W)

- 1U rack form factor

- Dimensions: 1.7” H x 17.2” W x 20.0” D

- Weight: 32.5 lbs

- USB and serial (DB9) communication ports

- Eaton model: 5P1000R

Quick Specs:

- Model: 5P1000R

- Capacity: 1000VA / 770W

- Topology: Line-Interactive with AVR

- Input: NEMA 5-15P, 120V

- Output: (5) NEMA 5-15R

- Runtime: ~5 min (full) / ~17 min (half load)

- Form Factor: 1U Rack

- Dimensions: 1.7” H x 17.2” W x 20.0” D

- Weight: 32.5 lbs

- Communication: USB, Serial (DB9)

General Specifications
Brand	Eaton
Model No.	5P1000R

Product Details
Color	Black, Gray
Battery Technology	Sealed lead acid
Chassis Type	Rack mount
Outlet Type	Type B

Q: What is the runtime at full load?

A: Approximately 5 minutes at full load (770W) and approximately 17 minutes at half load (~385W) from internal batteries.

Q: What topology does the 5P1000R use?

A: Line-interactive with automatic voltage regulation (AVR). This topology corrects voltage sags and surges without switching to battery, unlike standby designs.

Q: How many rack units does the 5P1000R occupy?

A: One rack unit (1U) — 1.7” high, fits standard 19” EIA racks.

Q: What communication options are available?

A: USB and DB9 serial ports for UPS monitoring and graceful shutdown. Compatible with Eaton Intelligent Power Manager and standard UPS management software.

Q: Does the 5P1000R support SNMP network management?

A: The 5P1000R does not include a Mini-Slot bay. For SNMP/web remote monitoring, consider Eaton’s 9PX or 9SX series with Mini-Slot network card support.

Q: What is the input plug type?

A: NEMA 5-15P — standard 15A, 120V plug compatible with standard wall and PDU receptacles.
