Epson DS-770 II Color Duplex Document Scanner for PC and Mac, with 100-page Auto Document Feeder (ADF), Twain and ISIS Drivers

Delivery Time: 0-3 days

Product Highlights

Item Package Quantity - 1
Product Type - SCANNER
UPC: 010343960213
Weight: 10.050 lbs

Overview
Specifications
FAQ
User Guides

Item Package Quantity - 1
Product Type - SCANNER
UPC: 010343960213
Weight: 10.050 lbs

Item Package Quantity - 1

Product Overview

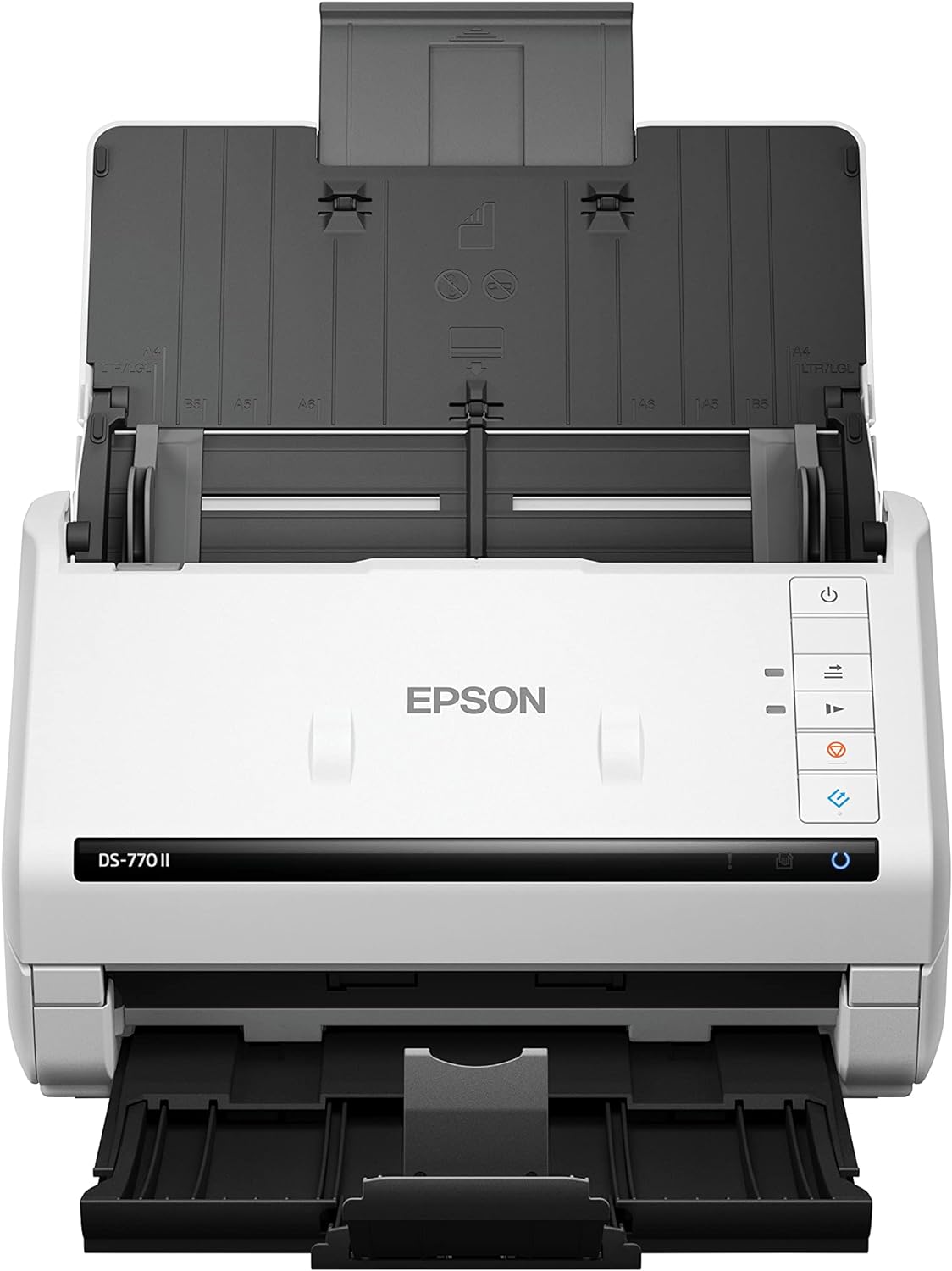

Product Name: Epson® DS-770 II Color Duplex Document Scanner
Type: Sheet-fed, 1-pass, duplex color scanner
Sensor Type: Color CIS
Optical Resolution: 600 dpi
Output Resolution: 50 to 1200 dpi
Maximum Interpolated Resolution: 1200 dpi
Effective Pixels: 5100 x 9300 pixels

Performance

Scan Speed (Letter Size): 45 ppm/90 ipm at 300 dpi (Black-and-White, Color, Gray)
Auto Document Feeder Capacity: 100 sheets
Paper Size: Minimum 2" x 2", Maximum 8.5" x 240" at 200 dpi; 8.5" x 215" at 300 dpi
Card Thickness: Less than 1.24 mm with emboss
Paper Weight: 27 – 413 g/m²

Compatibility and Software

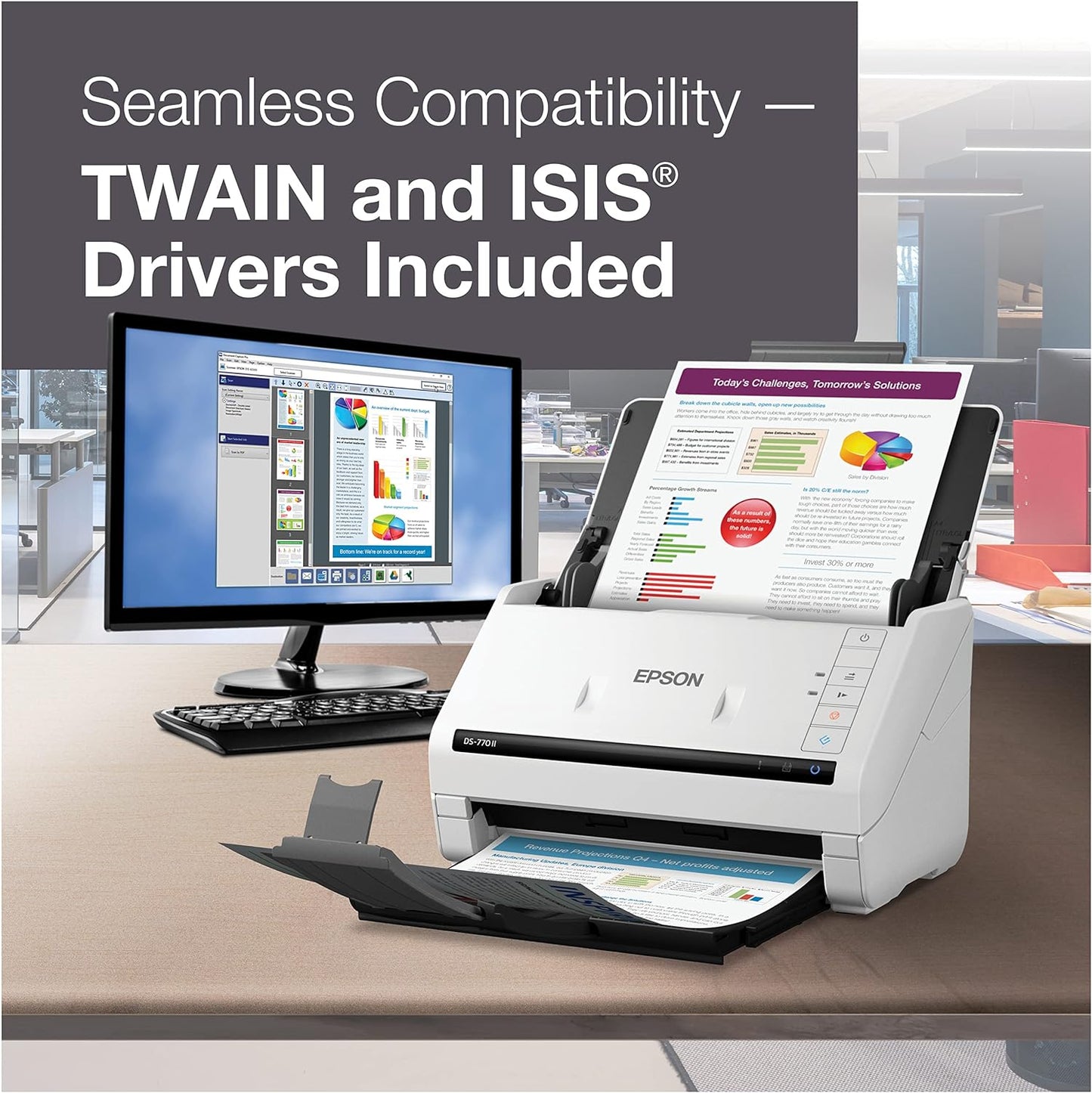

Drivers Supported: TWAIN, ISIS®
Included Software: Epson Scan 2, Epson Document Capture, OpenText Captiva ISIS
Scan to Cloud: Evernote®, SharePoint®, Google Drive™ (with Epson Document Capture)
OCR Capability: Yes (Searchable PDFs, Editable Word, PowerPoint®, Excel® files)

Interface and Controls

Interface: SuperSpeed USB 3.0
Buttons: Double-feed Detect Skip, Slow Scan Mode, Scan, Stop
Light Source: 3-color RGB LED

Power and Environmental

Power Requirements: 100 – 240 V AC (Input), 24 V DC (Output)
Power Consumption: Operation 12 W, Ready 5.4 W, Sleep 1.0 W, Off 0.1 W
Operating Temperature: 41 °F to 95 °F (5 °C to 35 °C)
Operating Humidity: 15 – 80% (no condensation)

Physical

Weight: 8.1 lb (Product Only), 10.6 lb (Packaged)
Dimensions (W x D x H): 11.6" x 6.6" x 6.9" (Product Only)

Eco Features

Certifications: ENERGY STAR® qualified, RoHS compliant, SmartWay® Transport Partner
Recyclable: Yes

📥 Download Product Manual (PDF)

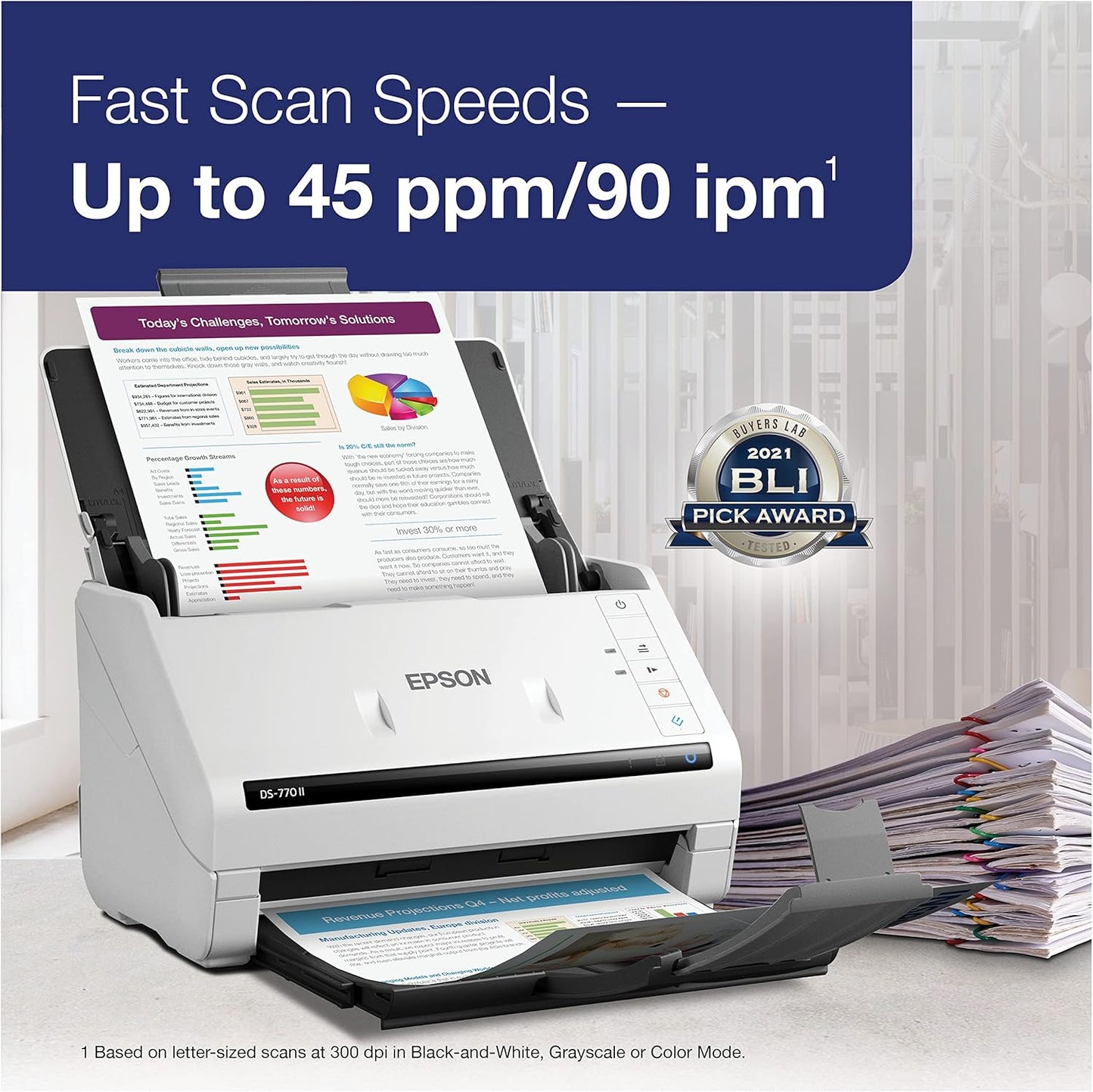

What are the scanning speeds of the Epson DS-770 II?
The DS-770 II offers fast scanning speeds of up to 45 pages per minute (ppm) and 90 images per minute (ipm) for duplex scanning at 300 dpi in color, grayscale, or black-and-white modes.

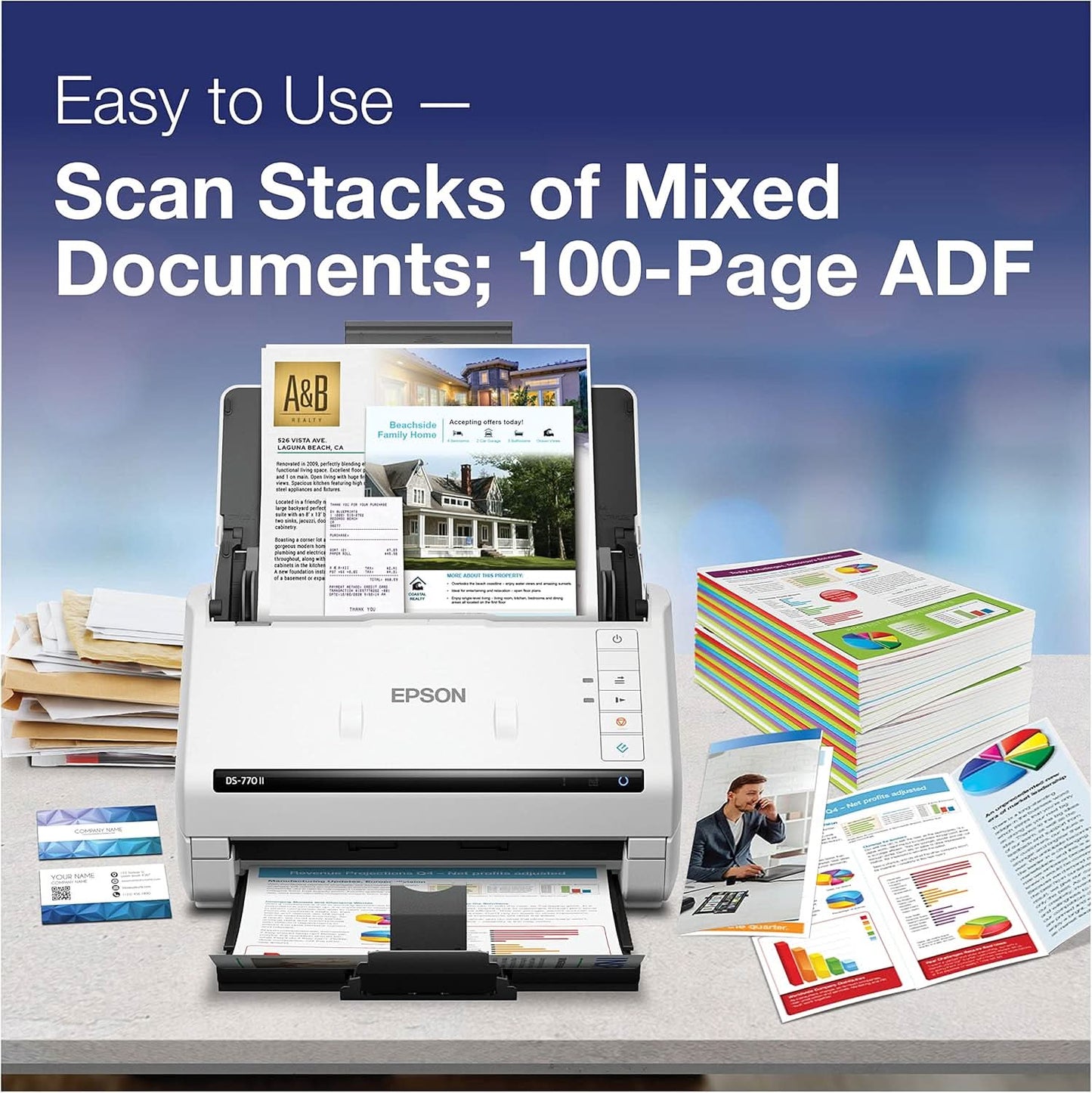

What is the capacity of the Auto Document Feeder (ADF)?
The scanner features a robust 100-page ADF, allowing for efficient batch scanning of documents.

What is the optical resolution of the DS-770 II?
It has an optical resolution of 600 dpi, ensuring high-quality scans suitable for various professional needs.

Does the scanner support duplex scanning?
Yes, the DS-770 II supports single-pass duplex scanning, enabling simultaneous scanning of both sides of a document.

What types of documents can the DS-770 II handle?
The scanner can process a wide range of documents, including business and ID cards, single sheets, extra-long pages up to 240 inches, and folded pages up to 11" x 17".

Is the DS-770 II compatible with different operating systems?
Yes, it is compatible with Windows and macOS operating systems.

What software is included with the scanner?
The DS-770 II comes with Epson Scan 2 and Document Capture Pro software, along with TWAIN and ISIS drivers for seamless integration with most document management systems.

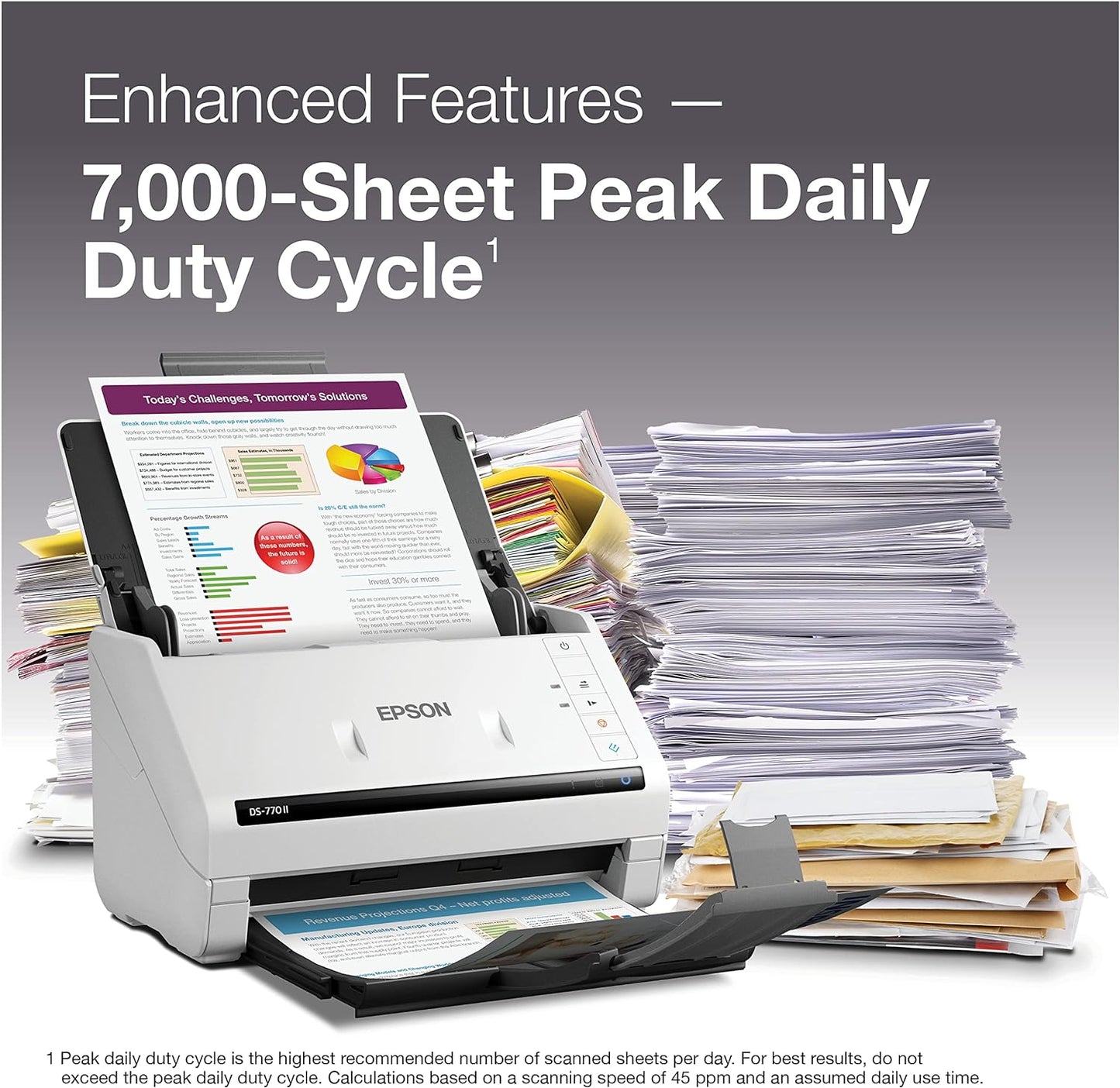

What is the daily duty cycle of the DS-770 II?
The scanner is designed for heavy-duty use, with a peak daily duty cycle of up to 7,000 sheets.

Does the scanner have any advanced features for handling documents?
Yes, it includes features like blank page removal, auto-rotation, auto cropping, dynamic skew correction, dirt detection, double-feed detection, and paper protection to ensure efficient and accurate scanning.
