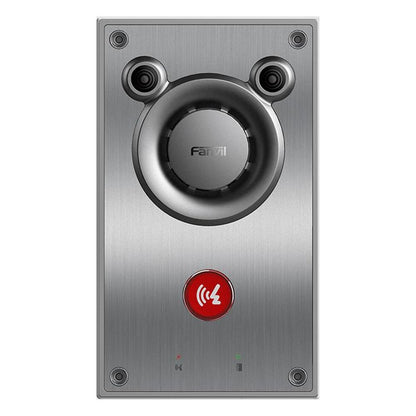

Fanvil A12 SIP Audio Intercom with 10W Speaker - IP66 Weatherproof Door Phone for Access Control

Name: Fanvil A12 SIP Audio Intercom with 10W Speaker - IP66 Weatherproof Door Phone for Access Control
Brand: Fanvil
SKU: FAN-PHO-A12-NEW
Price: 248.0 USD
Availability: OutOfStock

Product Highlights

• IP66 waterproof/dustproof and IK10 vandal-resistant stainless steel design for harsh outdoor environments

• 10W speaker delivers 100dB broadcast volume and 90dB hands-free calling with 5-meter pickup range

• Dual-microphone noise reduction with AEC, ANR, AGC algorithms ensures clear audio in noisy industrial settings

• Dual relay outputs, RS485, Wiegand, and switch I/O support access control and alarm integration

• Compatible with mainstream SIP platforms including 3CX, Asterisk, Broadsoft, and Avaya out of the box

• PoE+ (802.3at) and DC 12-24V dual power options with -40°C to 70°C operating temperature range

Overview
Specifications
FAQ
User Guides
Reviews

The Fanvil A12 is a commercial-grade SIP audio intercom engineered for enterprise security and access control deployments. Combining a stainless steel panel with aluminum alloy construction, it delivers IP66/IK10 protection suitable for outdoor installations in industrial environments, building entrances, and perimeter security applications. The integrated 10W speaker with turbine sound chamber design produces 100dB broadcast output and 90dB hands-free calling, while dual-microphone noise reduction ensures intelligible communication even in high-noise facilities.

Built on SIP protocol, the A12 integrates seamlessly with existing IP PBX systems and VoIP infrastructure from vendors like 3CX, Asterisk, and Broadsoft. Dual relay outputs, RS485, Wiegand interface, and programmable switch I/O enable direct integration with access control panels, magnetic locks, and alarm systems. The device supports both PoE+ (802.3at) and DC 12-24V power, auto-provisioning via HTTP/TFTP/TR-069, and operates reliably in -40°C to 70°C temperature extremes.

Best For

The Fanvil A12 is designed for IT managers and facility security teams requiring ruggedized voice communication and access control integration in challenging environments:

- Building Entry Points: Main entrances, loading docks, and parking garage gates requiring visitor communication and remote door release

- Industrial Facilities: Manufacturing plants, warehouses, and distribution centers where high ambient noise demands powerful speakers and advanced audio processing

- Campus Security: University campuses, corporate parks, and multi-building complexes needing unified SIP-based intercom across dispersed locations

- Transportation Hubs: Bus depots, rail stations, and airport perimeters requiring weatherproof communication devices with relay control for gates and barriers

- Correctional and Government: Secure facilities requiring IK10 vandal-resistant hardware, tamper detection, and integration with existing access control infrastructure

Key Features

- 10W speaker with turbine cavity design delivers 100dB broadcast volume and 90dB hands-free calling for high-noise environments

- Dual-microphone array with AEC, ANR, AGC, and AVC algorithms provides 5-meter pickup range and clear audio capture

- IP66 waterproof/dustproof and IK10 vandal-resistant stainless steel construction withstands -40°C to 70°C operating temperatures

- Dual relay outputs (NC/COM/NO x2), RS485, Wiegand, and 2 switch inputs support door strikes, magnetic locks, and alarm integration

- PoE+ (802.3at Class 4) and DC 12-24V dual power with automatic failover eliminates single points of failure

- SD card slot supports up to 256GB for local recording and MP3/WAV broadcast playback without server dependency

- SIP v1/v2 protocol over UDP/TCP/TLS compatible with 3CX, Asterisk, Broadsoft, Avaya, Metaswitch, and other standard platforms

- Auto-provisioning via HTTP/TFTP/DHCP Option 66/TR-069 enables zero-touch deployment across distributed sites

- Voice loop self-check function and programmable DSS key with LED indicator simplify maintenance diagnostics

- VLAN, L2TP, OpenVPN support for secure integration with segmented enterprise networks

Quick Specs

Model	Fanvil A12
Product Type	SIP Audio Intercom
SIP Lines	2
Audio Codec	Narrowband: G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K \| Wideband: G.722, Opus
Speaker Output	10W built-in speaker, 100dB broadcast, 90dB hands-free
Microphone Pickup	Dual-microphone array, 5-meter range, AEC/ANR/AGC/AVC
Network Interface	10/100 Mbps Ethernet (RJ45), IPv4/IPv6, VLAN
Power	PoE+ (802.3at Class 4) or DC 12-24V/2A with auto-failover
I/O Interfaces	2x Relay output (NC/COM/NO), 2x Switch input, RS485, Wiegand, Line-out audio, USB, Micro SD slot (up to 256GB), Tamper alarm switch
Protection Rating	IP66 waterproof/dustproof, IK10 vandal-resistant
Construction	Stainless steel panel, aluminum alloy body
Operating Temperature	-40°C to 70°C
Operating Humidity	10% to 95%
Dimensions	205 x 120 x 47 mm
Weight	1.134 kg
Installation	Wall-mounted (included) or flush-mounted (EX612 bracket sold separately)
Platform Compatibility	3CX, Asterisk, Broadsoft, Avaya, Metaswitch, Elastix, standard SIP v1/v2 platforms
Provisioning	Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP Option 66/SIP PNP/TR-069
Security	SIP over TLS, SRTP, L2TP, OpenVPN
Warranty	2 years

What's Included

- Fanvil A12 Audio Intercom main unit

- Wall-mounted bracket (WM612)

- Mounting template

- Sealing silicone ring

- Installation screws and expansion plugs

- Quick installation guide

General Specifications
Brand	Fanvil
Model No.	A12

Product Details
Color	Silver
Power Source	DC-powered
Connection Type	Ethernet, Power cord
Connectivity Technology	Ethernet, Wired
Ingress Protection (IP) Rating	IP66
Intercom Communication Type	Audio-only
Communication Device Features	Speakerphone
Mounting Type	Wall
