Fanvil i10SV SIP Video Intercom with HD Camera for Access Control and Remote Door Release

Name: Fanvil i10SV SIP Video Intercom with HD Camera for Access Control and Remote Door Release
Rating: 5.0 (1 reviews)

Brand Fanvil

Model Number i10SV

Manufacture Warranty 2 Years

EpicRise Warranty First Year

Product Highlights

• Integrated HD camera with 720P/1080P resolution and backlight compensation for clear visitor identification

• IP54-rated dustproof and waterproof housing withstands -20°C to 50°C temperature range for indoor and semi-outdoor environments

• Built-in relay output for direct integration with existing door access control systems via short-circuit input/output interface

• PoE-powered with 10/100Mbps Ethernet eliminates separate power wiring for simplified installation

• Compatible with Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, and Avaya VoIP platforms

Overview
Specifications
FAQ
User Guides
Reviews

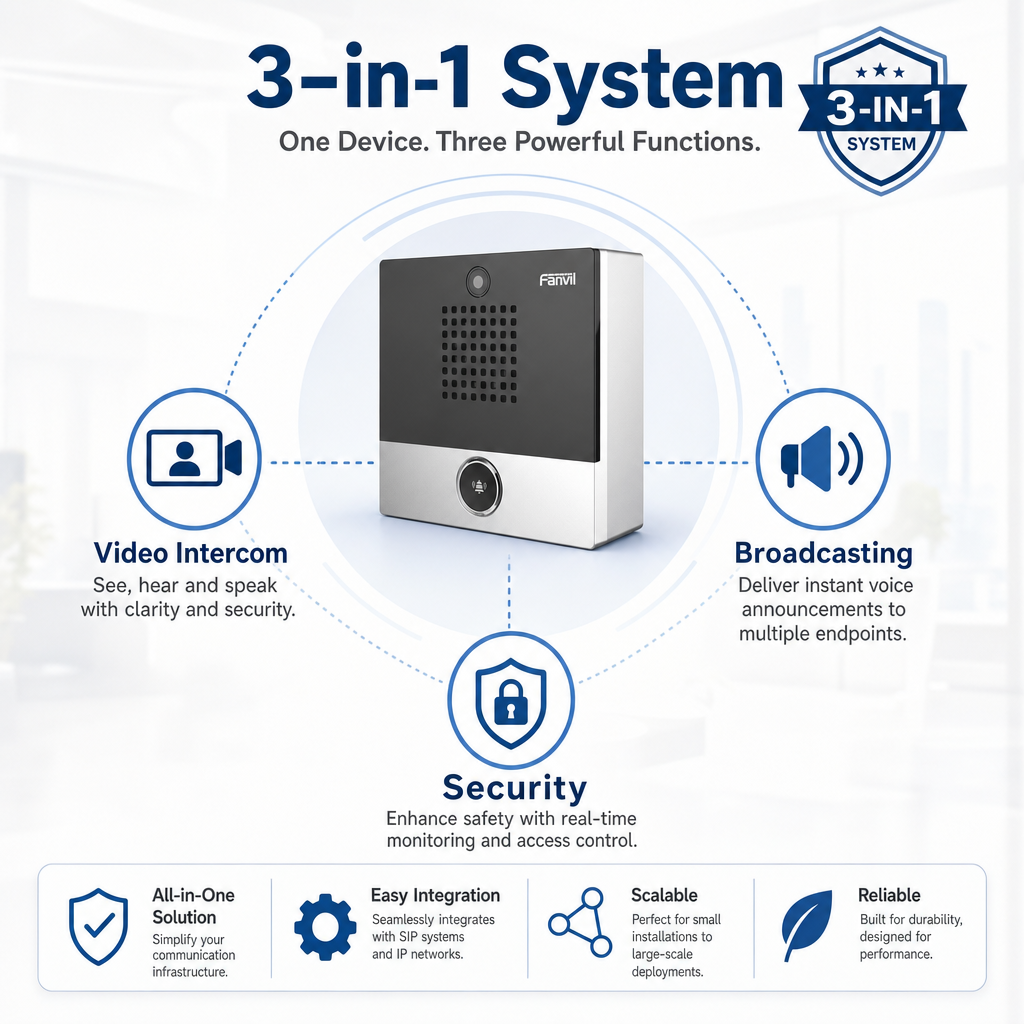

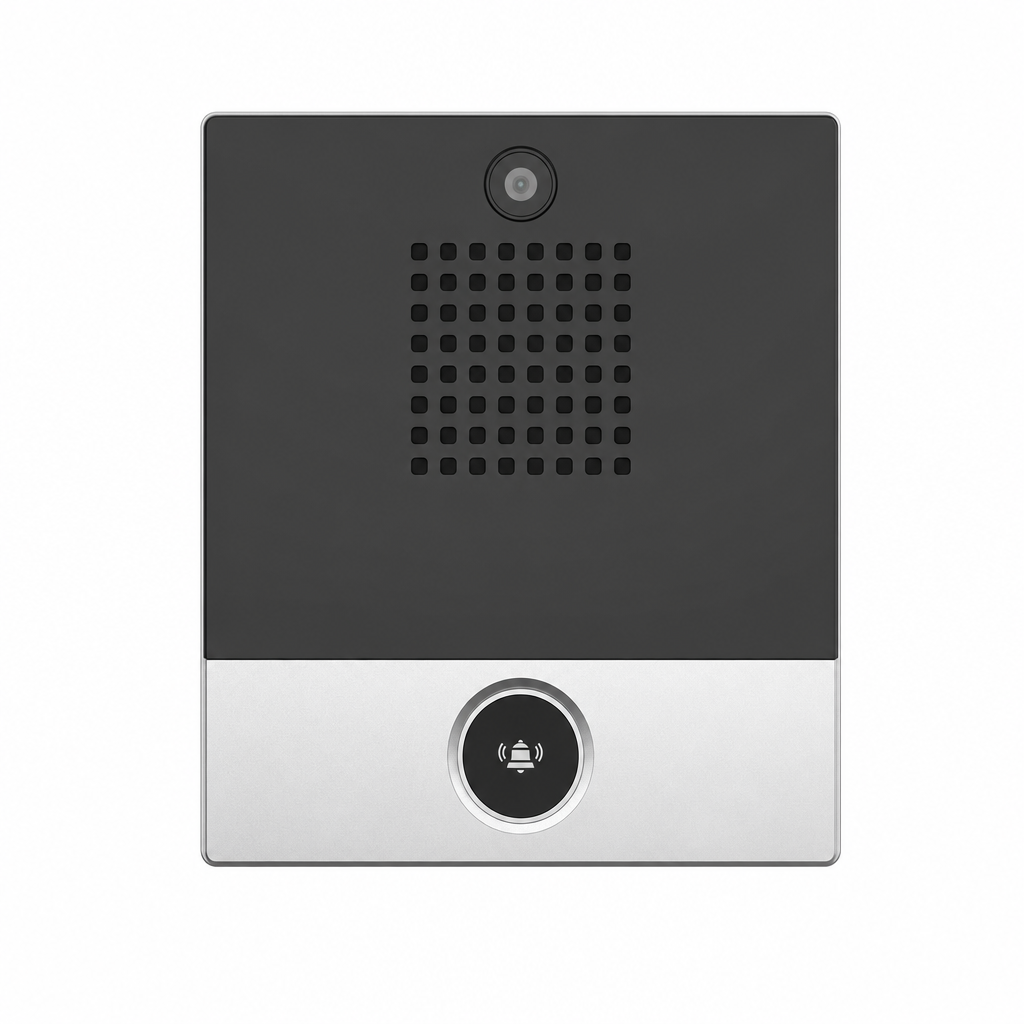

The Fanvil i10SV is a SIP-based video intercom designed for enterprise access control deployments. It combines audio/video communication, door release control, and broadcast functionality in a compact wall-mounted unit. With an integrated HD camera and IP54 protection rating, the i10SV delivers reliable visitor verification and remote door management for office buildings, warehouses, and controlled-access facilities.

This model features a built-in relay output that integrates directly with existing door strikes and magnetic locks. IT decision-makers benefit from PoE deployment, web-based management, and compatibility with major VoIP platforms including Asterisk, 3CX, and Broadsoft. The device operates reliably in temperatures from -20°C to 50°C, making it suitable for unheated entryways and semi-outdoor installations.

Note: The i10S/i10SV/i10SD series has been designated as End of Life (EOL) by Fanvil. Existing stock is available for purchase but future availability may be limited.

Best For

The Fanvil i10SV is designed for enterprise and commercial access control scenarios requiring video verification:

- Office Building Entrances: Enables receptionists to visually identify visitors before granting access through VoIP desk phones or mobile apps

- Warehouse and Loading Dock Gates: Allows remote authorization of deliveries with video confirmation from management offices

- Multi-Tenant Commercial Properties: Provides tenants with video intercom capability through existing IP phone systems without separate intercom infrastructure

- Server Rooms and Secure Facilities: Adds two-way video communication to controlled access points for identity verification before unlocking

- Healthcare and Education Campuses: Centralizes visitor management across multiple entry points with VoIP platform integration

Key Features

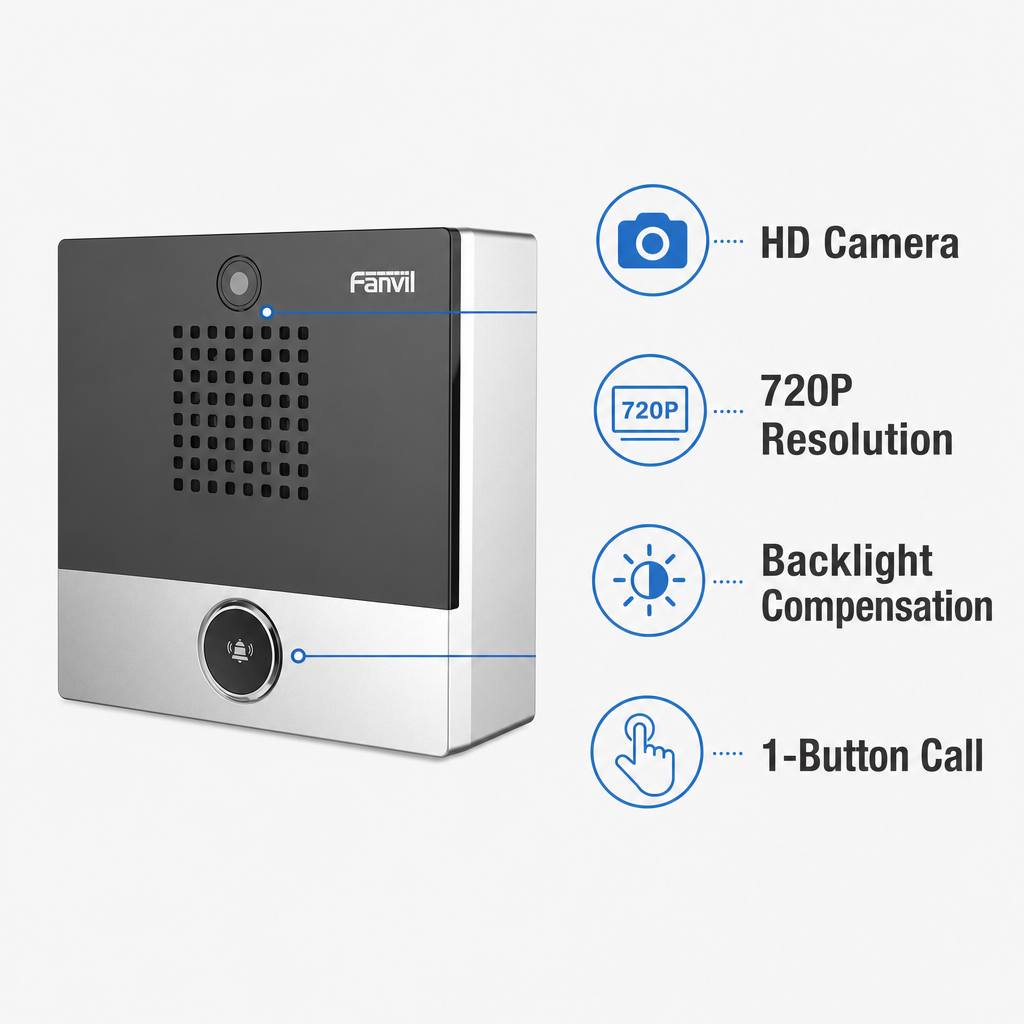

- HD camera with 2-megapixel CMOS sensor delivers 720P/1080P video resolution with 73° diagonal field of view

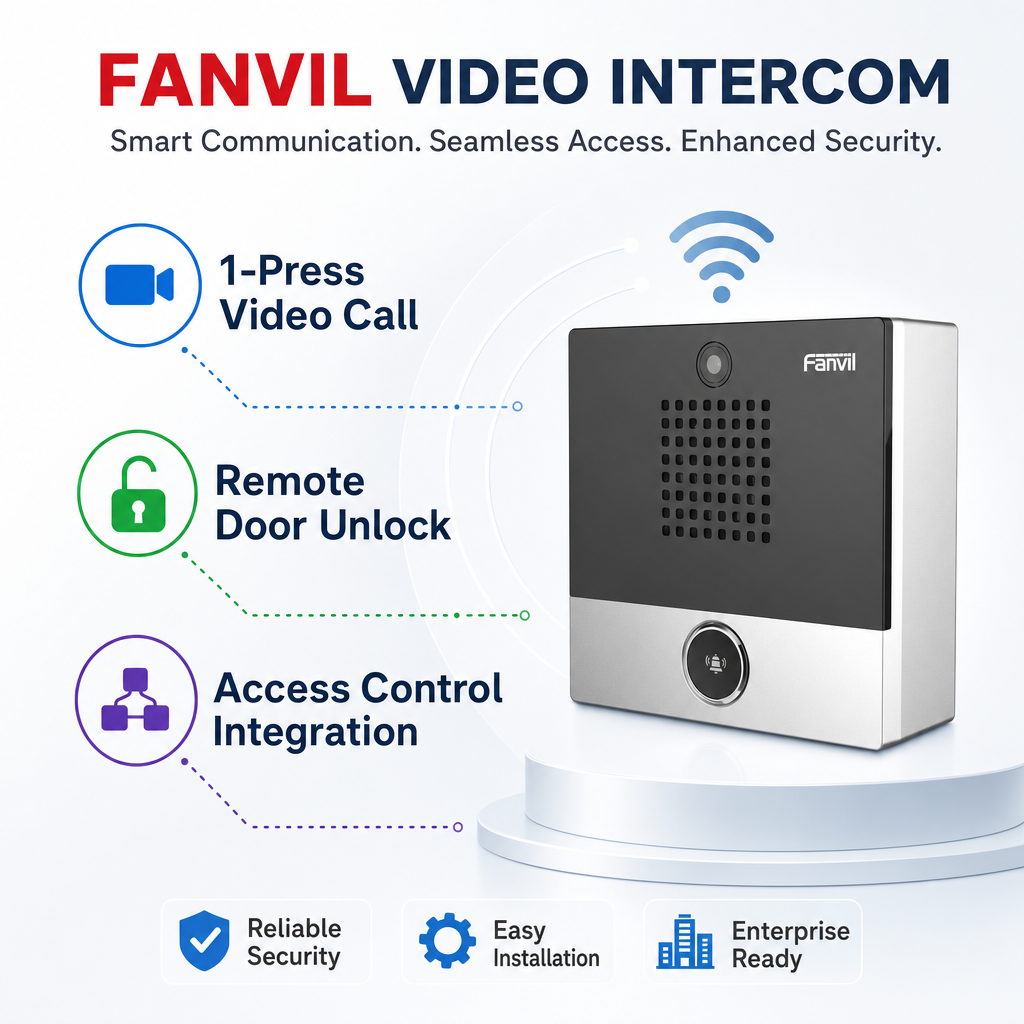

- Built-in relay output (DC30V/1A, AC125V/0.5A) directly controls door strikes, magnetic locks, and barrier gates

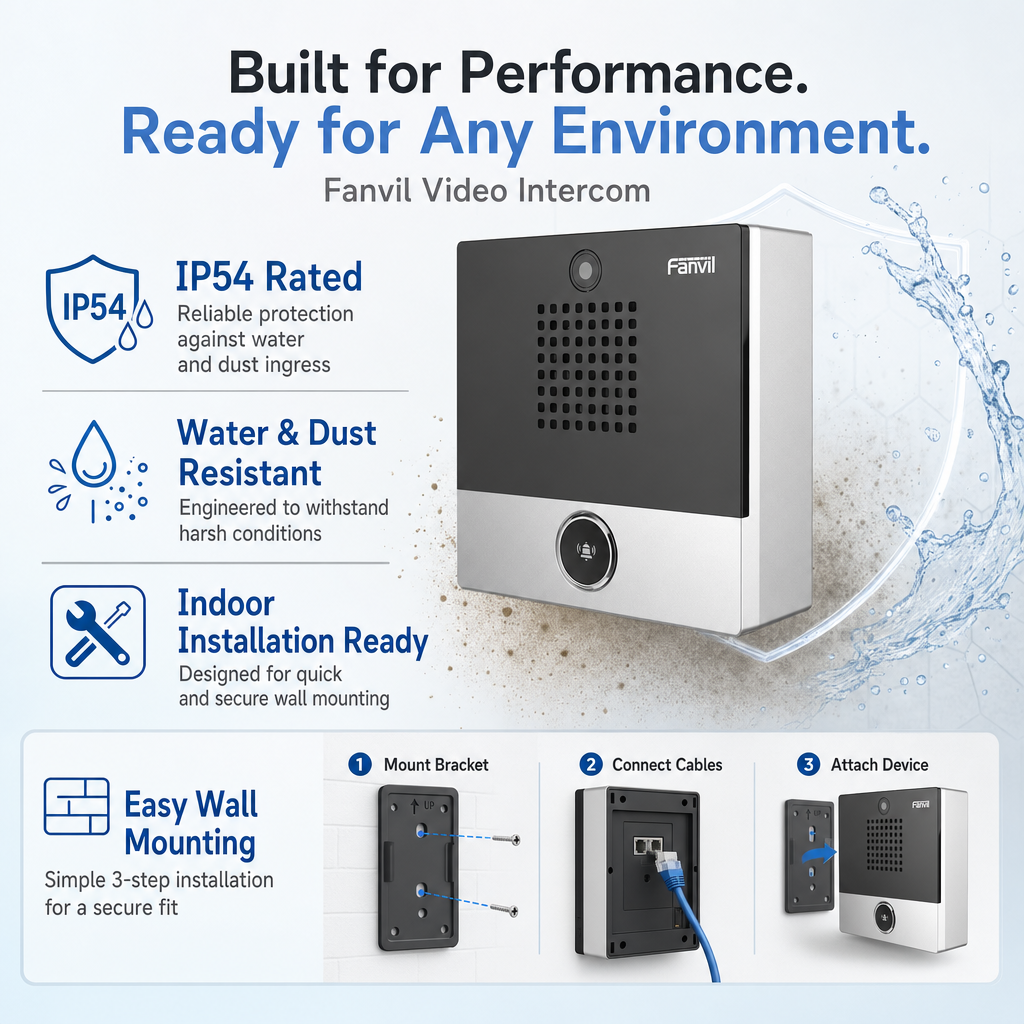

- IP54 ingress protection rating guards against dust and water splashes in semi-outdoor and unheated environments

- Single programmable DSS key provides one-touch call initiation and door release functions

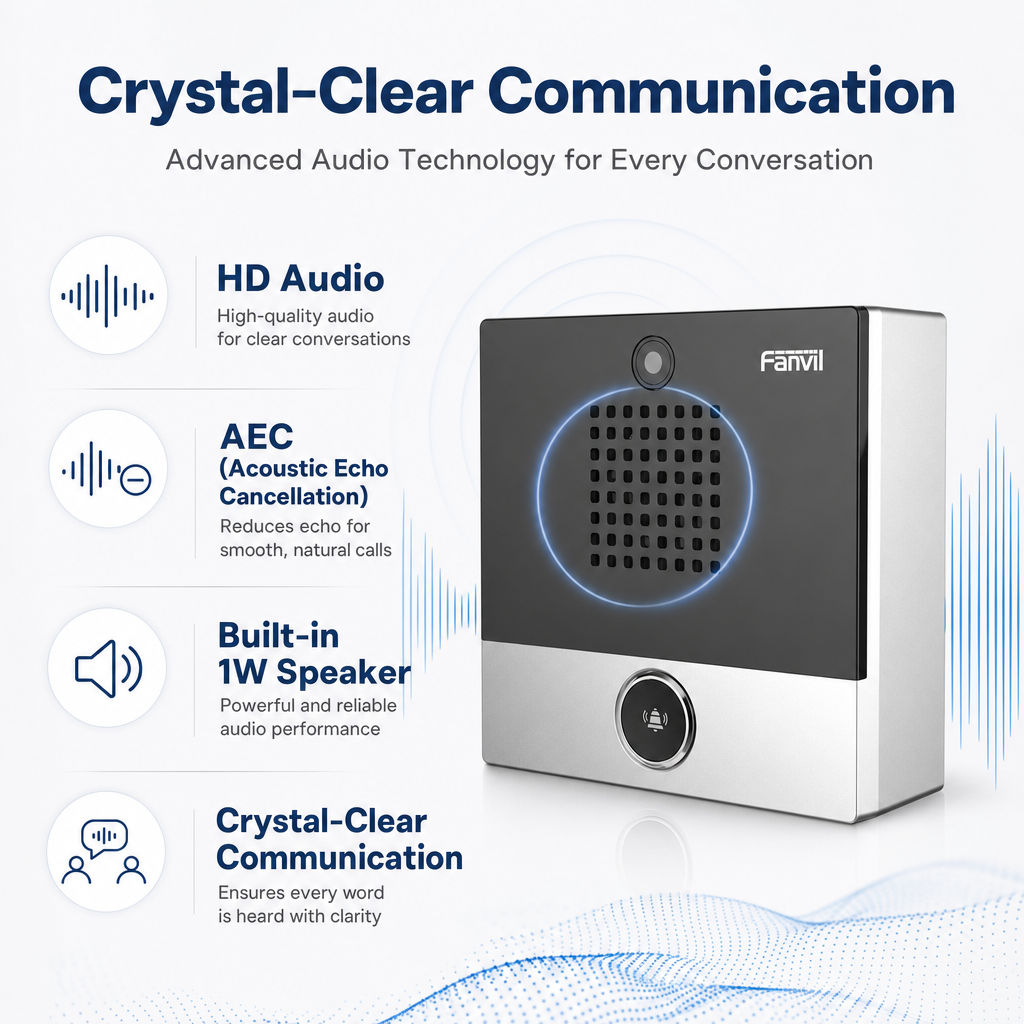

- 1W built-in speaker with acoustic echo cancellation (AEC) ensures clear two-way audio communication

- PoE (IEEE 802.3af Class 3) eliminates separate power adapters and simplifies installation wiring

- Auto-provisioning via FTP/TFTP/HTTP/HTTPS/TR-069 enables zero-touch deployment across multiple locations

- Wide temperature range (-20°C to 50°C) supports installation in vestibules, loading docks, and transitional spaces

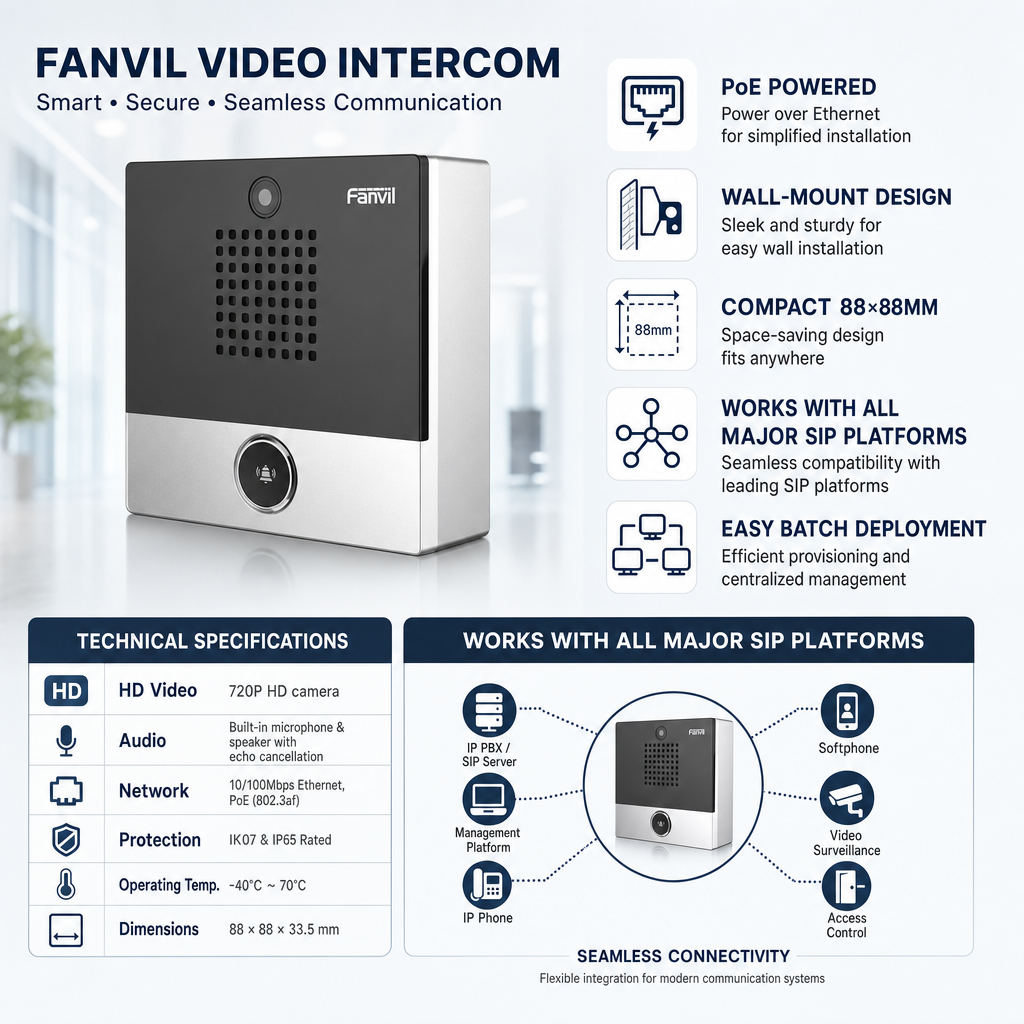

Quick Specs

Model	Fanvil i10SV
Camera	2MP CMOS, 720P/1080P, 73° diagonal view
SIP Lines	2 lines
DSS Keys	1 programmable key
Audio Codecs	G.711A/U, G.722, G.729A/B, G.723, G.726-32K, iLBC, Opus
Video Codec	H.264
Network	10/100Mbps Ethernet, PoE (IEEE 802.3af)
Relay Output	1x short-circuit I/O (DC30V/1A, AC125V/0.5A)
Power Consumption	1.76-2.85W (PoE), 1.32-2.33W (adapter)
IP Rating	IP54 (dustproof and splash-resistant)
Operating Temperature	-20°C to 50°C
Mounting	Wall-mount or flush-mount
Dimensions	88 x 88 x 32 mm
Platform Compatibility	Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya
Protocols	SIP 2.0 (UDP/TCP/TLS), RTP/SRTP, STUN, DHCP, IPv4/IPv6
Warranty	2 years

What's Included

- Fanvil i10SV Mini Video Intercom Unit

- Connector

- Installation Screws and Screwdriver

- Mounting Template with Dimension Guide

- Quick Installation Guide

Product Details
Color	Gray
Power Source	DC-powered

What type of facilities is the Fanvil i10SV video intercom best suited for?

The i10SV is designed for indoor commercial access points requiring video verification before door release. Typical deployments include office building entrances, warehouse loading docks, server rooms, and multi-tenant properties where staff need to visually identify visitors through existing VoIP phone systems. The IP54 rating and -20°C to 50°C operating range make it suitable for semi-outdoor vestibules and unheated entryways.

How does the i10SV compare to the i10S and i10SD models in the same series?

The i10SV is the only model in the series with an integrated HD camera for video intercom functionality. The i10S offers identical audio intercom and door control features without a camera, while the i10SD provides two DSS keys instead of one but also lacks a camera. Choose the i10SV when visual visitor identification is required before granting access.

Is the i10SV worth the investment given its End of Life status?

The i10SV delivers proven video intercom and access control functionality at a competitive price point, especially for organizations already using compatible VoIP platforms like Asterisk or 3CX. The 2-year warranty and current availability make it viable for immediate deployments. However, buyers should plan for eventual migration to a successor model since Fanvil has designated this series as EOL and long-term parts availability may be limited.

Which VoIP platforms and phone systems work with the Fanvil i10SV?

The i10SV is compatible with Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, and Avaya VoIP platforms. It supports standard SIP 2.0 protocol over UDP, TCP, and TLS, allowing integration with most enterprise IP-PBX systems. The device can work with VoIP desk phones, softphones, and mobile apps on these platforms to receive calls and trigger door release.

What video resolution and codec does the i10SV camera support?

The built-in camera uses a 2-megapixel CMOS sensor and supports 720P and 1080P video resolution encoded in H.264 format. The camera provides a 73° diagonal field of view (63.3° horizontal, 49.6° vertical) and includes backlight compensation to improve image quality in challenging lighting conditions.

Can the i10SV control existing door locks and access control hardware?

Yes, the i10SV includes a built-in relay with one short-circuit input/output interface rated for DC30V/1A or AC125V/0.5A. This relay can directly trigger electric door strikes, magnetic locks, and barrier gates. The relay is controlled remotely when authorized users press a door release button on their VoIP phone during an intercom call.

Does the i10SV require separate power or can it run on PoE?

The i10SV supports IEEE 802.3af PoE (Class 3) and draws 1.76-2.85W over the network cable, eliminating the need for separate power wiring in most installations. Alternatively, you can power the unit with a DC12V/1A adapter via the terminal block connector if PoE is unavailable.

What is the expected product lifecycle and replacement availability for the i10SV?

Fanvil has officially designated the i10S/i10SV/i10SD series as End of Life products. Current stock remains available for purchase with standard 2-year warranty coverage. Organizations planning large-scale or long-term deployments should contact EpicRise Electronics or Fanvil to confirm availability and identify potential successor models for future expansion.
