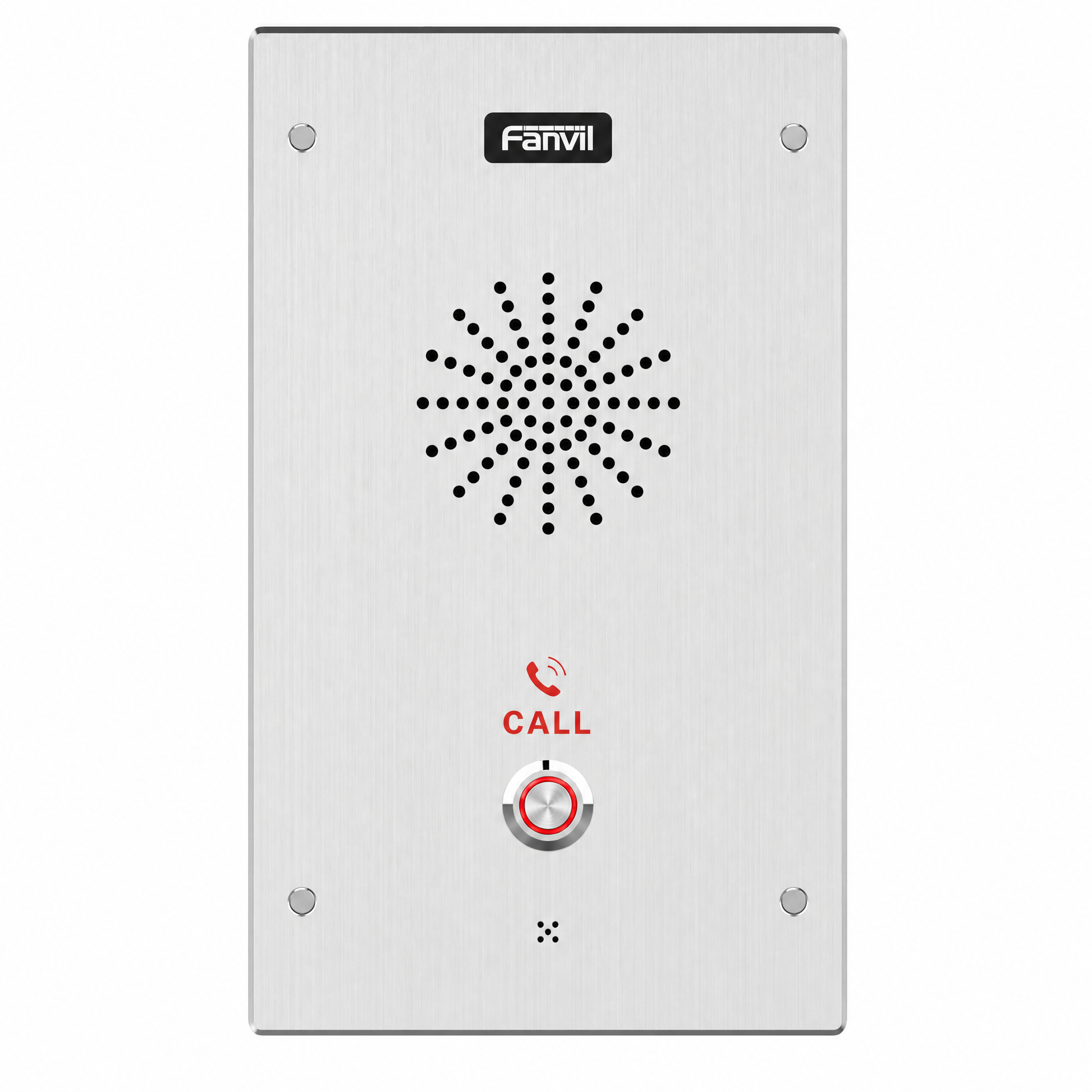

Fanvil i16S-02P SIP Intercom with 2 Speed Dial Buttons for Outdoor Industrial Communication

Name: Fanvil i16S-02P SIP Intercom with 2 Speed Dial Buttons for Outdoor Industrial Communication
Rating: 5.0 (2 reviews)

Delivery Time: 0-3 days

Product Highlights

• IP65 waterproof/dustproof and IK10 vandal-resistant with rugged die-cast aluminum frame for harsh outdoor environments

• 2 SIP lines with 2 programmable DSS keys for quick dialing and intercom functionality

• Built-in 3W speaker with acoustic echo cancellation and line-out port for external active speaker expansion

• Tamper alarm triggers when cover is separated from housing, with automatic alert to control center

• PoE Class 3 power support and extended operating temperature range from -30°C to 60°C

Overview
Specifications
FAQ
User Guides
Reviews

The Fanvil i16S-02P is a ruggedized SIP audio intercom designed for enterprise outdoor communication needs. Built with IP65 waterproof/dustproof and IK10 vandal-resistant ratings, this intercom delivers reliable voice communication in industrial facilities, parking structures, building entrances, and other harsh environments where standard communication devices would fail.

Featuring 2 SIP lines and 2 programmable speed dial buttons with LED indicators, the i16S-02P provides quick access to security personnel, facility management, or emergency contacts. The die-cast aluminum housing withstands physical impacts and operates in temperatures from -30°C to 60°C, making it suitable for both indoor and outdoor installations across various climates.

The device includes tamper detection that triggers alerts when the cover is removed, dual relay outputs for controlling electric locks or alarms, and dual switch inputs for connecting door sensors or motion detectors. With PoE support and comprehensive VPN/VLAN capabilities, IT teams can deploy the i16S-02P securely within existing network infrastructure.

Best For

The Fanvil i16S-02P serves enterprises requiring durable outdoor communication solutions in security-critical or harsh environment applications:

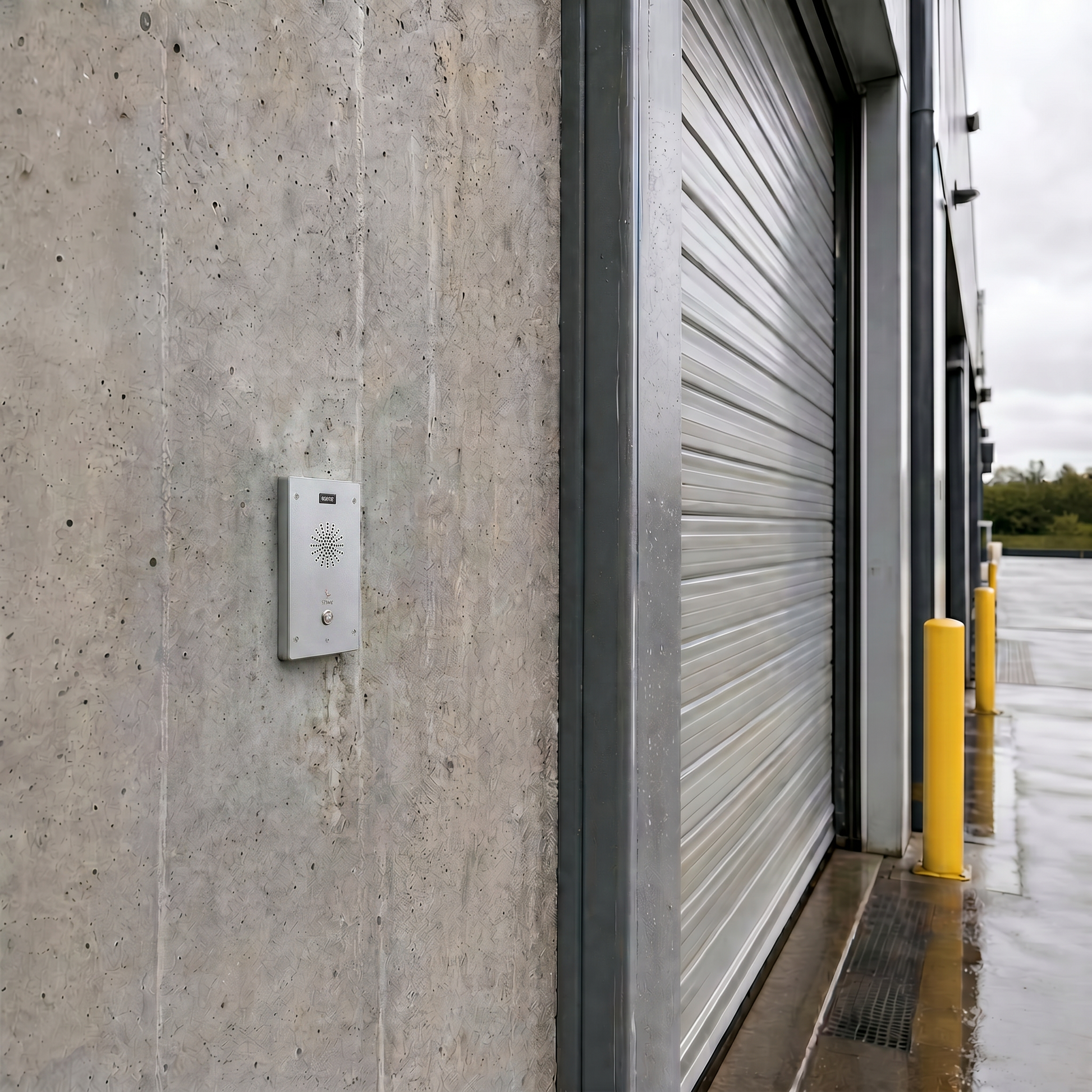

- Industrial Facilities: Manufacturing plants, warehouses, and loading docks where workers need reliable communication with security or operations teams in extreme temperature and dusty conditions

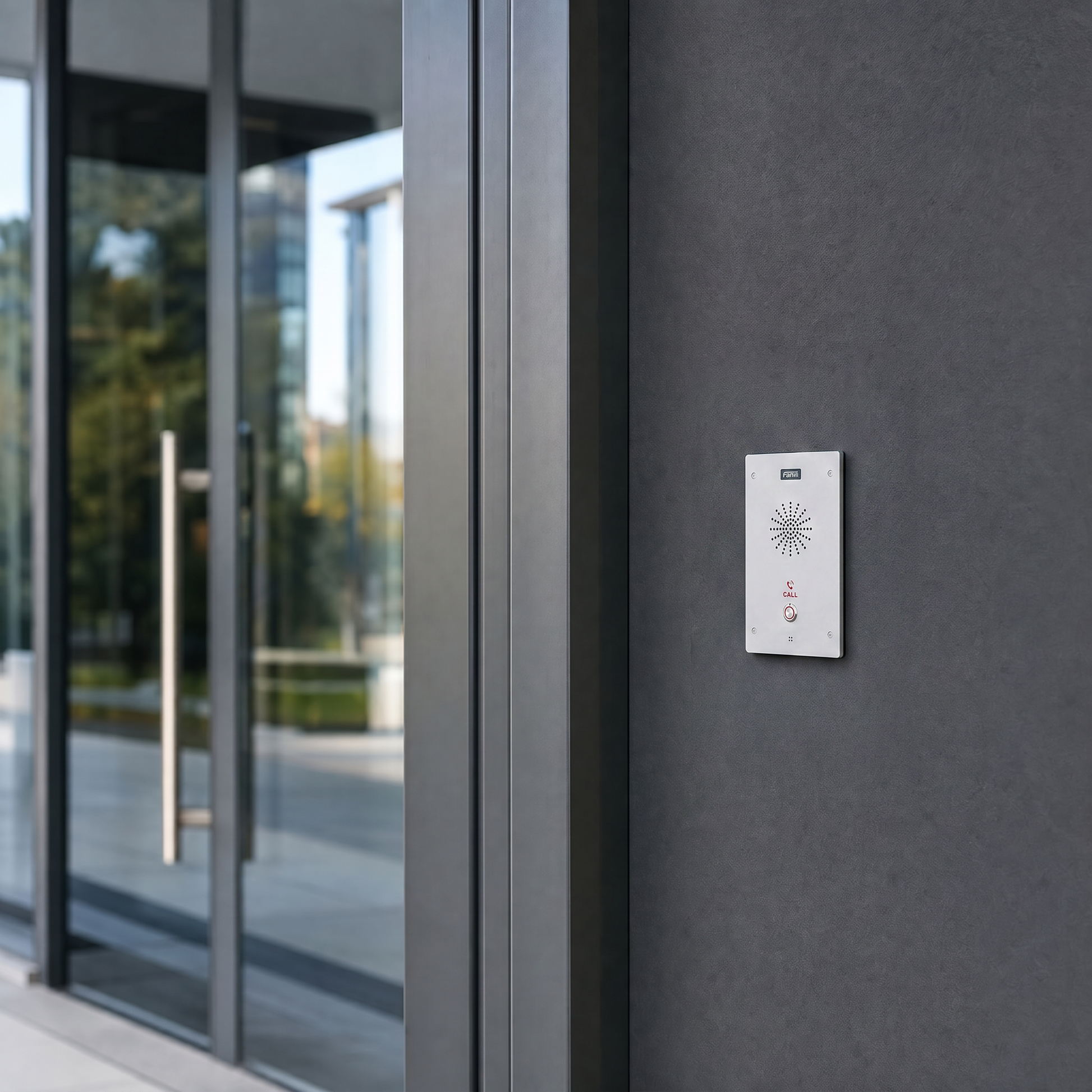

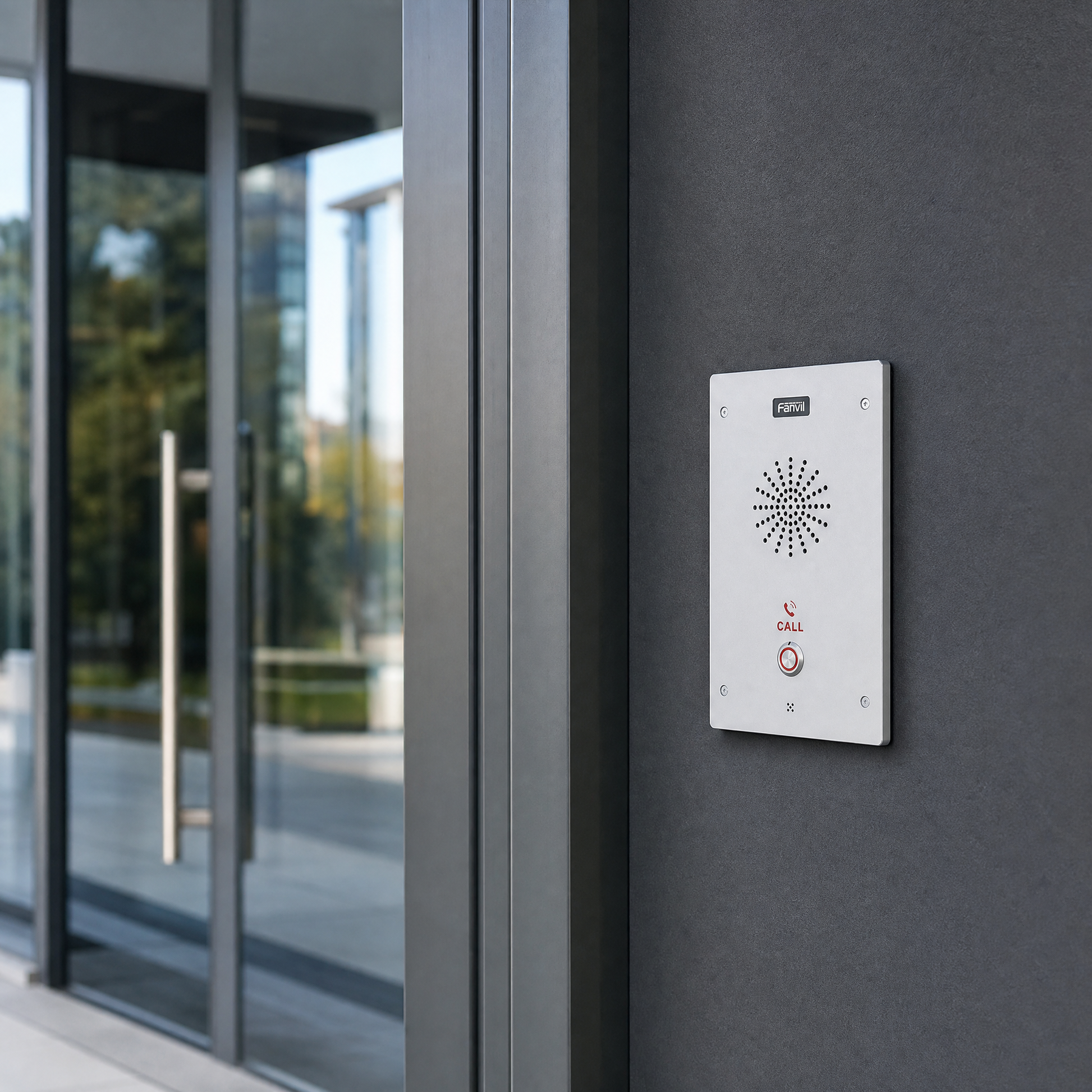

- Building Access Control: Main entrances, service doors, and gated communities requiring visitor verification with integration to electric door strikes and surveillance systems

- Parking Structures: Multi-level parking garages and surface lots where customers or staff need assistance, emergency communication, or access control at entry/exit points

- Campus Security: Educational institutions, corporate campuses, and hospital grounds needing emergency call stations with tamper alerts and weather resistance

- Transportation Hubs: Bus terminals, train stations, and airport service areas requiring public communication points that withstand high traffic and vandalism

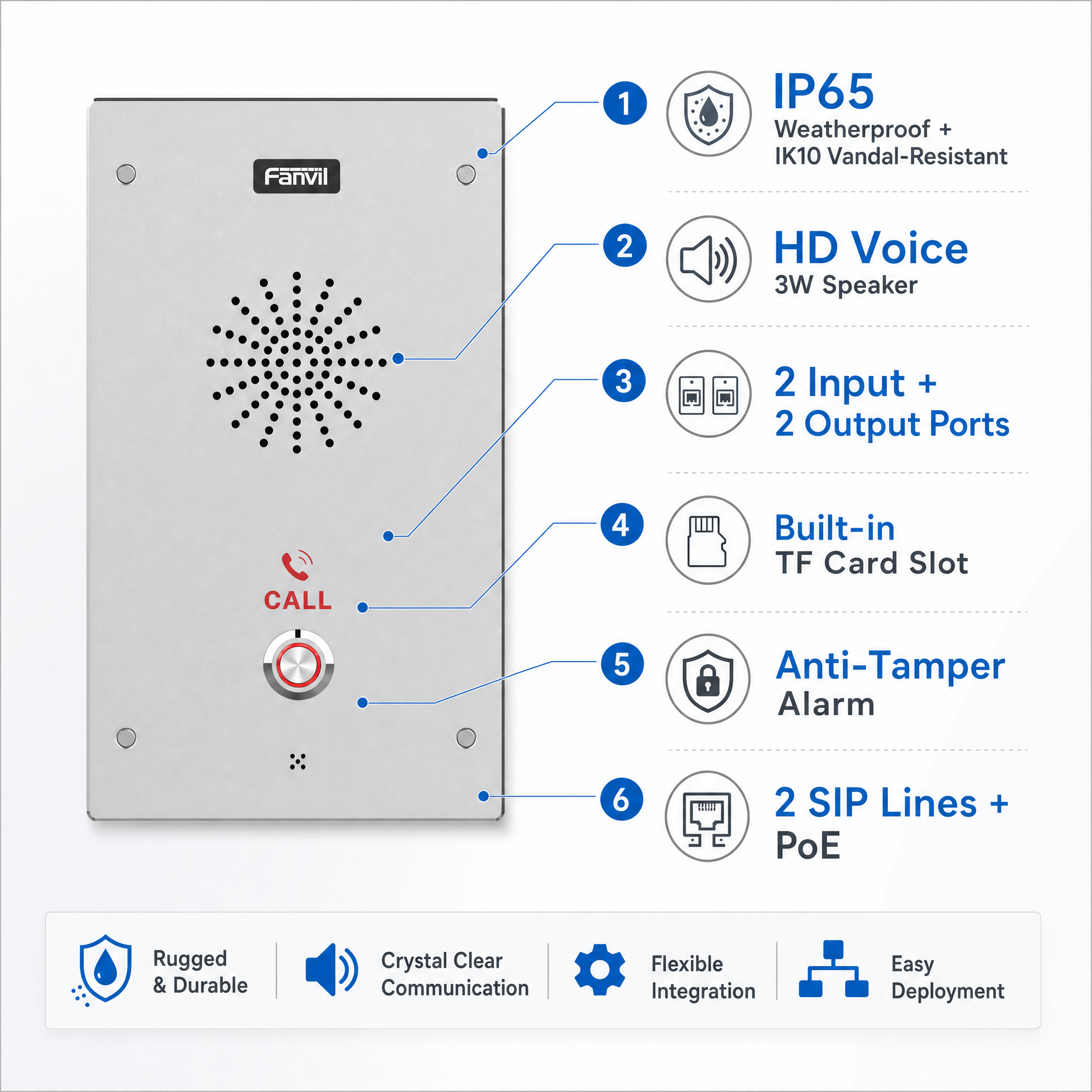

Key Features

- 2 SIP lines with 2 programmable DSS keys featuring LED indicators for speed dial, intercom, and paging functions

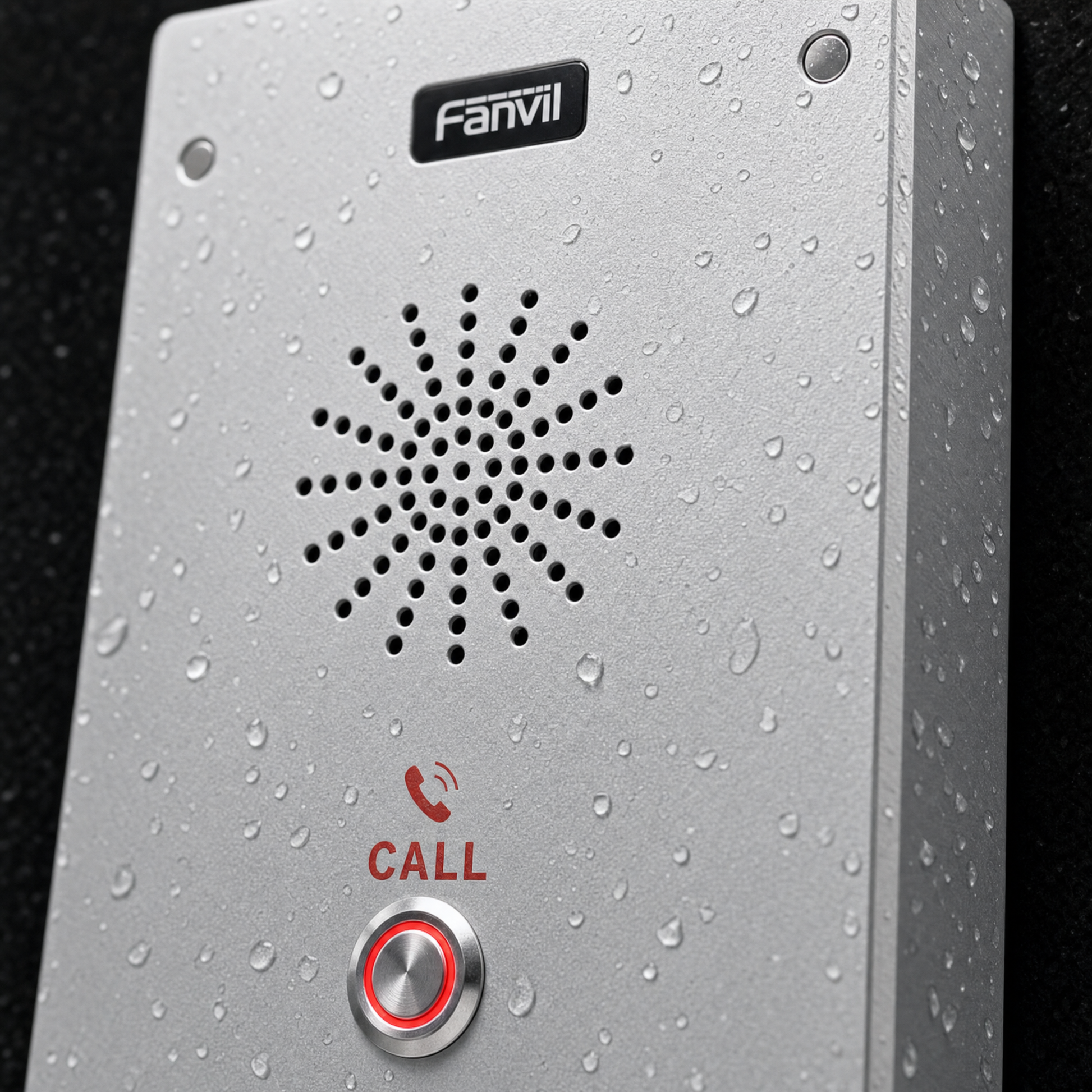

- IP65 waterproof/dustproof and IK10 vandal-resistant housing with die-cast aluminum frame for outdoor durability

- Operating temperature range from -30°C to 60°C supports installations in extreme climate conditions

- Tamper alarm system detects cover removal and sends automatic alerts to control center for security monitoring

- Built-in 3W speaker with HD audio quality, acoustic echo cancellation, and full-duplex hands-free communication

- Line-out port supports external active speaker connection for amplified audio coverage in large areas

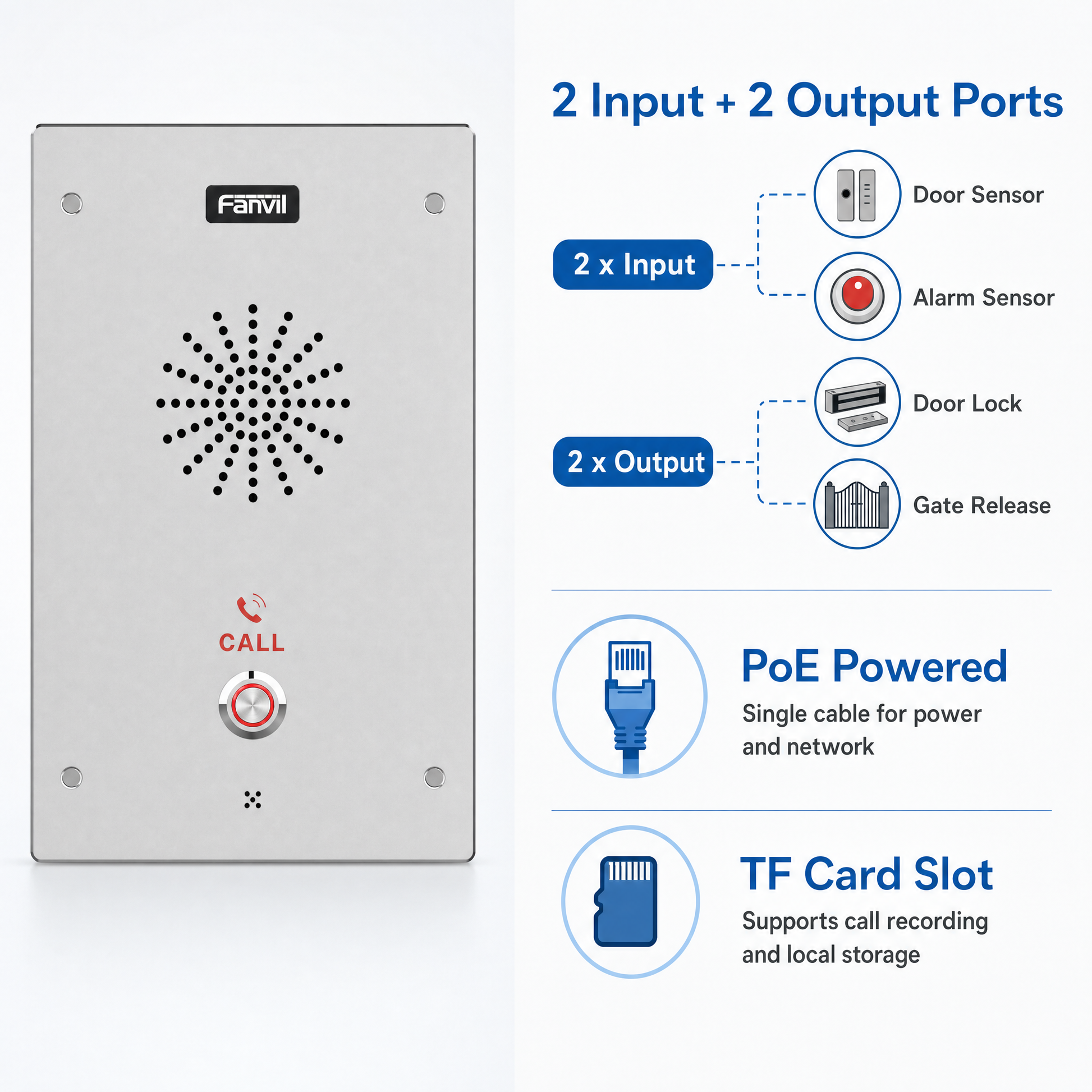

- 2 switch input ports and 2 relay output ports enable integration with door locks, alarms, and sensors

- PoE IEEE 802.3af Class 3 power eliminates need for separate power supply at remote installation locations

- Auto-provisioning via FTP/TFTP/HTTP/HTTPS/TR-069 simplifies multi-site deployment and configuration management

- TF card slot supports offline audio broadcast and data storage for announcements or local recording

Quick Specs

Model	Fanvil i16S-02P (Audio Only)
SIP Lines	2
Programmable Keys	2 DSS keys with LED indicators
Audio Codec	Narrowband: G.711A/U, G.729A/B, iLBC, G.723, G.726-32K Wideband: G.722, Opus
Speaker	Built-in 3W with acoustic echo cancellation
Network Interface	10/100 Mbps Ethernet, RJ45 x1
Power Supply	PoE IEEE 802.3af Class 3 or 12V/1A DC
I/O Ports	2x switch input, 2x relay output (max DC30V/2A, AC125V/0.5A) 1x line-out for active speaker, 1x recording output
Protection Rating	IP65 (waterproof/dustproof), IK10 (vandal-resistant)
Operating Temperature	-30°C to 60°C
Housing Material	Die-cast aluminum frame
Dimensions	195 x 120 x 40 mm
Protocols	SIP 2.0, RTP/RTCP/SRTP, IPv4/IPv6, VLAN, QoS, L2TP, OpenVPN, TR-069
Provisioning	Auto-config via FTP/TFTP/HTTP/HTTPS/DHCP Option 66/SIP PNP/TR-069
Additional Features	TF card slot, tamper alarm, IP address voice announcement, MP3 broadcast

General Specifications
Brand	Fanvil
Model No.	i16S-02

Product Details
Color	Silver
Power Source	AC-powered, DC-powered
Connectivity Technology	Ethernet, Wired
Ingress Protection (IP) Rating	IP65
Intercom Communication Type	Audio-only
Communication Device Features	Speakerphone, Multi-line support, Built-in display
Mounting Type	Wall
