Fanvil i16SV-02P SIP Video Intercom with HD Camera and Night Vision for Outdoor Access Control

Name: Fanvil i16SV-02P SIP Video Intercom with HD Camera and Night Vision for Outdoor Access Control
Rating: 5.0 (1 reviews)

Delivery Time: 0-3 days

Product Highlights

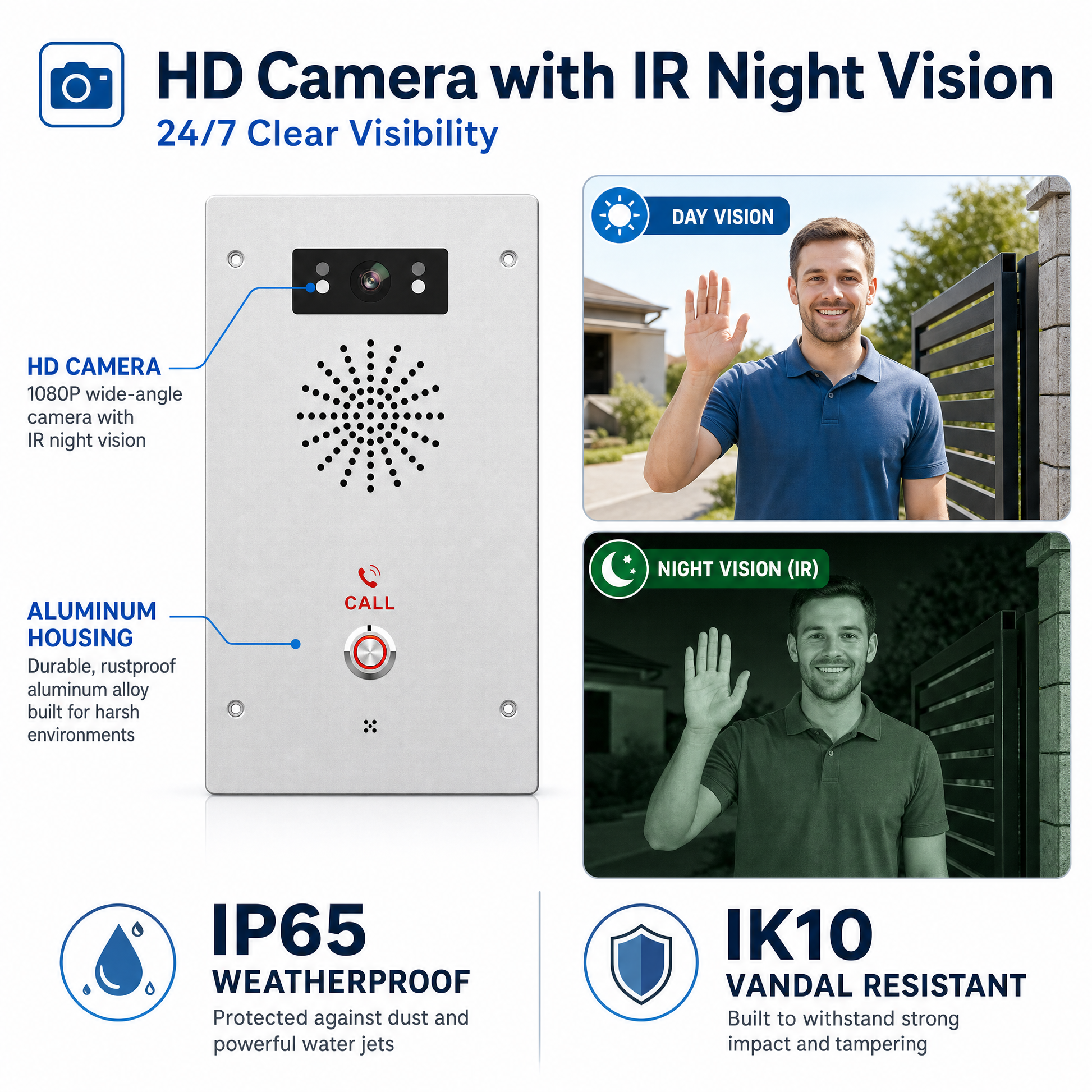

• HD video intercom with 1080P camera, infrared night vision, and 126° diagonal viewing angle for clear visitor identification 24/7

• IP65 weatherproof and IK10 vandal-resistant with die-cast aluminum frame and anti-tamper alarm for outdoor security applications

• Wide temperature range -30°C to 60°C enables reliable operation in extreme climates without additional heating or cooling equipment

• 2 SIP lines with dual DSS keys support multicast paging and integration with IP PBX systems for enterprise communication workflows

• Built-in relay I/O ports control door locks and sensors; TF card slot enables offline audio broadcasting and data storage

Overview
Specifications
FAQ
User Guides
Reviews

The Fanvil i16SV-02P is an enterprise-grade SIP video door phone designed for outdoor access control and security applications. Combining HD video, two-way audio, and environmental protection, this intercom delivers reliable visitor communication in the harshest conditions. Its die-cast aluminum construction and IP65/IK10 ratings withstand water, dust, and physical impacts, while the -30°C to 60°C operating range ensures year-round functionality without external climate control.

Built for IT-managed environments, the i16SV-02P integrates seamlessly with SIP-based phone systems and IP camera networks through standard protocols including ONVIF and RTSP. The dual SIP lines, programmable DSS keys, and relay I/O ports enable sophisticated workflows such as multicast announcements, automated door release, and alarm triggering. Organizations gain a unified communication endpoint that combines voice, video, and access control in a single PoE-powered device.

Best For

The Fanvil i16SV-02P serves organizations requiring secure outdoor video communication and visitor management:

- Corporate campuses and office buildings where receptionless entry points need video verification before granting access through integration with IP PBX and door control systems

- Industrial facilities and warehouses operating in extreme temperatures where standard intercoms fail, requiring -30°C to 60°C capability and IP65 protection against dust and moisture

- Multi-tenant residential and commercial properties deploying centralized access control with SIP trunking to route calls to management offices or individual units via programmable DSS keys

- Educational institutions and healthcare campuses needing vandal-resistant IK10 construction, anti-tamper alarms, and ONVIF integration with existing surveillance infrastructure

- Logistics and distribution centers where delivery coordination requires two-way video communication and relay outputs to control loading dock doors and gates

Key Features

- HD video with 2MP 1080P camera, infrared night vision down to 0.1 Lux, and H.264 codec for low-bandwidth streaming over corporate networks

- Dual SIP line support with programmable DSS keys enables call routing to multiple extensions and one-touch speed dial to security desks or management offices

- IP65 water and dust protection plus IK10 impact resistance with die-cast aluminum frame survives outdoor installation in high-traffic or exposed locations

- Wide -30°C to 60°C operating temperature range eliminates need for climate-controlled enclosures in extreme environments

- 2 relay input ports and 2 relay output ports with short-circuit detection interface with access control panels, magnetic locks, and alarm systems

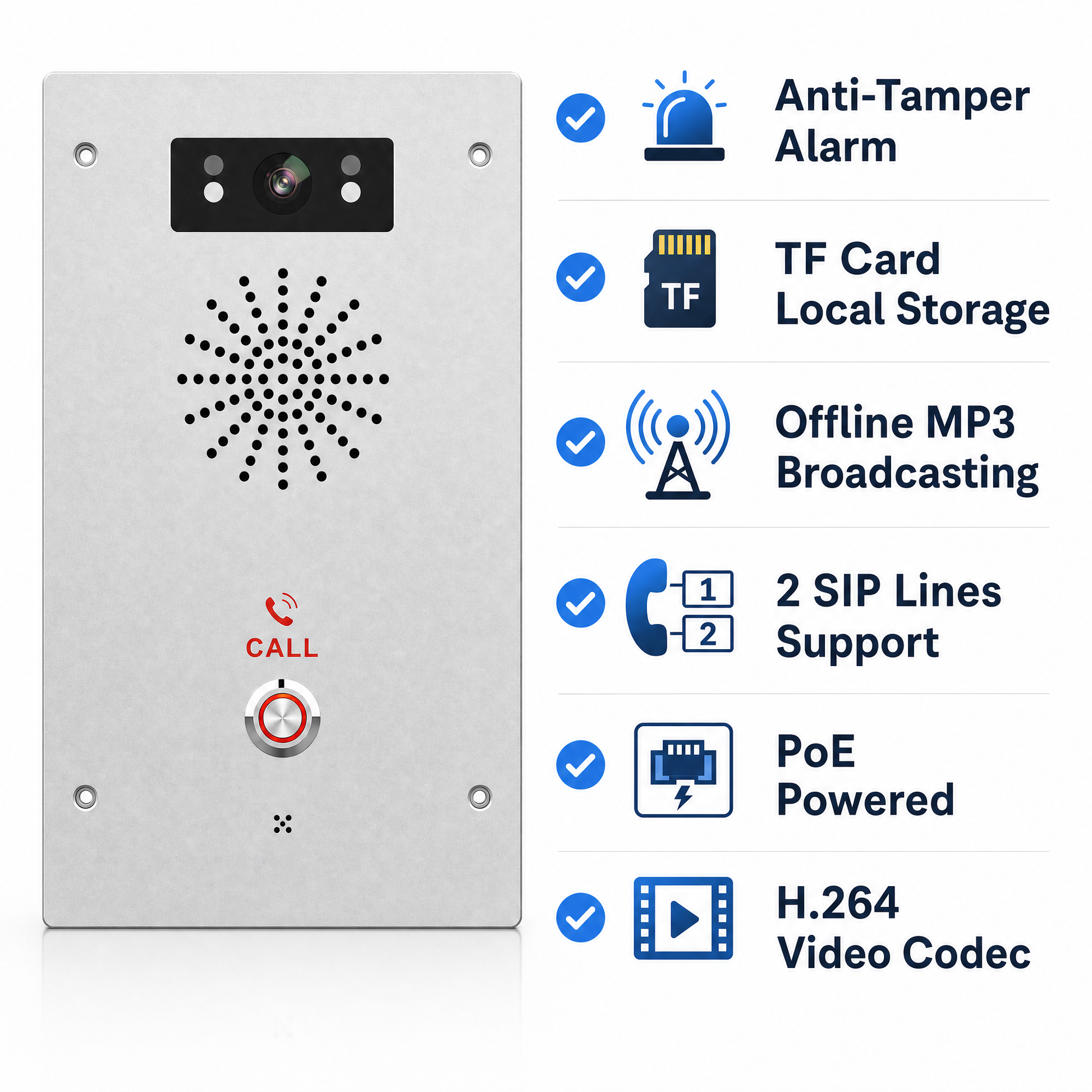

- Anti-tamper alarm triggers when housing is separated from backplate and reports security events to central monitoring systems via SIP INFO or HTTP API

- TF card slot supports offline MP3 broadcasting for scheduled announcements and local recording storage when network connectivity is interrupted

- PoE IEEE 802.3af Class 3 power simplifies installation with single-cable deployment; alternative 12V DC input available for non-PoE networks

- ONVIF and RTSP protocol support integrates with third-party VMS platforms and IP camera systems for unified security management

- 3W built-in speaker with acoustic echo cancellation plus line output for external active speakers delivers clear two-way audio in noisy environments

Quick Specs

Model	i16SV-02P
SIP Lines	2
Camera Sensor	1/2.8" CMOS, 2 Megapixel
Video Resolution	720P / 1080P
Video Codec	H.264
Field of View	126° diagonal / 98° horizontal / 65° vertical
Night Vision	Infrared illumination, 0.1 Lux minimum
Audio Codec (Wideband)	G.722, Opus
Audio Codec (Narrowband)	G.711A/U, G.729A/B, iLBC, G.723, G.726-32K
Speaker	3W built-in with AEC
DSS Keys	2 programmable keys with LED
Relay I/O	2 input / 2 output with short-circuit detection
Network Interface	10/100 Mbps Ethernet RJ45
Power	PoE IEEE 802.3af Class 3
Protocols	SIP 2.0, ONVIF, RTSP, SRTP, VLAN, L2TP, OpenVPN
IP Rating	IP65 (dust/water resistant)
Impact Rating	IK10 (vandal resistant)
Operating Temperature	-30°C to 60°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 95%
Dimensions (W x H x D)	195 x 120 x 40 mm
Mounting	Wall mount

What's Included

- Fanvil i16SV-02P SIP video intercom unit

- Quick installation guide

- Mounting screws and installation tools

- Connectors for wiring

- Installation template

General Specifications
Brand	Fanvil
Model No.	i16SV-02P
UPC	889837001882

Product Details
Color	Gray, Silver, Black
Power Source	AC-powered
Connection Type	Wired, Ethernet, Power cord
Connectivity Technology	Ethernet, Wired
Ingress Protection (IP) Rating	IP65
Display Resolution	1080p
Intercom Communication Type	Video
Communication Device Features	Built-in display, Caller ID, Speakerphone
Mounting Type	Wall

Q: Does the Fanvil i16SV support PoE?

A: Yes, the i16SV is powered via PoE Class 3 over a standard RJ45 port. It also supports DC12V~24V/1A direct power input via a 2-pin terminal socket as an alternative.

Q: What is the camera resolution on the i16SV?

A: The i16SV has a built-in 1080p HD camera with H.264 encoding and infrared night vision for 24-hour video coverage at entry points.

Q: What is the IP and impact protection rating of the i16SV?

A: The i16SV is rated IP65 (fully waterproof and dustproof) and IK10 (anti-collision), making it suitable for permanent outdoor installation in demanding environments.

Q: How many SIP lines does the i16SV support?

A: The i16SV supports 2 SIP lines.

Q: Does the i16SV support door lock integration?

A: Yes, the i16SV has 2 short-circuit input and 2 short-circuit output ports with a built-in relay (MAX DC30V/2A, AC125V/0.5A) and active switching output (12V/500mA DC) for door lock and access control hardware.

Q: Does the i16SV have an anti-tamper feature?

A: Yes, the i16SV includes a tamper alarm switch that immediately alerts the control center if the device cover is removed from the housing.

Q: What VoIP platforms is the i16SV compatible with?

A: The i16SV is compatible with major SIP platforms including Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, and Avaya.

Q: Does the i16SV support broadcasting or PA announcements?

A: Yes, the i16SV supports broadcasting/PA mode for facility-wide audio announcements and includes a dedicated SOS call function for emergency communication.

Q: Can the i16SV be connected to an external speaker?

A: Yes, the i16SV has an audio line out port for connecting an external active speaker, with output adjustable by volume up to 1.2Vpp via a terminal socket.

Q: What audio codecs does the i16SV support?

A: The i16SV supports narrowband codecs G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K and wideband codecs G.722 and Opus, with full-duplex hands-free speakerphone and AEC.
