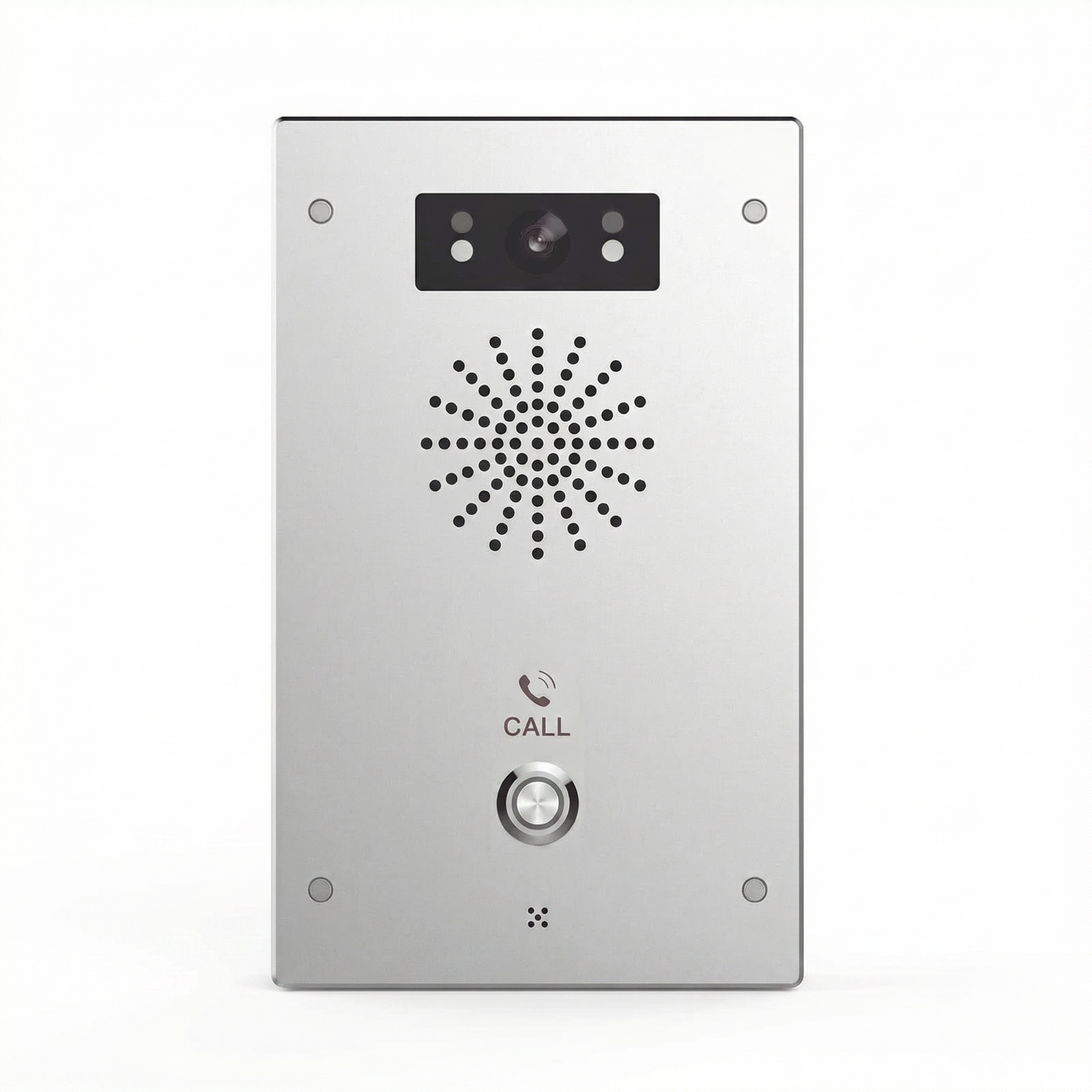

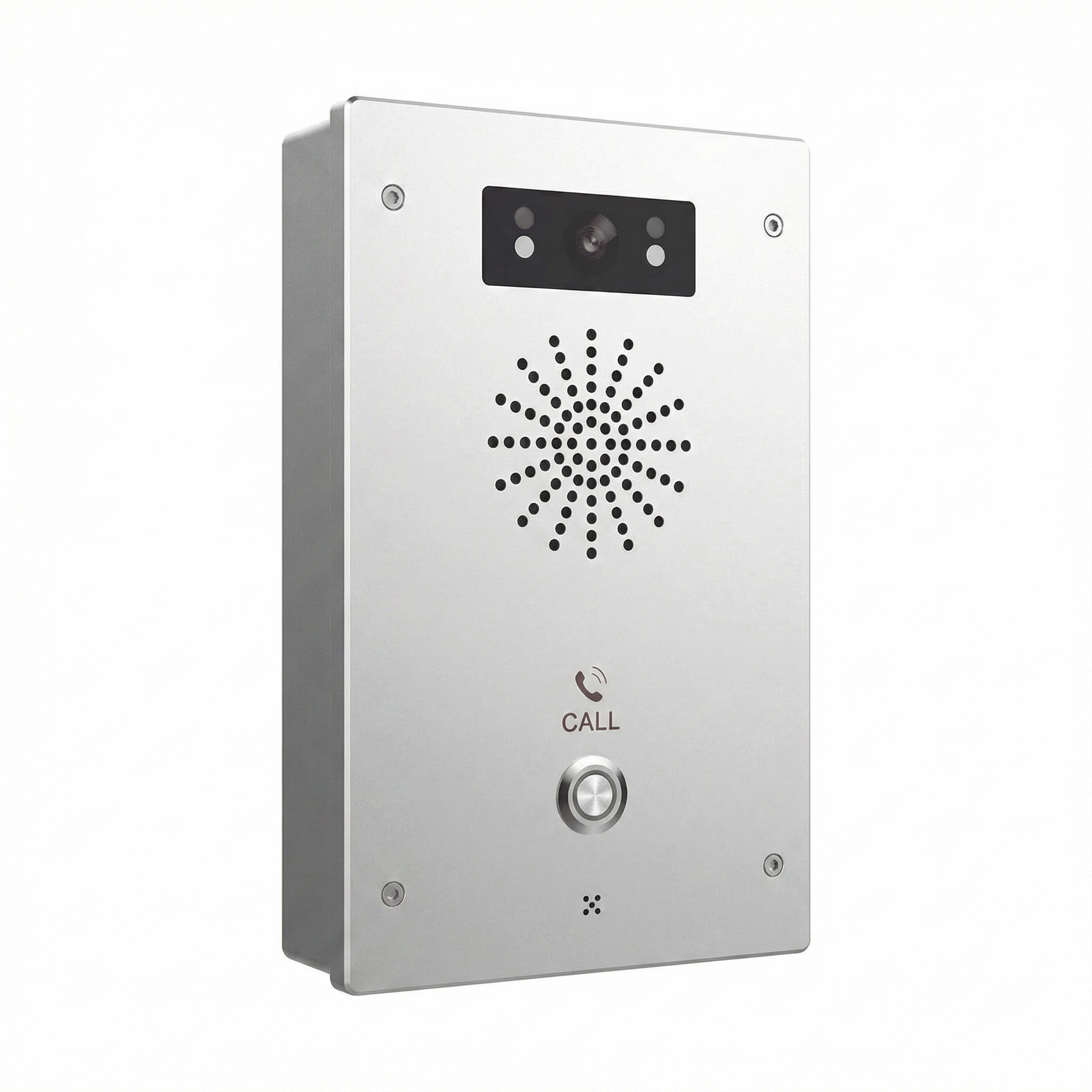

Fanvil i16SV Outdoor SIP Video Intercom - 1080p HD Camera, Infrared Night Vision, 2 SIP Lines, PoE, IP65/IK10, Anti-Tamper Alarm, Die-Cast Aluminum, Wall-Mount, Black

Name: Fanvil i16SV Outdoor SIP Video Intercom - 1080p HD Camera, Infrared Night Vision, 2 SIP Lines, PoE, IP65/IK10, Anti-Tamper Alarm, Die-Cast Aluminum, Wall-Mount, Black
Rating: 5.0 (1 reviews)

Delivery Time: 0-3 days

Product Highlights

• 【Clear Day and Night View】: Shows clear video at the door in both bright and dark conditions.

• 【Tough Outdoor Build】: Made to handle outdoor weather and rough use.

• 【Tamper and Lock Ready】: Helps protect the device and works with door access systems.

• 【Simple PoE Setup】: Uses one cable for power and network connection.

• 【Emergency Call and PA】: Supports fast alerts and clear public announcements.

• 【Extra Audio Storage】: Supports stored audio and outside speaker connection.

Overview
Specifications
FAQ
User Guides
Reviews

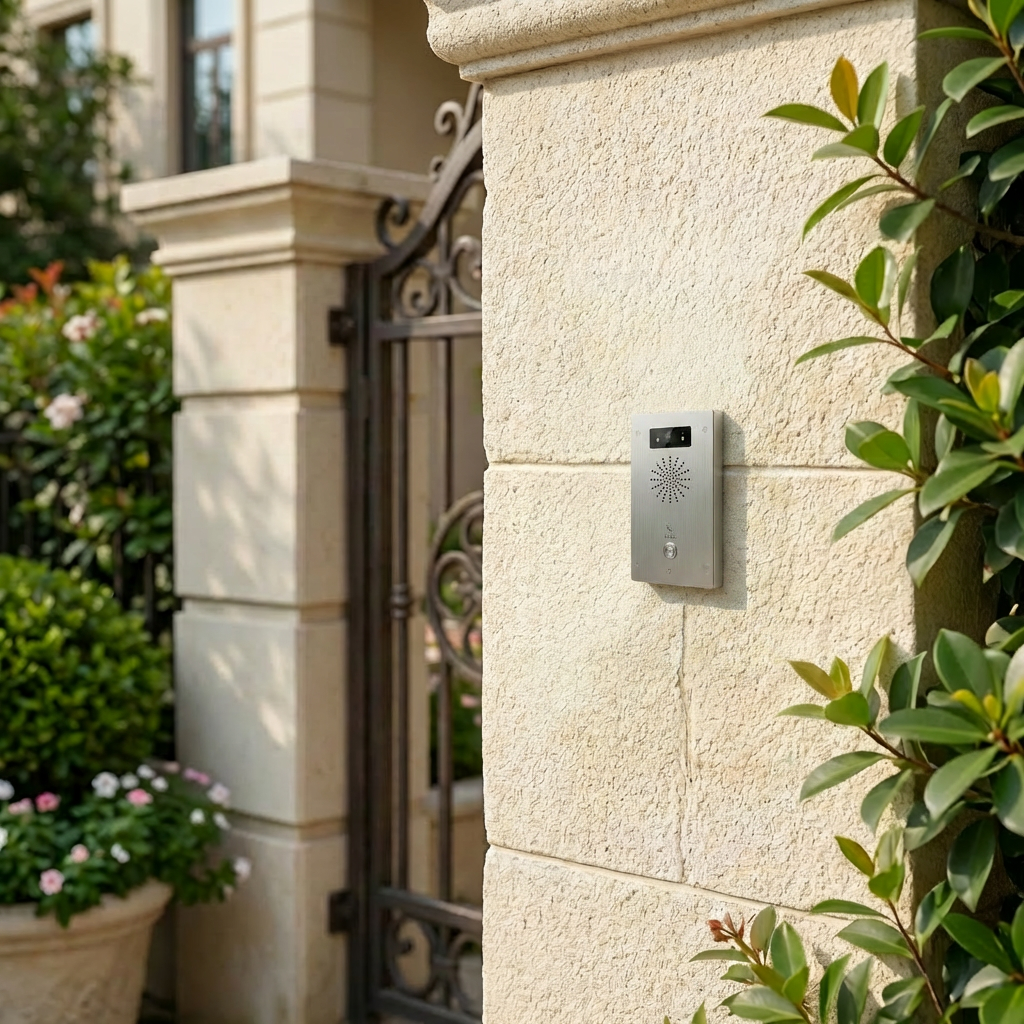

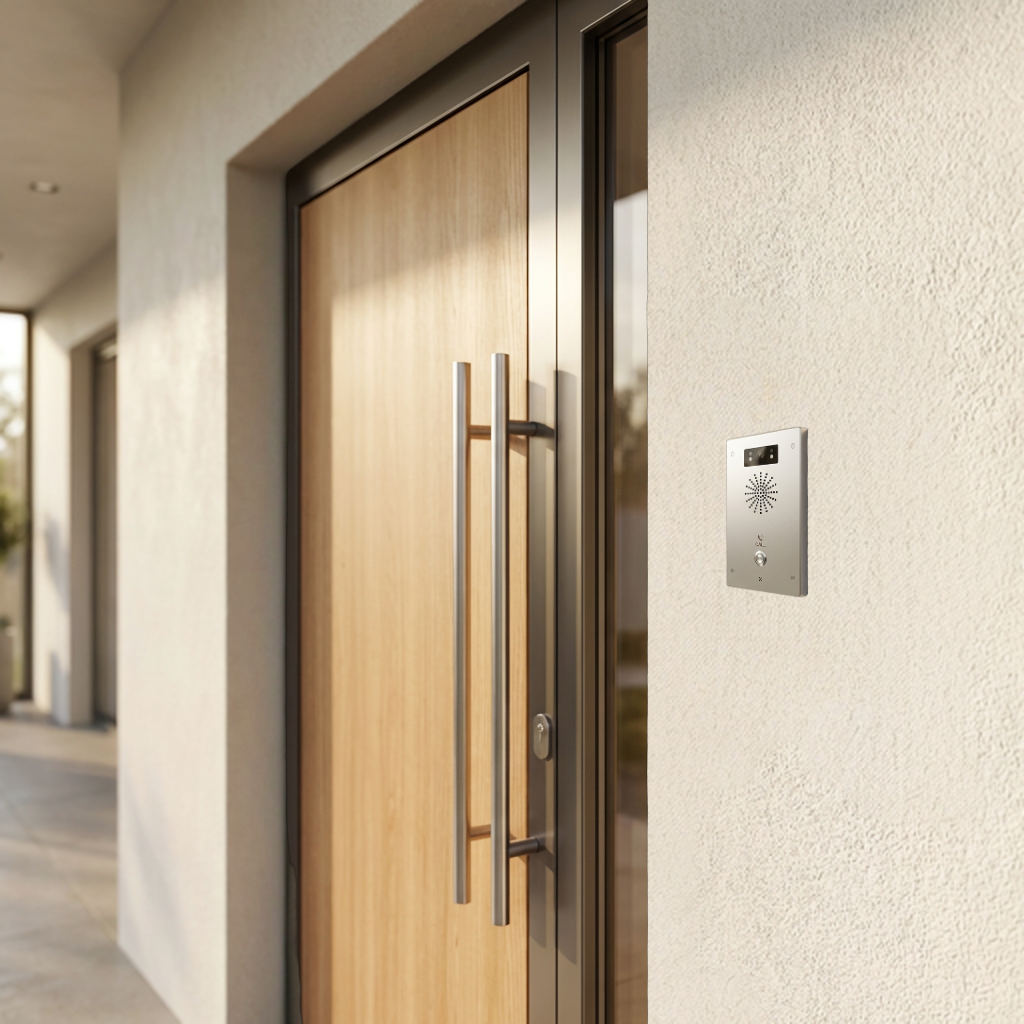

The Fanvil i16SV is an outdoor SIP video intercom engineered for enterprise access control deployments at building entrances, campus gates, and security-critical entry points where outdoor durability and SIP integration are required.

Best For:

- Building entrances and access control entry points

- Corporate campus and gated facility installations

- Hospitality and healthcare outdoor security deployments

- Enterprise SIP/VoIP intercom infrastructure

- Installations requiring video verification at the door

Key Features:

- Built-in 1080p HD camera with infrared night vision and H.264 codec: Enables continuous video identification at entry points day and night, with support for IP camera linkage for broader video intercom integration.

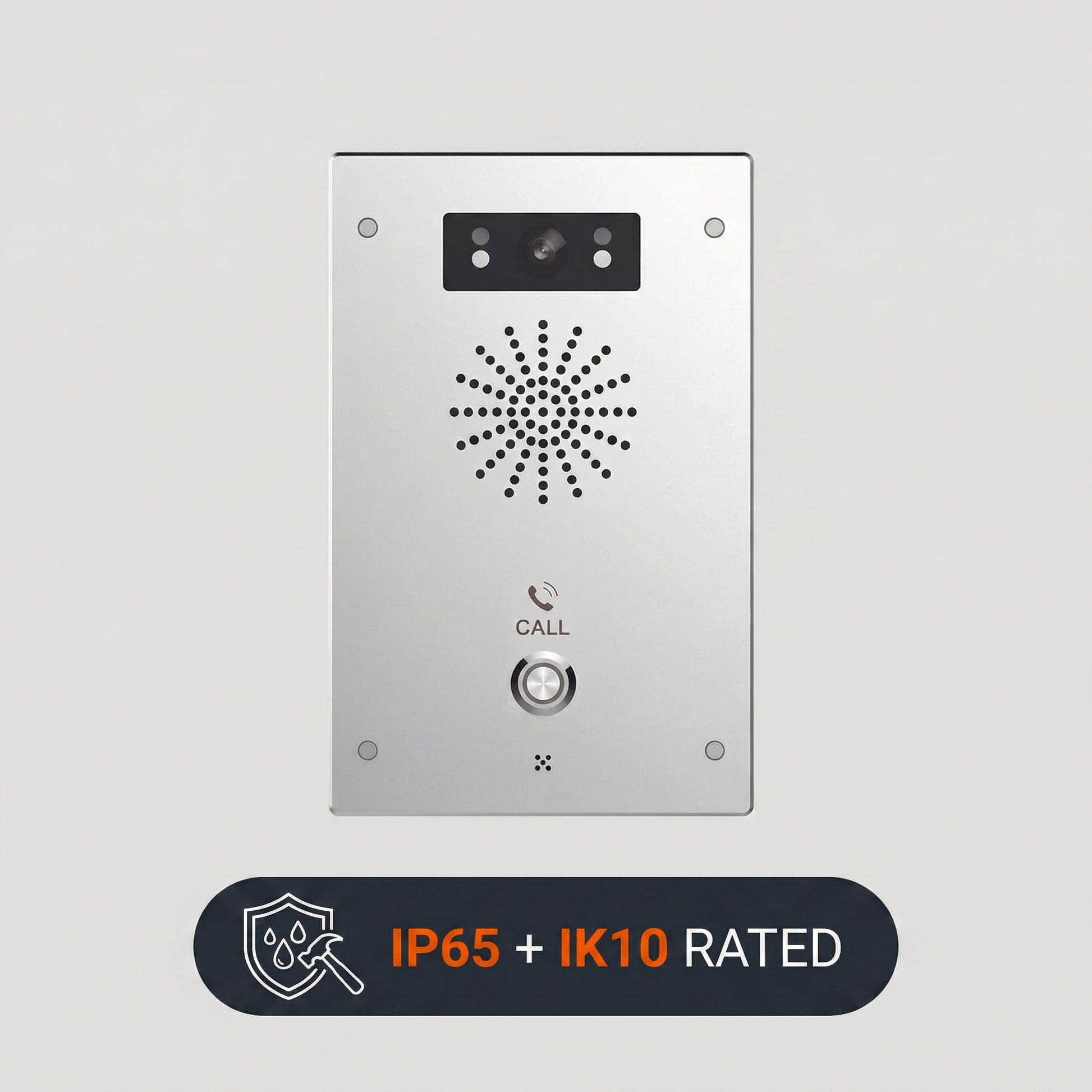

- IP65 waterproof/dustproof + IK10 anti-collision: Die-cast aluminum alloy construction withstands outdoor weather, dust ingress, and physical impact for long-term deployment reliability.

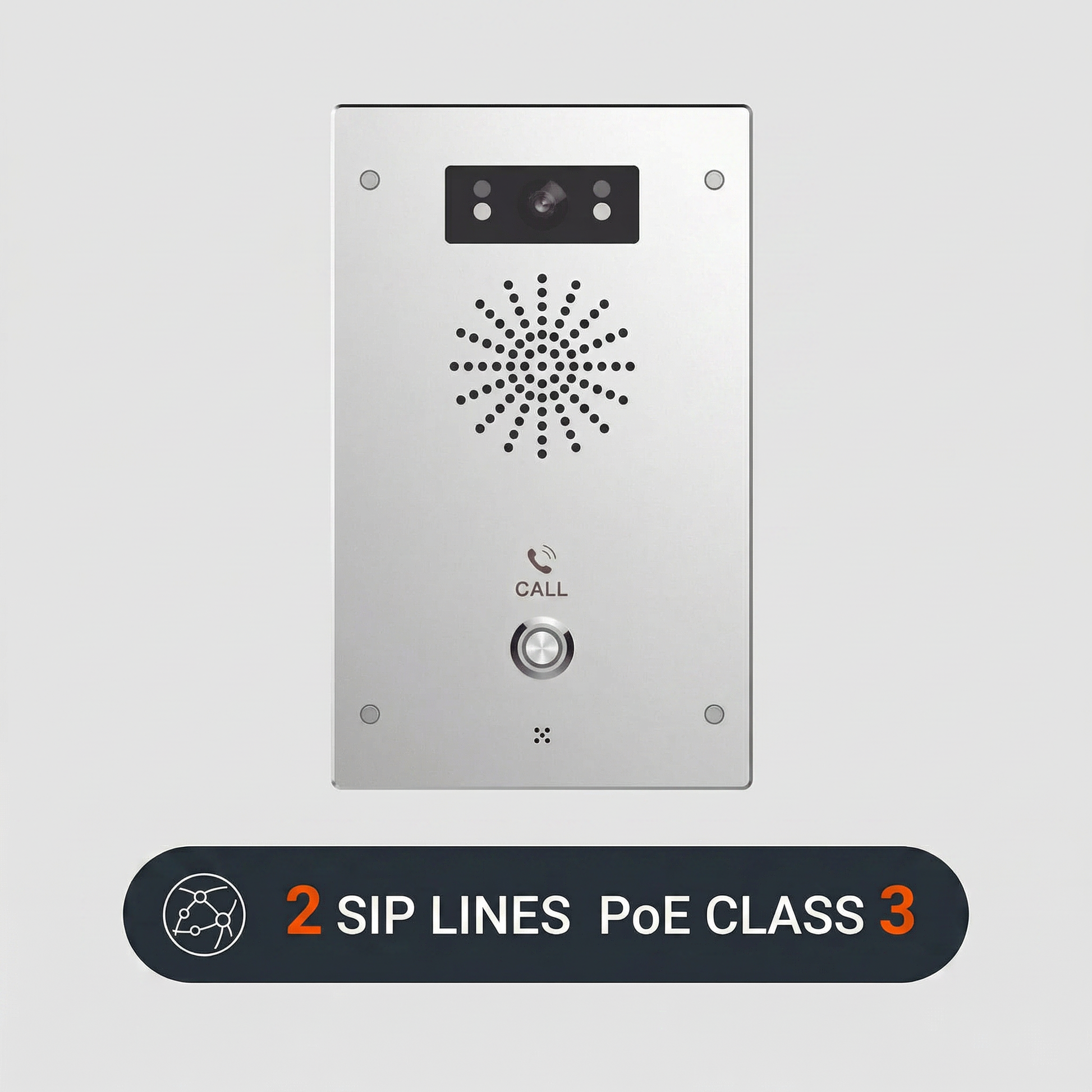

- 2 SIP lines with HD voice and Acoustic Echo Cancellation: Full-duplex hands-free communication ensures clear intercom audio on PoE-powered SIP/VoIP infrastructure.

- 2 short-circuit input + 2 output ports with built-in relay: Supports door lock integration and access control hardware with MAX DC30V/2A relay and active switching output (12V/500mA DC).

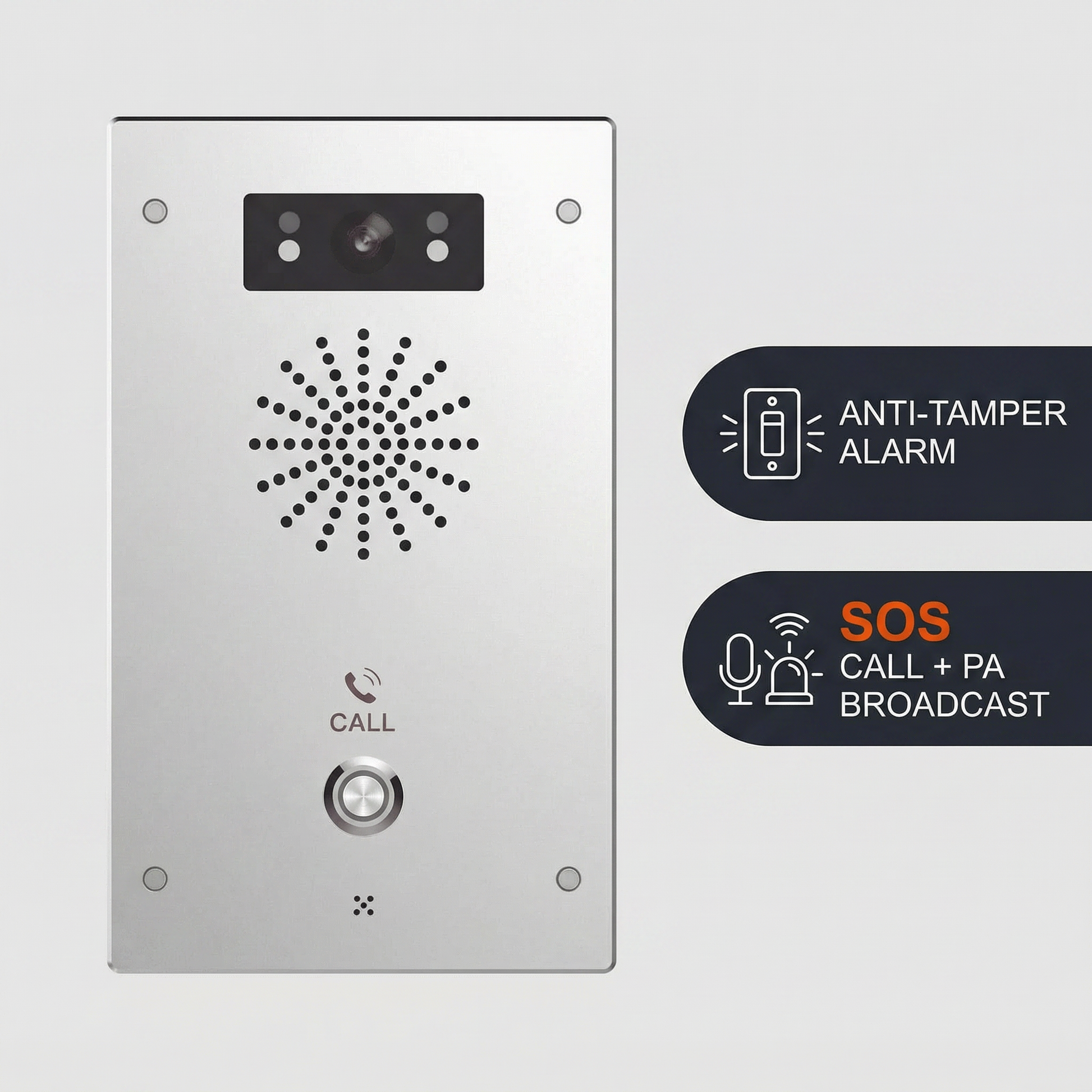

- Anti-tamper alarm switch: Triggers an immediate alert to the control center if the device housing is opened or disturbed.

- PoE Class 3 (RJ45) + optional DC12V~24V/1A input: Single-cable power and data via PoE with a backup DC input terminal for flexible installation configurations.

- TF card slot + audio line out port: Local TF card storage supports audio offline broadcasting; line out supports external active speaker connection (adjustable volume, max 1.2Vpp).

- SOS call and broadcasting/PA: Dedicated SOS button for emergency calls and broadcast mode for facility-wide audio announcements from a single device.

Quick Specs:

- SIP Lines: 2

- Camera: Built-in 1080p HD, H.264 codec, infrared night vision

- Network: 10/100Mbps, PoE Class 3 (RJ45)

- Protection: IP65 waterproof/dustproof, IK10 anti-collision

- Housing: Die-cast aluminum alloy shell

- I/O: 2 short-in detect ports + 2 short-out control ports (built-in relay, MAX DC30V/2A)

- Power: PoE Class 3 or DC12V~24V/1A (2-pin terminal)

- Dimensions: 195 x 120 x 40 mm

General Specifications
Brand	Fanvil
Model No.	i16SV
UPC	889837001882

Product Details
Color	Gray, Silver, Black
Connection Type	Wired, Ethernet, Power cord
Connectivity Technology	Wired, Ethernet
Display Resolution	1920 x 1080, 1080p, Full HD
Communication Device Features	Built-in display, Voice control

Q: Does the Fanvil i16SV support PoE?

A: Yes, the i16SV is powered via PoE Class 3 over a standard RJ45 port. It also supports DC12V~24V/1A direct power input via a 2-pin terminal socket as an alternative.

Q: What is the camera resolution on the i16SV?

A: The i16SV has a built-in 1080p HD camera with H.264 encoding and infrared night vision for 24-hour video coverage at entry points.

Q: What is the IP and impact protection rating of the i16SV?

A: The i16SV is rated IP65 (fully waterproof and dustproof) and IK10 (anti-collision), making it suitable for permanent outdoor installation in demanding environments.

Q: How many SIP lines does the i16SV support?

A: The i16SV supports 2 SIP lines.

Q: Does the i16SV support door lock integration?

A: Yes, the i16SV has 2 short-circuit input and 2 short-circuit output ports with a built-in relay (MAX DC30V/2A, AC125V/0.5A) and active switching output (12V/500mA DC) for door lock and access control hardware.

Q: Does the i16SV have an anti-tamper feature?

A: Yes, the i16SV includes a tamper alarm switch that immediately alerts the control center if the device cover is removed from the housing.

Q: What VoIP platforms is the i16SV compatible with?

A: The i16SV is compatible with major SIP platforms including Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, and Avaya.

Q: Does the i16SV support broadcasting or PA announcements?

A: Yes, the i16SV supports broadcasting/PA mode for facility-wide audio announcements and includes a dedicated SOS call function for emergency communication.

Q: Can the i16SV be connected to an external speaker?

A: Yes, the i16SV has an audio line out port for connecting an external active speaker, with output adjustable by volume up to 1.2Vpp via a terminal socket.

Q: What audio codecs does the i16SV support?

A: The i16SV supports narrowband codecs G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K and wideband codecs G.722 and Opus, with full-duplex hands-free speakerphone and AEC.
