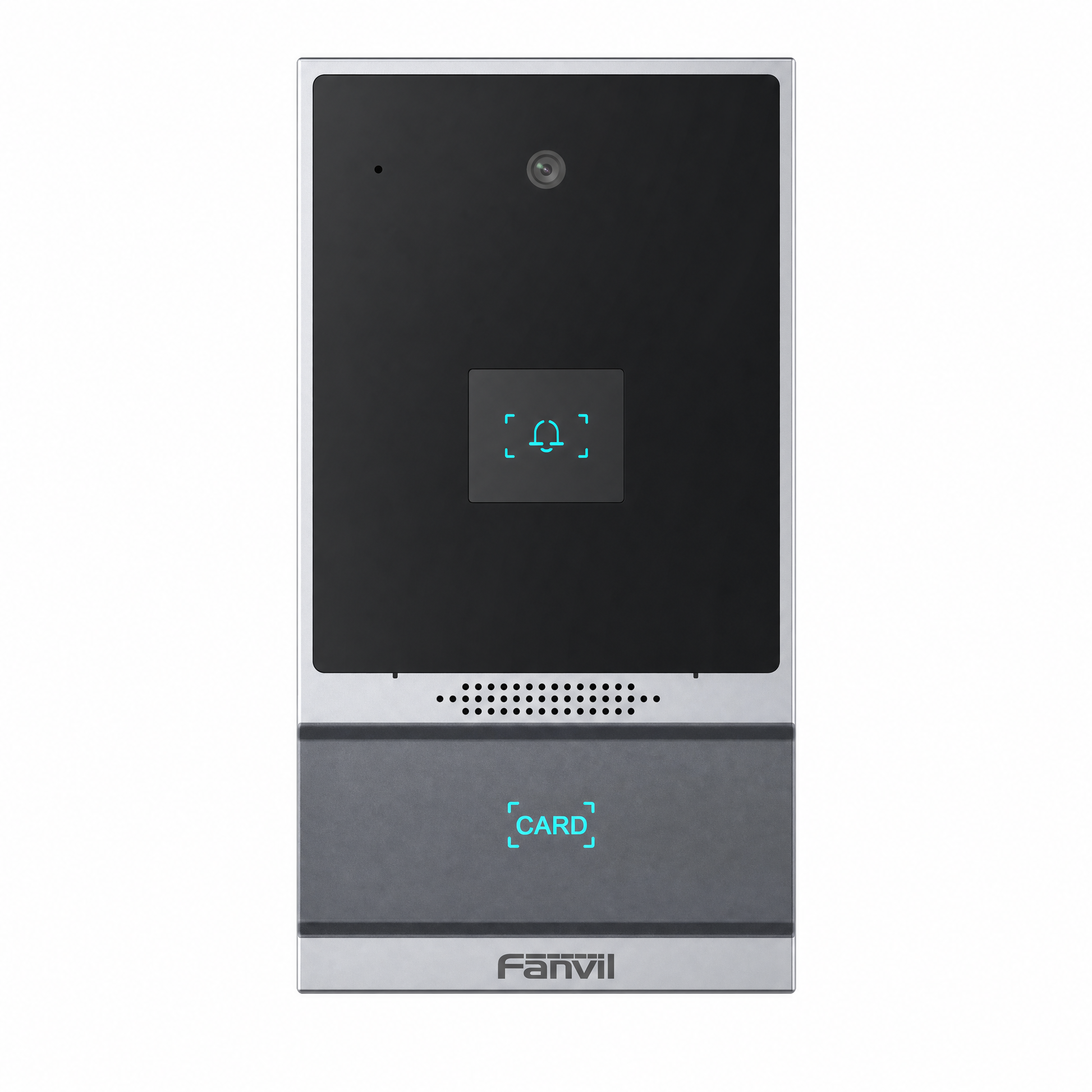

Fanvil i62 SIP Video Door Phone with 2MP Camera and IP66 Weatherproof Access Control Intercom

Name: Fanvil i62 SIP Video Door Phone with 2MP Camera and IP66 Weatherproof Access Control Intercom
Rating: 4.4 (8 reviews)

Delivery Time: 0-3 days

Brand Fanvil

Model Number i62

Manufacture Warranty 2 Years

EpicRise Warranty First Year

Product Highlights

• IP66 and IK07 rated aluminum alloy housing protects against water, dust, and impact in harsh outdoor environments

• 2-megapixel wide-angle camera with 120° horizontal view and infrared night vision for 24/7 monitoring

• Multiple access methods including RFID/IC cards, NFC, remote DTMF, indoor switch, and timed door release

• SIP and ONVIF protocol compatibility integrates seamlessly with major PBX platforms and existing CCTV systems

• Records up to 200,000 door access events with support for MicroSD cards up to 128GB

Overview
Specifications
FAQ
User Guides
Reviews

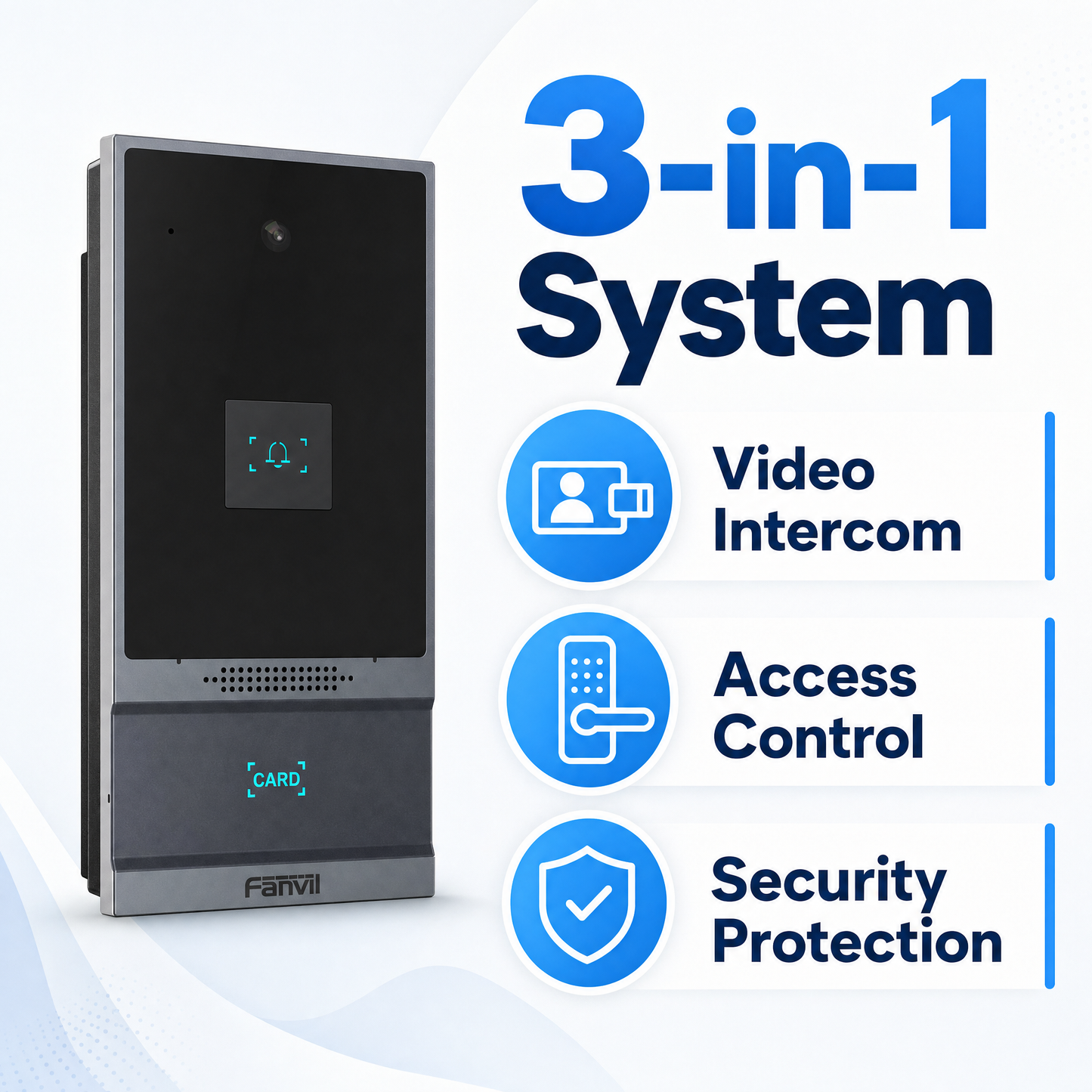

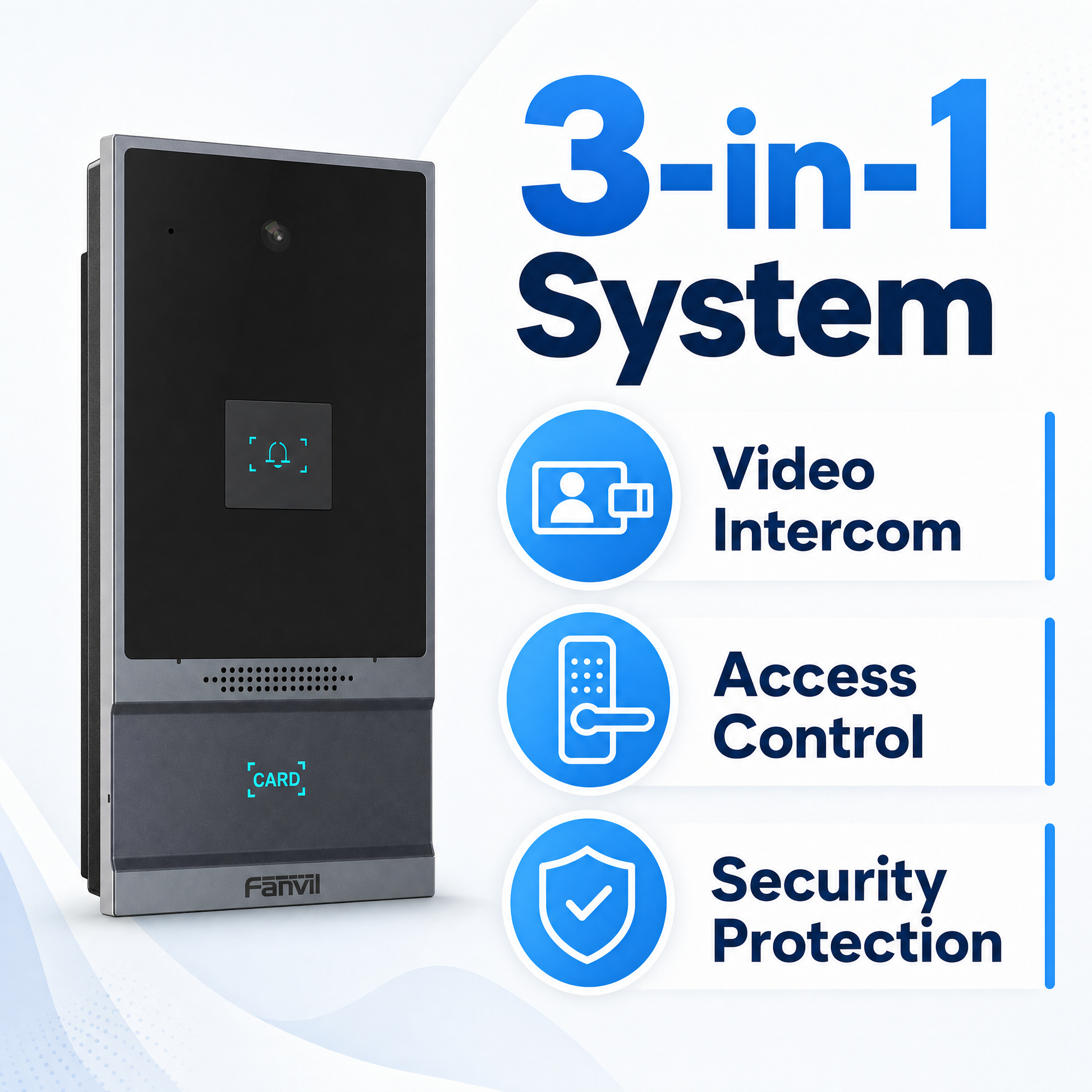

The Fanvil i62 is a professional SIP video door phone designed for enterprises that need reliable outdoor access control and security monitoring. Built with an aluminum alloy housing and certified to IP66 and IK07 standards, the i62 withstands water, dust, and physical impacts in demanding outdoor installations. The device combines intercom, video surveillance, and access control into a single integrated unit, reducing installation complexity and equipment costs.

With a 2-megapixel wide-angle camera, infrared night vision, and HD audio capabilities, the i62 enables clear two-way communication and visual verification in all lighting conditions. The system supports multiple access methods including RFID cards, NFC, remote DTMF codes, and timed unlocking, providing flexibility for different security policies. Based on open SIP and ONVIF standards, the i62 integrates with major IP-PBX systems and existing video surveillance infrastructure without vendor lock-in.

Best For

The Fanvil i62 serves enterprises requiring secure access control and visitor verification across multiple property types:

- Multi-tenant residential buildings: Enable residents to verify and grant access to visitors remotely via video call, with RFID cards for tenant entry

- Commercial office complexes: Integrate with existing IP-PBX systems for reception-less visitor management and after-hours access control

- Industrial facilities and warehouses: Weatherproof construction withstands harsh outdoor conditions while controlling delivery and contractor access

- Gated communities and business parks: Manage perimeter entry points with video verification and multiple credential types for residents, staff, and visitors

- Healthcare and educational campuses: Secure building entrances with audit trails that record 200,000 access events for compliance reporting

Key Features

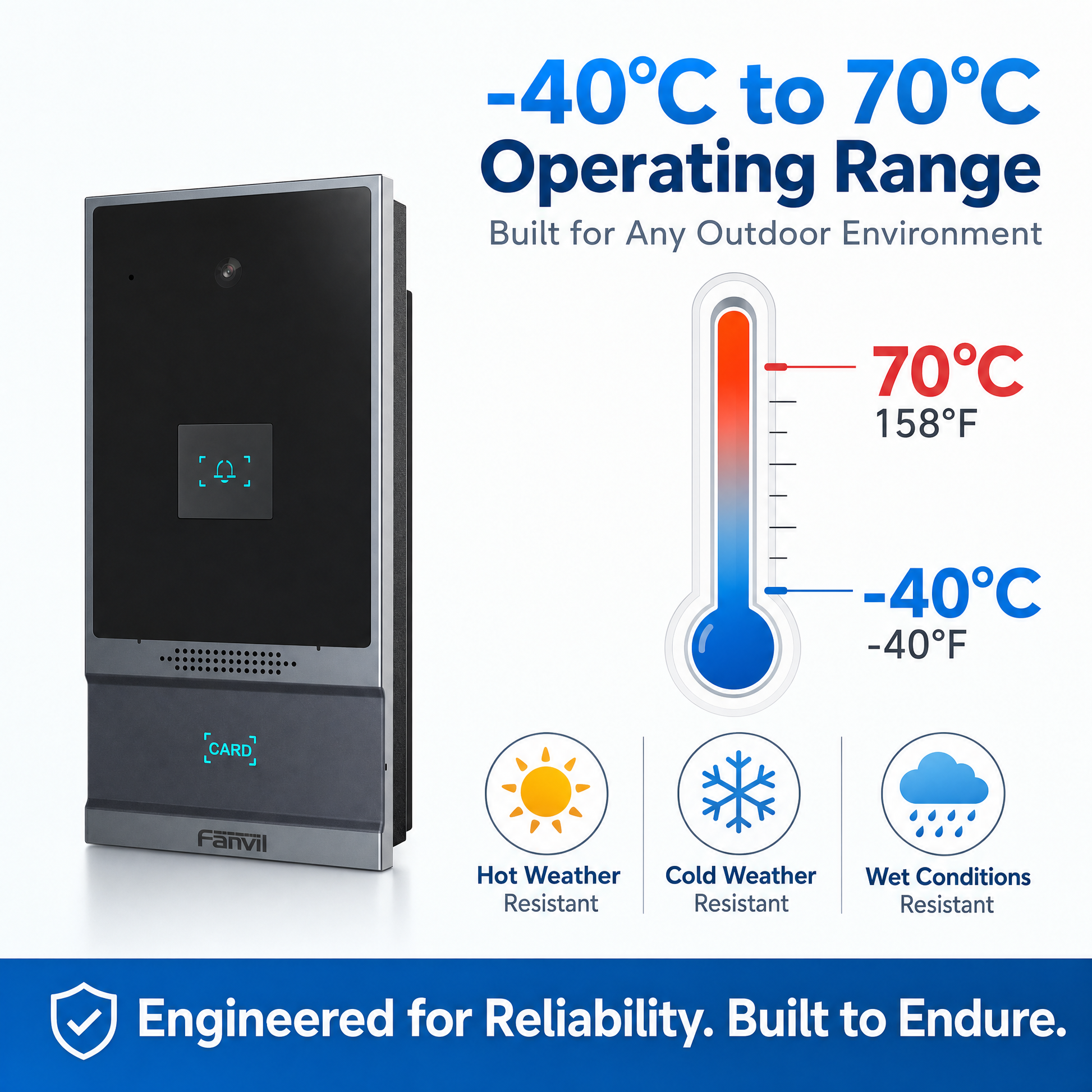

- Industrial-grade protection with IP66 waterproof/dustproof rating and IK07 impact resistance for reliable outdoor operation from -40°C to 70°C

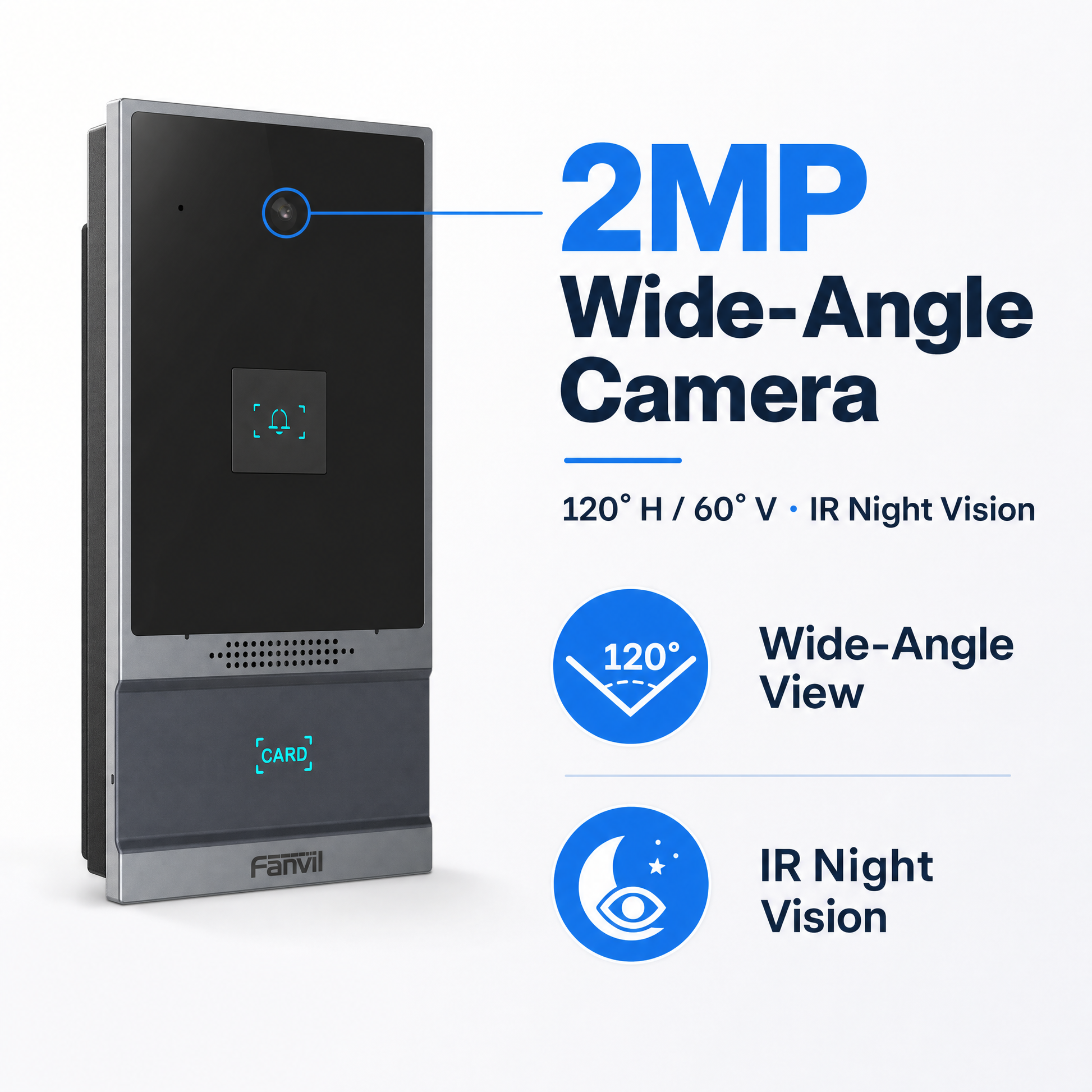

- 2-megapixel camera with 120° horizontal field of view captures wide coverage area, while LED infrared illumination provides clear night vision

- One-button speed dial initiates immediate audio/video communication with designated monitoring station or reception desk

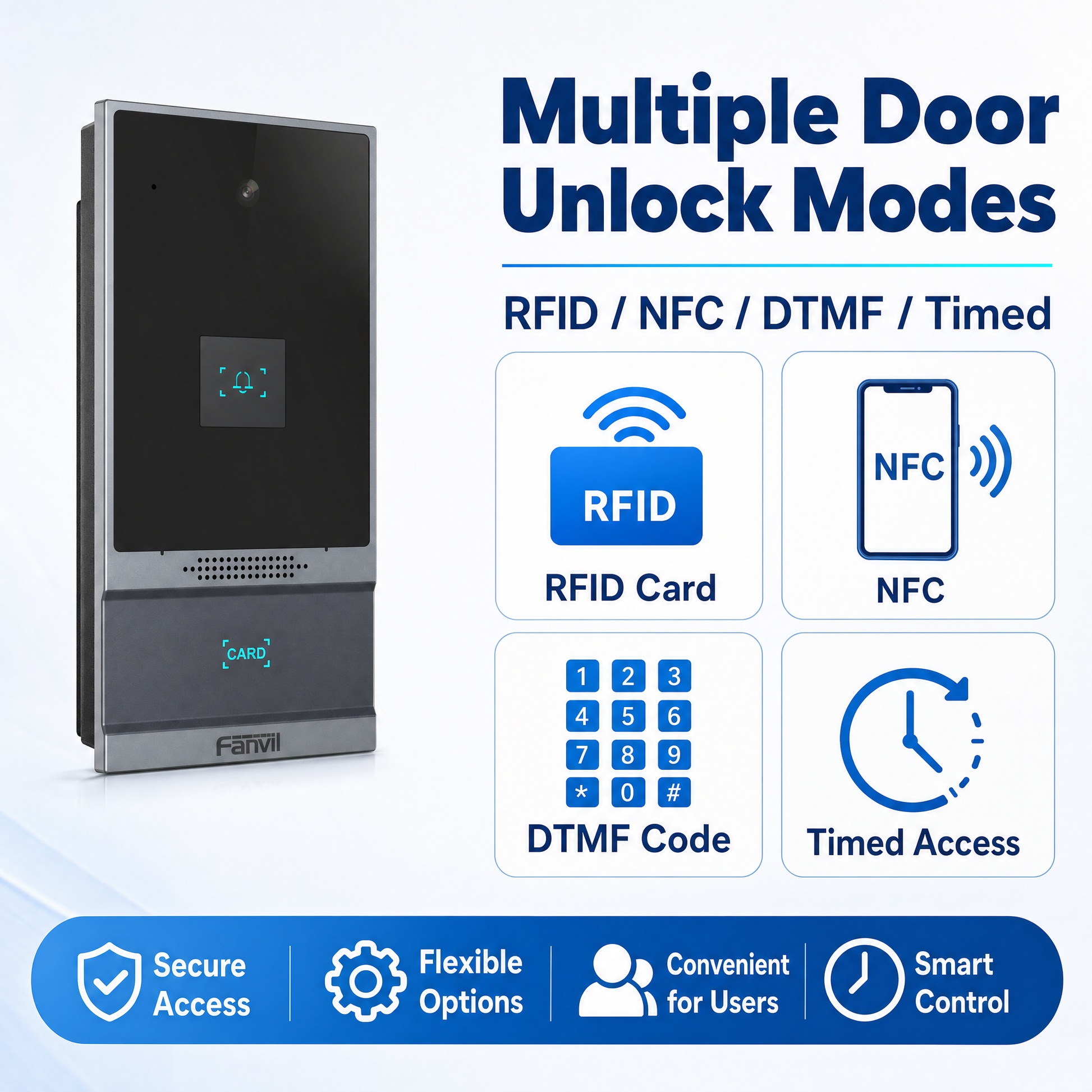

- Five access control methods (RFID cards, NFC, indoor switch, remote DTMF, scheduled unlock) accommodate diverse user groups and security policies

- SIP protocol compatibility works with mainstream IP-PBX platforms; ONVIF support integrates with existing video management systems

- Built-in 2.5W speaker with G.722 HD voice codec and acoustic echo cancellation ensures clear two-way audio communication

- Three short-circuit input ports and two output ports enable integration with door locks, sensors, alarms, and other security devices

- Stores up to 200,000 door access records with support for MicroSD cards up to 128GB for local video and image storage

- Tamper switch detects unauthorized device removal and triggers security alerts to prevent vandalism or theft

- Power over Ethernet (PoE) support simplifies installation with single-cable deployment for power and network connectivity

Quick Specs

Specification	Details
Model	Fanvil i62
Dimensions	177.4 mm (H) × 88 mm (W) × 36.15 mm (D)
Housing Material	Aluminum alloy
Camera Resolution	2 megapixels
Field of View	120° horizontal, 60° vertical
Night Vision	LED infrared illumination

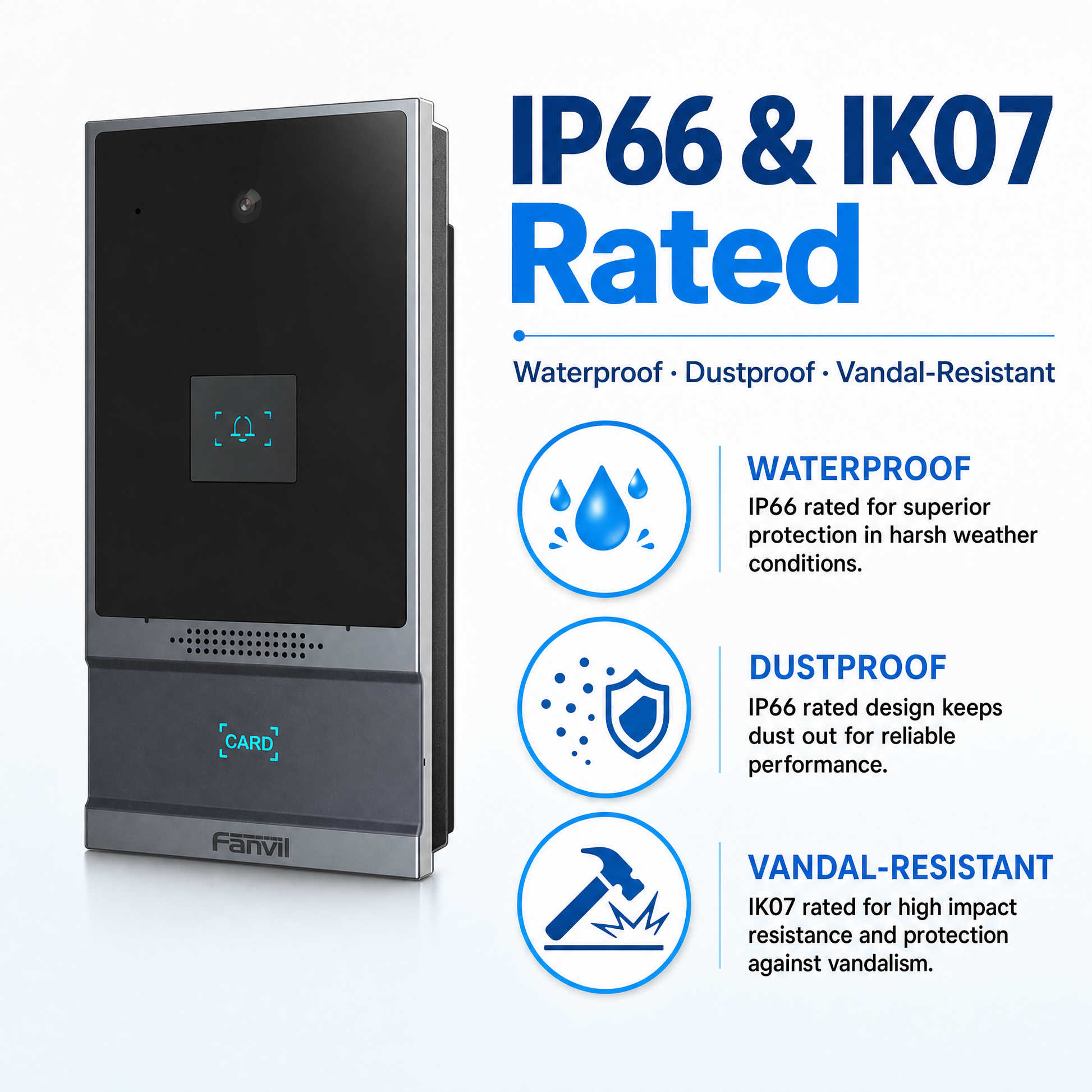

Protection Rating	IP66 (waterproof/dustproof), IK07 (impact resistant)
Operating Temperature	-40°C to 70°C
Audio	Built-in 2.5W speaker, G.722 codec, acoustic echo cancellation
Protocols	SIP, ONVIF
Access Control	RFID/IC cards, NFC, indoor switch, remote DTMF, timed unlock
Access Records	200,000 events
Storage	MicroSD card slot, supports up to 128GB
I/O Ports	3 short-circuit input ports, 2 short-circuit output ports
Power	PoE (Power over Ethernet)
Buttons	Single speed-dial button
Security Features	Tamper switch for anti-removal detection

What's Included

- Fanvil i62 Video Door Phone

- Connector

- Mounting Template

- 2× RFID Cards

- Screws and Installation Tool

- Quick Installation Guide

Product Details
Color	Silver
Power Source	DC-powered

What types of facilities is the Fanvil i62 best suited for?

The i62 is designed for outdoor access control in commercial buildings, multi-tenant apartments, industrial facilities, and gated communities. Its IP66 weatherproof and IK07 impact-resistant housing handles harsh outdoor conditions from -40°C to 70°C. The device suits any enterprise environment requiring visitor video verification, multiple credential types, and integration with existing IP-PBX or video surveillance systems.

How does the i62 compare to other Fanvil video door phone models?

The i62 emphasizes rugged outdoor durability with IP66/IK07 protection and a wide operating temperature range. It features a single speed-dial button for simplified operation and aluminum alloy construction. Organizations prioritizing weather resistance, vandal protection, and straightforward one-button calling should consider the i62 over models designed for indoor or sheltered installations.

Is the Fanvil i62 a cost-effective choice for access control deployments?

The i62 consolidates intercom, video surveillance, and access control into one device, reducing hardware costs compared to purchasing separate systems. Its SIP and ONVIF compatibility prevents vendor lock-in and integrates with existing infrastructure. The device supports five access methods and records 200,000 events without subscription fees, delivering strong value for budget-conscious enterprises.

What systems and devices is the Fanvil i62 compatible with?

The i62 uses SIP protocol and works with major IP-PBX platforms for call routing and management. ONVIF compatibility enables integration with existing video management systems and CCTV infrastructure. The device provides three input and two output ports for connecting door locks, sensors, and alarms. It accepts RFID/IC cards and NFC credentials for flexible access control.

Does the Fanvil i62 support night vision?

Yes, the i62 includes LED infrared illumination for clear video footage in low-light and nighttime conditions. The 2-megapixel camera captures identifiable images 24/7. This allows security personnel to visually verify visitors regardless of ambient lighting.

What is the maximum storage capacity for recorded video and images?

The i62 supports MicroSD cards up to 128GB for local storage of video clips and access images. The device can also record up to 200,000 door access events in internal memory. Storage capacity depends on video quality settings and recording duration per event.

How is the device powered?

The i62 supports Power over Ethernet (PoE), allowing a single network cable to provide both power and data connectivity. This simplifies installation by eliminating the need for separate power wiring. PoE also enables centralized power backup through network infrastructure.

What voice quality can users expect during intercom calls?

The i62 uses G.722 HD voice codec for high-quality audio transmission. It includes a built-in 2.5W speaker and acoustic echo cancellation to ensure clear two-way conversations. These features enable effective communication even in noisy outdoor environments.

Can the i62 trigger alarms or integrate with security systems?

Yes, the device provides three short-circuit input ports and two output ports for connecting external security equipment. You can link door sensors, electromagnetic locks, alarm systems, and other devices. The tamper switch also detects unauthorized removal and can trigger alerts.

What access control methods does the i62 support?

The i62 offers five access methods: RFID/IC cards, NFC credentials, indoor switch, remote DTMF codes via phone keypad, and scheduled automatic unlocking. This flexibility accommodates different user groups such as tenants, employees, delivery personnel, and visitors. The system records all access events for audit purposes.

Regular price: $299.00
Sale price: $299.00
Unit price: per
