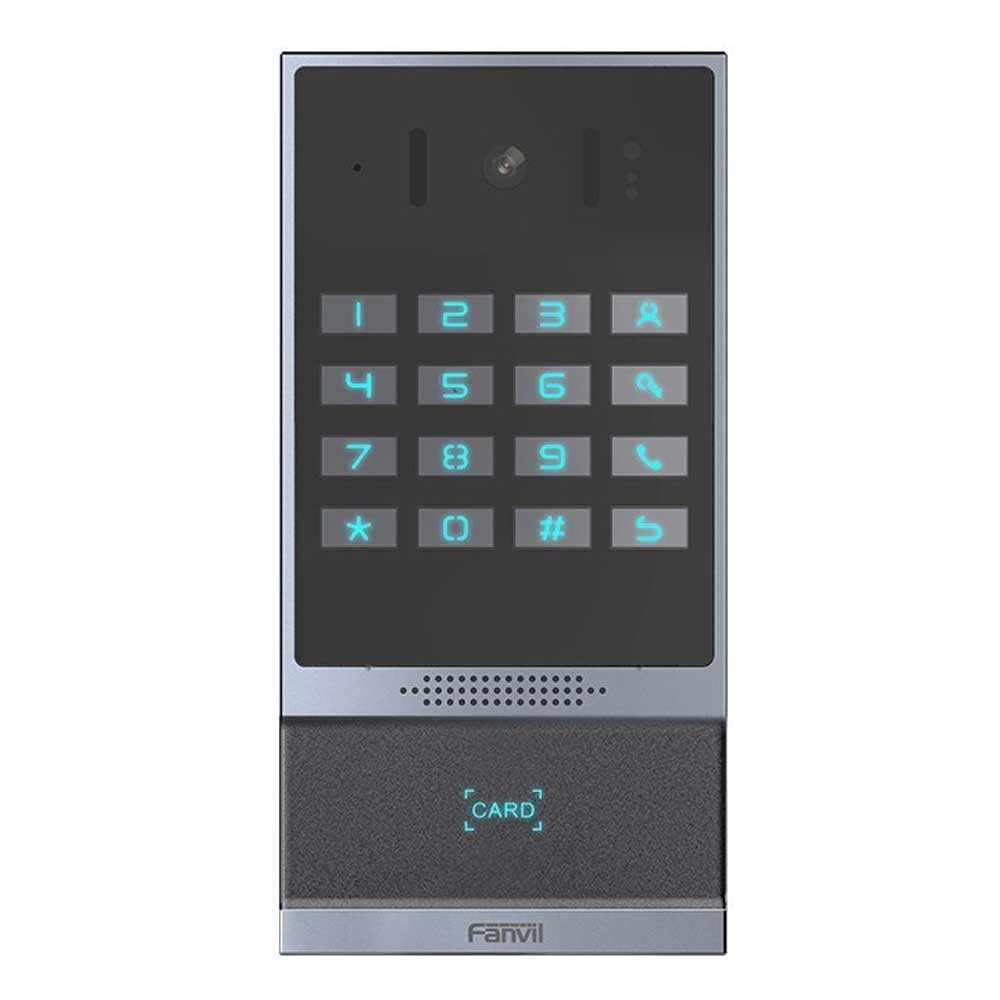

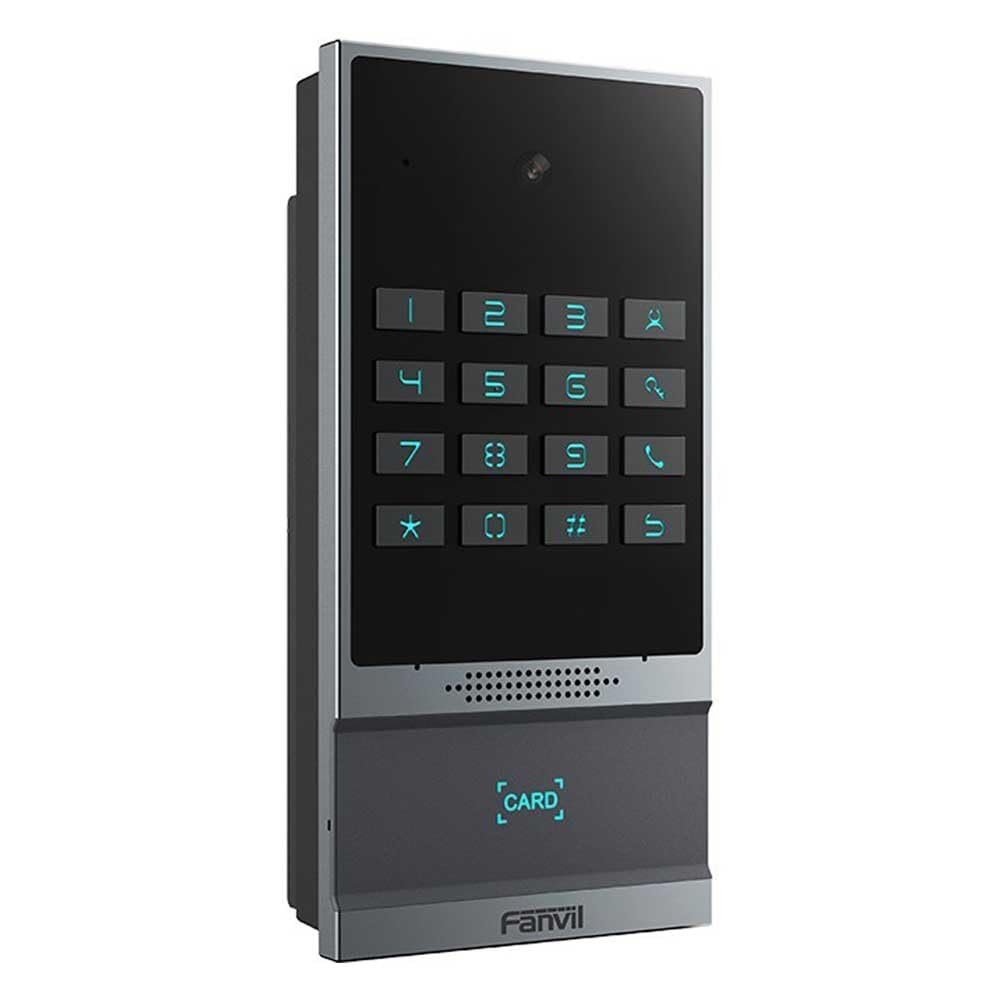

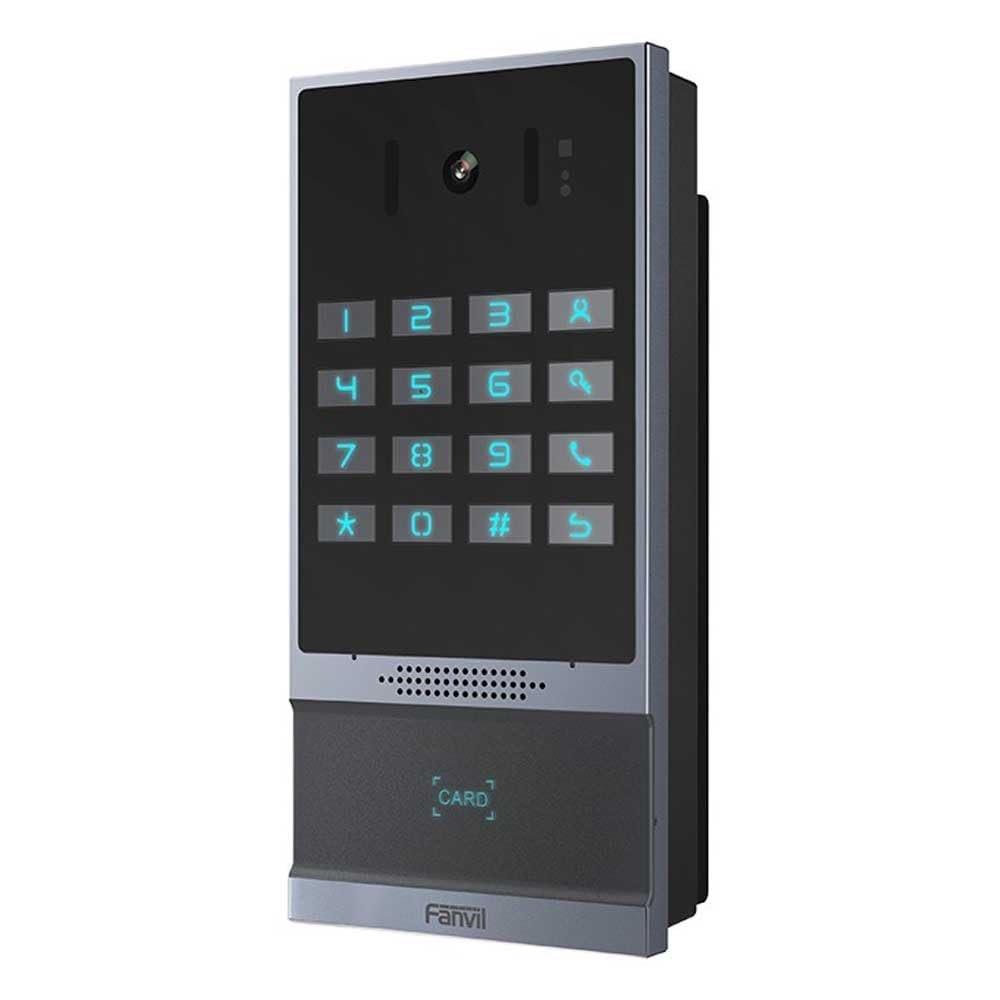

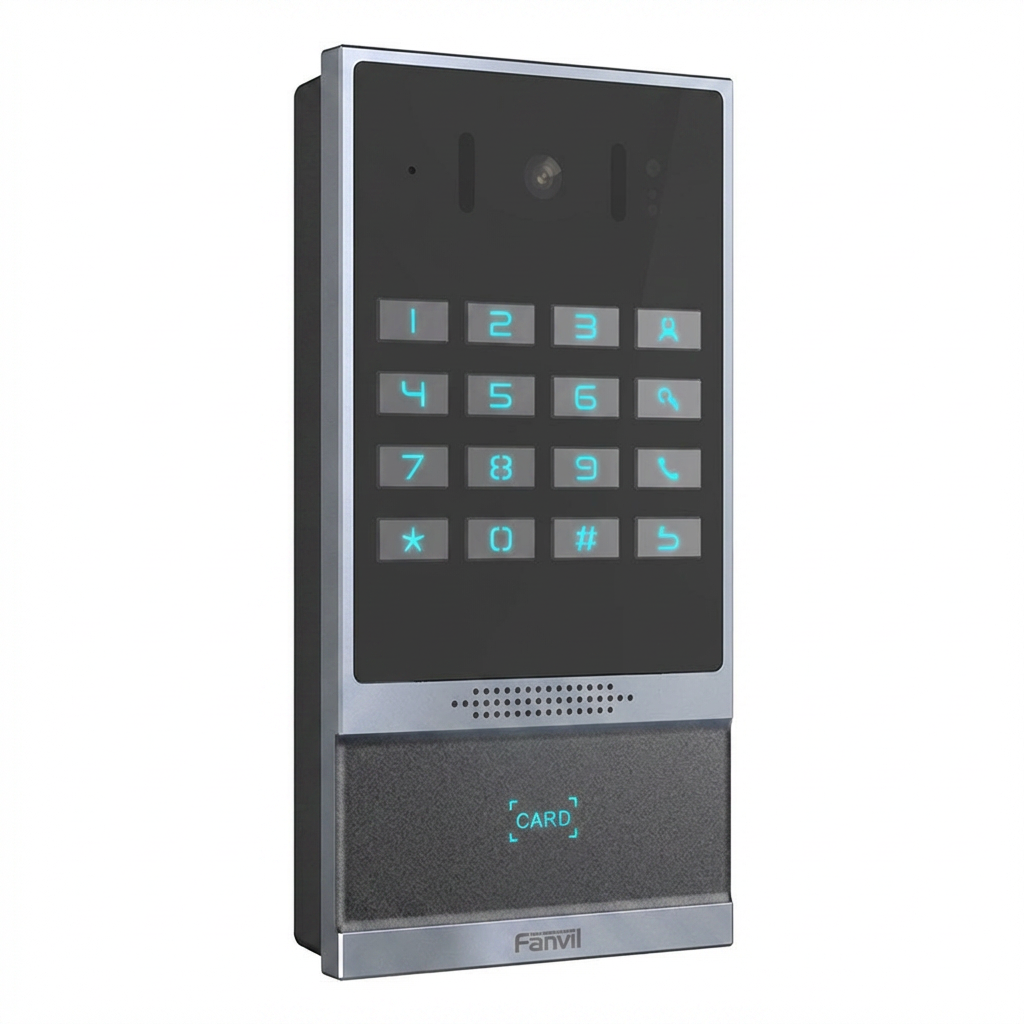

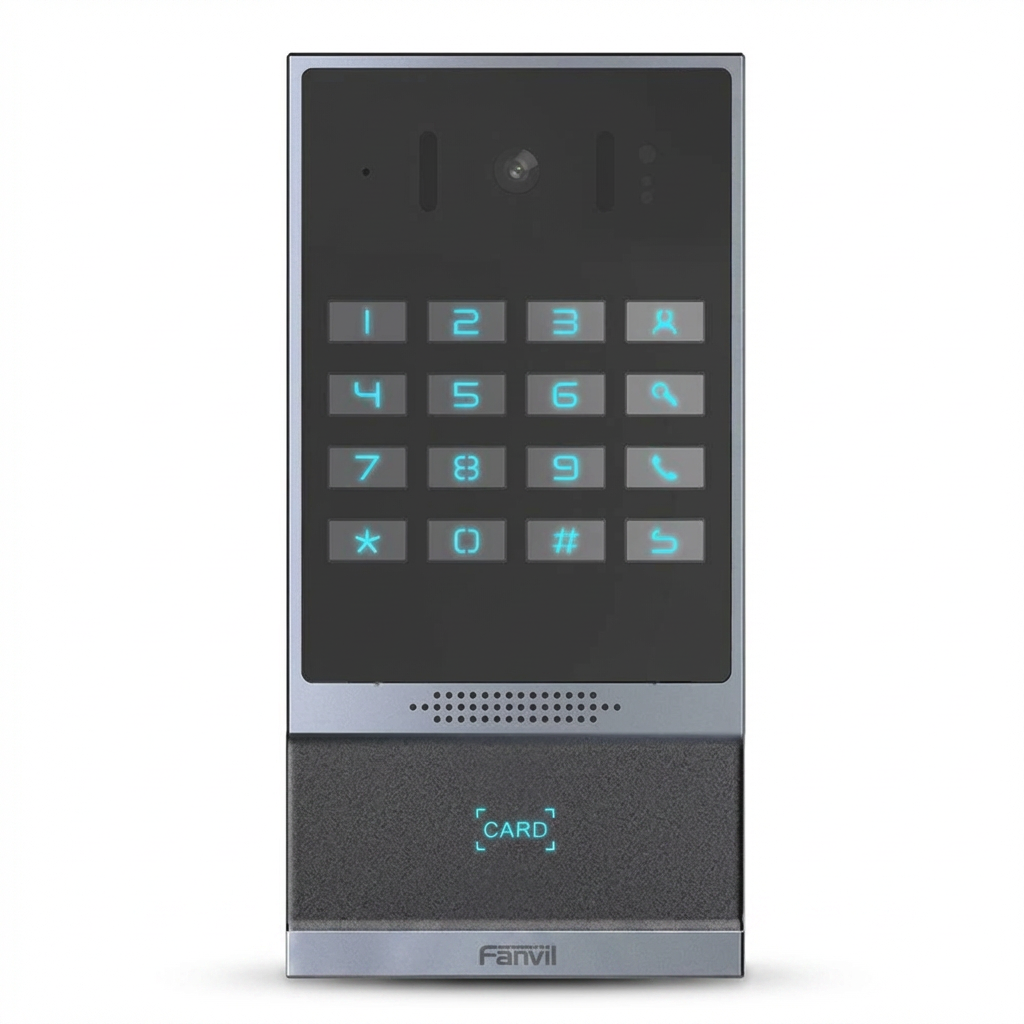

Fanvil i64 SIP Video Doorphone - Wide-Angle HD Camera, Night Vision, 2 SIP Lines, RFID Card Reader, IP66/IK07, 16-Key Keypad, Wiegand, PoE, Aluminum, Wall-Mount, Black

Name: Fanvil i64 SIP Video Doorphone - Wide-Angle HD Camera, Night Vision, 2 SIP Lines, RFID Card Reader, IP66/IK07, 16-Key Keypad, Wiegand, PoE, Aluminum, Wall-Mount, Black
Brand: Fanvil
SKU: FAN-PHO-I64-NEW
Price: 200.0 USD
Availability: InStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

• 【Clear Camera View】: Shows clear video at the entry in both day and night.

• 【Card and Code Access】: Supports easy entry with card, code, and other unlock options.

• 【Strong Outdoor Build】: Made to handle harsh weather and everyday outdoor use.

• 【Easy System Fit】: Connects smoothly with access control and security systems.

• 【PoE and SIP Ready】: Supports simple network setup and clear voice calling.

• 【Tamper and Storage Support】: Helps protect the device and supports saved data.

Overview
Specifications
FAQ
User Guides
Reviews

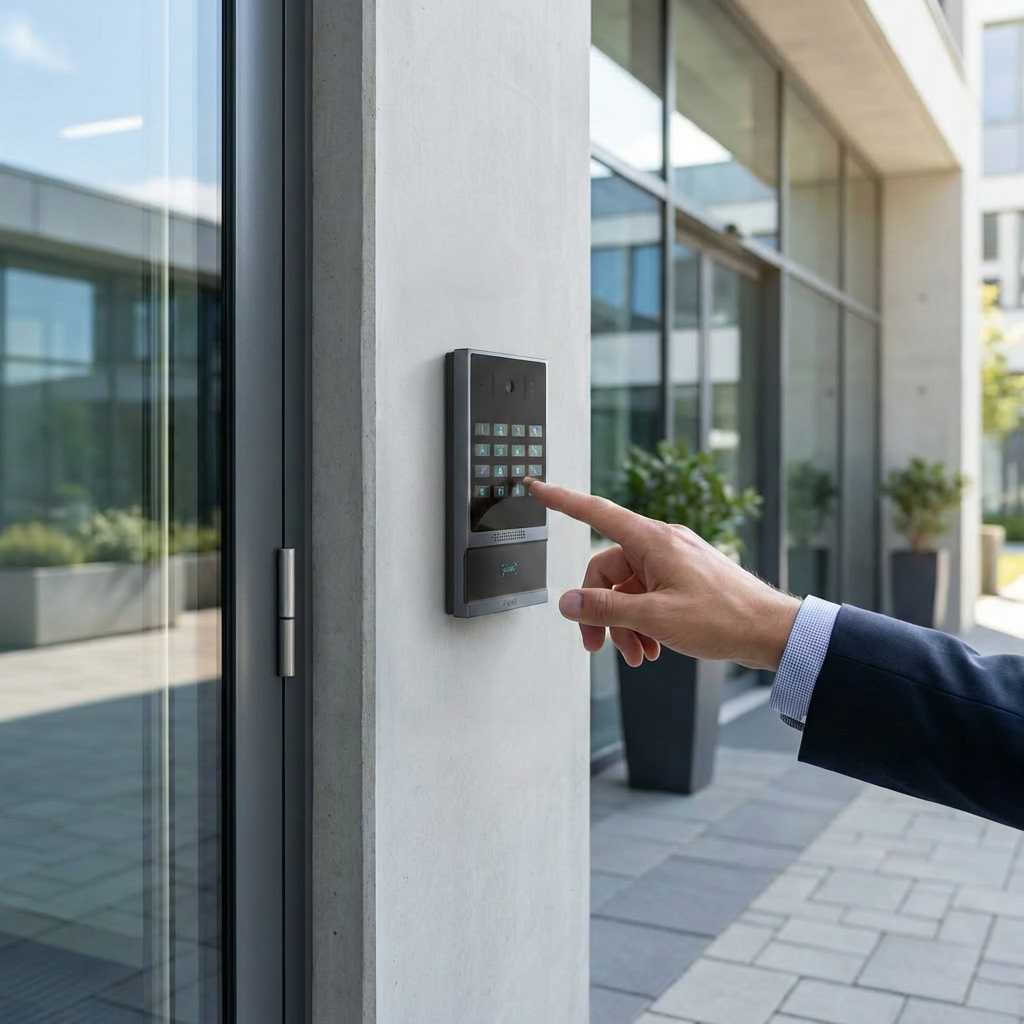

The Fanvil i64 is an outdoor SIP video doorphone engineered for enterprise and multi-tenant access control deployments at building entrances, residential complexes, and high-security facilities where video communication and physical access management must be unified in a single device.

The i64 combines a wide-angle HD camera (120° H, 60° V) with infrared night vision and H.264 encoding, providing reliable video identification at all hours, while its aluminum housing meets IP66 waterproof and IK07 anti-vandal standards for permanent outdoor installation.

Best For:

- Apartment building and multi-tenant residential entry systems

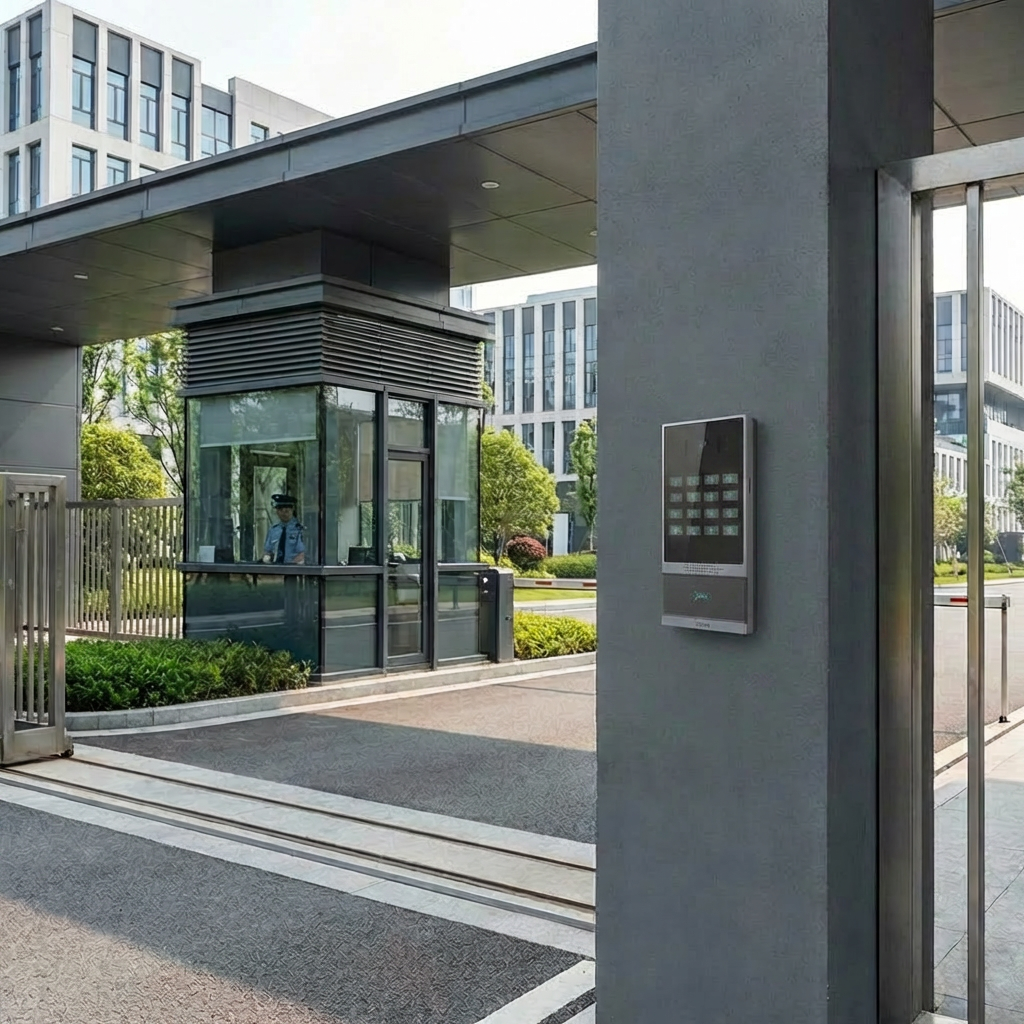

- Corporate campus and building access control

- High-security facility outdoor intercom deployments

- Enterprise SIP/VoIP infrastructure with RFID access

- ONVIF-compatible surveillance and VMS integrations

Key Features:

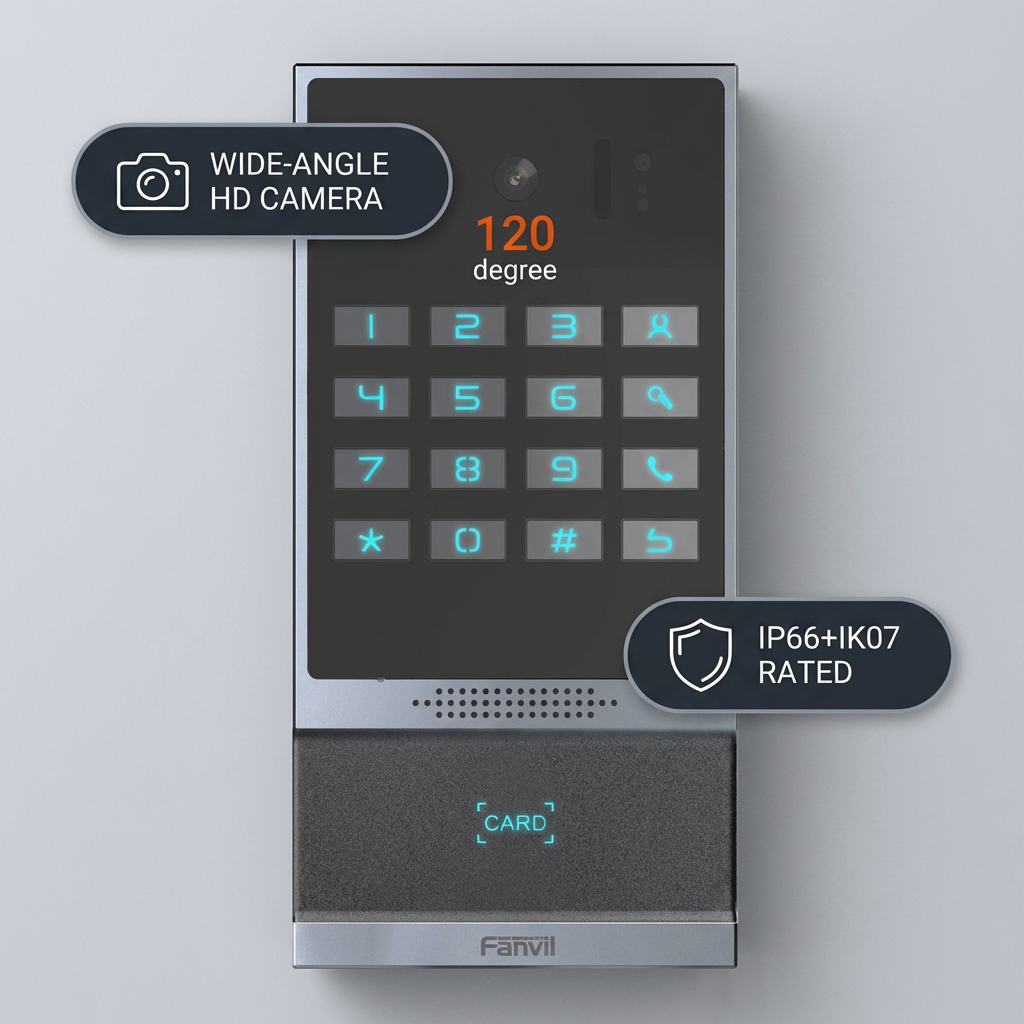

- Wide-angle HD camera (120° H × 60° V) with night vision and H.264: Provides clear wide-coverage video identification at entry points around the clock.

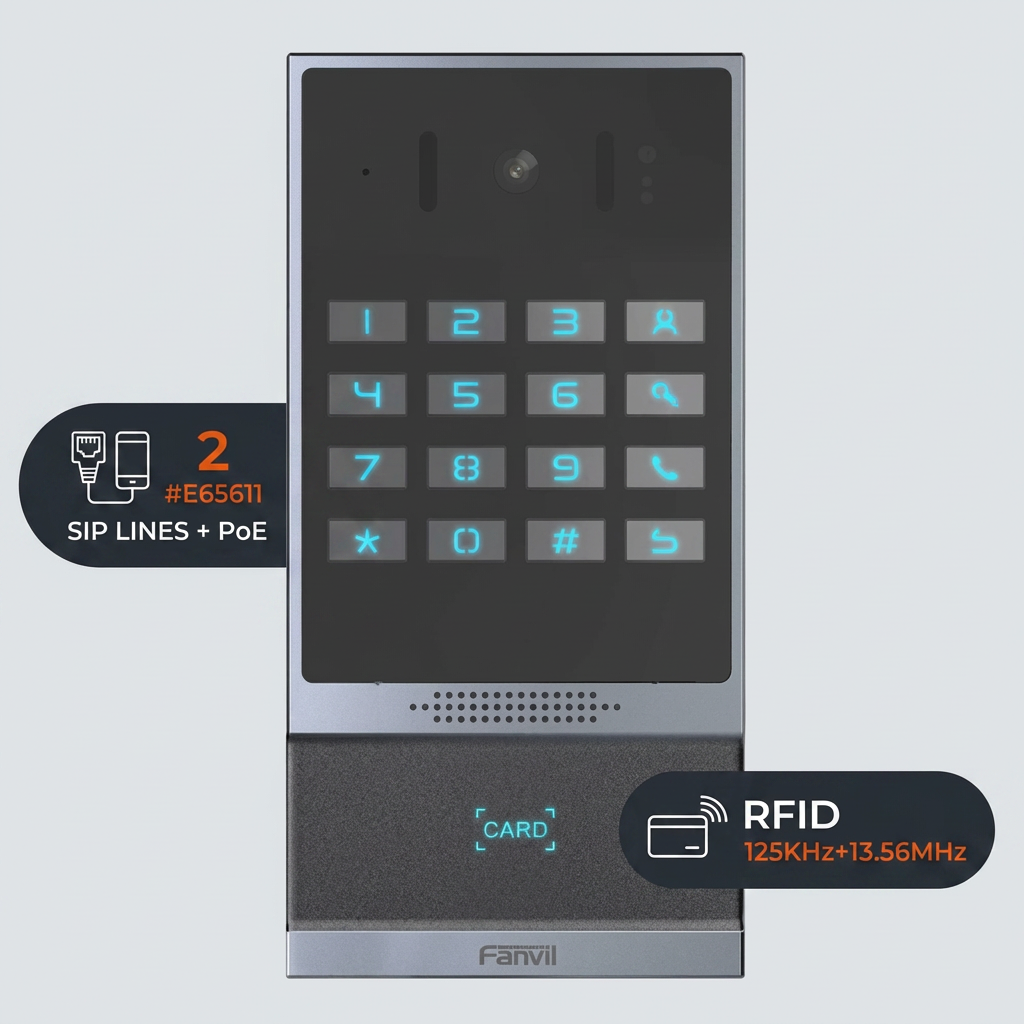

- Dual-frequency RFID card reader (125KHz + 13.56MHz): Supports both legacy and modern RFID card standards for flexible access control integration.

- 16-key keypad (12 number + 4 function keys): Enables PIN-based access, Management Center mode, and direct dial — all from the door unit.

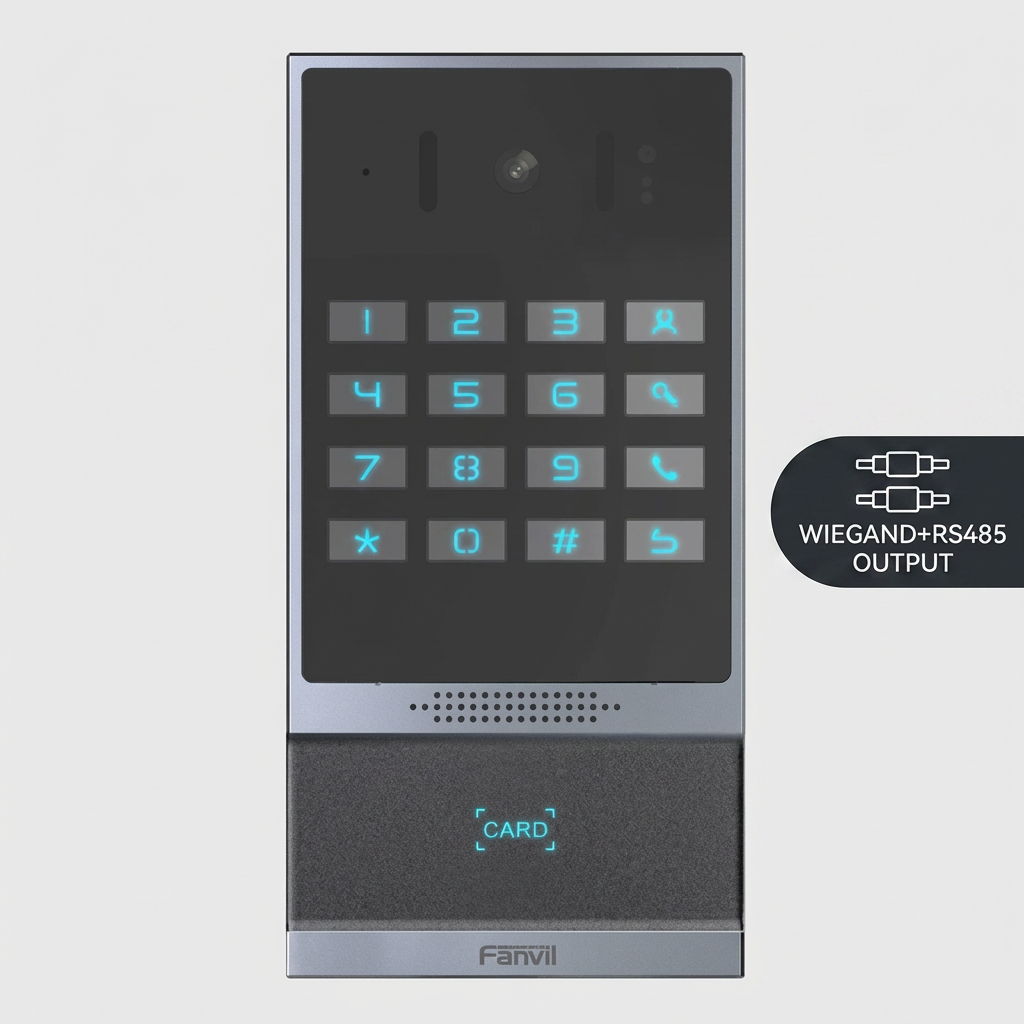

- Wiegand port (in/out configurable) + RS485: Integrates directly with access controllers, card readers, and third-party hardware using standard protocols.

- 3 short-in detect ports + 2 short-out relay ports (MAX DC30V/2A): Supports door lock control, door sensor monitoring, and relay-triggered access hardware.

- IP66 + IK07 aluminum housing: Fully weatherproof and anti-vandal rated for permanent outdoor installation in demanding environments.

- 2 SIP lines + PoE Class 3 + ONVIF: Single-cable installation via PoE; dual SIP lines for multi-account deployments; ONVIF for VMS/CCTV integration.

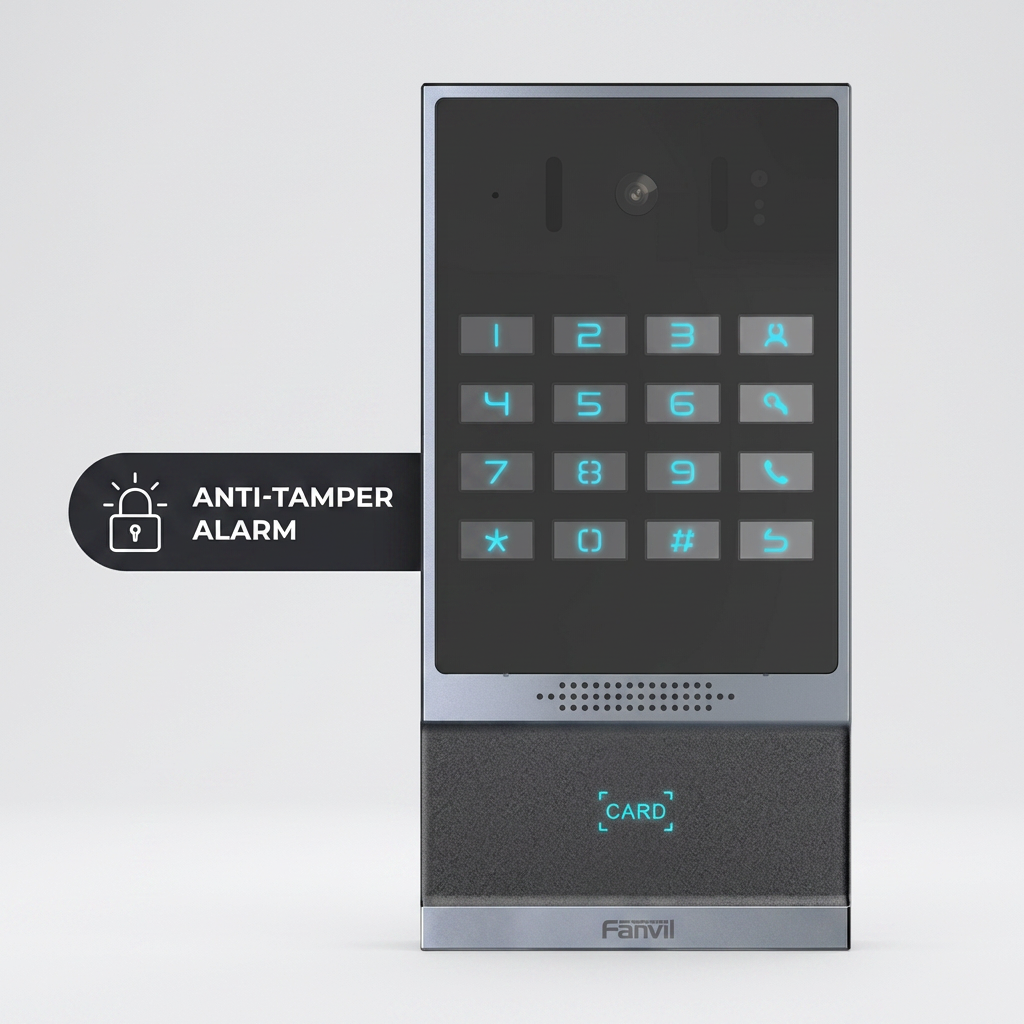

- TF card slot (up to 128GB) + anti-tamper alarm: Local storage for data and audio broadcasting; tamper switch immediately alerts control center on housing breach.

Quick Specs:

- SIP Lines: 2

- Camera: Wide-angle HD, 120° (H) × 60° (V), H.264, infrared night vision

- Network: 10/100Mbps, PoE 802.3af Class 3 (RJ45)

- Protection: IP66 waterproof/dustproof, IK07 anti-vandal

- Housing: Aluminum alloy

- RFID: 125KHz + 13.56MHz

- I/O: 3 short-in detect + 2 short-out relay ports (MAX DC30V/2A); Wiegand in/out; RS485

- Power: PoE Class 3 or DC12V/1A

- Dimensions: 177.4 x 88 x 36.15 mm

General Specifications
Brand	Fanvil
Model No.	I64

Product Details
Color	Black
Connection Type	Ethernet, Power cord
Connectivity Technology	Ethernet, Wired
Communication Device Features	Built-in display, Touchscreen, Speakerphone, Caller ID, Multi-line support

Q: Does the Fanvil i64 support RFID card access?

A: Yes, the i64 has a built-in RFID card reader supporting both 125KHz and 13.56MHz card standards for flexible access control integration.

Q: How many SIP lines does the i64 support?

A: The i64 supports 2 SIP lines.

Q: Does the i64 support PoE?

A: Yes, the i64 supports PoE 802.3af Class 3 via its RJ45 port, requiring no separate power adapter. A DC12V/1A backup power input is also available via terminal socket.

Q: What is the IP and anti-vandal rating of the i64?

A: The i64 is rated IP66 (fully dust-tight and waterproof) and IK07 (anti-vandal impact resistance), making it suitable for permanent outdoor deployment.

Q: Does the i64 support Wiegand integration?

A: Yes, the i64 has a configurable Wiegand port (in/out) that defaults to Wiegand input mode, enabling direct integration with access controllers and third-party hardware.

Q: What door unlock methods does the i64 support?

A: The i64 supports door unlock via RFID card, PIN keypad, DTMF, webpage, and third-party API.

Q: Does the i64 have ONVIF support?

A: Yes, the i64 is compatible with the ONVIF standard, enabling integration with CCTV and VMS/surveillance systems.

Q: What is the camera field of view on the i64?

A: The i64 features a wide-angle HD camera with a 120° horizontal and 60° vertical field of view, with infrared night vision and H.264 encoding.

Q: Does the i64 support relay output for door lock control?

A: Yes, the i64 has 2 short-out control ports with built-in relay (MAX DC30V/2A, AC125V/0.5A) for connecting door locks and access control hardware.

Q: What VoIP platforms is the i64 compatible with?

A: The i64 is compatible with major SIP platforms including Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, and Avaya.
