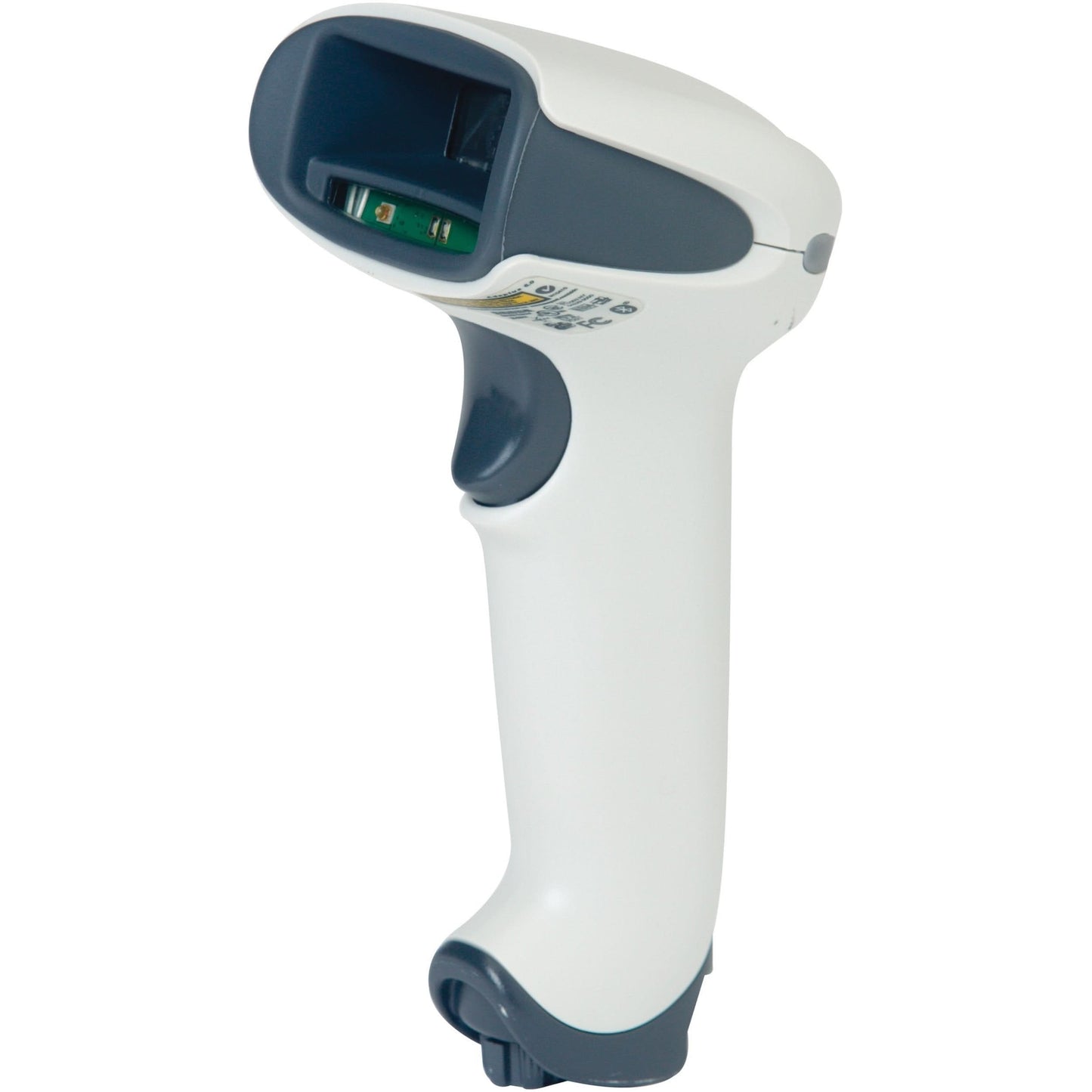

Honeywell Xenon 1902HHD-5-COL Healthcare Barcode Scanner with Bluetooth & ColorFusion Technology

Brand Honeywell

Model Number 1902HHD-5-COL

UPC

Manufacture Warranty 2 Years

EpicRise Warranty 1 Year

Product Highlights

• ColorFusion technology enables color barcode imaging for reading increasingly common color-coded labels in healthcare environments

• Bluetooth Class 2 wireless connectivity provides up to 33 feet (10m) operating range from base with shift-PLUS 14-hour battery life

• Disinfectant-ready white housing withstands harsh cleaning agents commonly used in healthcare facilities

• Patient Do-Not-Disturb mode and scan lamp feature optimize workflow during night shifts without disturbing resting patients

• Adaptus 6.0 imaging technology reads 1D, PDF417, 2D, high-density, low-contrast, and damaged barcodes with superior performance

Overview
Specifications
FAQ
User Guides
Reviews

The Honeywell Xenon 1902h Enhanced Healthcare Scanner is engineered for clinical environments requiring reliable barcode scanning combined with wireless mobility. This scanner addresses medication administration and patient identification workflows with features specifically requested by healthcare professionals, including patient comfort modes and disinfectant-resistant construction.

Built with sixth-generation Adaptus area imaging technology and ColorFusion capability, the 1902h delivers fast, accurate scanning of virtually all barcode types encountered in healthcare settings. The white disinfectant-ready housing protects your investment against the harsh cleaning chemicals required for infection control protocols.

Best For

The Xenon 1902h is designed for healthcare organizations implementing or upgrading barcode-enabled clinical workflows:

- Medication Administration: Scan patient wristbands and medication barcodes at bedside with wireless freedom up to 33 feet from workstation

- Patient Identification: Verify patient identity quickly and accurately throughout admission, treatment, and discharge processes

- Laboratory Specimen Tracking: Read high-density and color barcodes on specimen labels and tubes with ColorFusion technology

- Pharmacy Verification: Decode challenging barcodes on small medication vials and blister packs with high-density imaging

- Night Shift Operations: Use scan lamp mode and silent operation to work efficiently without disturbing resting patients

Key Features

- Advanced Imaging Technology: Adaptus 6.0 with custom sensor optimized for barcode scanning delivers extended depth of field and fast read rates on damaged or poor-quality codes

- Color Barcode Capability: ColorFusion technology reads color barcodes increasingly used in healthcare for specimen tracking and supply chain management

- Healthcare-Optimized Wireless: Bluetooth Class 2, v2.1 with 10-meter range, adaptive frequency hopping (2.4-2.5 GHz ISM band), and adjustable radio power management

- Extended Battery Performance: 1800 mAh lithium-ion battery supports up to 50,000 scans per charge with 14-hour operational runtime through Shift-PLUS power management

- Patient Comfort Modes: Quickly disable audio feedback and activate visual indicators only, or use scan lamp mode for reading labels without turning on room lights

- Clinical Durability: IP41-rated construction with disinfectant-ready housing protects against harsh cleaning agents; designed to withstand drops and demanding shift use

- Ergonomic Design: Compact 104mm x 71mm x 160mm form factor weighing just 214g reduces operator fatigue during extended scanning sessions

- Out-of-Range Security: Adjustable distance settings with security and location features prevent unauthorized use when away from base

Quick Specs

Model Number	1902HHD-5-COL
Scanner Type	2D Area Imager (High Density)
Imaging Technology	Adaptus 6.0 with ColorFusion
Barcode Types	1D, PDF417, 2D, Color Barcodes
Wireless Technology	Bluetooth Class 2, v2.1
Wireless Range	Up to 10 meters (33 feet)
Battery	1800 mAh Lithium-Ion, 50,000 scans/charge, 14-hour runtime
Dimensions (L×W×H)	104mm × 71mm × 160mm (4.1" × 2.8" × 6.3")
Weight	214g (7.5 oz)
Color	White
Housing	Disinfectant-Ready
Ingress Protection	IP41
Input Voltage	5V
Standby Power	0.5W
Product Line	Xenon 1902

What's Included

- Xenon 1902HHD-5-COL Scanner (scanner only configuration; base and cable sold separately)

Product Details
Color	White
Connection Type	Wireless
Scanner Interface	Bluetooth, USB
Barcode Supported	1D, 2D
Scanner Sensor Type	2D imager
Scanner Features	Automatic image enhancement, OCR support
Power Source	Rechargeable

What healthcare environments and workflows is the Xenon 1902HHD-5-COL best suited for?

The 1902HHD-5-COL is designed for bedside medication administration, patient identification, laboratory specimen tracking, and pharmacy verification workflows. Its disinfectant-ready housing, patient comfort modes, and 33-foot wireless range make it ideal for clinical settings requiring mobility and infection control. The ColorFusion technology specifically supports facilities using color-coded specimen labels.

How does the 1902HHD-5-COL compare to other Honeywell healthcare scanners?

The 1902HHD-5-COL adds ColorFusion color imaging capability and enhanced patient comfort features (Do-Not-Disturb mode and scan lamp) to the Xenon 1902 platform. It uses high-density imaging optimized for small barcode scanning on medication vials. Honeywell recommends the 1952HHD-5-N as the successor model as the 1902h has reached end-of-life status.

Is the 1902HHD-5-COL worth the investment for a mid-sized healthcare facility?

The 1902h provides enterprise-grade scanning performance with healthcare-specific features like disinfectant-ready housing and patient comfort modes at a mid-range price point. The 1800 mAh battery and 14-hour runtime eliminate mid-shift charging needs. However, since this model is end-of-life, evaluate whether the successor 1952HHD-5-N offers better long-term value for your deployment timeline.

What systems and base stations is the 1902HHD-5-COL compatible with?

The 1902HHD-5-COL requires a compatible charging and communication base (such as CCB01-010BT-HC) and connects via Bluetooth Class 2, v2.1 to the base, which then interfaces with host systems. Typical kit configurations include USB connectivity to workstations. The scanner operates in the 2.4-2.5 GHz ISM band with adaptive frequency hopping to minimize interference.

What barcode types can the 1902HHD-5-COL read?

The 1902HHD-5-COL reads standard 1D, stacked, 2D, and postal symbologies using Adaptus 6.0 imaging technology. It specifically handles high-density, low-contrast, semi-transparent, and damaged codes. The ColorFusion capability enables color barcode reading. Limited OCR font reading is supported.

How long does the battery last on the 1902HHD-5-COL during a typical shift?

The 1800 mAh lithium-ion battery provides up to 14 hours of operational runtime through Shift-PLUS power management, supporting up to 50,000 scans per charge. This covers typical 12-hour clinical shifts without requiring mid-shift charging. Standby power consumption is 0.5W when not actively scanning.

Can the 1902HHD-5-COL withstand frequent disinfection with hospital-grade cleaners?

Yes, the white disinfectant-ready housing is specifically engineered to resist the harmful effects of harsh cleaning chemicals commonly used in healthcare facilities. The IP41 rating provides limited dust and water ingress protection. The 214g weight and drop-resistant design support durability in demanding clinical environments.

What is the effective wireless range of the 1902HHD-5-COL in a hospital setting?

The scanner operates up to 10 meters (33 feet) from its base station using Bluetooth Class 2, v2.1 wireless technology in the 2.4-2.5 GHz ISM band. Adjustable radio power management allows limiting transmission power to minimize interference with sensitive medical equipment. Out-of-range security features with adjustable distance settings prevent unauthorized use.
