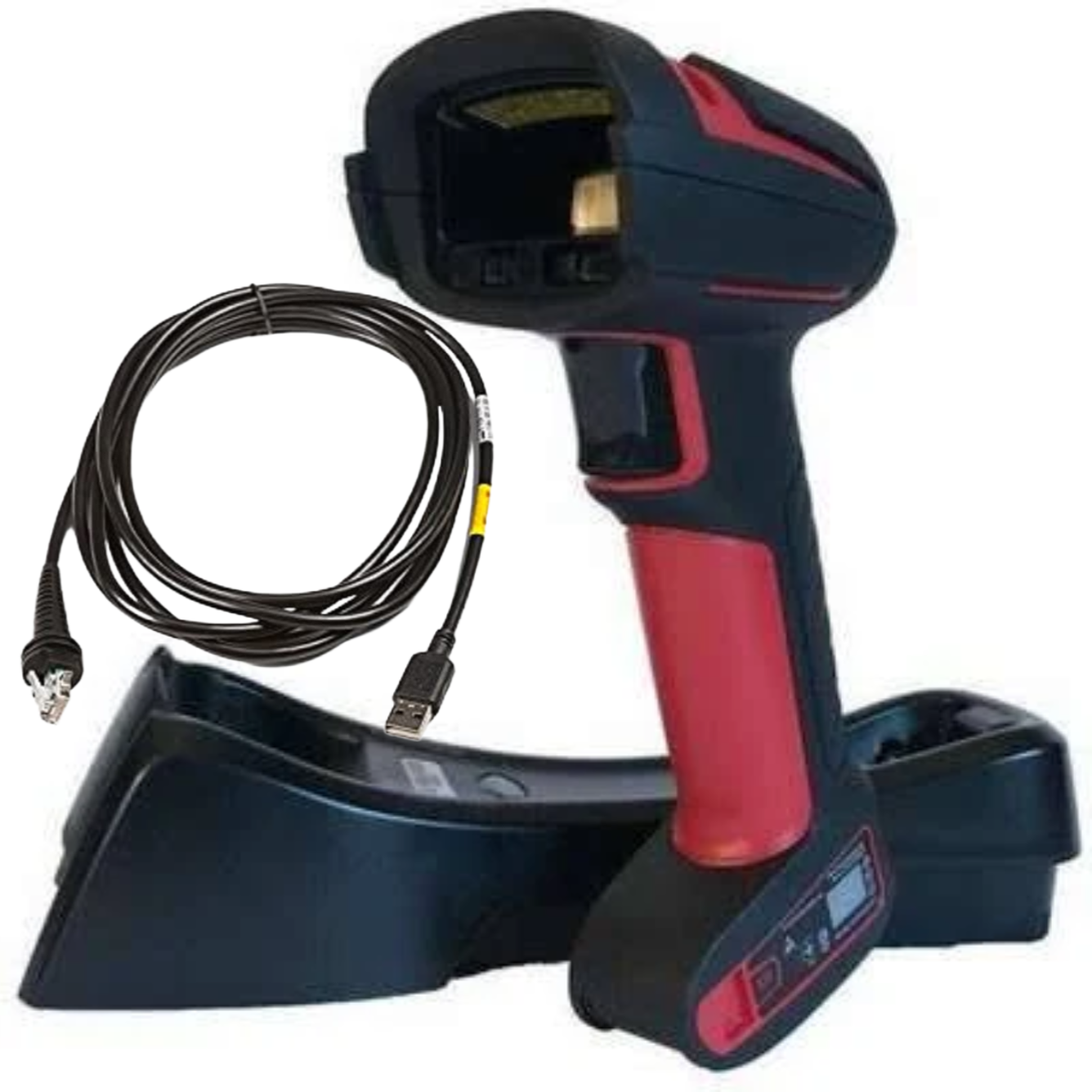

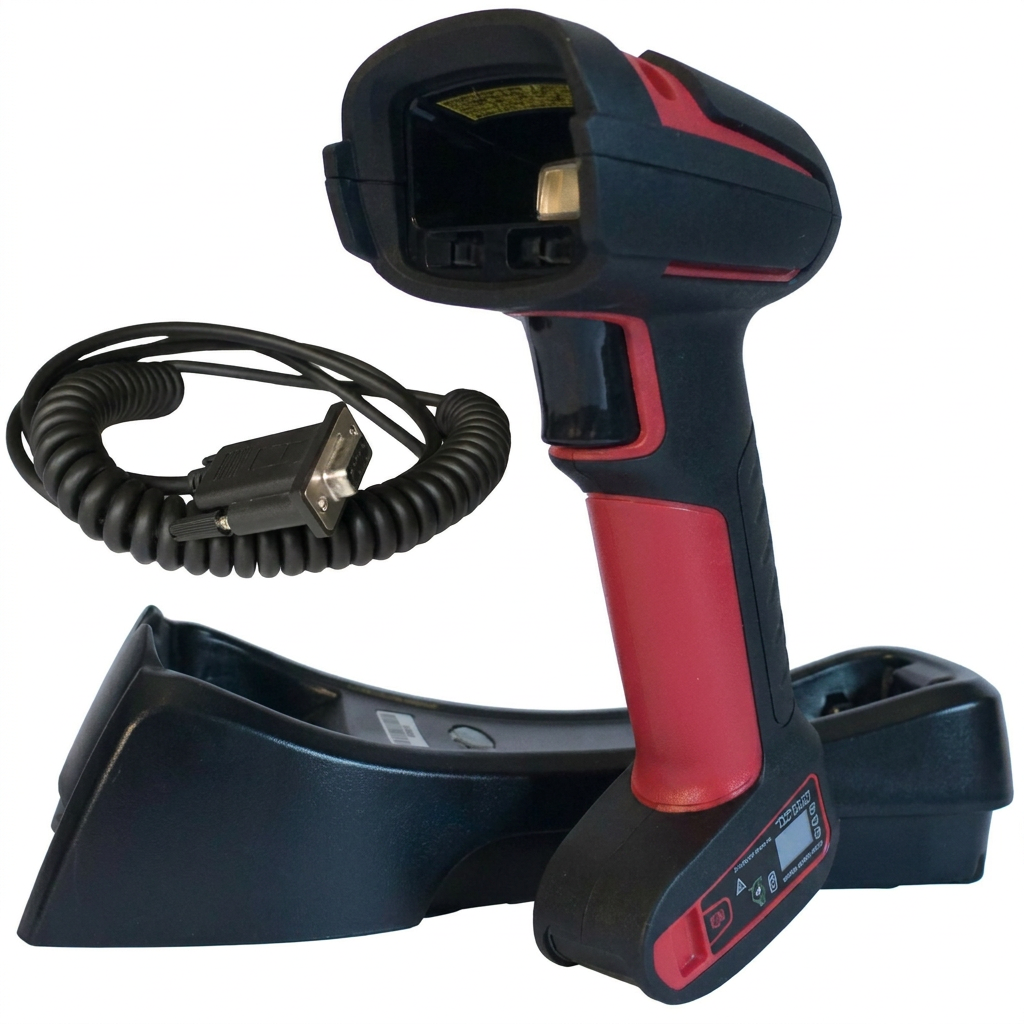

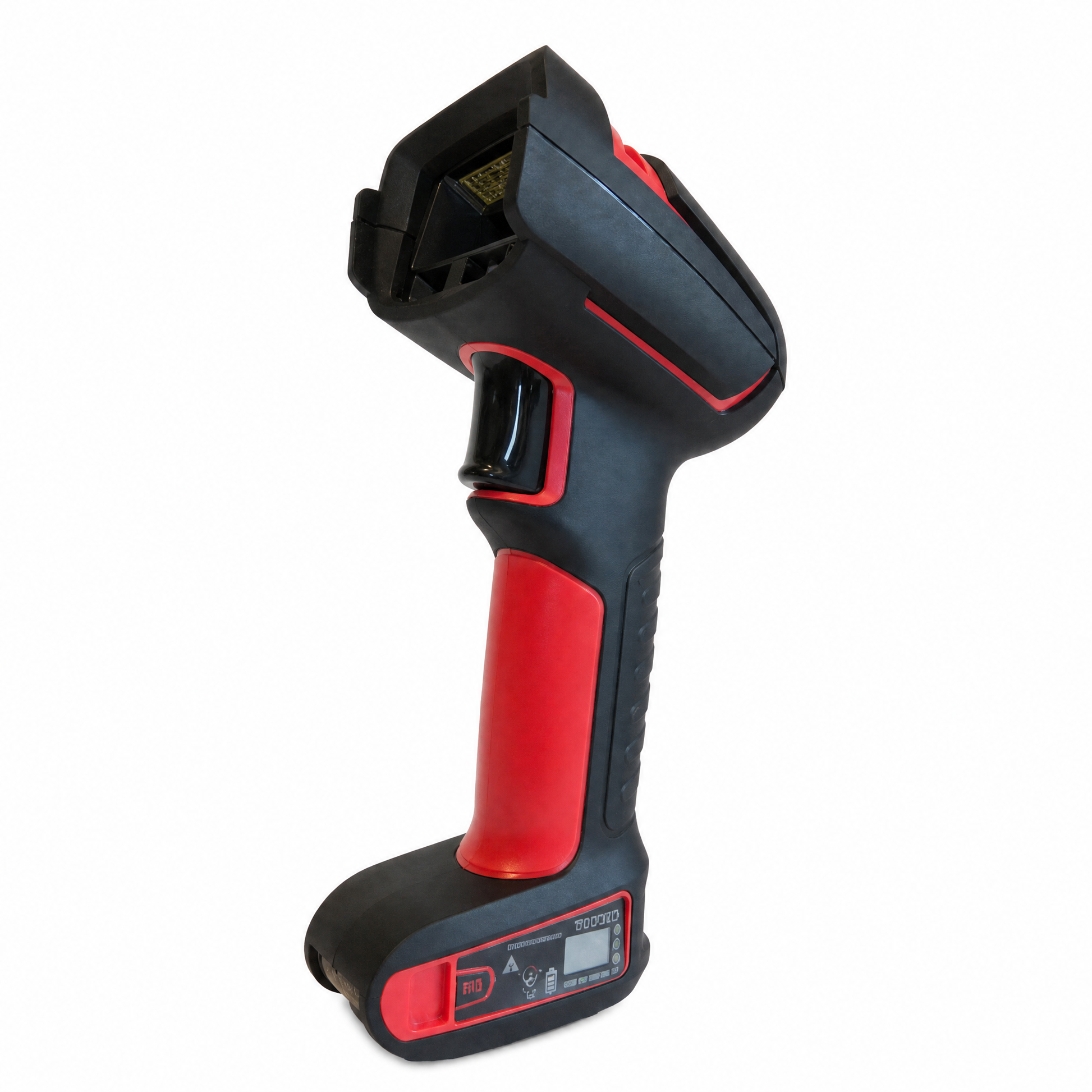

Honeywell Granit XP 1991i Ultra-Rugged Wireless Barcode Scanner for Warehouse & Manufacturing

Name: Honeywell Granit XP 1991i Ultra-Rugged Wireless Barcode Scanner for Warehouse & Manufacturing
Brand: Honeywell
SKU: DS-HNW-1991ISR-3-N
Price: 852.5 USD
Availability: InStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

• Ultra-rugged design survives 10-ft drops, 7,000 tumbles, and extreme temperatures from -22°F to 122°F with IP67 sealing

• Superior scanning performance on damaged and low-quality barcodes with next-gen imaging technology for maximum productivity

• Extended wireless range up to 330 ft with Bluetooth 4.2 connectivity and 50,000 scans per charge for all-shift operation

• Deep recessed scan window design minimizes breakage, the leading failure point in industrial scanning environments

• Standard range optimization perfect for 1D and 2D barcode scanning in warehousing, logistics, and manufacturing operations

• Three-year factory warranty reduces total cost of ownership and ensures long-term reliability for enterprise deployments

Overview
Specifications
FAQ
User Guides
Reviews

Uncompromising Performance for Industrial Environments

The Honeywell Granit XP 1991i redefines ultra-rugged scanning for enterprises that demand maximum uptime in the harshest operational environments. Engineered to survive 10-foot drops, 7,000 tumble tests, and extreme temperatures ranging from -22°F to 122°F, this wireless scanner delivers rock-solid reliability that reduces service costs and eliminates productivity-killing device failures. With IP67 environmental sealing protecting against dust and moisture intrusion, the 1991iSR ensures consistent performance even under the most severe handling conditions.

Built on Honeywell's next-generation imaging platform, the Granit XP 1991iSR excels at scanning challenging barcodes that would bottleneck other scanners. Its advanced area imager captures damaged, poorly printed, and low-quality codes with exceptional speed and accuracy. Combined with Bluetooth 4.2 Class 1 wireless connectivity providing 330-foot range and a powerful 2450 mAh battery delivering 50,000 scans per charge, this scanner keeps your workforce mobile and productive throughout entire shifts without interruption.

Designed with real-world operational feedback, the 1991iSR features a deep-recessed, scratch-resistant scan window that addresses the most common failure point in industrial scanners. This thoughtful engineering detail, combined with Honeywell's three-year factory warranty, ensures the lowest total cost of ownership for enterprise deployments while maximizing device uptime and operational efficiency.

Best For

The Granit XP 1991iSR is engineered for demanding industrial applications where barcode scanning reliability directly impacts operational efficiency and throughput:

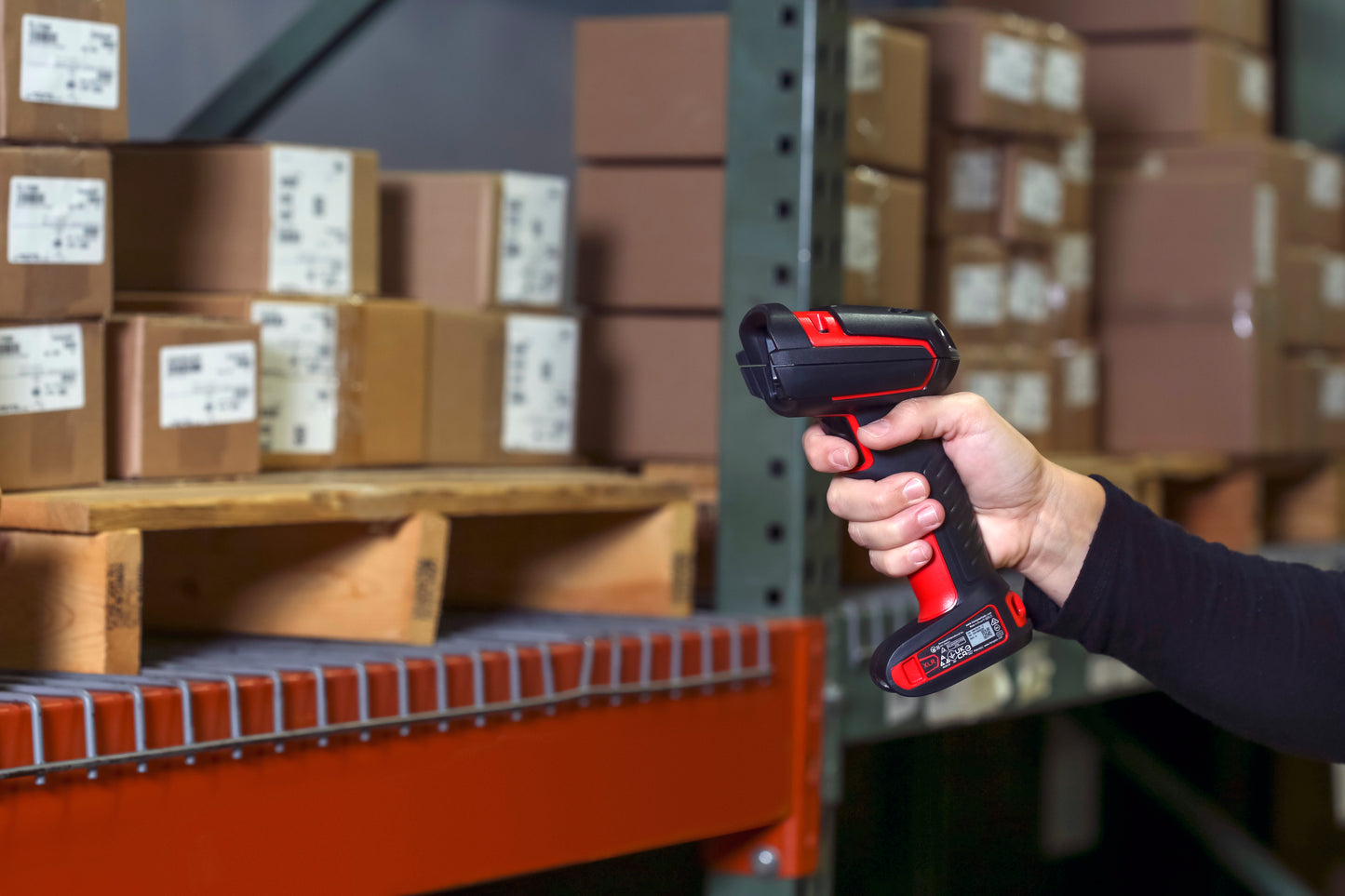

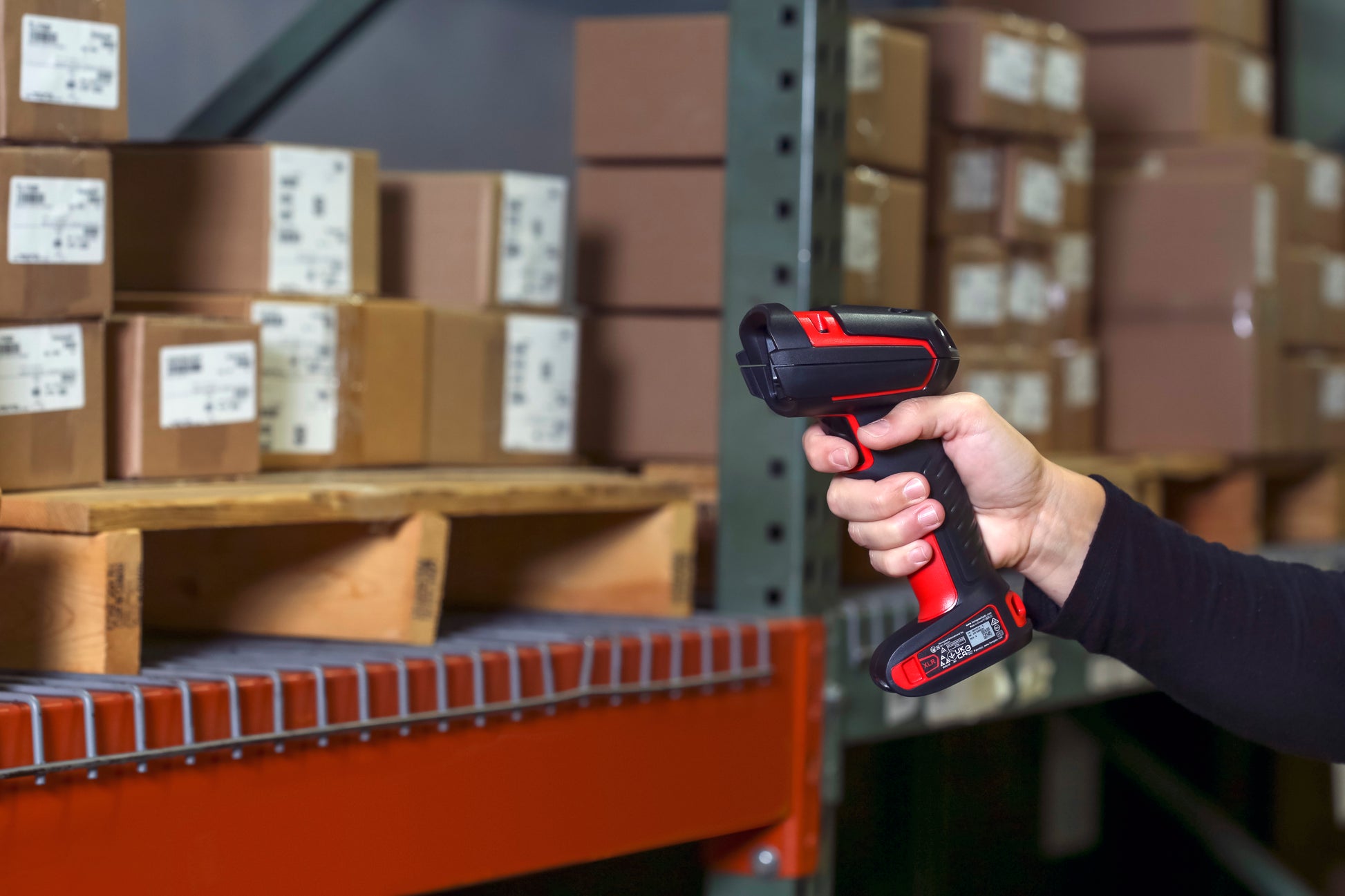

Warehouse and Distribution Centers: High-volume receiving, put-away, picking, and shipping operations requiring rugged scanners that survive frequent drops and impacts while maintaining scan performance on damaged package labels

Manufacturing Facilities: Production line tracking, work-in-process management, and quality control applications in harsh environments with extreme temperatures, dust, moisture, and demanding handling conditions

Logistics and Transportation: Freight handling, cross-docking, and package sorting operations where scanner durability and long battery life are essential for maintaining shipment accuracy and throughput

Cold Storage Operations: Freezer and refrigerated warehouse environments requiring scanners that operate reliably in extreme cold temperatures down to -22°F without performance degradation

Heavy Industrial Environments: Metal fabrication, automotive, and heavy equipment facilities where scanners face extreme abuse, challenging barcode conditions, and exposure to dust and moisture

Key Features

Extreme Drop and Tumble Durability: Survives 50 drops from 10 feet per MIL-STD-810G standards and 7,000 tumbles from 3.3 feet, ensuring long-term reliability in the most demanding handling environments

IP67 Environmental Sealing: Complete dust and moisture protection maintains scan performance even after exposure to harsh conditions, while IP65 rating provides additional protection against water jets

Extended Temperature Range Operation: Functions reliably in extreme environments from -30°C to 50°C (-22°F to 122°F), making it ideal for cold storage, outdoor, and high-heat manufacturing applications

Next-Generation Imaging Technology: 1280 x 800 pixel area imager with advanced decode algorithms captures damaged and poor-quality 1D and 2D barcodes that challenge conventional scanners

Long-Range Wireless Connectivity: Bluetooth 4.2 Class 1 technology with adaptive frequency hopping provides reliable wireless connection up to 330 feet line-of-sight in 2.4 GHz ISM band

All-Shift Battery Performance: High-capacity 2450 mAh lithium-ion battery delivers up to 50,000 scans or 14 hours of continuous operation per charge, eliminating mid-shift battery swaps

Reinforced Scan Window Design: Small, deep-recessed, scratch-resistant window protects against the leading failure point in industrial scanners, reducing repair costs and device downtime

Multiple User Feedback Options: Configurable good decode LED, adjustable tone and volume beeper, and vibration feedback ensure clear scan confirmation in noisy industrial environments

Quick Specs

Specification	Details
Product Name	Honeywell Granit XP 1991iSR Ultra-Rugged Standard Range Scanner
Scanner Type	Wireless Barcode Scanner
Scan Engine	Area Imager (1280 x 800 pixel array)
Barcode Types	1D (Code 39, Code 128, UPC, EAN, etc.) and 2D (QR Code, Data Matrix, PDF417, etc.)
Minimum Resolution	1D Code 39: 3 mil (0.076 mm) \| 2D Data Matrix: 6 mil (0.152 mm)
Standard Range Distance	10 mil Data Matrix: 1.2" to 8.6" \| 20 mil QR Code: 1.3" to 18.7" \| 6.7 mil PDF417: 0.8" to 8.2"
Scan Angle	Horizontal: 40° \| Vertical: 30°
Wireless Technology	Bluetooth 4.2 Class 1, 2.4 GHz ISM band with adaptive frequency hopping
Wireless Range	Up to 100 meters (330 feet) line-of-sight
Battery Type	2450 mAh Lithium-Ion (minimum capacity)
Battery Life	50,000 scans per charge \| 14 hours continuous operation (1 scan per second)
Drop Specification	50 drops from 3 meters (10 feet) per MIL-STD-810G \| 20 drops from 2.4 meters (8 feet) at 25°C
Tumble Specification	7,000 tumbles from 1 meter (3.3 feet)
Environmental Sealing	Scanner: IP67 and IP65 \| Charging Base: IP51
Operating Temperature	-30°C to 50°C (-22°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	Up to 95% relative humidity, non-condensing
Ambient Light	0 to 100,000 lux (9,290 foot-candles)
Host Interfaces	USB, Keyboard Wedge, RS232 TTL
User Indicators	Good decode LED, adjustable beeper (tone and volume), adjustable vibration, Bluetooth status
Scanner Dimensions	192 mm x 76 mm x 100 mm (7.6" x 3.0" x 3.9")
Scanner Weight	405 grams (14.3 oz)
Base Dimensions	245 mm x 102 mm x 60 mm (9.6" x 4.0" x 2.4")
Base Weight	295 grams (10.5 oz)

General Specifications
Brand	Honeywell
Model No.	1991i

Q: What makes the Honeywell Granit XP 1991iSR suitable for harsh industrial environments?

A: The 1991iSR is engineered for extreme durability with MIL-STD-810G certification, surviving 50 drops from 10 feet and 7,000 tumbles from 3.3 feet. It features IP67 environmental sealing for complete dust and water protection, operates in temperatures from -22°F to 122°F, and includes a deep-recessed scratch-resistant scan window that protects against the most common failure point in industrial scanners.

Q: How does the battery life perform during full warehouse shifts?

A: The 1991iSR features a high-capacity 2450 mAh lithium-ion battery that delivers up to 50,000 scans per charge or 14 hours of continuous operation at one scan per second. This ensures all-shift performance without mid-shift battery changes, maximizing worker productivity in warehouse and distribution operations.

Q: What is the wireless range of the 1991iSR scanner?

A: The scanner uses Bluetooth 4.2 Class 1 technology operating in the 2.4 GHz ISM band with adaptive frequency hopping, providing wireless connectivity up to 100 meters (330 feet) line-of-sight. This extended range allows workers to move freely throughout large warehouses and distribution centers while maintaining reliable connection to the host system.

Q: Can the Granit XP 1991iSR scan damaged or poor-quality barcodes?

A: Yes, the 1991iSR is built on Honeywell's next-generation imaging platform with a 1280 x 800 pixel area imager and advanced decode algorithms. It excels at capturing damaged, poorly printed, scratched, and low-quality 1D and 2D barcodes that would typically create bottlenecks with standard scanners, ensuring consistent performance even on challenging labels.

Q: What types of barcodes can the 1991iSR read?

A: The 1991iSR reads all common 1D barcodes including Code 39, Code 128, UPC, and EAN, as well as 2D barcodes including QR Code, Data Matrix, and PDF417. It can decode 1D Code 39 down to 3 mil resolution and 2D Data Matrix down to 6 mil resolution, handling a comprehensive range of barcode symbologies for diverse applications.

Q: What is the typical scanning range for the standard range (SR) model?

A: The 1991iSR is optimized for standard range scanning with typical working distances of 1.2 to 8.6 inches for 10 mil Data Matrix codes, 1.3 to 18.7 inches for 20 mil QR codes, and 0.8 to 8.2 inches for 6.7 mil PDF417 codes. This makes it ideal for normal near-field scanning operations common in warehousing, receiving, and picking applications.

Q: Can the 1991iSR operate in cold storage and freezer environments?

A: Yes, the 1991iSR is specifically designed for extreme temperature environments with an operating range from -30°C to 50°C (-22°F to 122°F). This makes it ideal for cold storage warehouses, freezer operations, and outdoor logistics applications where temperature extremes would cause conventional scanners to fail or perform inconsistently.

Q: What warranty coverage is included with the Granit XP 1991iSR?

A: The scanner includes a comprehensive three-year factory warranty, while the lithium-ion battery is covered by a one-year factory warranty. This extended warranty coverage reduces total cost of ownership and provides long-term protection for enterprise deployments, minimizing unexpected replacement costs.

Q: How does the scanner provide scan confirmation in noisy warehouse environments?

A: The 1991iSR offers multiple configurable user feedback options including a good decode LED indicator, an adjustable beeper with customizable tone and volume settings, and adjustable vibration feedback. These multiple confirmation methods ensure workers receive clear scan confirmation even in loud industrial environments where audio cues alone may be insufficient.

Q: What accessories and cables are included in the package?

A: The standard package includes the Granit XP 1991iSR wireless scanner, charging/communication base, and necessary power supply. Specific cable configurations (USB, RS232, or keyboard wedge) may vary by model ordered. Contact your authorized Honeywell reseller to confirm exact package contents and available interface options for your specific deployment requirements.
