Honeywell Granit Ultra 2105i Wireless Barcode Scanner - Ultra-Rugged Area Imager for Warehouse & Manufacturing

Q: What scanning range should I choose for my warehouse operations?

The 2105i offers multiple range options: SR (Standard Range) models read from contact to 40 inches for typical picking/packing, XR (Extended Range) models read up to 70 inches on UPC codes ideal for mid-range applications, and XLR (Ultra-Long Range) models can read 100mil codes from up to 33 feet away for loading dock and high-bay storage scanning. Most warehouse operations use SR or XR models.

Q: How does the 2105i perform on damaged or poor-quality barcodes?

The Granit Ultra 2105i excels at reading damaged, faded, wrinkled, or low-quality barcodes that slow down other scanners. It uses AI algorithms and enhanced decoding technology to successfully capture codes that are partially obscured, printed on shrink wrap, or degraded from handling. In Honeywell testing, it demonstrated 45% faster average scanning speeds than the previous Granit XP generation across varied barcode conditions.

Q: What is the wireless range and how many devices can I connect?

The 2105i uses Bluetooth 4.2 Class 1 technology providing reliable connectivity up to 100 meters (328 feet) in open space. Actual range depends on environmental factors like metal racking, concrete walls, and RF interference. Each charging base pairs with one scanner. For multi-scanner deployments, you'll need one base per scanner or can use the scanner in batch mode.

Q: How long does the battery last and can I swap batteries during shifts?

The 3,300 mAh lithium-ion battery delivers up to 100,000 scans per charge under typical usage. For 24/7 operations, the battery is removable and hot-swappable, allowing workers to exchange depleted batteries for charged ones without device downtime. Charging time is under 12 hours via USB 2.0, or faster using BC1.2 or the 5V/3A external power adapter.

Q: Can this scanner survive our harsh manufacturing environment?

Yes, the Granit Ultra 2105i is built for extreme industrial conditions. It survives 10-foot drops to concrete, 7,500 tumbles from 3.3 feet, and maintains IP65/IP68 environmental sealing against dust and water immersion. It operates in temperatures from -4°F to 122°F (-20°C to 50°C). The deeply recessed scan window resists scratches and impacts, while the cable is rated for 500,000 bend cycles and cold temperatures.

Q: What barcode types does the 2105i support?

The 2105i reads all standard 1D barcodes (Code 39, Code 128, UPC, EAN, Interleaved 2 of 5, etc.) and 2D codes (QR Code, Data Matrix, PDF417, Aztec, MaxiCode). It also supports postal codes, Digimarc watermarks, DotCode, and OCR characters. HD models can read high-density codes as small as 2mil. The scanner supports multi-code simultaneous reading with configurable data output formatting.

Q: How do I configure and deploy multiple scanners across our facility?

The 2105i offers simple barcode-based configuration for quick setup—just scan configuration barcodes to set parameters. For enterprise-wide deployment, use Honeywell Scanner Management Utility (SMU) to automate configuration, firmware updates, and settings management across all scanners. The SMU creates a centralized solution for managing your entire scanner fleet, reducing IT overhead and ensuring consistent configuration.

Q: What interfaces are available for connecting to our host systems?

The charging and communication base supports USB, Keyboard Wedge, and RS-232 TTL interfaces (convertible to +/-12V via cable). This provides compatibility with PCs, terminals, and legacy systems. The wireless Bluetooth connection allows the scanner to operate untethered up to 328 feet from the base while maintaining fast data transmission to your host system.

Q: Does this scanner support RFID tag reading?

No, the Granit Ultra 2105i is a barcode scanner only and does not support UHF RFID or NFC tag reading. It is designed specifically for reading 1D and 2D barcodes, including damaged codes, with industry-leading speed and reliability. If your operation requires RFID capability, consider Honeywell's CT30 XP or CT60 XP mobile computers with integrated RFID readers.

Q: What warranty and support options are available for the 2105i?

As an authorized Honeywell reseller, EpicRise Electronics provides the manufacturer's standard warranty coverage. Honeywell typically offers a 3-year warranty on Granit scanners, though specific terms should be confirmed at purchase. Extended service plans and advanced exchange programs are available. Our team provides pre-sales consultation, configuration assistance, and ongoing technical support for all enterprise deployments.

Delivery Time: 0-3 days

Brand Honeywell

Model Number 2105i

UPC

Manufacture Warranty 2 Years

EpicRise Warranty 1 Year

Product Highlights

• 45% faster scanning than previous generation with AI-enhanced decoding for damaged and low-quality barcodes

• Ultra-rugged design withstands 10ft drops, 7,500 tumbles, and IP68 rating for harsh warehouse environments

• Wireless Bluetooth Class 1 connectivity up to 328ft (100m) with 100,000 scans per charge battery life

• Multiple range options: SR for contact to arm's length, XR for mid-range, XLR for ultra-long distance scanning

• Tool-free configuration via barcode scanning with multi-code reading and Honeywell Data Formatting Editor support

Overview
Specifications
FAQ
User Guides
Reviews

The Honeywell Granit Ultra 2105i wireless area imaging scanner redefines ultra-rugged scanning technology for enterprises that demand uncompromising performance. Winner of the 2025 Red Dot Design Award, this next-generation scanner delivers 45% faster scanning speeds compared to its predecessor through advanced high-speed processing, AI algorithms, and enhanced decoding capabilities. Designed specifically for fast-paced warehouse, manufacturing, and logistics operations, the 2105i excels at rapidly reading and transmitting both pristine and damaged barcodes that would slow down conventional scanners.

Built to survive the harshest industrial environments, the Granit Ultra 2105i withstands 10-foot drops, 7,500 tumbles from 3.3 feet, and maintains IP65/IP68 sealing protection. The deeply recessed, scratch-resistant, impact-resistant scan window significantly improves component reliability while preserving environmental sealing. With ultra-reliable Bluetooth Class 1 connectivity providing fast communication up to 328 feet and a powerful 3,300 mAh battery delivering up to 100,000 scans per charge, this scanner eliminates productivity interruptions in mission-critical operations.

The 2105i series offers multiple scanning range configurations to match your specific application needs: SR models for standard range contact to arm's length reading, HD models for high-density codes as small as 2mil, XR models for near-field and mid-field operations, and XLR models for ultra-long-range barcode capture. Intuitive operation features include bright green laser or LED aiming, configurable beeper and vibration feedback, and simple barcode-based configuration for immediate deployment across your enterprise.

Best For

The Honeywell Granit Ultra 2105i excels in demanding industrial environments where accuracy, speed, and durability are non-negotiable requirements:

- Warehouse & Distribution Centers: High-volume picking, packing, put-away, replenishment, and inventory management operations requiring fast, reliable scanning of damaged labels and shrink-wrapped items

- Manufacturing Facilities: Assembly line tracking, component picking, packaging verification, and inventory control where devices face constant drops, impacts, and exposure to dust and moisture

- Transportation & Logistics: Vehicle loading/unloading, package sorting, cross-docking operations, and freight handling requiring long-range scanning capabilities and wireless freedom

- E-commerce Fulfillment: Rapid order processing, multi-item picking, quality verification, and shipping operations demanding maximum scanning speed and uptime

- Aerospace & Heavy Industry: Parts tracking, work-in-process management, and quality control applications requiring military-grade durability and reliable performance in extreme temperatures

Key Features

- Ultra-Fast Scanning Performance: 45% faster average scanning speed than Granit XP through high-speed processing, AI algorithms, and enhanced decoding for damaged and low-quality barcodes

- Military-Grade Durability: Survives 10-foot drops to concrete, 7,500 tumbles from 3.3 feet, IP65/IP68 environmental sealing, and operation in -4°F to 122°F temperatures

- Extended Wireless Range: Bluetooth 4.2 Class 1 connectivity provides reliable communication up to 328 feet (100m) with fast data transmission

- All-Day Battery Life: 3,300 mAh removable lithium-ion battery delivers up to 100,000 scans per charge with hot-swappable capability for 24/7 operations

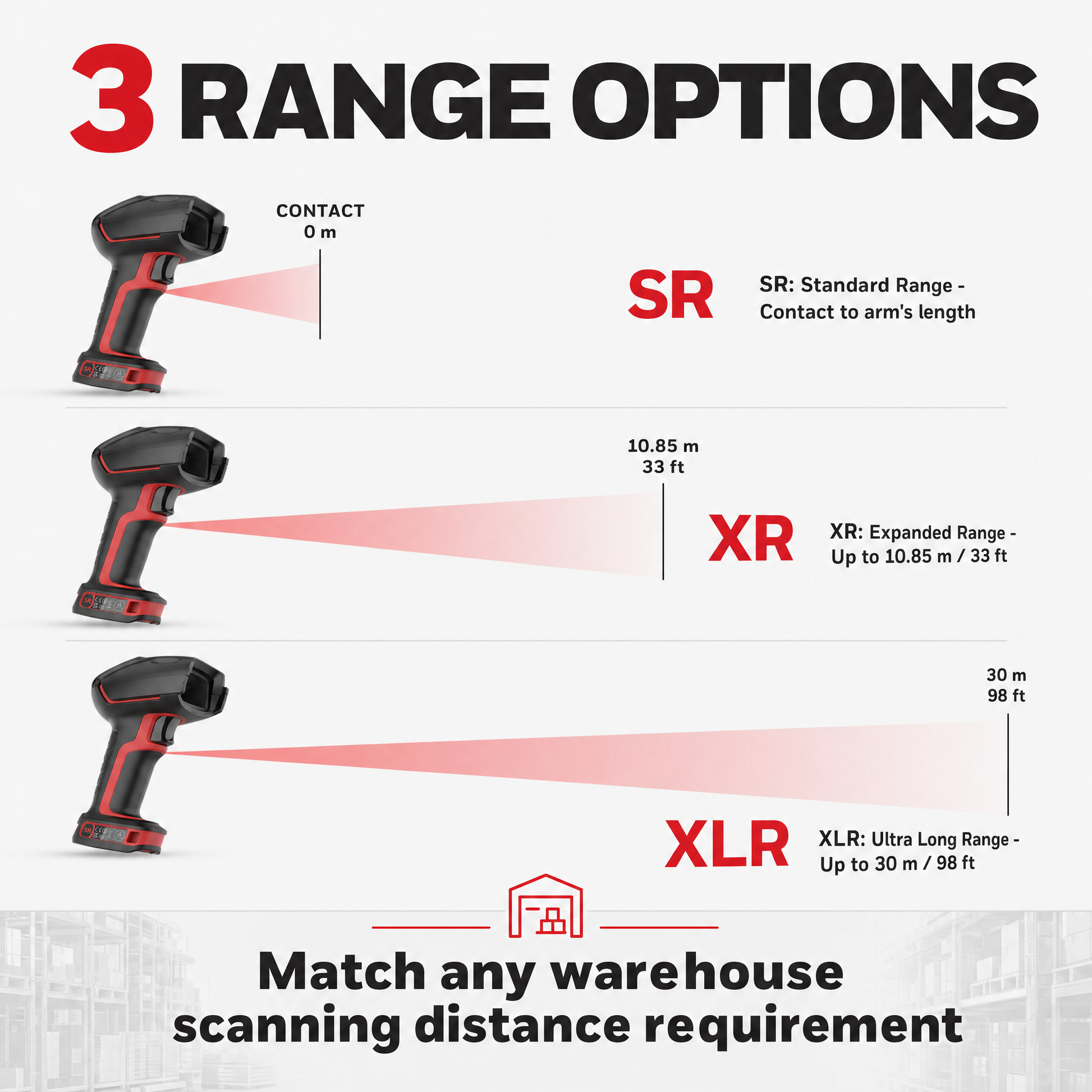

- Multiple Range Options: Choose SR for standard range (0-40 inches), XR for extended range (0-110 inches on 20mil codes, 70 inches on UPC), or XLR for ultra-long distance scanning

- Advanced Decoding: Reads all standard 1D and 2D symbologies including damaged codes, postal codes, Digimarc, DotCode, and OCR with multi-code simultaneous capture

- Intuitive Operation: Bright green laser or LED aiming, configurable vibration and beeper feedback, clear LED indicators, and ergonomic design for all-day comfort

- Enterprise Management Tools: Honeywell Scanner Management Utility (SMU) for automated deployment and updates, simple barcode-based configuration, and Data Formatting Editor support

Quick Specs

Specification	Details
Scanner Type	Wireless Ultra-Rugged Area Imager
Scanning Performance	45% faster than Granit XP, AI-enhanced decoding
Range Models	SR (0-40.67"), XR (0-110.71" on 20mil), HD (2mil), XLR (ultra-long)
Wireless Technology	Bluetooth 4.2 Class 1, up to 100m (328 ft) range
Battery	3,300 mAh Li-ion, 100,000 scans/charge, removable
Durability	10 ft drop, 7,500 x 3.3 ft tumbles, IP65/IP68 sealed
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Symbologies	All standard 1D/2D codes, postal, Digimarc, DotCode, OCR
Aiming System	Green laser or LED aiming
Indicators	Decode LED, battery LED, BT status LED, configurable beeper & vibration
Dimensions (Scanner)	194.8 x 75.8 x 139.5 mm (7.7" x 3.0" x 5.5")
Weight (Scanner)	425g (15 oz)
Host Interfaces	USB, Keyboard Wedge, RS-232 TTL
Charging Time	<12 hours (USB 2.0), faster with BC1.2 or external power
Base Durability	500,000 insertion cycles, recessed charging contacts
Cable Rating	500,000 bend cycles, -20°C low temperature rated

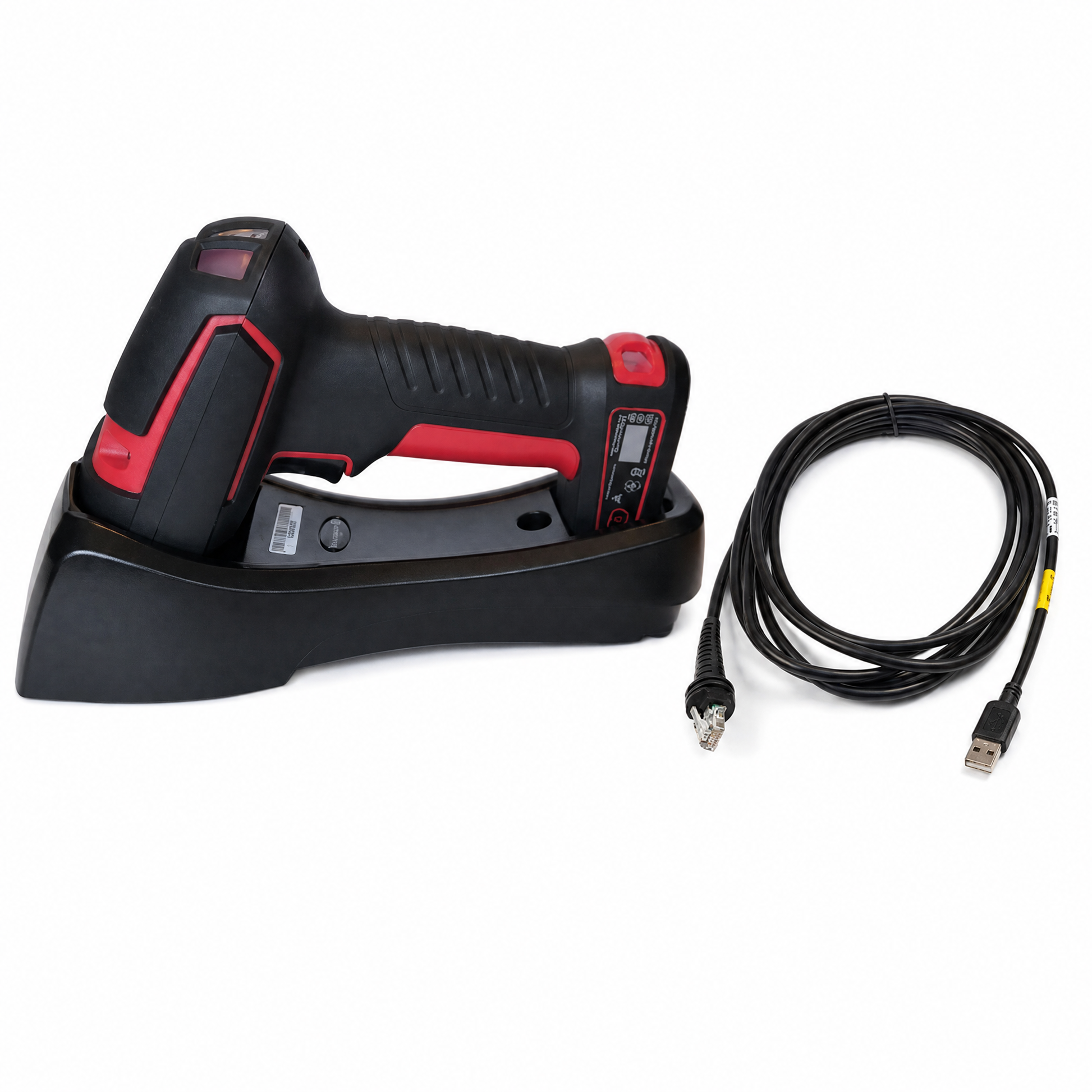

What's Included

- Honeywell Granit Ultra 2105i Bluetooth Scanner (color varies by model)

- BAT-SCN11 Rechargeable Lithium-Ion Battery (3,300 mAh)

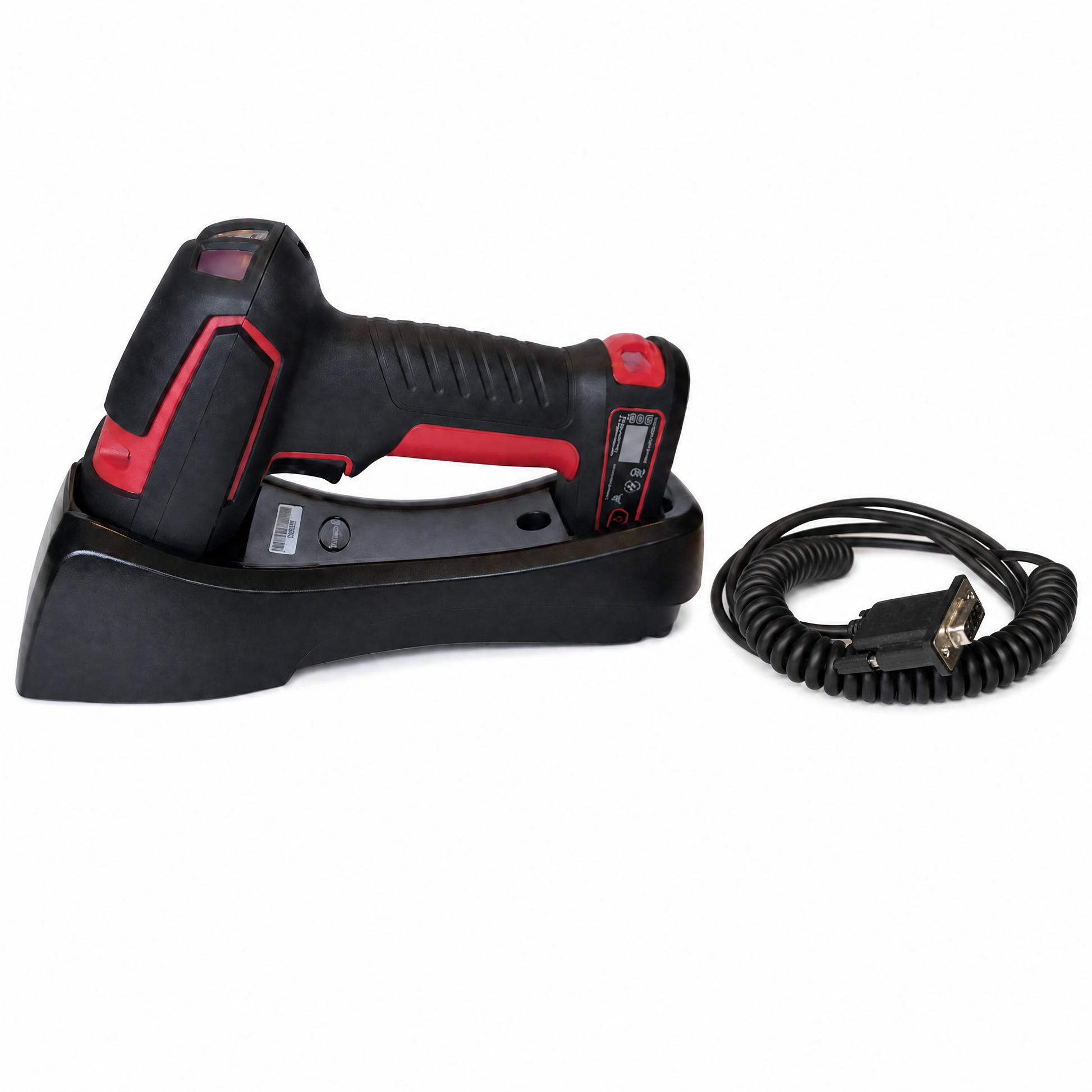

- CCB23-100BT-07N Charging and Communication Base （variant-dependent）

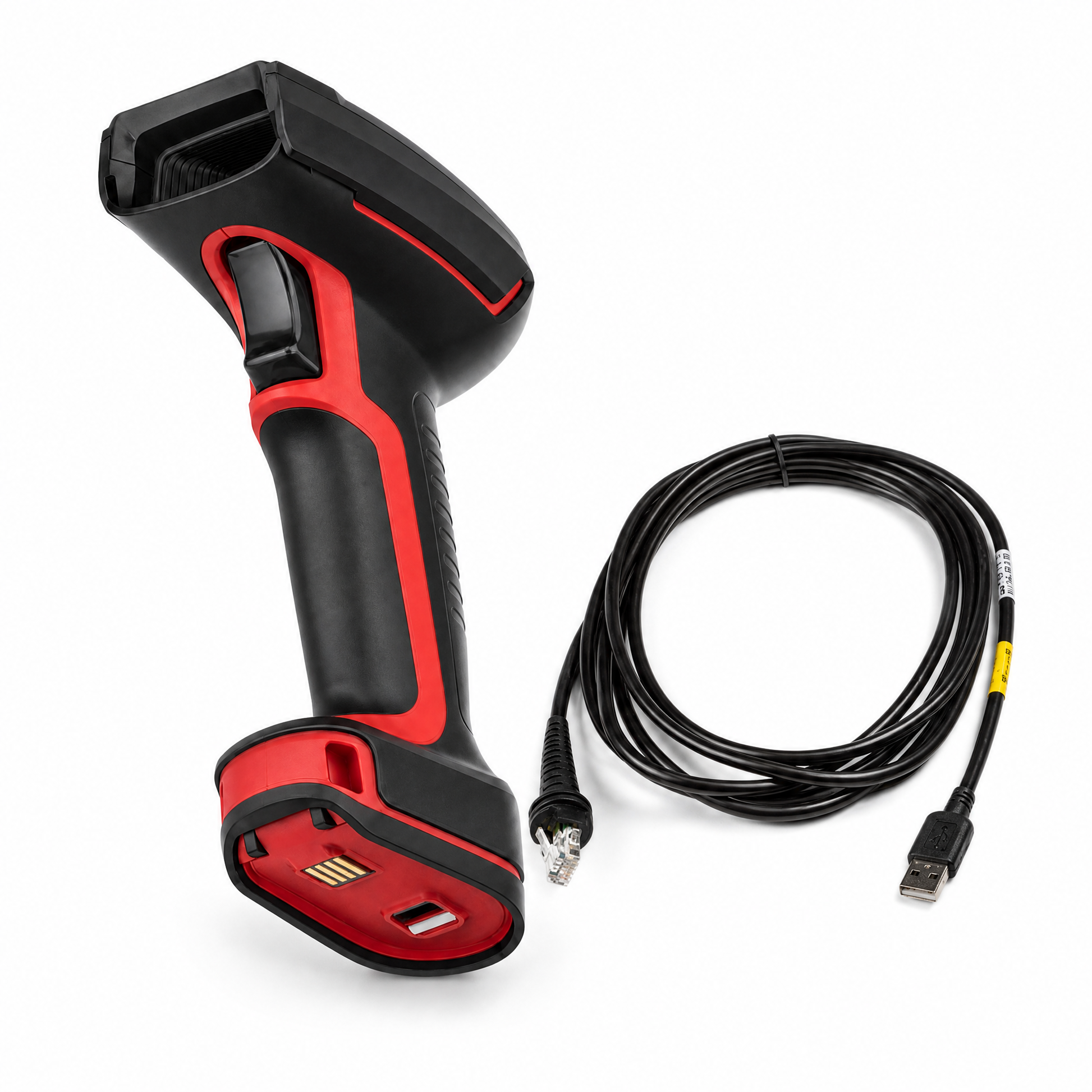

- CBL-500-300-S00 USB Cable (kit-dependent)

Note: Package contents vary by kit configuration. Scanner-only configurations include scanner and battery only.

Product Details
Color	Black
Scanner Interface	Bluetooth
Barcode Supported	1D, 2D
Power Source	Battery-powered, Rechargeable
