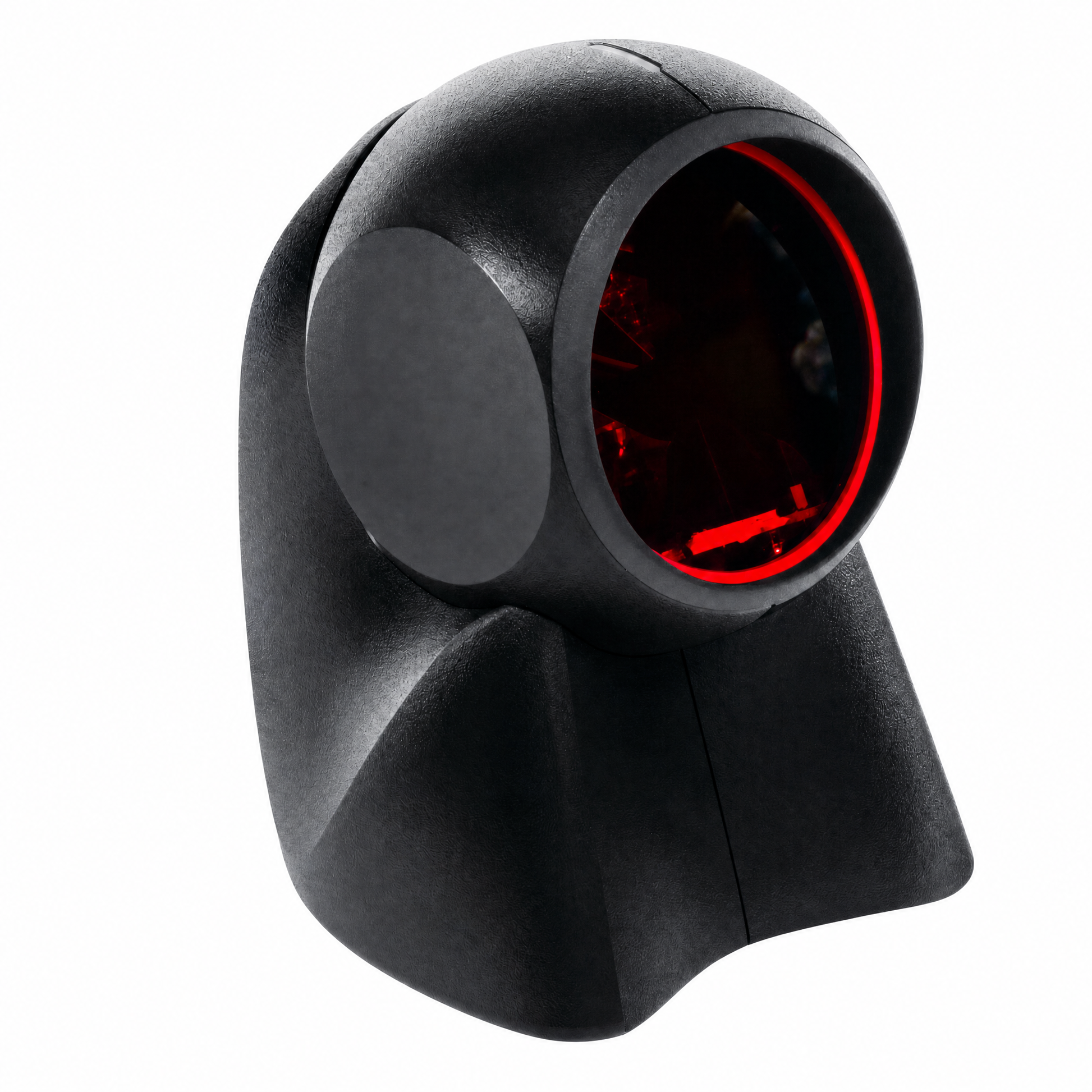

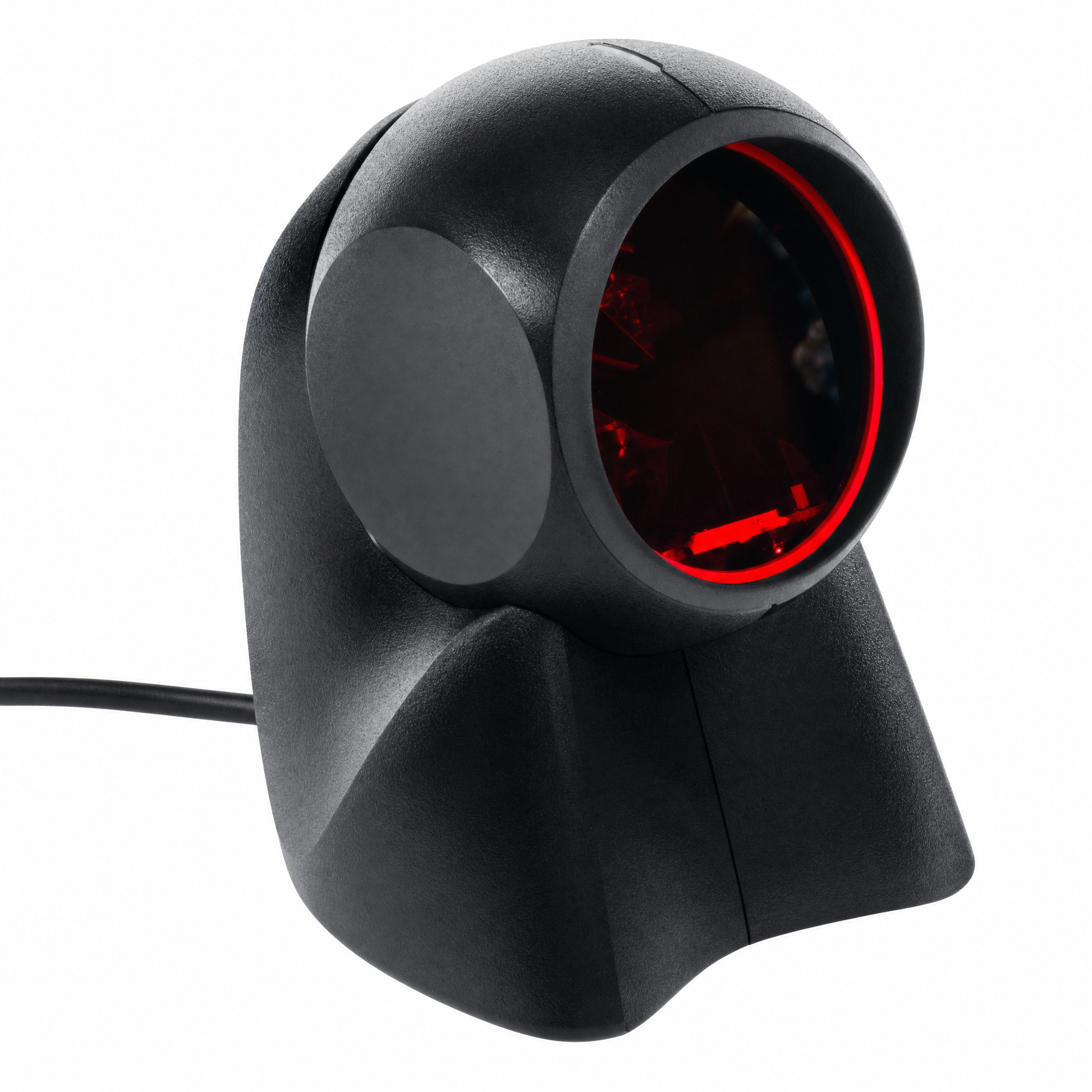

Honeywell Orbit 7190g Hybrid Presentation Scanner - 1D/2D Barcode Reader with Omnidirectional Laser and Imaging Technology

Name: Honeywell Orbit 7190g Hybrid Presentation Scanner - 1D/2D Barcode Reader with Omnidirectional Laser and Imaging Technology
Brand: Honeywell
SKU: DS-HNW-7190G-2
Price: 455.05 USD
Availability: InStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

• Hybrid technology combines 20-line omnidirectional laser and area imager in a single scanner for both printed and digital barcodes

• Dual working modes optimize performance for scanning customer smartphone codes and cashier product scanning at point of sale

• Adjustable scan head tilts up to 30° for targeted scanning of large or bulky items with hands-free or handheld operation

• Plug-and-play installation with automatic interface detection for USB, RS-232, keyboard wedge, and IBM 468xx connections

• USB direct power eliminates need for external power supplies and additional cables, reducing installation complexity

• Industry-proven Orbit design with IP5X environmental sealing and 1.2m drop specification for reliable retail performance

Overview
Specifications
FAQ
User Guides
Reviews

The Honeywell Orbit 7190g Hybrid Presentation Scanner represents a breakthrough in retail scanning technology by integrating both omnidirectional laser scanning and area imaging capabilities into a single, space-saving device. This innovative approach eliminates the need for separate scanners to handle traditional printed 1D barcodes and modern digital codes displayed on smartphone screens. As part of the best-selling Orbit scanner family, the 7190g delivers proven performance in a compact, elegant form factor designed specifically for counter-limited retail environments.

Built on Honeywell's leading imaging technology and 20-line omnidirectional laser platform, the 7190g automatically switches between scanning modes to optimize performance for each application. Whether processing customer loyalty coupons from mobile devices or scanning product barcodes at checkout, the scanner delivers fast, accurate reads while eliminating the customer discomfort sometimes associated with laser illumination. The adjustable scan head and proven ergonomic design support both hands-free presentation scanning and handheld operation for oversized items, making it a versatile solution for modern retail operations.

With plug-and-play installation, USB direct power, and multiple onboard interfaces, the Orbit 7190g integrates seamlessly with existing POS systems without complex setup or programming. The scanner's IP5X environmental sealing and 1.2-meter drop specification ensure reliable performance in demanding retail environments, backed by Honeywell's 3-year factory warranty.

Best For

The Honeywell Orbit 7190g is engineered for retail environments where space is limited and operational flexibility is essential. It excels in applications requiring seamless handling of both traditional printed barcodes and modern digital codes.

- Convenience Retail & Small-Format Stores: Compact footprint and dual scanning modes make it ideal for counter-limited checkout environments including convenience stores, specialty retail, and boutiques

- Mobile Coupon & Loyalty Programs: Area imaging technology effortlessly captures 1D, 2D, and PDF barcodes from smartphone screens for digital coupons, loyalty cards, and mobile payment applications

- High-Mix Product Scanning: Adjustable scan head and hands-free/handheld versatility accommodate scanning of standard products, oversized items, and bulky merchandise at the same checkout station

- Legacy POS System Integration: Multiple interface support and automatic detection enable seamless integration with existing point-of-sale infrastructure without system upgrades

- ID Verification Applications: Imaging capability supports scanning of driver's licenses and identification cards for age verification and customer registration processes

Key Features

- Hybrid scanning technology integrates 20-line omnidirectional laser (1120 lines/sec) and 640×480 pixel area imager (30 FPS) in a single device

- Dual working modes automatically optimize scanner performance for customer smartphone codes versus cashier product scanning applications

- Reads all standard 1D linear barcodes (Code 39, U.P.C., GS1 DataBar), 2D matrix codes (Data Matrix, QR Code), and stacked symbologies (PDF417)

- Adjustable scan head tilts up to 30 degrees to accommodate targeted scanning of large, bulky, or irregularly shaped items

- Award-winning ergonomic design supports both hands-free presentation scanning and handheld operation for maximum operational flexibility

- Automatic interface detection for USB, RS-232, keyboard wedge, and IBM 468xx (RS485) connections eliminates programming barcode scanning during installation

- USB Type A direct power operation (5 VDC) eliminates external power supplies and reduces cable clutter at the checkout counter

- IP5X environmental sealing protects against airborne particulate contaminants; designed to withstand 1.2-meter (4-foot) drops to concrete

- Operates in ambient light conditions up to 100,000 Lux (imager) and reads barcodes with minimum 35% reflectivity difference

- Compact dimensions of 108mm × 103mm × 148mm (4.3" × 4.1" × 5.8") and 410g weight minimize counter space requirements

Quick Specs

Model	Orbit 7190g
Scanner Type	Hybrid Presentation Scanner (Laser + Imager)
Scan Technology	20-line omnidirectional laser + 640×480 pixel area imager
Scan Speed	1120 lines/second (laser); 30 FPS (imager)
Symbologies	1D, 2D, PDF417, GS1 DataBar
Scan Angle (Imager)	40.0° horizontal, 30.5° vertical
Working Distance	Up to 327 mm (12.9 inches)
Pitch/Skew Tolerance	Laser: 60°/60°; Imager: 60°/70°
Interfaces	USB, RS-232, Keyboard Wedge, IBM 468xx (RS485)
Power	USB direct power: 5 VDC ±0.25V, 472 mA operating
Dimensions (L×W×H)	108 mm × 103 mm × 148 mm (4.3" × 4.1" × 5.8")
Weight	410 g (14.5 oz)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Humidity	5% to 95% relative humidity, non-condensing
Environmental Sealing	IP5X (particulate resistance)
Drop Specification	1.2 m (4 ft) to concrete
Ambient Light Immunity	Laser: 4,842 Lux; Imager: 100,000 Lux
Warranty	3-year factory warranty

What's Included

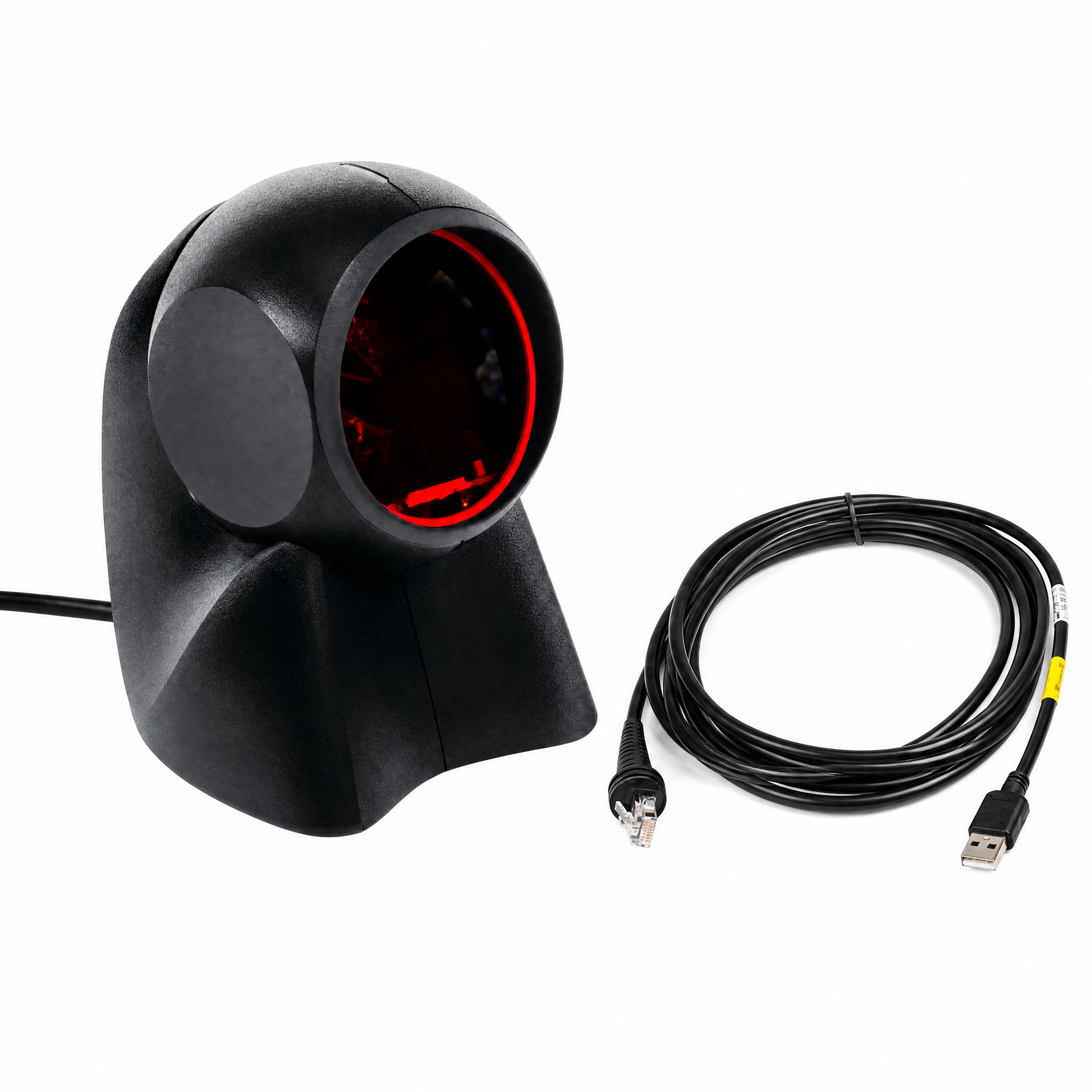

- Orbit 7190g-2 scanner (black)

- Quick start guide

General Specifications
Brand	Honeywell
Model No.	7190g

Product Details
Color	Black
Power Source	USB
Scanner Interface	USB, Keyboard wedge
Barcode Supported	1D, 2D

Q: What types of barcodes can the Honeywell Orbit 7190g scan?

A: The Orbit 7190g is a hybrid scanner that reads all standard barcode types. The laser component scans 1D linear barcodes including Code 39, U.P.C., and GS1 DataBar symbologies. The imaging component reads 1D barcodes, 2D matrix codes (Data Matrix, QR Code), and stacked symbologies (PDF417). This makes it capable of scanning both printed product barcodes and digital codes displayed on smartphone screens.

Q: Does the 7190g require an external power supply?

A: No, the Orbit 7190g is powered directly through the USB connection (USB Type A). It operates at 5 VDC ±0.25V and draws 472 mA during operation. This eliminates the need for additional power supplies and cables, simplifying installation and reducing counter clutter. If using RS-232 interface, a separate power supply must be ordered.

Q: Can the scanner be used in handheld mode or only hands-free?

A: The Orbit 7190g supports both hands-free presentation scanning and handheld operation. Its award-winning ergonomic design allows cashiers to lift the scanner from its base to scan large, bulky, or difficult-to-position items. The scan head can also be tilted up to 30 degrees while in the base for targeted scanning of larger products.

Q: What interfaces does the 7190g support and is setup complicated?

A: The Orbit 7190g includes multiple onboard interfaces: USB, RS-232, keyboard wedge, and IBM 468xx (RS485). Setup is plug-and-play with automatic interface detection—when you connect the scanner via USB or RS-232, it automatically configures to the appropriate interface without requiring you to scan programming barcodes. This ensures compatibility with most POS systems.

Q: How durable is the Orbit 7190g for retail environments?

A: The scanner is designed for demanding retail use with IP5X environmental sealing to resist airborne particulate contaminants. It is engineered to withstand drops from 1.2 meters (4 feet) to concrete. The device operates reliably in temperatures from 0°C to 40°C and humidity levels from 5% to 95% non-condensing. It also comes with a 3-year factory warranty.

Q: What is the working distance and scan range of the 7190g?

A: The Orbit 7190g has a working distance of up to 327 mm (12.9 inches) for effective barcode scanning. The imager has a scan angle of 40.0° horizontal and 30.5° vertical. The scanner can read barcodes with a minimum symbol contrast of 35% reflectivity difference and operates in ambient light up to 100,000 Lux for the imager and 4,842 Lux for the laser.

Q: How does the dual working mode function work?

A: The Orbit 7190g features dual working modes that automatically optimize scanning performance based on the application. When scanning customer smartphones for digital coupons or loyalty codes, the scanner activates the area imager with appropriate LED illumination. For cashier-scanned product barcodes, it uses the 20-line omnidirectional laser. This automatic switching eliminates customer discomfort from laser exposure while maintaining fast checkout speeds.

Q: What are the dimensions and weight of the scanner?

A: The Orbit 7190g measures 108 mm × 103 mm × 148 mm (4.3 inches × 4.1 inches × 5.8 inches) in length, width, and height. It weighs 410 grams (14.5 ounces), making it compact and lightweight enough for counter-limited retail environments while remaining stable during hands-free scanning operations.

Q: Can the 7190g scan driver's licenses and ID cards?

A: Yes, the Orbit 7190g's imaging technology can read barcodes on driver's licenses and identification cards for age verification and customer registration applications. The area imager captures PDF417 and other 2D barcodes commonly used on government-issued IDs. Honeywell's EasyDL software (available separately) can be used for parsing driver's license data.

Q: Is the Orbit 7190g compatible with EAS security systems?

A: Yes, EAS-enabled models of the Orbit 7190g are available with interlock functionality and integrated RF EAS antenna. This allows the scanner to interface with electronic article surveillance systems for retail loss prevention. Standard models do not include EAS functionality, so specify EAS requirements when ordering.
