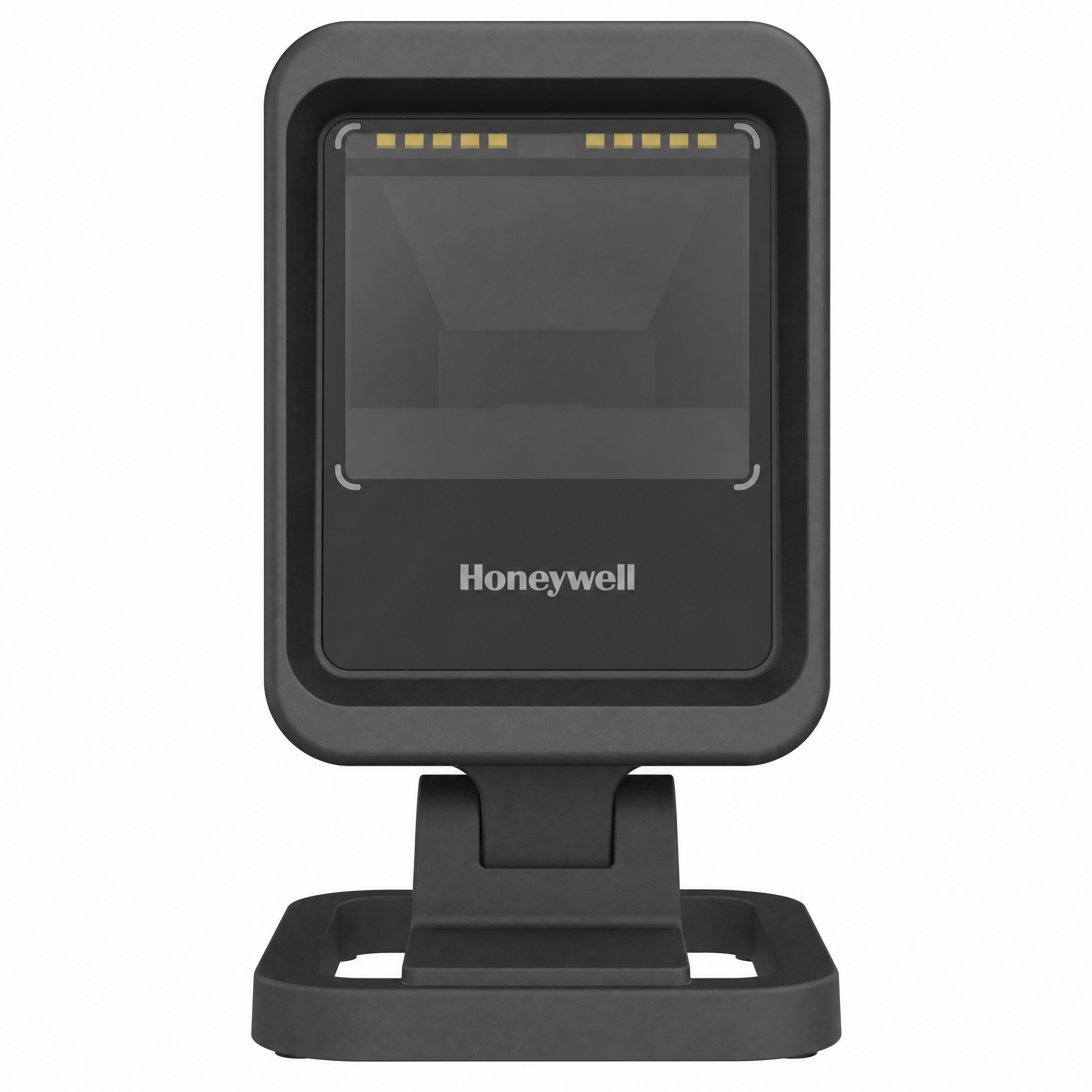

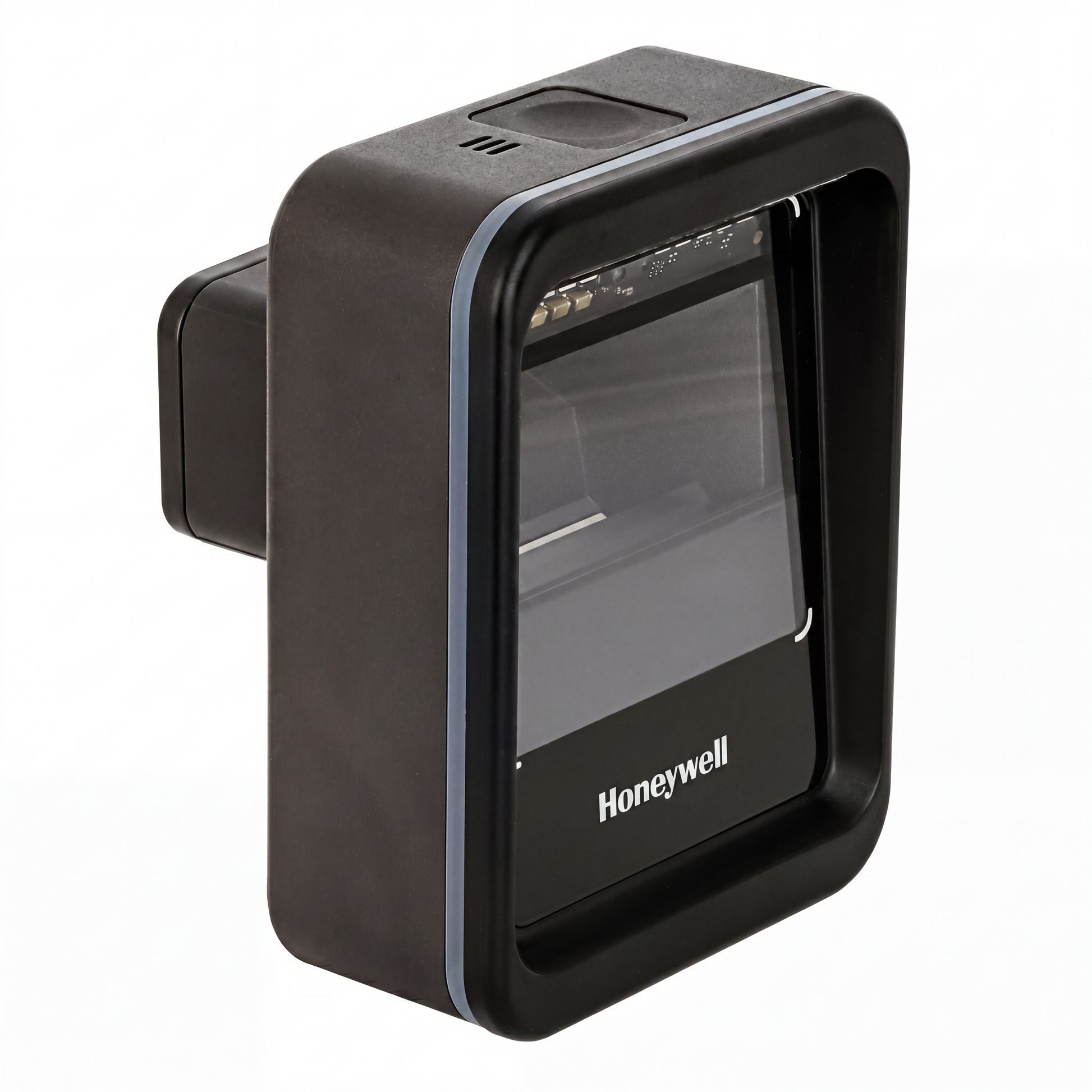

Honeywell Genesis XP 7680g Hands-Free Presentation Barcode Scanner for Retail & Healthcare

Name: Honeywell Genesis XP 7680g Hands-Free Presentation Barcode Scanner for Retail & Healthcare
Brand: Honeywell
SKU: DS-HNW-7680GSR-2-N
Price: 397.48 USD
Availability: InStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

• 20% faster scanning speed with advanced XP technology and larger scan area for high-volume point-of-sale environments

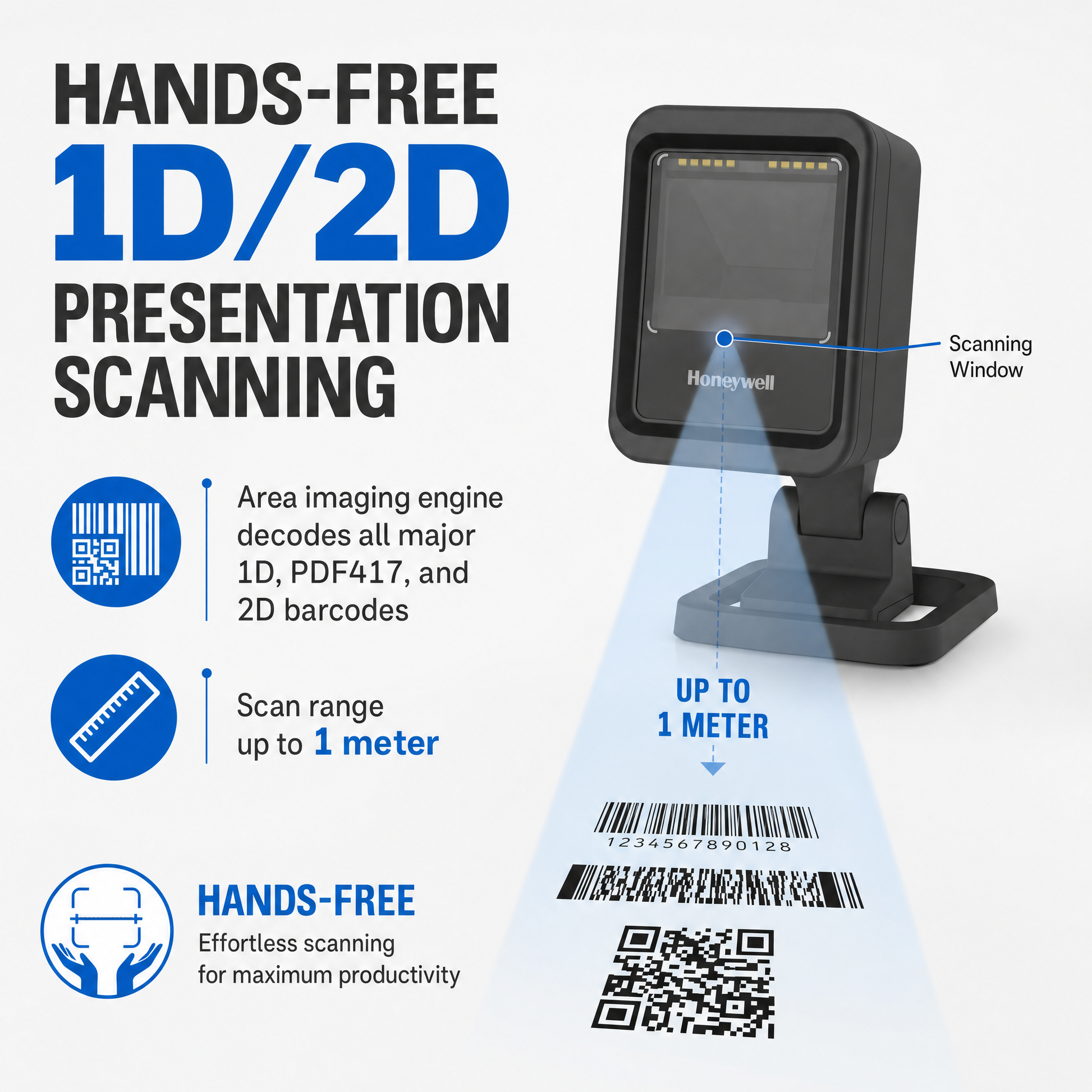

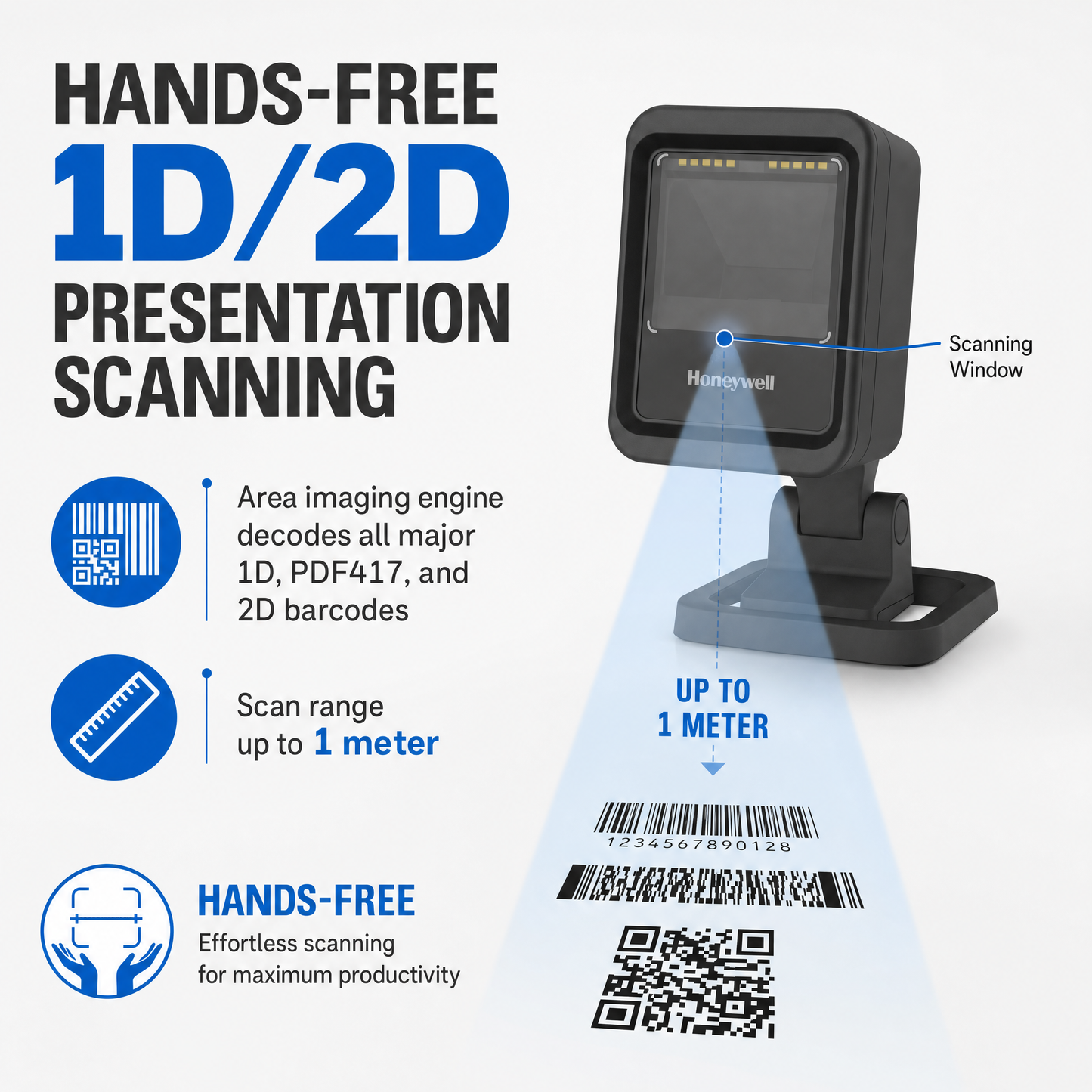

• 1MP imager captures 1D/2D barcodes, mobile displays, documents, and damaged codes in any condition with 400 cm/s motion tolerance

• 360° tri-color LED ring with warm white illumination provides clear scan feedback and automatic object detection minimizes distraction

• IP52-rated disinfectant-ready housing withstands 50 drops from 1.5m and 1,000 tumbles, backed by 3-year factory warranty

• Compact modular design with detachable stand and Smart Placement accessories fits limited counter space and diverse workflows

• Backward compatible with legacy cables, works with Honeywell software suite including EZ Config, SMU, and OPOS/JPOS drivers

Overview
Specifications
FAQ
User Guides
Reviews

Narrative Description

The Honeywell Genesis XP 7680g is a hands-free presentation scanner engineered to deliver impactful customer experiences while boosting operational productivity in high-volume environments. Built with extreme performance "XP" scanning technology, this compact scanner features a 1-megapixel imager that scans 20% faster than previous models with an expanded scan area, making it ideal for single-point workflows in retail checkouts, healthcare facilities, and self-service kiosks.

Designed for modern retail and healthcare settings, the Genesis XP 7680g combines a sleek, space-saving footprint with disinfectant-ready housing and IP52 environmental sealing. Its 360° tri-color LED ring provides warm white illumination and clear visual feedback, while automatic object detection turns off lighting between scans to minimize distraction. Field-proven XP technology effortlessly captures everything from poorly printed or damaged barcodes to mobile device displays, documents, and licenses across any medium and condition.

The modular design offers exceptional flexibility with a detachable, adjustable compact stand and angled cable connection point that enables placement virtually anywhere. Backward compatible with existing Genesis cables and fully supported by Honeywell's comprehensive software tools including EZ Config, SMU, OPOS/JPOS drivers, Easy DL, and EasyParse for GS1, the Genesis XP 7680g integrates seamlessly into current infrastructure while providing a clear upgrade path for future workflows.

Best For

The Honeywell Genesis XP 7680g presentation scanner delivers exceptional performance for enterprises requiring fast, reliable barcode capture in space-constrained, high-traffic environments:

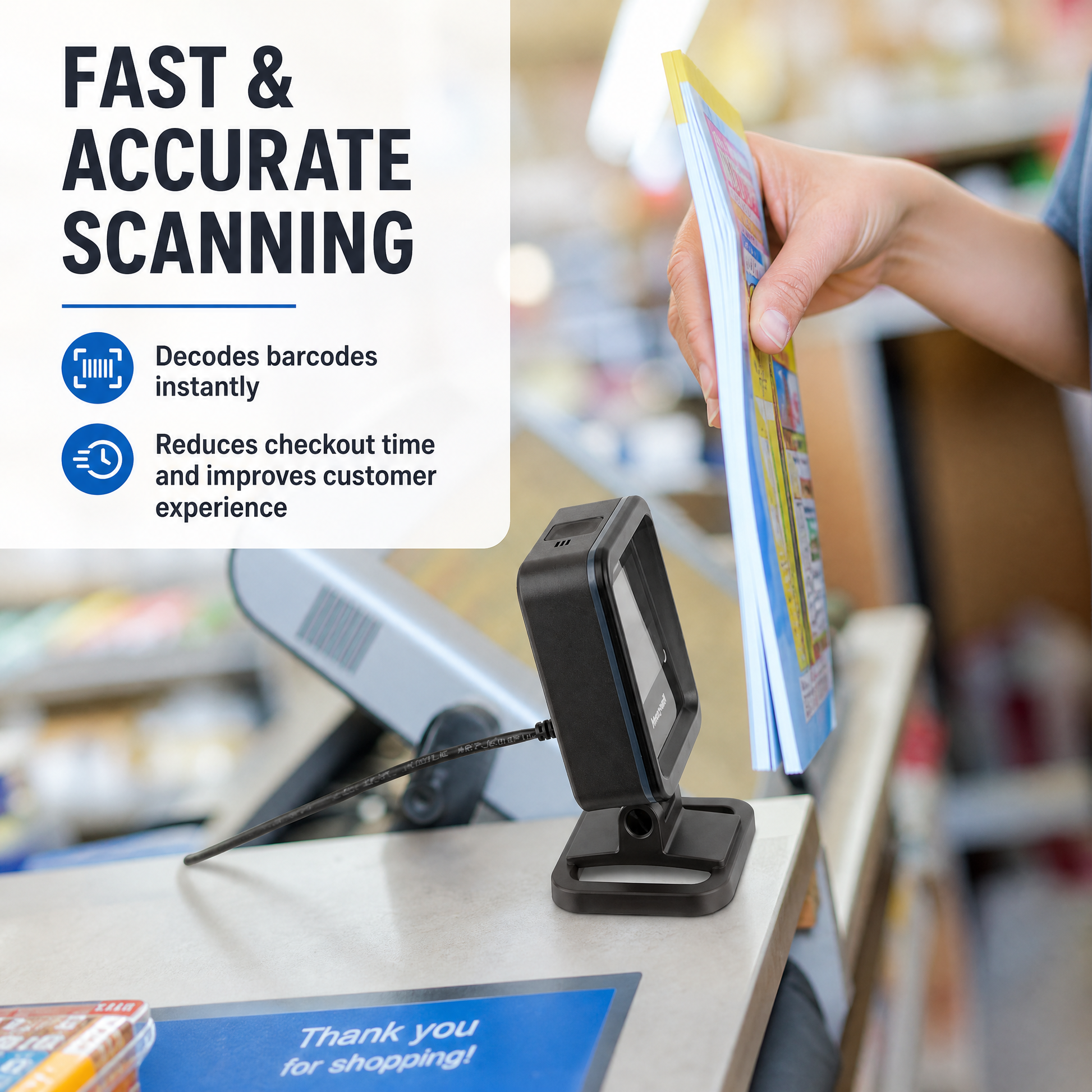

- Point-of-Sale Transactions: Single-point workflows in boutique retail, quick-service restaurants, small groceries, convenience stores, and gas stations where counter space is limited

- Self-Service Kiosk Integration: Price checking, coupon scanning, self-checkout, mobile device display reading (tickets, coupons), and mobile payment applications

- Healthcare Workflows: Patient identification, medication verification, specimen tracking, and document capture in clinics and hospitals requiring disinfectant-ready equipment

- Identity Processing: Marketing loyalty programs, identity verification, access control management, ticket processing, and membership validation

- Document Capture & Storage: Digitizing printed documents, coupons, personal checks, driver's licenses, and processing damaged package labels

Key Features

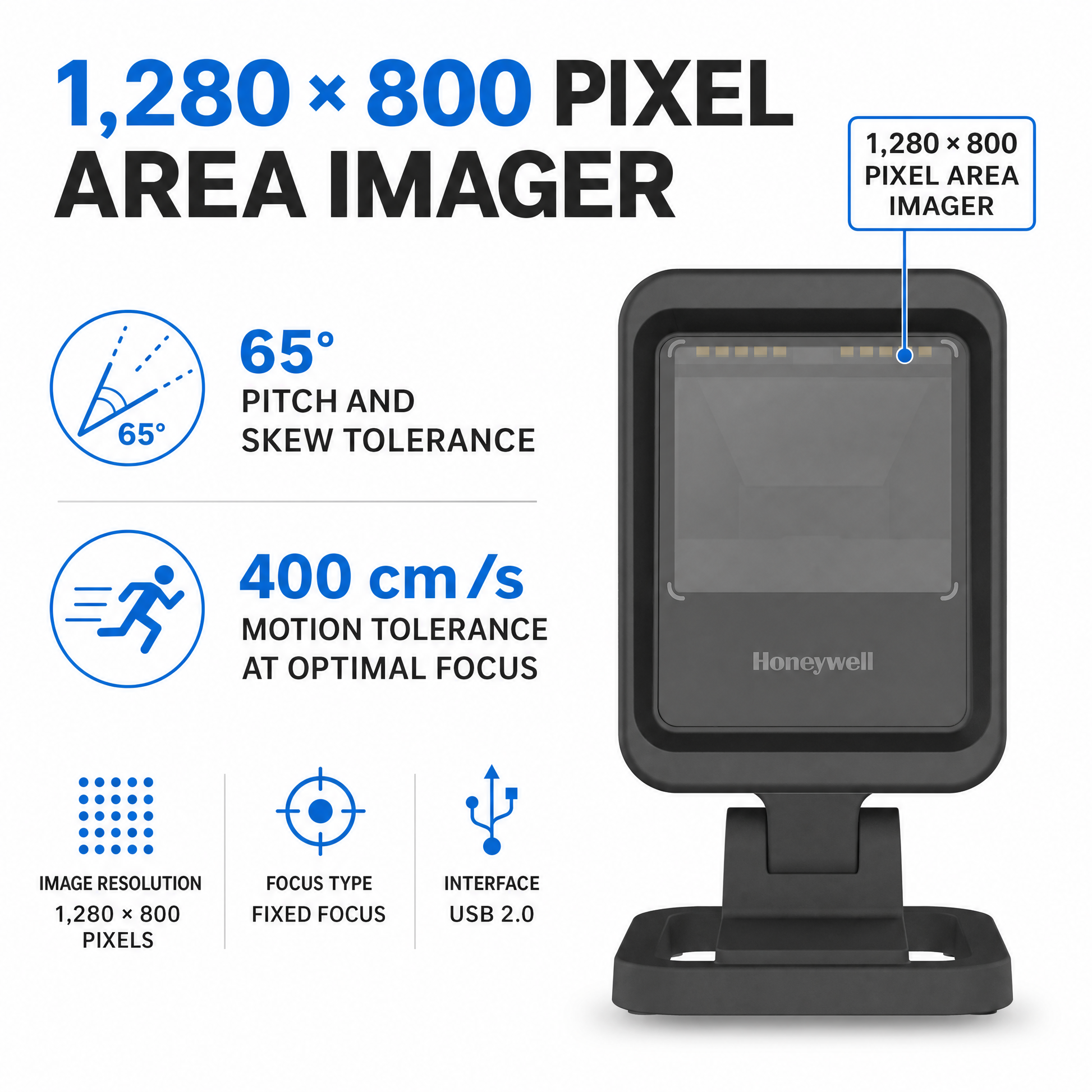

- Advanced XP Scanning Performance: 20% faster scanning speed with larger scan area and 1,280 x 800 pixel imager (1MP) reads barcodes at any distance including directly on scanner surface

- Superior Decode Capability: Captures all standard 1D, 2D, PDF, DotCode, and Digimarc symbologies plus poorly printed or damaged codes with 400 cm/s motion tolerance

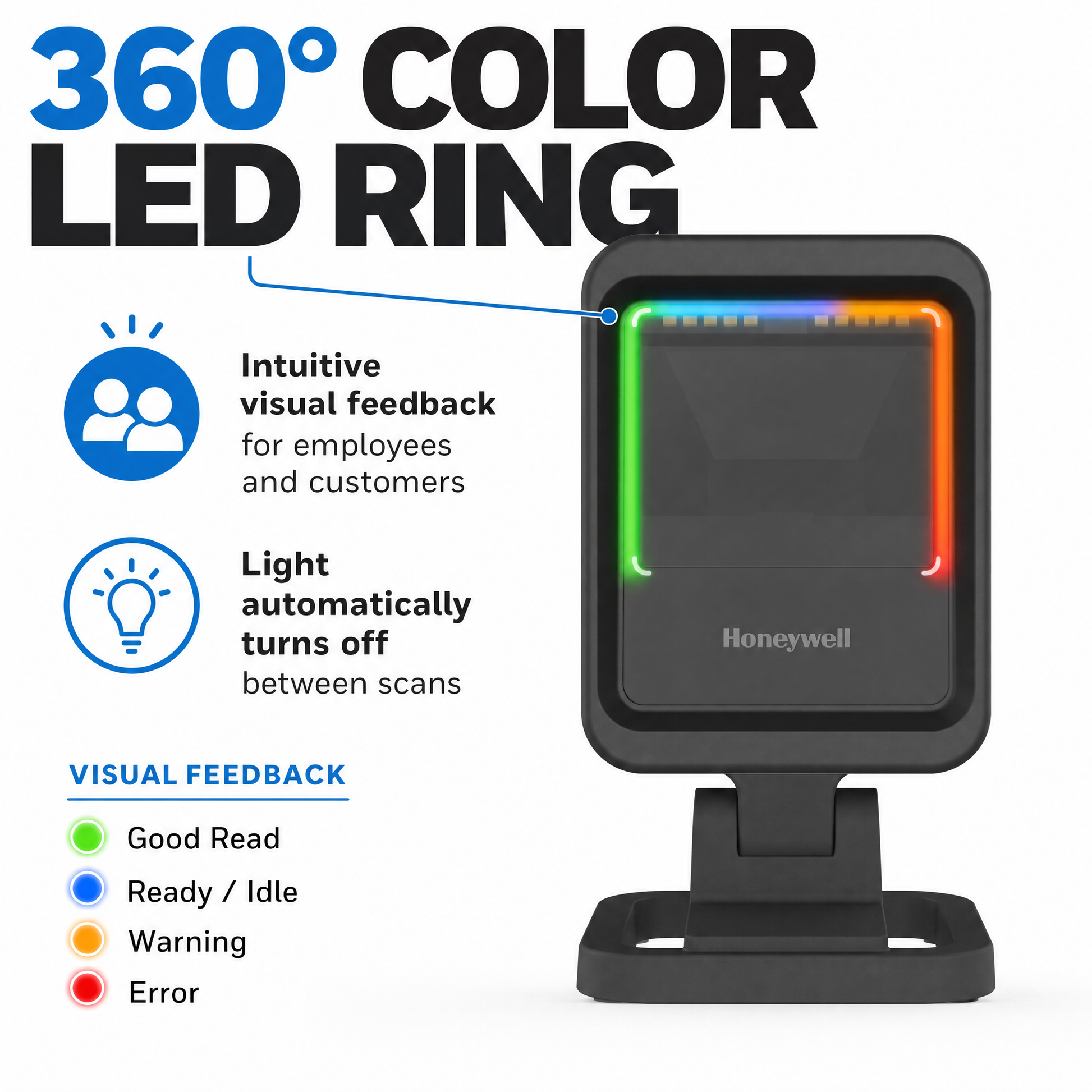

- Enhanced User Experience: 360° tri-color LED ring with warm white illumination highlights scan target area and provides clear feedback; automatic object detection fully turns off lighting between scans

- Flexible Deployment Options: Compact modular design with detachable adjustable stand, angled cable connection, and Smart Placement accessories support wall-mount, POS-mount, and downward-facing installations

- Dual-Mode Operation: Functions as hands-free presentation scanner or handheld trigger-activated scanner with top-mounted button for picking applications

- Rugged Disinfectant-Ready Design: IP52 environmental sealing with easy-to-clean housing withstands 50 drops from 1.5m and 1,000 tumbles from 0.5m for demanding environments

- Versatile Connectivity: Supports USB, RS-232, Keyboard Wedge, and IBM 46xx (RS-485) interfaces with auxiliary port connector for future expansion

- Enterprise Software Integration: Backward compatible with legacy Genesis cables, works with EZ Config, SMU, OPOS/JPOS drivers, Easy DL, and EasyParse for GS1

Quick Specs

Specification	Details
Scan Technology	Area imaging with 1,280 x 800 pixel array (1MP)
Scanning Speed	20% faster than previous models, 400 cm/s motion tolerance
Scan Angles	Horizontal: 48° / Vertical: 30°
Symbologies	All standard 1D, 2D, PDF, DotCode, and Digimarc codes
Dimensions (L x W x H)	Without stand: 80 x 40 x 105 mm (3.2 x 1.6 x 4.1 in) With stand: 80 x 40 x 145 mm (3.2 x 1.6 x 5.7 in)
Weight	340 g (12 oz)
Durability	50 drops @ 1.5m, 1,000 tumbles @ 0.5m, IP52-rated
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	0% to 95% relative humidity, non-condensing
Light Level Tolerance	100,000 Lux
Interfaces	USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485)
Power	5.0V DC, 2.5W (500mA @ 5V)
Audio Feedback	90dB buzzer @ 10 cm

Configuration Options

The Genesis XP 7680g is available in multiple configurations to suit different deployment needs:

- Scanner Module Only: Ideal for field upgrades of existing equipment, backward compatible with legacy Genesis cables, perfect for kiosk integration or use with Smart Placement accessories

- Scanner Module with Stand: Includes scanner module and rotating stand, excellent choice for countertop applications with removable stand for future placement flexibility

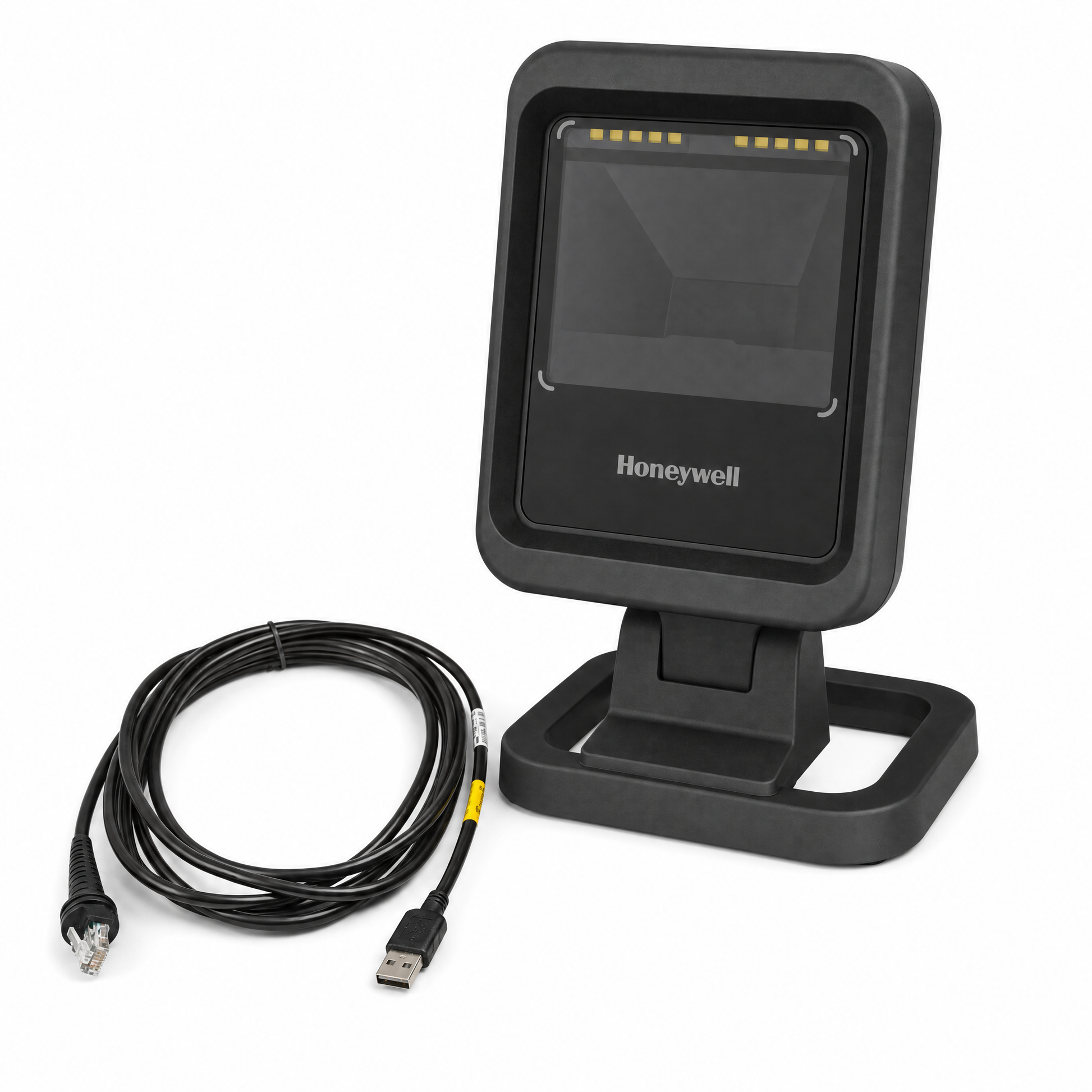

- Complete Kits: Full-function kits available with USB or RS232 cables and power supply; newly designed interface cables feature shorter strain relief for greater flexibility and improved appearance

General Specifications
Brand	Honeywell
Model No.	7680G

Q: What makes the Genesis XP 7680g faster than previous models?

A: The Genesis XP 7680g features advanced 'XP' scanning technology with a 1-megapixel imager (1,280 x 800 pixels) and fast processor that delivers 20% faster scanning speed compared to previous models. It also offers a larger scan area and handles motion tolerance up to 400 cm/s, reducing the need for repeat scans and maintaining productivity in high-volume environments.

Q: Can this scanner read barcodes from mobile phone screens?

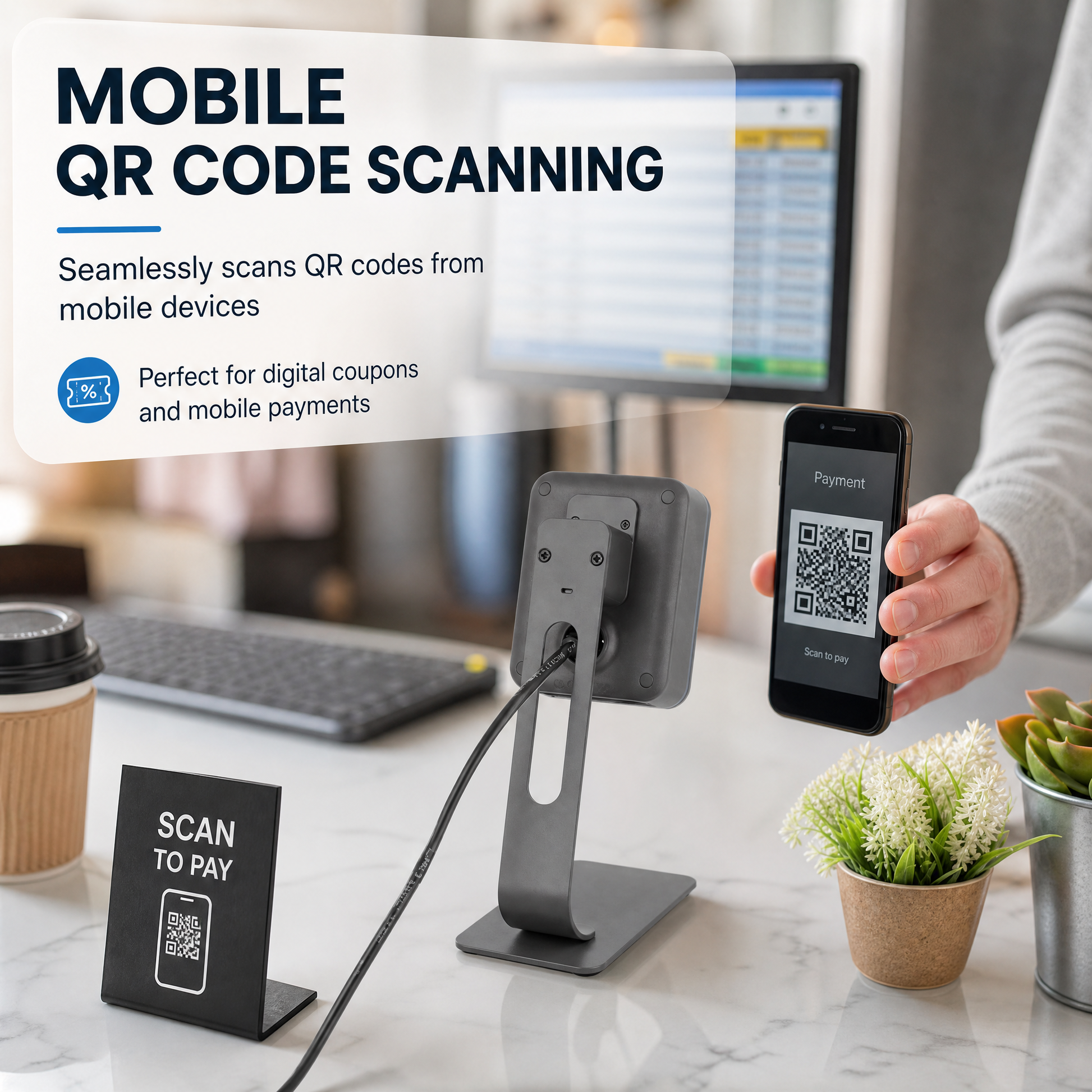

A: Yes, the Genesis XP 7680g is specifically designed to read barcodes and images from mobile device displays. It's ideal for scanning mobile tickets, coupons, loyalty cards, and mobile payment codes in self-service applications, making it perfect for modern retail and hospitality environments.

Q: Is the Genesis XP 7680g suitable for healthcare environments?

A: Absolutely. The scanner features disinfectant-ready housing with IP52 environmental sealing that can be easily cleaned with standard healthcare disinfectants. Its compact design, warm white illumination, and ability to capture patient IDs, medication labels, and documents make it ideal for clinics, hospitals, and pharmacies.

Q: What is the difference between presentation mode and handheld mode?

A: In presentation mode, the scanner operates hands-free with automatic object detection—simply present the barcode and it scans automatically. In handheld mode, you use the top-mounted button to trigger scans manually, which is ideal for picking applications like scanning items from a printed list or hard-to-reach barcodes.

Q: Will this scanner work with my existing Genesis cables?

A: Yes, the Genesis XP 7680g is backward compatible with legacy Genesis cables from previous models, making it easy to upgrade existing installations without replacing infrastructure. It also works with Honeywell's software suite including EZ Config, SMU, OPOS/JPOS drivers, Easy DL, and EasyParse for GS1.

Q: Can the scanner read damaged or poorly printed barcodes?

A: Yes, the Genesis XP 7680g uses Honeywell's field-proven XP scanning technology that easily handles poorly printed, damaged, or low-contrast barcodes. The 1-megapixel imager and advanced decoding algorithms can capture codes in any condition, reducing checkout delays and improving operational efficiency.

Q: What mounting options are available for this scanner?

A: The scanner comes with a detachable, adjustable compact stand for countertop use. Additionally, Honeywell offers Smart Placement accessories including wall mount (STND-07R07), POS mount (STND-02F07), and vertical stand (STND-18R06) to integrate the scanner into virtually any workflow or space constraint.

Q: How durable is the Genesis XP 7680g for retail environments?

A: The scanner is engineered for demanding retail environments with IP52 environmental sealing to protect against dust and moisture. It has been drop tested to withstand 50 drops from 1.5 meters and 1,000 tumbles from 0.5 meters. The rugged design is backed by a 3-year factory warranty for long-term reliability.

Q: What interface options does the scanner support?

A: The Genesis XP 7680g supports multiple host system interfaces including USB, RS-232, Keyboard Wedge, and IBM 46xx (RS-485). It also features an auxiliary port pin connector for future expansion. Complete kits are available with USB or RS232 cables and power supply included.

Q: What is included when I purchase the Genesis XP 7680g kit?

A: Complete kits include the Genesis XP 7680g scanner module, detachable stand, and either USB or RS232 interface cable with power supply. The newly designed cables feature shorter strain relief for better flexibility and improved appearance. Scanner-only and scanner-with-stand-only options are also available for different deployment needs.
