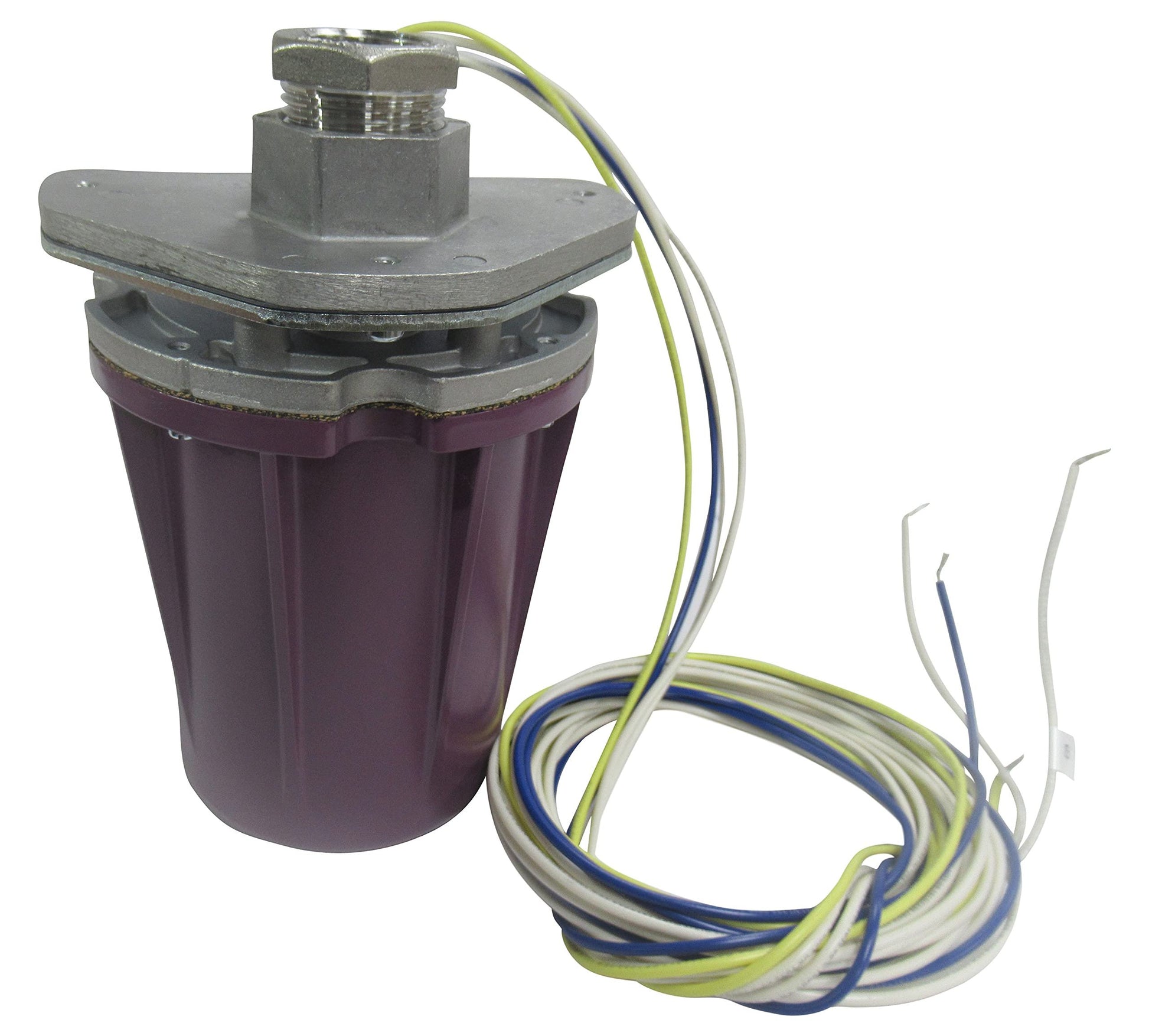

Honeywell C7061A1053 Dynamic Self-Check Ultraviolet Flame Detector | Replacement for C7061A1012

Delivery Time: 0-3 days
Product Highlights
  • C7061A1053 120Vac Flame Sensor, Ultraviolet, Purple Peeper, Self-Checking;
  • Ultraviolet Flame Detector, Dynamic Self Checking Purple Peeper, 120vac, 1 Inch Mounting, 96 Inch Color Coded Lead Wires, Nema 4 Rated, -40/175 Degree Ambient Temperature Rating, Used with R7861 Dynamic Self Check Amplifiers
  • For Use on Combustion Gas, Oil and Other Fuels
  • Overview
  • Specifications
  • FAQ
  • User Guides
  • Reviews
  • C7061A1053 120Vac Flame Sensor, Ultraviolet, Purple Peeper, Self-Checking;
  • Ultraviolet Flame Detector, Dynamic Self Checking Purple Peeper, 120vac, 1 Inch Mounting, 96 Inch Color Coded Lead Wires, Nema 4 Rated, -40/175 Degree Ambient Temperature Rating, Used with R7861 Dynamic Self Check Amplifiers
  • For Use on Combustion Gas, Oil and Other Fuels

Designed for use with Honeywell Flame Safeguard Controls using Honeywell R7861 Flame Signal Amplifiers. Circuitry tests all electronic components in flame detection system (amplifier and detector) 12 times a minute during burner operation and shuts down burner if detection system fails. 200/220/240 Vac applications require a 120 Vac, 10 VA minimum stepdown transformer (not provided) to drive the shutter. Applies to R7861A series 1 or greater Detectors can be mounted horizontally, vertically or at any angle. Ultraviolet radiation sensing tube and quartz viewing window are field replaceable.
$889.00
$889.00
$889.00
$889.00
In stock

Get same day shipping on orders placed before 3 PM EST.

Get approved for Net 30 Terms today —> Apply Now!
Quantity Discount
2+
Sign in to view volume discount
5+
Quote request for more savings

Get 5% Off your First Order

Click to get coupon

Real Support from Real People

Contact us for help

Free 30-Day Returns

Return Policy
