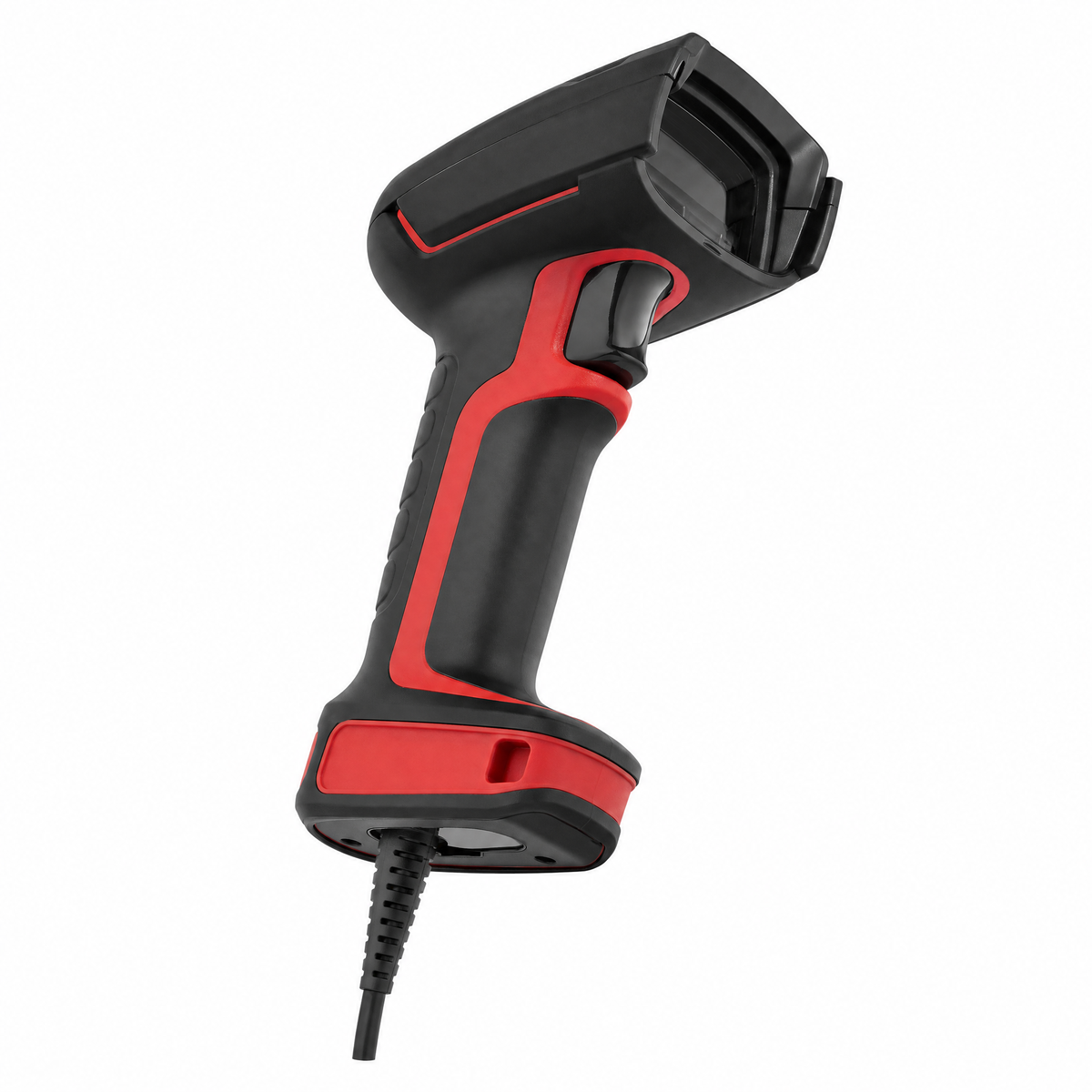

Honeywell Granit Ultra 2100i Ultra-Rugged Industrial Barcode Scanner

Name: Honeywell Granit Ultra 2100i Ultra-Rugged Industrial Barcode Scanner
Brand: Honeywell
SKU: DS-HNW-2100IHD-3N

Delivery Time: 0-3 days

Brand Honeywell

Model Number 2100i

Manufacture Warranty 2 Years

EpicRise Warranty First Year

Product Highlights

• 45% faster scanning performance than previous generation with AI-driven decoding algorithms for damaged and low-quality barcodes

• Ultra-rugged durability: 3m (10ft) drop rating, 7,500 tumbles from 1m, IP65/IP68 sealing, and -30°C to 50°C operating temperature

• Multiple range options: Standard Range for contact to arm's length, Extended Range up to 10.85m (33ft) for high-bay warehouse applications

• Multi-code reading capability with configurable data output sequencing using Honeywell Data Format Editor

• Scanner Management Utility (SMU) enables automated deployment, configuration, and firmware updates for large-scale enterprise rollouts

Overview
Specifications
FAQ
User Guides
Reviews

The Honeywell Granit Ultra 2100i represents the next generation of ultra-rugged industrial scanning, earning the 2025 Red Dot Design Award for its breakthrough combination of performance, durability, and usability. Built for the harshest environments where downtime is not an option, this wired barcode scanner delivers enterprise-grade scanning capabilities that help businesses maximize productivity while minimizing total cost of ownership.

Powered by advanced AI-driven decoding algorithms and high-speed processing, the Granit Ultra 2100i scans 45% faster than its predecessor, the Granit XP. It reads damaged, poorly printed, and low-quality barcodes that would stop other scanners, eliminating workflow interruptions in demanding warehouse, manufacturing, and logistics operations. With multiple range configurations—from standard contact scanning to extended range up to 10.85m (33ft)—the 2100i adapts to your specific operational needs.

Engineered to survive 3-meter drops, 7,500 tumbles, extreme temperatures from -30°C to 50°C, and achieving IP65/IP68 sealing, the Granit Ultra 2100i withstands the punishing conditions of freezer warehouses, loading docks, and heavy industrial facilities. Its scratch-resistant, impact-resistant scan window and robust construction ensure years of reliable service, while integrated management tools simplify deployment and maintenance across your enterprise.

Best For

The Granit Ultra 2100i is purpose-built for demanding industrial environments where scanning performance and device reliability directly impact operational efficiency:

- Warehouse & Distribution Centers: Receiving, put-away, picking, packing, shipping operations, and inventory cycle counts with fast, reliable scanning from contact to extended distances

- Manufacturing Facilities: Assembly line tracking, work-in-process scanning, quality control, parts picking, and finished goods packaging in harsh production environments

- Transportation & Logistics: Dock loading/unloading, freight sorting, package handling, and vehicle-mounted applications requiring rugged performance

- Cold Storage Operations: Freezer warehouse applications from -30°C with optional scanner heater accessory to prevent fogging and maintain scan performance

- High-Bay Warehousing: Extended range (XR) and extreme long range (XLR) models enable scanning from ground level to high storage racks up to 10 meters away

Key Features

- Ultra Scan Performance: 45% faster scanning than Granit XP with AI algorithms that decode damaged and difficult-to-read barcodes almost instantly

- Multi-Code Reading: Captures multiple barcodes in a single scan with configurable data sequencing and formatting using Honeywell Data Format Editor

- Extended Range Options: Choose SR (standard range to 1m), XR (extended range to 2.8m for 20mil codes, 10.85m/33ft for 100mil codes), XLR (up to 7.5m), or HD (high-density DPM) models

- Ultra Durability: 3m (10ft) drop specification, 7,500 1m tumbles, IP65/IP68 sealing, and -30°C to 50°C operating temperature range with scratch-resistant scan window

- Comprehensive Symbology Support: Reads 1D, 2D, postal codes, Digimarc, DotCode, and OCR including Code 128, UPC, EAN, QR, Data Matrix, PDF417, and more

- Clear User Feedback: Bright green visible aimer (525nm LED or 520nm laser depending on model), configurable beeper and vibration, and read indicator LEDs

- Easy Configuration & Deployment: Out-of-box ready for most applications with fast barcode-based configuration and Scanner Management Utility (SMU) for automated fleet management

- Flexible Connectivity: Available with USB, RS-232, or keyboard wedge interfaces with industrial-grade cable options

Quick Specs

Scanner Type	Ultra-rugged wired area imager
Scanning Performance	45% faster than Granit XP with AI-driven decoding
Scan Range (SR Model)	Contact to 1.0m (3.4ft) for 20mil Code 128; up to 634mm (24in) for UPC
Scan Range (XR Model)	Contact to 2.8m (9.2ft) for 20mil Code 128; up to 1.8m (70in) for UPC; up to 10.85m (33ft) for 100mil Code 39
Scan Range (XLR Model)	Up to 7.5m (24.6ft) for 20mil Code 128
Aimer Type	SR/HD: Green 525nm LED \| XR/XLR: Green 520nm laser
Symbologies	1D: Code 39, 128, 93, 11, UPC, EAN, Codabar, GS1 Databar, more 2D: QR, Data Matrix, PDF417, Aztec, Maxicode, DotCode, Han Xin Other: Postal codes, Digimarc, OCR
Drop Specification	3m (10ft) to concrete per MIL-STD-810G at 25°C; 2.5m (8.2ft) across full temperature range
Tumble Specification	7,500 tumbles from 1m (3ft)
Environmental Sealing	IP65 / IP68 (dust-tight and water immersion resistant)
Operating Temperature	-30°C to 50°C (-22°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	Up to 95% relative humidity, non-condensing
Dimensions (L×W×H)	194.8mm × 75.8mm × 139.5mm (7.7in × 3.0in × 5.5in)
Weight	330g (11.64 oz)
Interfaces	USB, RS-232, Keyboard Wedge
Power Requirements	4.0-5.5 VDC, 2.15W operating (430mA @ 5V), 0.875W standby (175mA @ 5V)
User Indicators	Good decode LED, configurable beeper (tone/volume), configurable vibration
Management Software	Scanner Management Utility (SMU), Data Format Editor
Warranty	3 years (batteries 1 year if applicable)
Award Recognition	2025 Red Dot Design Award winner

What's Included

Scanner Only: 1 Granit Ultra 2100i Scanner

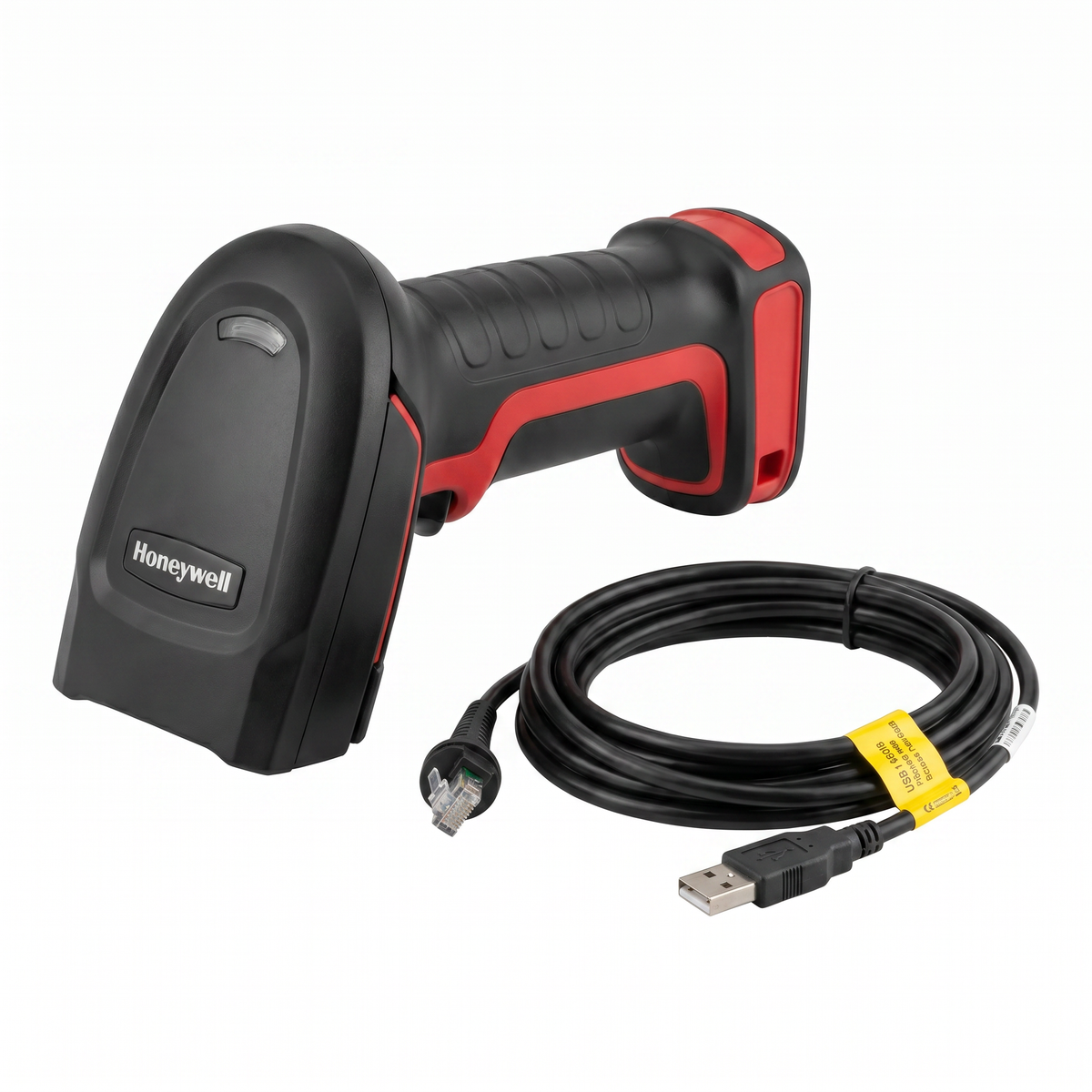

USB Kit: 1 Scanner with USB CABLE (CBL-500-300-S00)

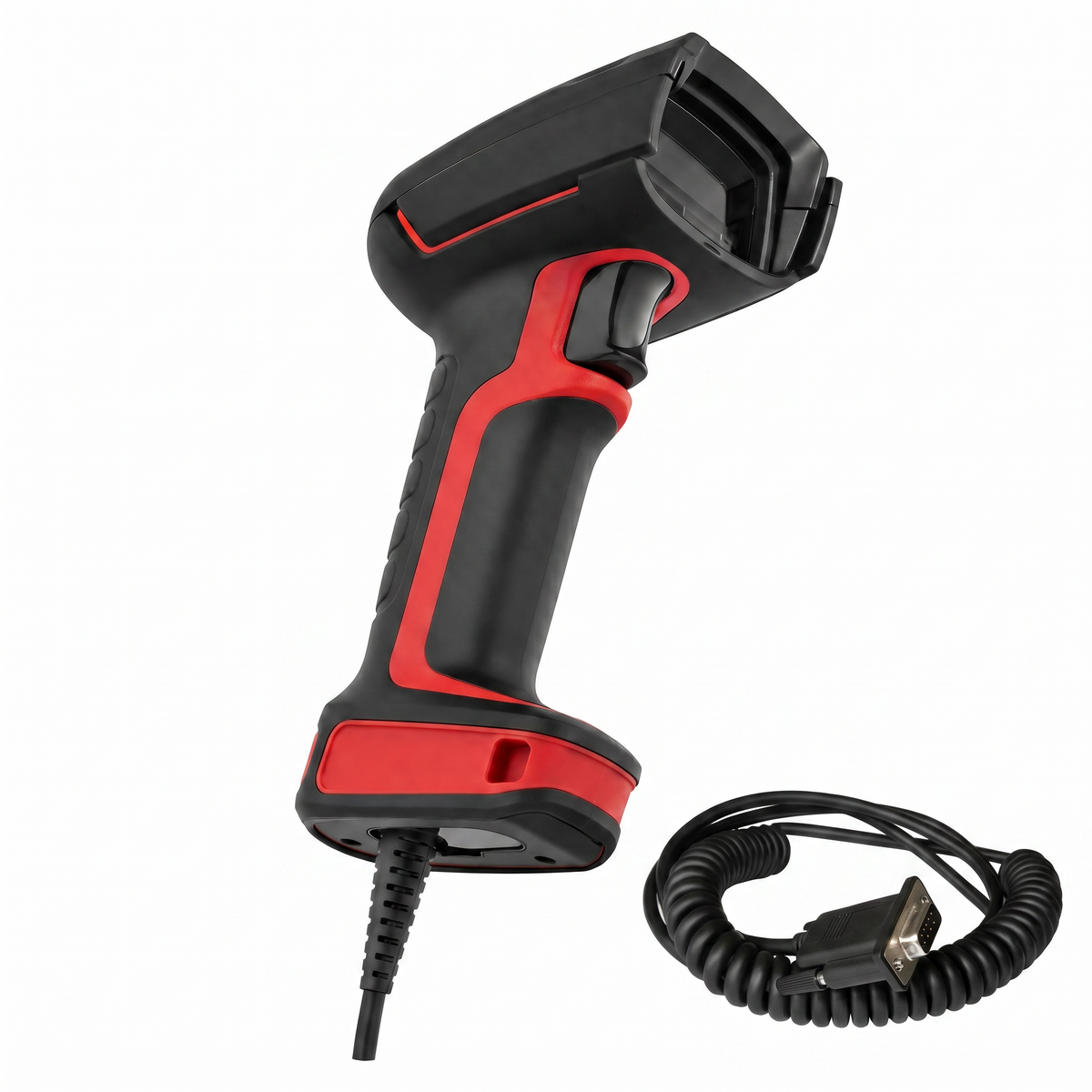

RS-232 Kit：1 Scanner with INDUSTRIAL RS232 CABLE (CBL-020-300-C00-01)

Product Details
Color	Black
Scanner Interface	USB, Serial
Barcode Supported	1D, 2D

What makes the Granit Ultra 2100i 45% faster than the previous Granit XP model?

The 2100i integrates high-speed processing, AI-driven decoding algorithms, and enhanced decoding capabilities that work together to significantly reduce scan time. These advanced algorithms can decode damaged, poorly printed, and low-quality barcodes almost instantly, minimizing wait times and eliminating re-scan attempts that slow down operations.

Which range model should I choose for my warehouse operations?

Choose based on your typical scanning distances: SR (Standard Range) is ideal for contact to arm's length scanning up to 1 meter for general warehouse picking and packing. XR (Extended Range) extends scanning up to 2.8 meters for 20mil codes and up to 10.85 meters (33 ft) for larger 100mil codes, perfect for high-bay warehouses where you need to scan items on elevated racks. XLR (Extreme Long Range) provides scanning up to 7.5 meters for specialized applications. HD (High Density) is optimized for scanning small, dense DPM codes on parts and components.

Can the Granit Ultra 2100i work in freezer warehouse environments?

Yes, the 2100i is rated for operation from -30°C to 50°C (-22°F to 122°F) and features IP68 sealing. For cold storage applications, Honeywell offers an optional scanner heater accessory that prevents fogging on the scan window, ensuring consistent performance in freezer environments. The rugged construction and wide temperature rating make it ideal for cold chain logistics and frozen food distribution facilities.

Does this scanner support RFID or NFC technology?

No, the Granit Ultra 2100i does not support UHF RFID or NFC technology. This scanner is specifically designed for barcode reading and supports comprehensive 1D and 2D barcode symbologies, postal codes, Digimarc, DotCode, and OCR. If you need RFID capabilities, please contact us to discuss alternative Honeywell models that combine barcode and RFID functionality.

What is multi-code reading and how does it work?

Multi-code reading allows the 2100i to capture multiple barcodes within its field of view in a single scan. Using Honeywell's Data Format Editor software, you can configure the scanner to organize and output the data in a predefined sequence, eliminating the need for multiple individual scans. This is particularly useful for applications like pallet receiving where you need to capture multiple item labels simultaneously, or for consolidated shipping where multiple tracking codes are present.

How do I configure and manage multiple 2100i scanners across different warehouse locations?

The Granit Ultra 2100i includes Honeywell's Scanner Management Utility (SMU), which provides centralized configuration, firmware updates, and device management capabilities. You can create configuration profiles, push them to multiple scanners simultaneously, automate firmware updates, and monitor device health across your entire scanner fleet. This significantly reduces IT workload and ensures consistent configuration across all locations.

What interface options are available and which cables do I need?

The 2100i is available with USB, RS-232, and keyboard wedge interfaces. USB kits include the CBL-500-300-S00 cable. RS232 kits include the industrial RS232 cable CBL-020-300-C00-01 that can be converted to +/-12V True RS232. You can also purchase scanner-only configurations and order interface cables separately based on your host system requirements. All cables are industrial-grade with strain relief for rugged environments.

Will this scanner read damaged or poorly printed barcodes that other scanners miss?

Yes, this is one of the key strengths of the Granit Ultra 2100i. The AI-driven decoding algorithms are specifically designed to read damaged, scratched, smudged, poorly printed, and low-quality barcodes that would typically fail with standard scanners. This capability reduces workflow interruptions and eliminates the need to manually key in data when labels are compromised, which is common in industrial environments.

What accessories are available for the Granit Ultra 2100i?

Available accessories include various USB and RS-232 cables, keyboard wedge cables, metal lanyard plate for tool balancers, O-rings for enhanced IP65/67 sealing, scanner heater for cold storage operation to prevent fogging, and extended warranty service options (1-year or 2-year extensions). Contact EpicRise Electronics for specific accessory part numbers and compatibility with your scanner configuration.

Is the Granit Ultra 2100i backward compatible with existing Granit XP mounting and accessory solutions?

While the 2100i represents a new design that earned the 2025 Red Dot Award, specific mounting and accessory compatibility with previous Granit models should be verified based on your existing infrastructure. The dimensions are 194.8mm × 75.8mm × 139.5mm with 330g weight. Contact EpicRise Electronics with your specific accessory or mounting requirements, and we can confirm compatibility or recommend updated solutions for your deployment.
