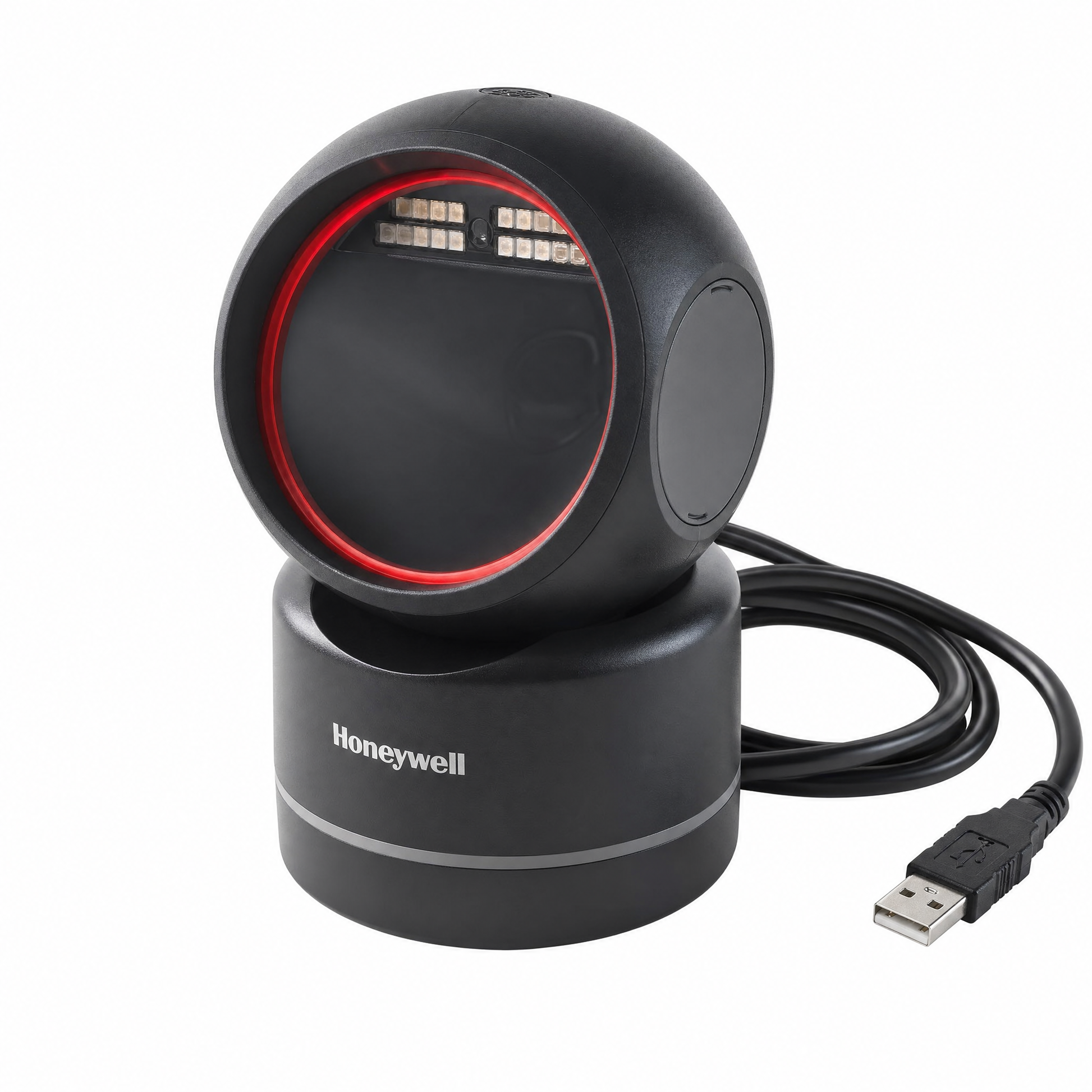

Honeywell HF680 Orbit 2D Hands-Free Presentation Scanner for Retail POS

Delivery Time: 0-3 days

Brand Honeywell

Model Number HF680

UPC

Manufacture Warranty 2 Years

EpicRise Warranty 1 Year

Product Highlights

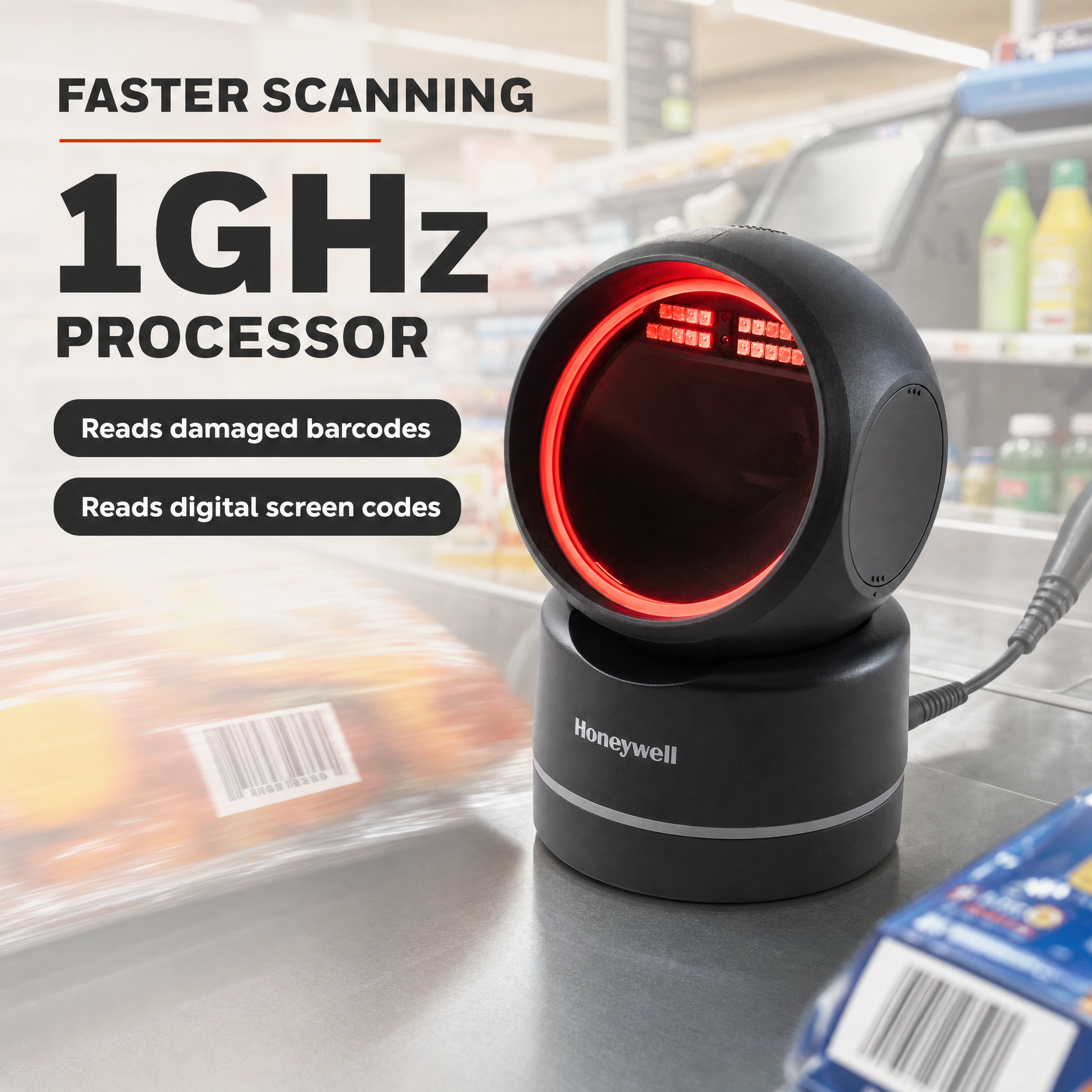

• Fast 2D area imaging with 1GHz processor scans traditional, digital, and damaged barcodes to minimize checkout delays

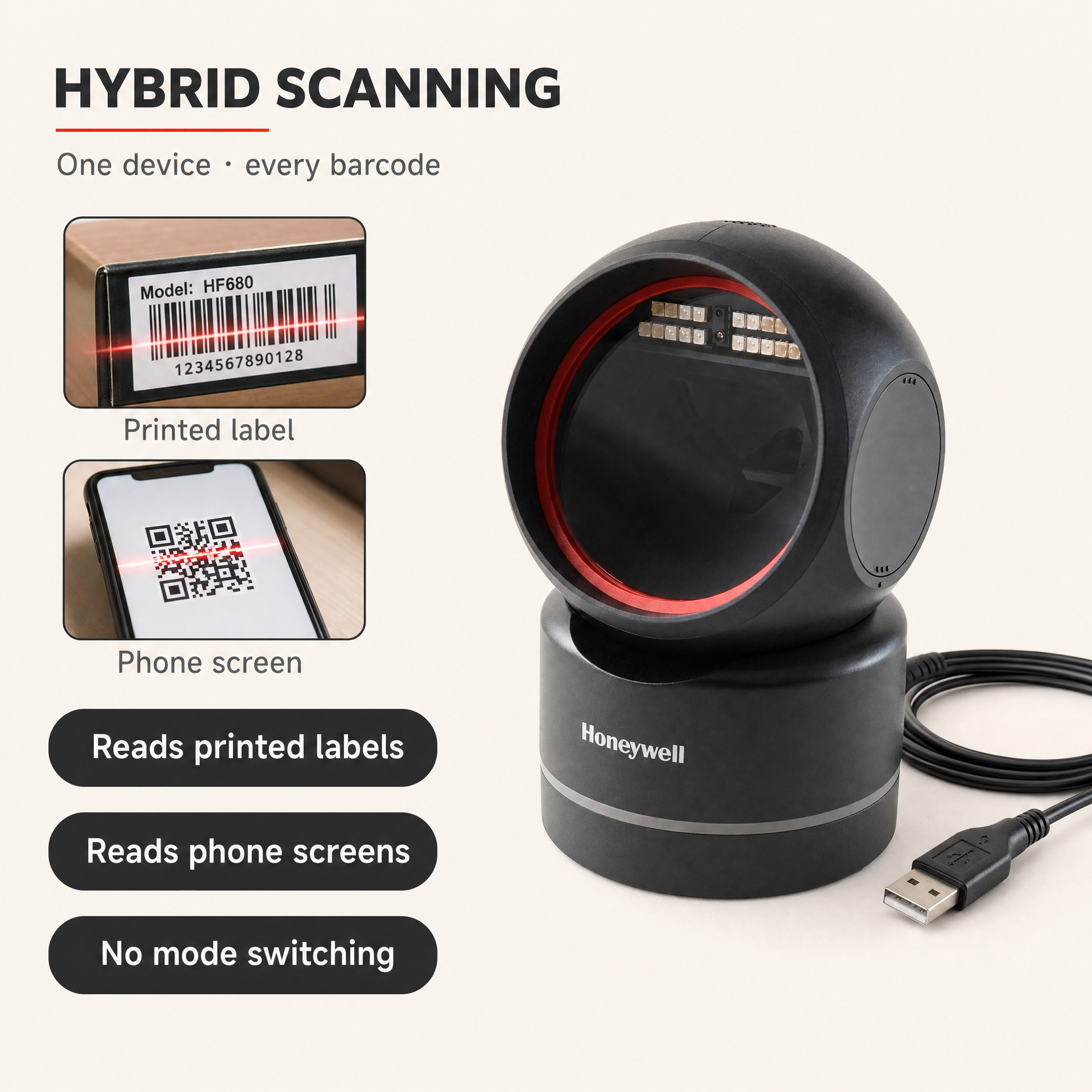

• Hybrid imaging technology works with LCD/OLED smartphone screens and paper barcodes without mode switching

• Reads 3-mil codes, water-covered, curved, damaged, and high-density QR codes for maximum versatility

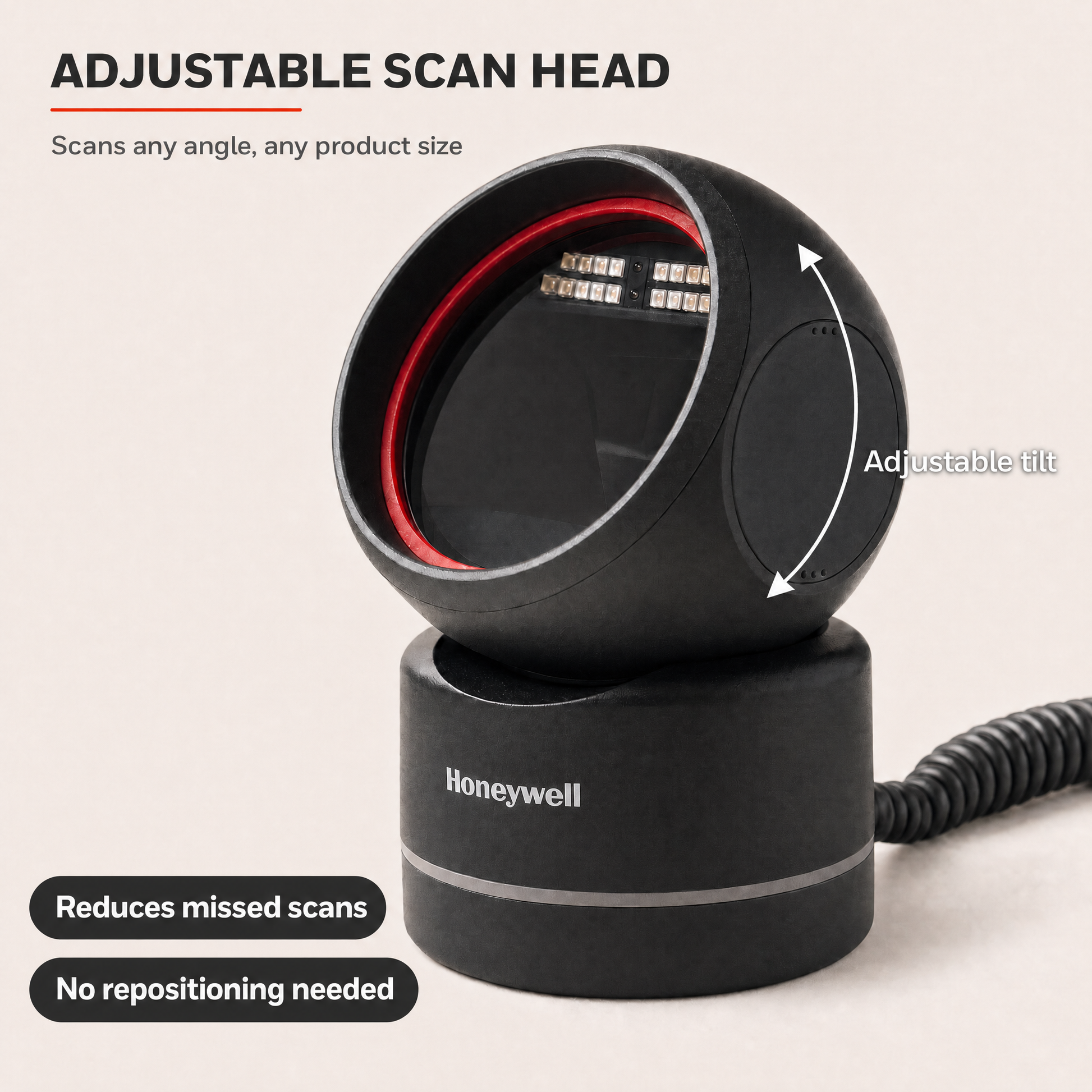

• Tilting scan head and ergonomic design allow comfortable scanning of large or bulky items in hands-free or handheld mode

• 40,000+ hour lifespan with 3-year warranty ensures long-term reliability for high-volume retail environments

Overview
Specifications
FAQ
User Guides
Reviews

Narrative Description

The Honeywell Orbit HF680 is a 2D hands-free presentation scanner that delivers the perfect combination of affordability, performance, and modern design for retail point-of-sale environments. Equipped with a megapixel sensor and 1GHz processor, this area-imaging scanner provides lightning-fast scanning of all standard 1D, PDF417, and 2D barcode symbologies—including digital coupons on smartphone screens and damaged or poorly printed codes that traditionally slow down checkout lines.

With Honeywell's revolutionary hybrid imaging technology, the HF680 seamlessly reads barcodes from both LCD and OLED smartphone screens as well as paper labels without requiring operators to switch scanning modes. The scanner's unique ergonomic shape allows the scan head to tilt up or down, enabling operators to comfortably scan large, bulky items either hands-free or by picking up the scanner. Discreet, recessed LED illumination lights up barcodes without disturbing customers, automatically turning off when not in use.

Designed for durability and ease of deployment, the HF680 delivers over 40,000 hours of operation (3+ years) in simulated user environments and comes backed by a three-year warranty. Quick configuration through Honeywell's EZConfig utility and OPOS/JPOS driver support ensure seamless integration with existing POS systems, making it an ideal choice for retailers seeking enterprise-grade performance without compromising their budget.

Best For

The Honeywell HF680 is designed for high-performance barcode scanning across retail, healthcare, and light industrial environments where speed, versatility, and reliability are essential:

- Retail Point-of-Sale: Grocery stores, convenience stores, specialty retail, and pharmacy counters requiring fast checkout with support for loyalty cards, digital coupons, and traditional product barcodes

- Healthcare Settings: Hospital pharmacies, patient registration desks, and clinical supply rooms needing reliable scanning of medication labels, patient wristbands, and specimen containers

- Hospitality & Ticketing: Box offices, event venues, and hospitality check-in counters scanning mobile tickets and printed confirmations from various devices

- Light Manufacturing & Warehouse: Receiving stations, quality control checkpoints, and parts inventory applications requiring scanning of labels on varied surfaces and conditions

Key Features

- Ultra-Fast 2D Scanning: 1GHz processor and megapixel sensor deliver rapid decoding of 1D, 2D, and PDF417 barcodes to accelerate customer throughput

- Hybrid Imaging Technology: Seamlessly scans LCD screens (10-100% brightness), OLED screens, and paper barcodes with 20%+ contrast without mode switching

- Advanced Decode Capabilities: Reads 3-mil codes, water-covered barcodes, curved labels, damaged codes with complete information, lengthy codes, high-density QR codes, and inverted barcodes

- Flexible Scanning Modes: Functions as hands-free presentation scanner or handheld device; tilting scan head adjusts for items of various sizes and shapes

- Customer-Friendly Operation: Discreet recessed LED illumination lights barcodes without glare; automatically powers down when inactive

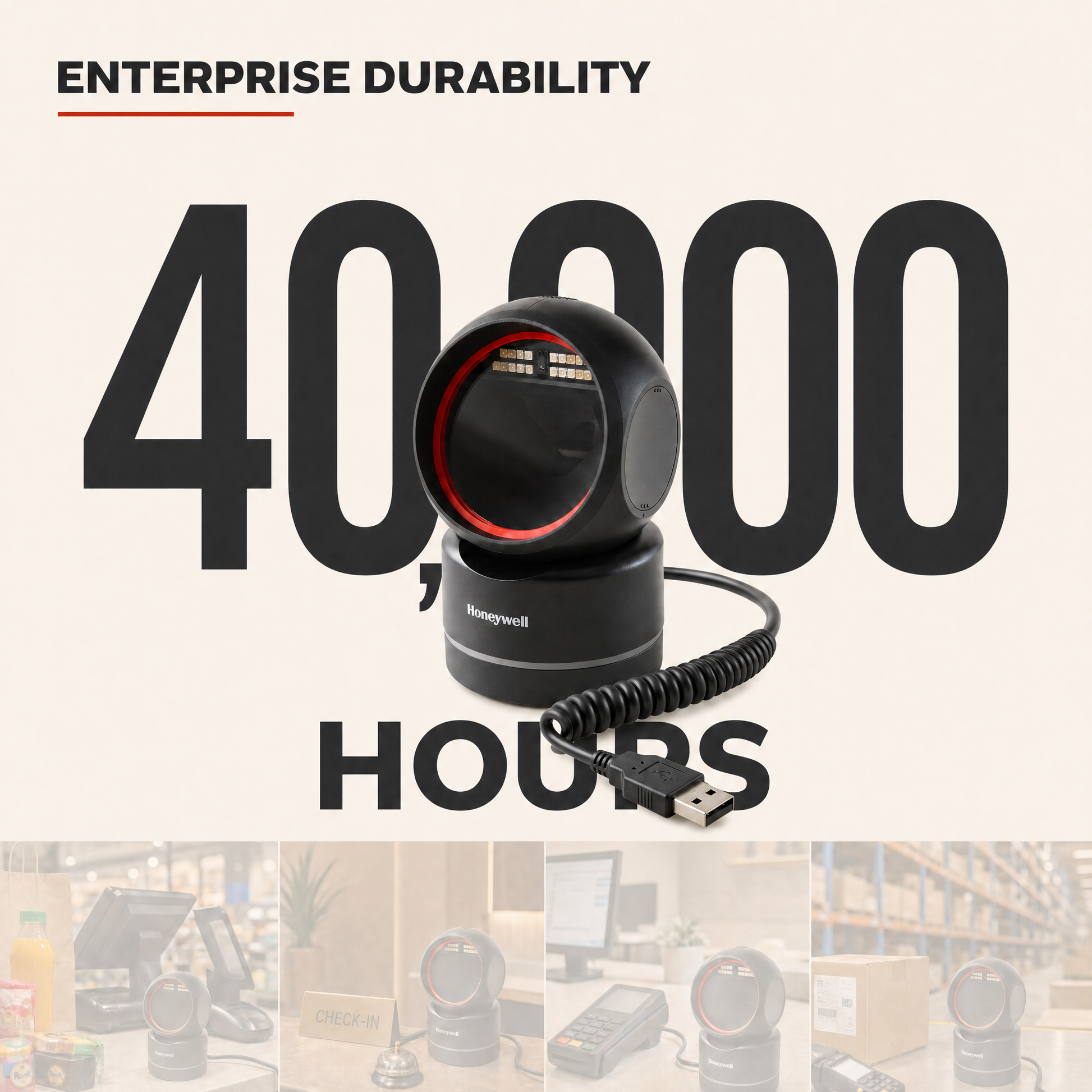

- Proven Durability: Ruggedized design tested to exceed 40,000 operating hours (3+ years) in simulated user environments

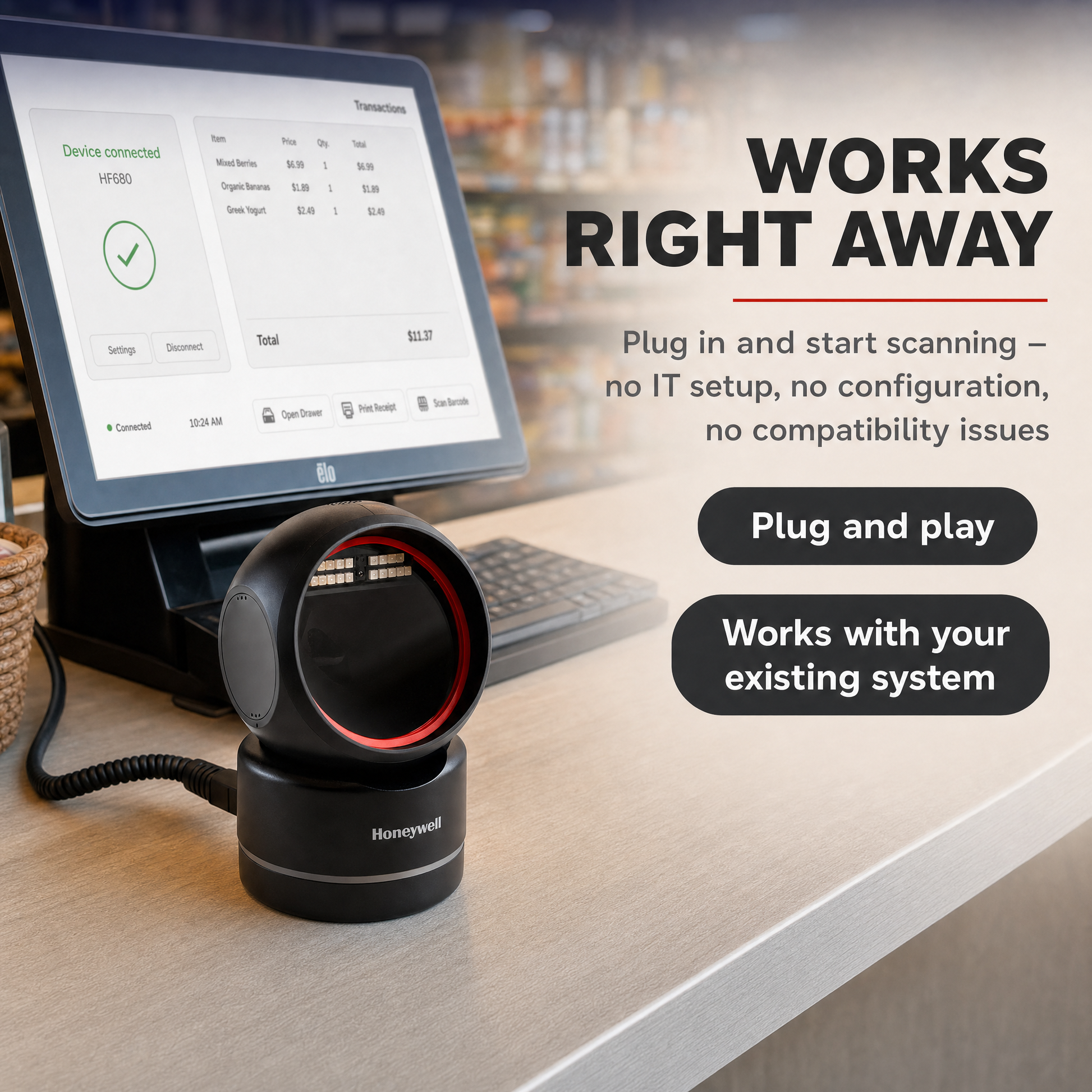

- Simplified Integration: EZConfig utility enables rapid configuration; OPOS/JPOS drivers ensure compatibility with major POS platforms

- Multiple Interface Options: Available with USB or RS-232 connectivity for plug-and-play integration with existing systems

Quick Specs

Specification	Details
Scan Technology	2D Area Imaging

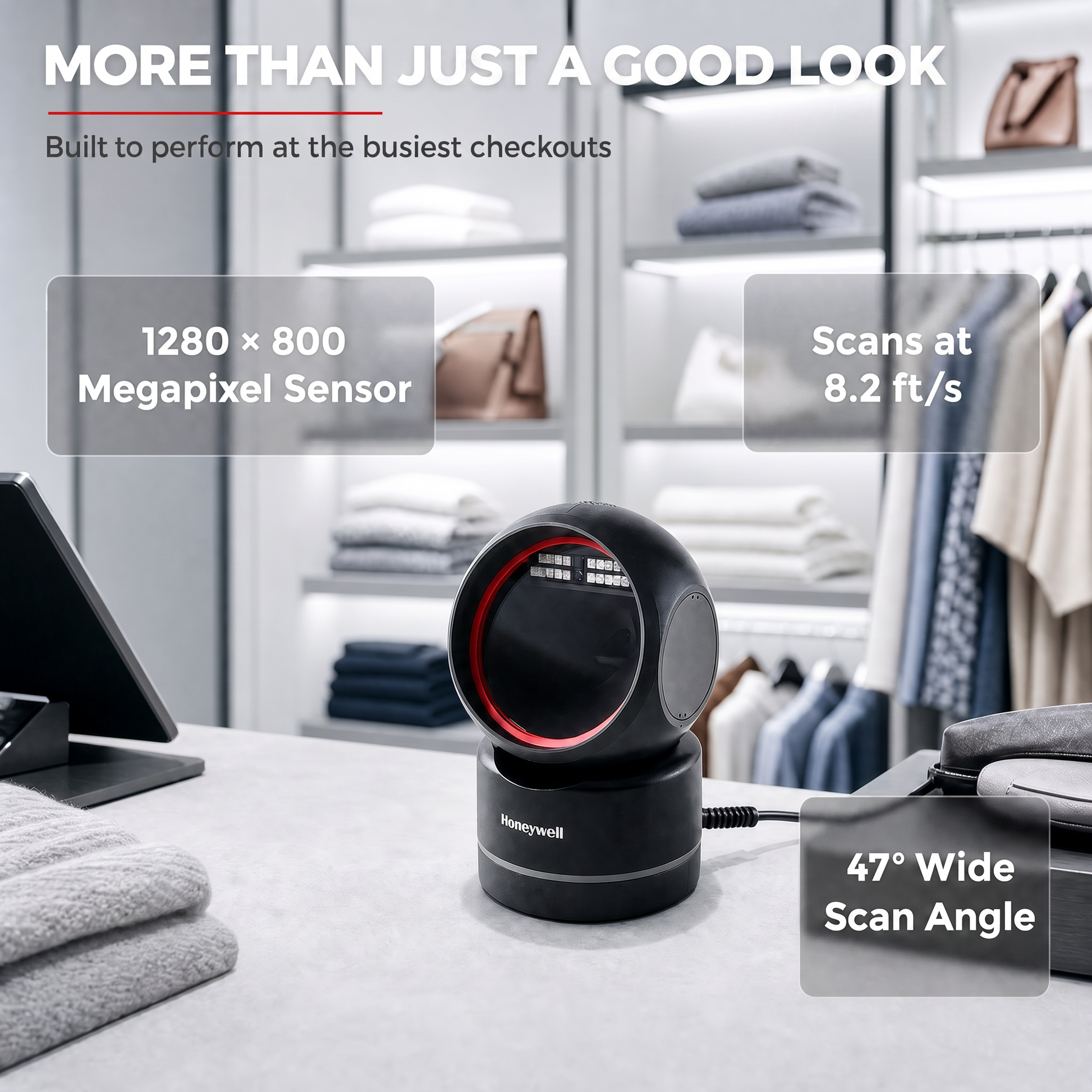

Sensor	Megapixel sensor, 1280 × 800 pixels
Processor	1GHz
Barcode Symbologies	All standard 1D, 2D, and PDF417 codes
Minimum Resolution	3-mil barcodes
Screen Compatibility	LCD (10-100% brightness), OLED; paper with 20%+ contrast
Special Decode	Water-covered, curved, damaged, high-density QR, inverted codes
Operating Mode	Hands-free presentation or handheld with tilting scan head
Interfaces	USB PC Keyboard, RS-232 Serial
Configuration Software	EZConfig utility; OPOS/JPOS drivers
OCR Support	Models with -R designation (Adaptus Gen. 7 platform)
Power Supply	5.2VDC @ 1.0A; Level VI wall adapter (90-255VAC @ 50-60Hz)
Dimensions (L × W × H)	85 mm × 88 mm × 139 mm
Weight	278g ±10g
Color Options	Black, White
Durability Rating	40,000+ operating hours (3+ years simulated use)

What's Included

- HF680 Orbit Scanner (Black

- USB Host Cable (1.5M) or RS-232 Host Cable (1.5M or 2.7M, depending on model)

- Power Adapter (Level VI 5.2V 1A wall adapter with regional plug, RS-232 models only)

- Quick Start Guide

- Documentation and warranty information

Product Details
Color	Black
Scanner Interface	USB, RS-232
Barcode Supported	1D, 2D
Power Source	USB

Can the HF680 scan both 1D and 2D barcodes?

Yes, the Honeywell Orbit HF680 is a 2D area-imaging scanner that reads all standard 1D linear barcodes, 2D matrix and stacked codes, and PDF417 symbologies. This makes it versatile for retail, healthcare, and other applications requiring multi-format barcode support.

Does the HF680 work with digital coupons and mobile loyalty cards on smartphones?

Yes, the HF680 features hybrid imaging technology that seamlessly scans barcodes displayed on mainstream LCD screens (10-100% brightness) and OLED screens without requiring mode switching. This makes it ideal for reading digital coupons, mobile tickets, and loyalty program barcodes from customer smartphones.

Can the HF680 read damaged or poorly printed barcodes?

Yes, the HF680 has advanced decode capabilities and can successfully read 3-mil codes, water-covered barcodes, curved labels, damaged codes (as long as complete information is present), high-density QR codes, and inverted (reverse color) barcodes. This minimizes checkout delays caused by difficult-to-read labels.

Can I use the HF680 as both a hands-free and handheld scanner?

Yes, the HF680 is designed primarily as a presentation scanner for hands-free operation, but its unique ergonomic shape allows operators to comfortably pick it up and use it handheld for scanning large or bulky items. The scan head can tilt up or down for easier scanning of products of various sizes.

What interface options are available for the HF680?

The HF680 is available with USB PC Keyboard interface or RS-232 serial interface, providing plug-and-play connectivity with most POS systems. The scanner supports OPOS/JPOS drivers for simplified installation and broad compatibility with retail and enterprise systems.

How do I configure the HF680 for automatic continuous scanning without pressing a button?

You can configure the HF680 for Sequential Presentation Mode using Honeywell's EZConfig configuration utility. In this mode, the scanner continuously scans and decodes barcode symbols automatically using its IR sensor without requiring manual trigger activation for each scan.

Do all HF680 models support OCR (Optical Character Recognition)?

No, only HF680 models with the -R designation in the SKU/part number (such as HF680-R0-2USB) run the Adaptus Gen. 7 platform and support OCR decoding. Standard models (such as HF680-1-2USB) use the Metrologic Swiftdecoder platform and do not support OCR.

What is the expected lifespan of the HF680 in a retail environment?

The HF680 is built for durability, with all critical components designed and rigorously tested to deliver over 40,000 operating hours—equivalent to more than three years of continuous use in simulated retail environments. The scanner is backed by a three-year manufacturer warranty.

Does the HF680's LED illumination disturb customers during checkout?

No, the HF680 features discreet, recessed LED illumination within the scan window that lights up barcodes without creating glare or discomfort for customers. The illumination automatically turns off when the scanner is not in use, creating a more pleasant checkout experience.

What power supply does the HF680 require?

The HF680 operates on 5.2VDC at 1.0A. RS-232 models include a Level VI 5.2V 1A wall power adapter with regional plugs (US/UK/EU) that accepts 90-255VAC at 50-60Hz. USB models are typically powered directly through the USB connection and may not require a separate power supply, depending on your system configuration.
