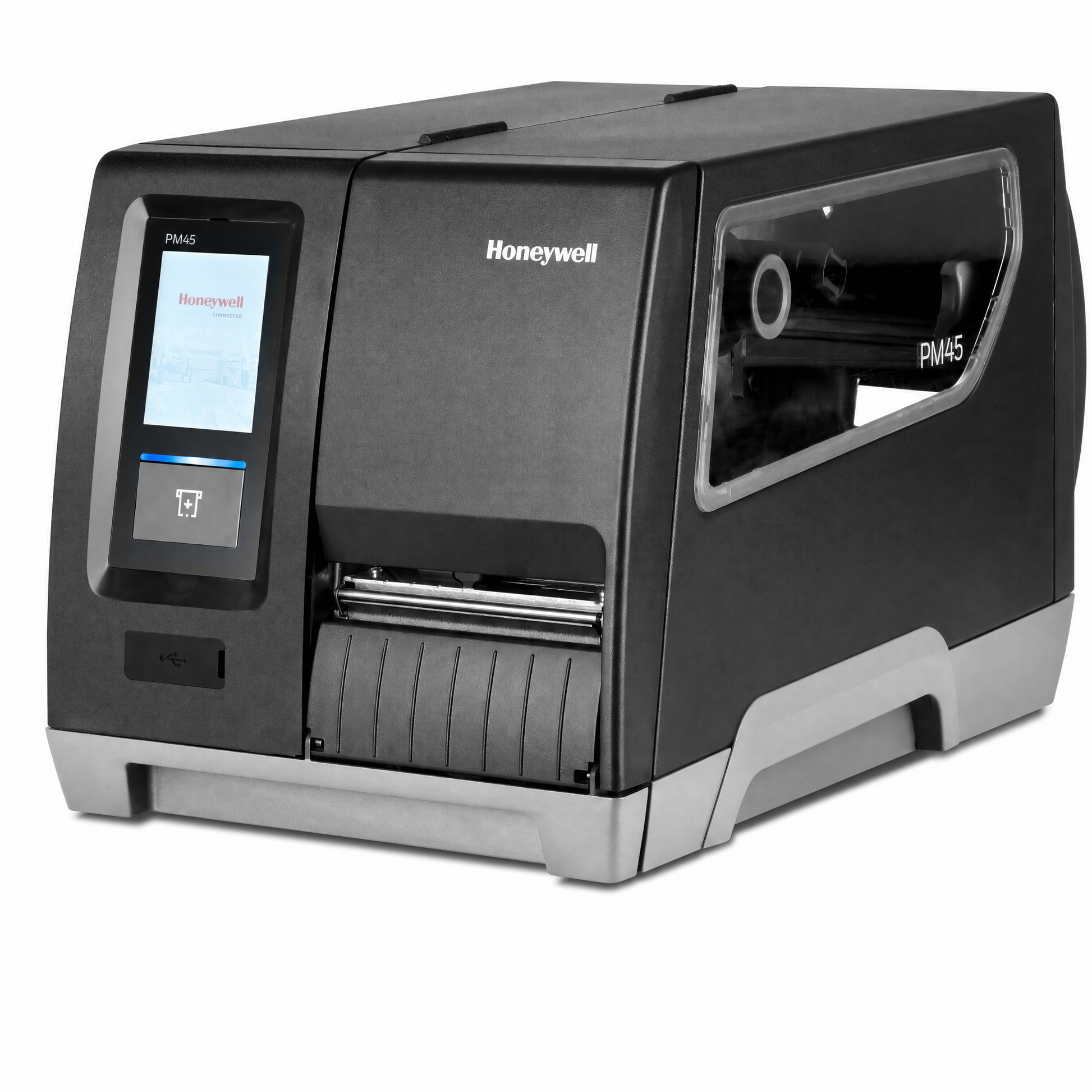

Honeywell PM45 Industrial Thermal Label Printer, 203/300/400/600 DPI, Ethernet Connectivity with Wireless Option

Name: Honeywell PM45 Industrial Thermal Label Printer, 203/300/400/600 DPI, Ethernet Connectivity with Wireless Option
Brand: Honeywell
SKU: DS-HNW-PM45A00000000201
Price: 1440.37 USD
Availability: InStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

• High-speed printing up to 14 inches per second with ±0.5 mm accuracy ensures reliable barcode and label quality for critical operations

• Industry-first WWAN connectivity enables M2M and IoT applications, supporting RFID, parallel, and industrial interfaces for scalable deployment

• Track-and-trace functionality improves supply chain transparency and printing efficiency across food, pharmaceutical, and manufacturing sectors

• Up to 600 dpi resolution delivers ultra-fine barcodes, text, and graphics for small labels on electronics and medical devices

• Smart Parse software tool allows quick label format changes without backend system modifications or programming skills required

• Rugged all-metal construction with tool-free printhead replacement ensures reliability in demanding industrial environments

Overview
Specifications
FAQ
User Guides
Reviews

Narrative Description

The Honeywell PM45 Industrial Printer is engineered to meet the evolving demands of modern production flexibility, inventory turnover, and cost control. Combining the proven capabilities of the PM43 and I-Class printer platforms, the PM45 delivers enhanced printing performance with track-and-trace functionality that increases operational efficiency and supply chain visibility. Built on Honeywell's advanced printing platform, this industrial-grade printer supports intelligent manufacturing initiatives by enabling higher levels of automation and smart operations across manufacturing and supply chain environments.

Designed for harsh industrial conditions, the PM45 features a robust all-metal mechanical construction that ensures long-term reliability. With printing speeds up to 14 inches per second and resolution options up to 600 dpi, it produces high-quality labels, barcodes, and graphics with exceptional precision. The PM45 is the first industrial printer equipped with WWAN connectivity, making it ideal for distributed operations requiring cellular network communication. Advanced security management through Honeywell's cybersecurity platform and optional Operational Intelligence tools provide IT decision-makers with predictive analytics and remote management capabilities throughout the printer's lifecycle.

The PM45 supports multiple printing languages and network protocols, enabling seamless integration with existing enterprise systems including SAP AII and Oracle WMS. Smart printing functionality allows standalone operation without host connectivity, while the embedded Smart Parse software tool simplifies label format modifications without requiring programming expertise or backend system changes. Available in both standard and compact configurations, the PM45 series offers scalable, upgradeable solutions that minimize future business constraints.

Best For

The PM45 industrial printer is optimized for enterprise operations requiring high-quality labeling, supply chain traceability, and reliable performance in demanding environments across multiple industries:

- Food and Beverage Manufacturing: Track-and-trace compliant labeling for product identification, expiration dating, and regulatory compliance requirements with high-speed throughput

- Pharmaceutical and Healthcare: Ultra-fine printing up to 600 dpi for small medication labels, medical device identification, and serialization tracking throughout distribution

- Manufacturing and Assembly: Intelligent label solutions for work-in-process tracking, component identification, and automated production line integration with M2M connectivity

- Warehouse and Distribution Centers: High-volume shipping label production, inventory management, and logistics tracking with WWAN-enabled remote operations

- Transportation and Logistics: Durable label printing for package tracking, routing, and supply chain visibility across multi-site network configurations

Key Features

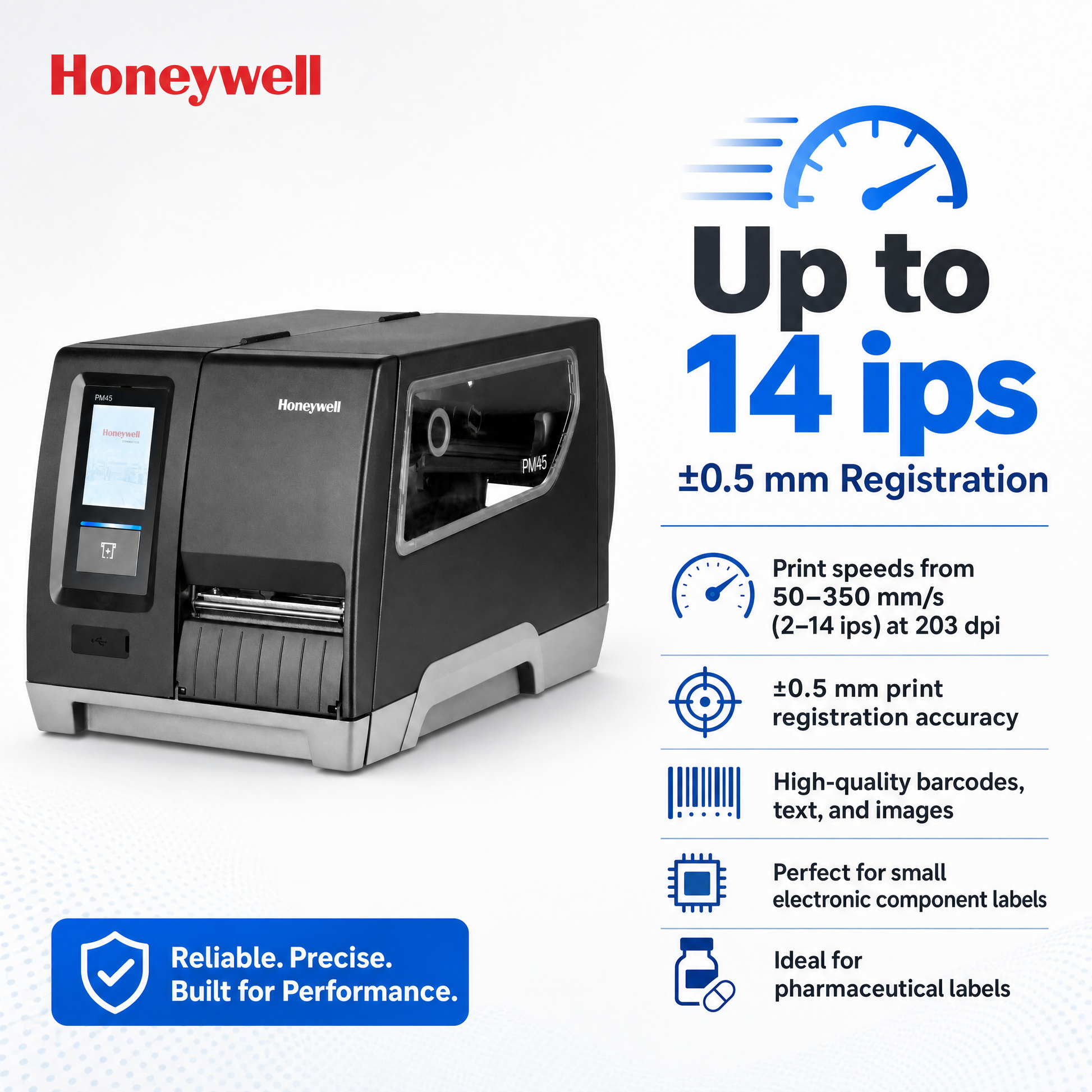

- High-Performance Printing: Speeds up to 14 inches per second with ±0.5 mm accuracy deliver consistent, high-quality output for demanding production environments

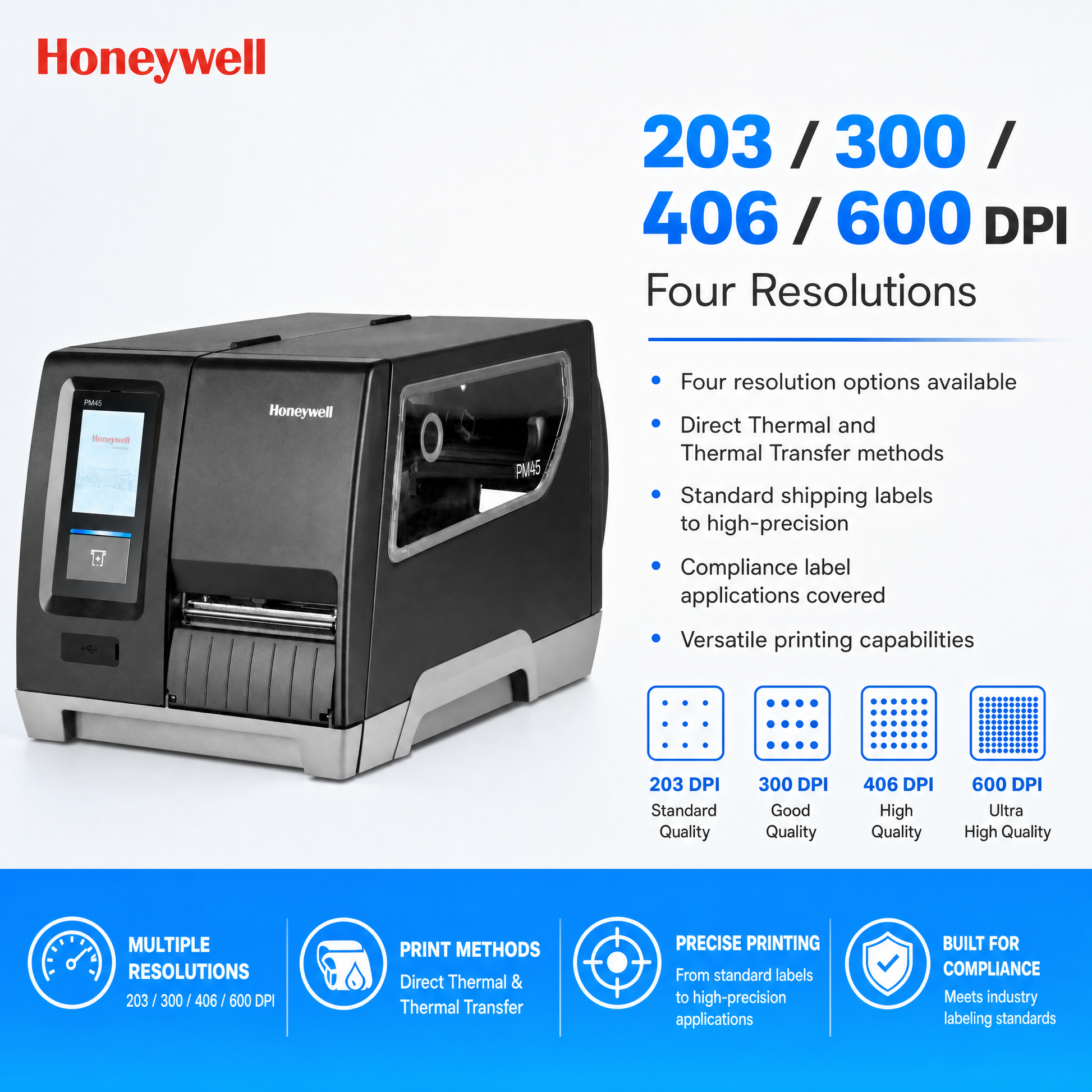

- Advanced Resolution Options: Four resolution choices (203, 300, 406, and 600 dpi) support applications from standard shipping labels to ultra-fine medical device marking

- Industry-First WWAN Connectivity: Cellular network capability enables remote deployment and M2M/IoT applications without traditional network infrastructure requirements

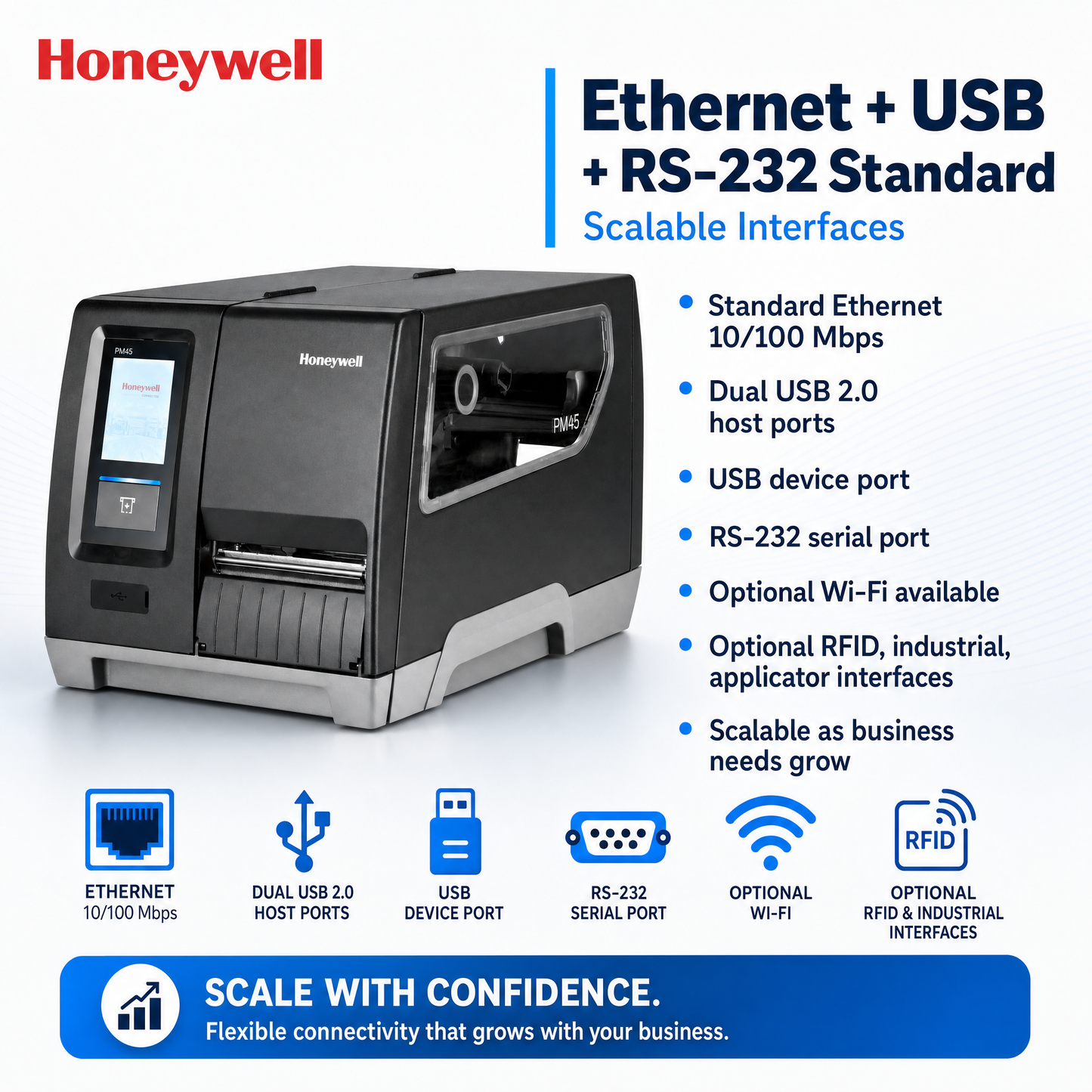

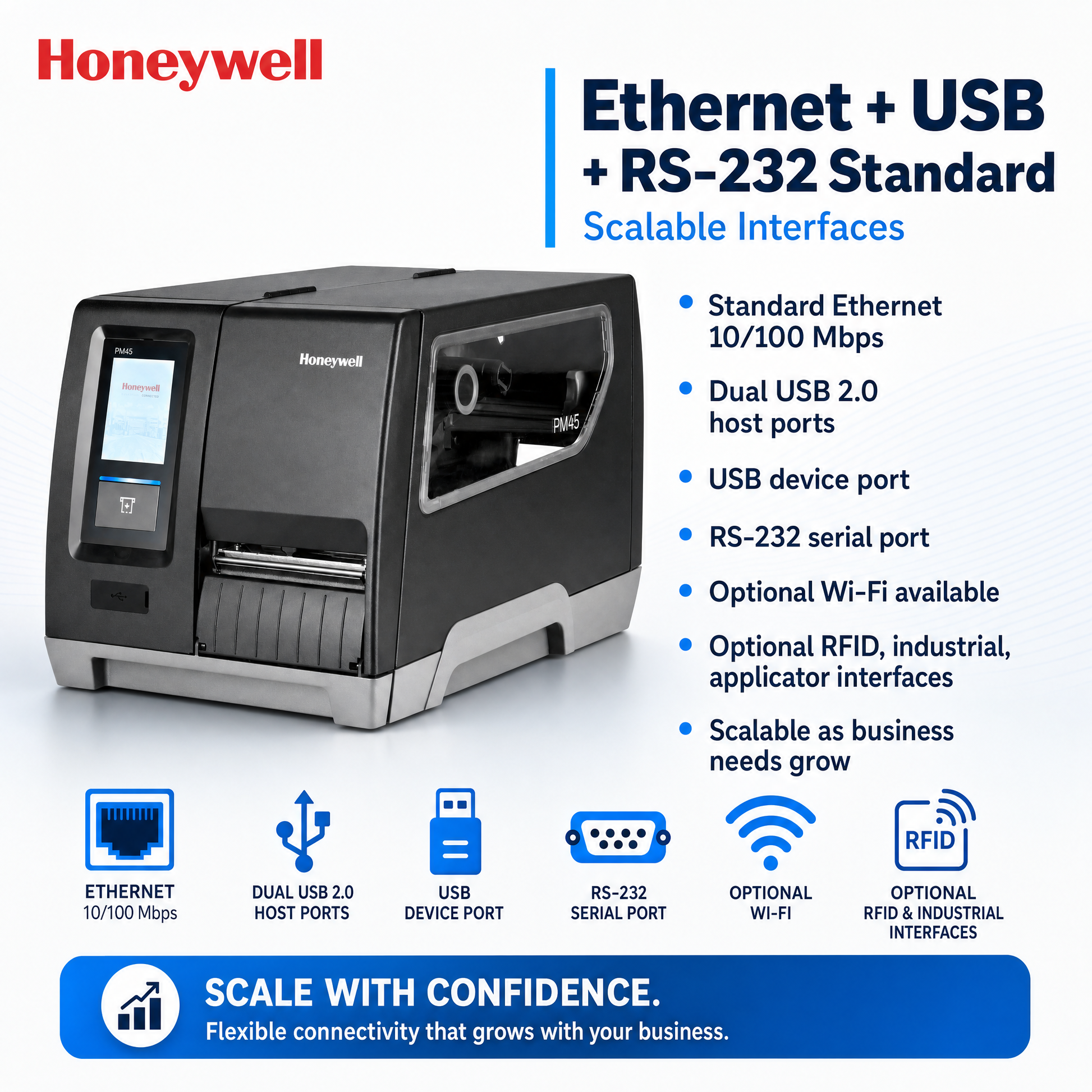

- Comprehensive Interface Support: Standard Ethernet, USB 2.0, and RS-232, plus optional WLAN, parallel, RFID, industrial I/O, and applicator interfaces for flexible integration

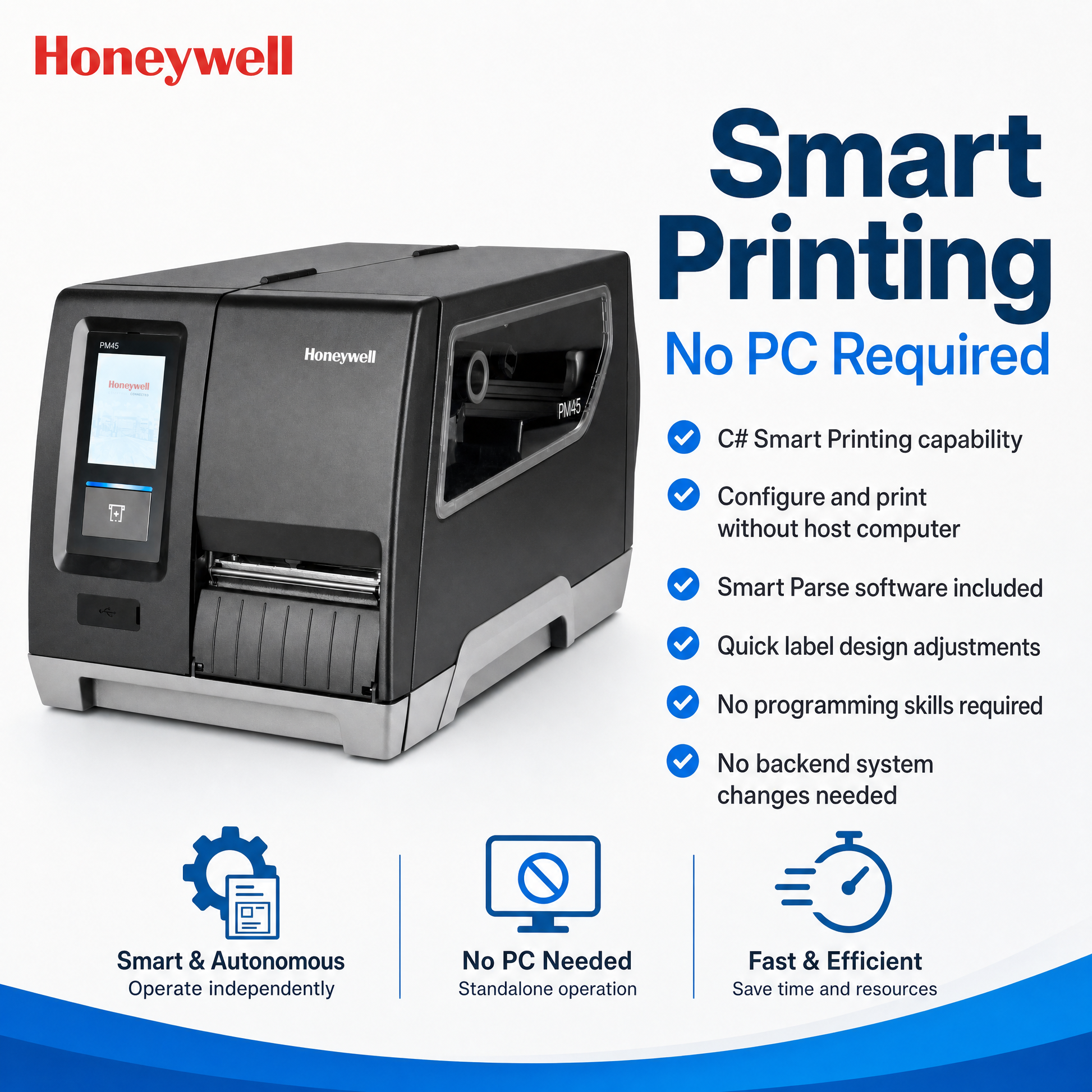

- Smart Printing Capabilities: Standalone configuration and printing without host connectivity, plus embedded Smart Parse tool for format changes without programming

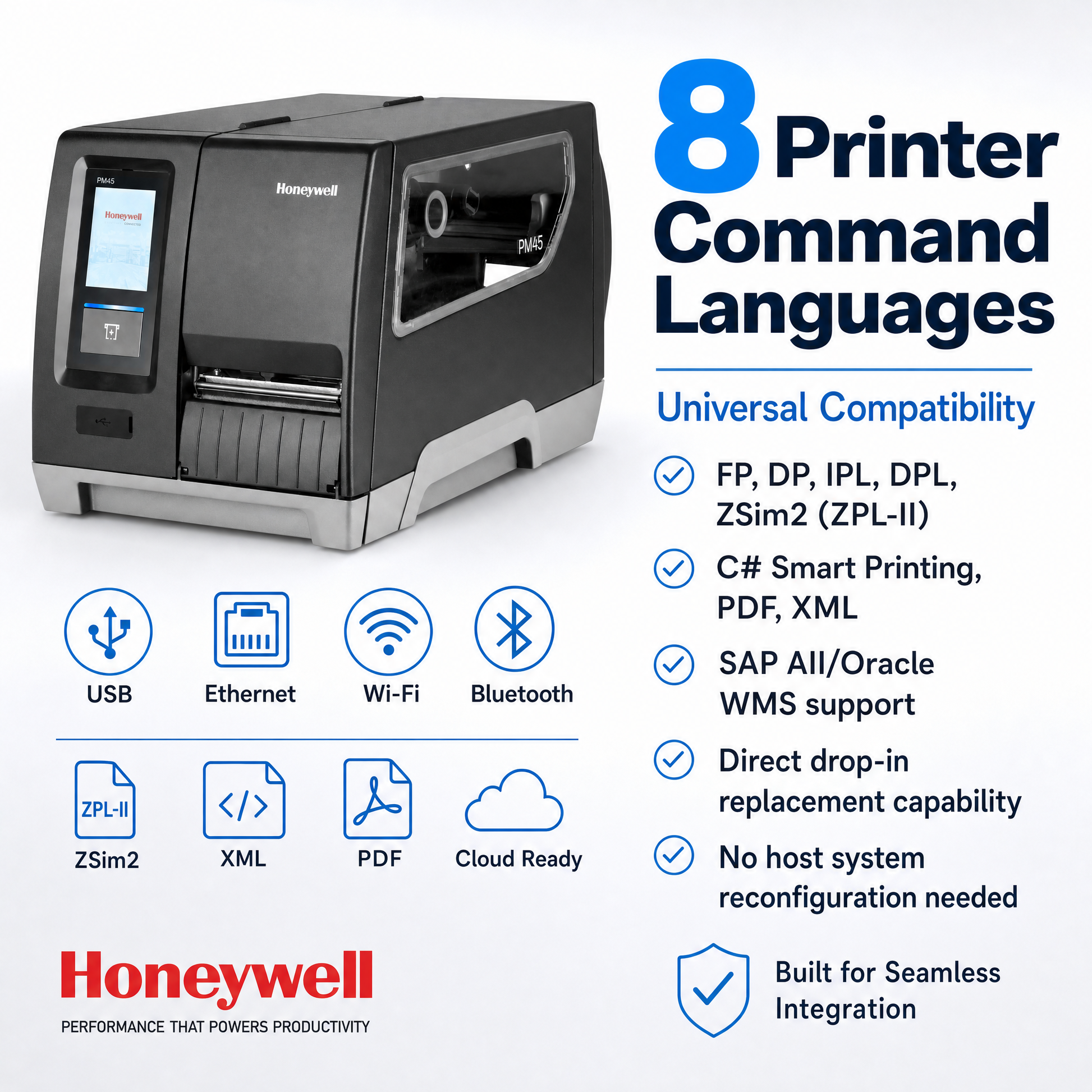

- Universal Language Support: Compatible with DPL, IPL, ZPL-II, Fingerprint, PDF, and XML protocols for seamless integration with existing label systems

- Track-and-Trace Functionality: Built-in serialization and traceability features improve supply chain transparency and regulatory compliance across industries

- Managed Security Platform: Honeywell Cybersecurity provides lifecycle security updates and protection for connected industrial environments

- Operational Intelligence Ready: Optional predictive analytics and remote management tools provide actionable insights on printer health, usage patterns, and performance optimization

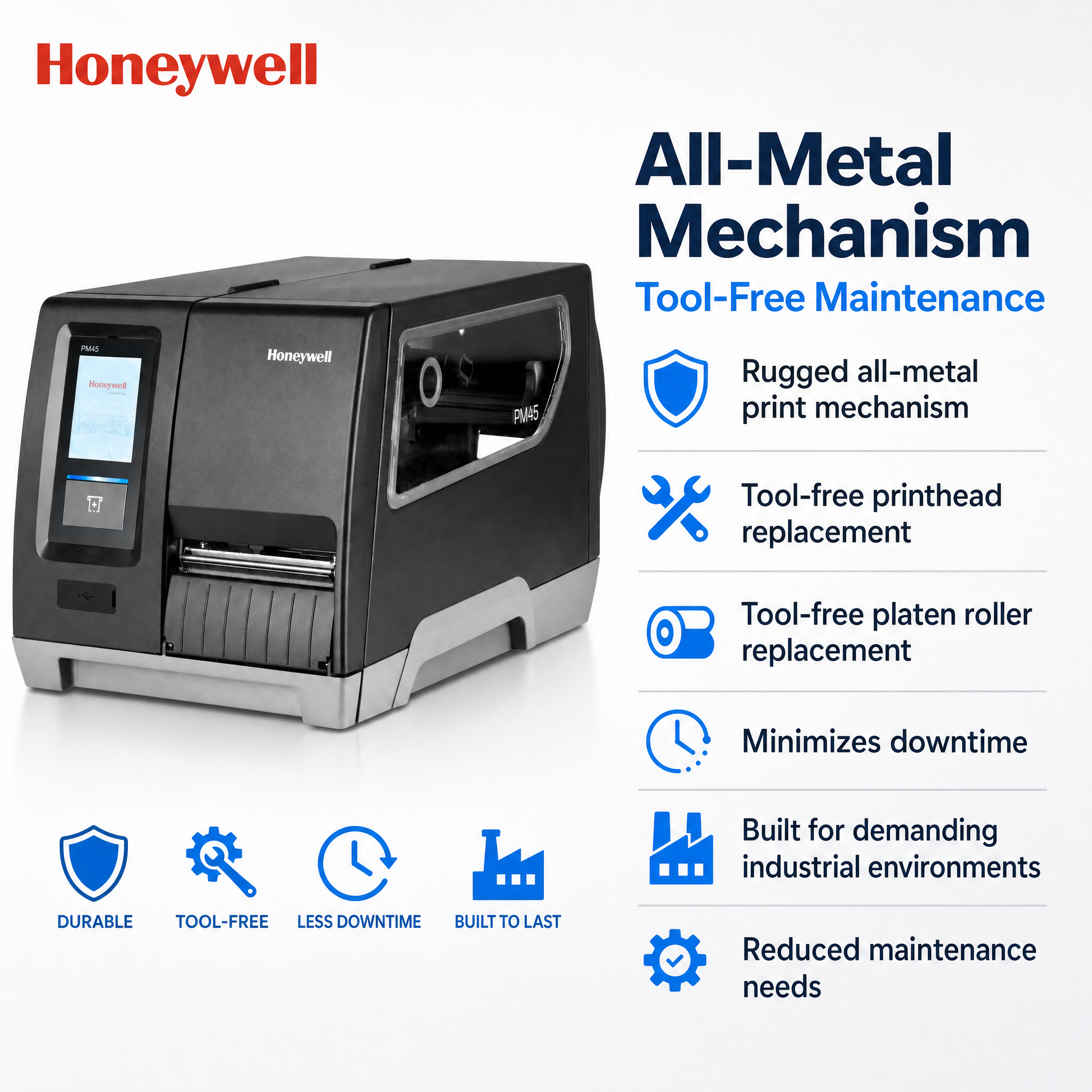

- Industrial-Grade Construction: All-metal mechanical design with tool-free printhead replacement ensures reliability and minimal downtime in harsh operating conditions

- Flexible Media Handling: Supports thermal transfer and direct thermal printing with label rolls up to 8 inches OD and ribbons up to 450 meters (PM45 standard)

- Dual Configuration Options: Available in standard PM45 or compact PM45c models to fit space-constrained workstations while maintaining performance

Quick Specs

Print Speed	Up to 14 inches per second (356 mm/s)
Print Resolution	203, 300, 406, 600 dpi
Print Accuracy	±0.5 mm
Max Print Width	104-108 mm (4.09-4.25 in) depending on resolution
Max Print Length	Up to 4.8 m (189 in) at 203 dpi
Print Method	Direct thermal and thermal transfer
Media Width Range	19-114 mm (0.75-4.5 in)
Max Media Roll	8.0 in OD (203 mm), 3.0 in ID core
Ribbon Capacity	PM45: 450 m (1,476 ft); PM45c: 229 m (751 ft)
Standard Interfaces	Ethernet 10/100, USB 2.0 Host/Device, RS-232
Optional Connectivity	WWAN (LTE CAT4), WLAN 802.11ac, RFID, Parallel, Industrial I/O
Print Languages	DPL, IPL, ZPL-II, Fingerprint, PDF, XML, C# Smart Printing
Barcode Support	All major 1D/2D symbologies including QR, Data Matrix, PDF417

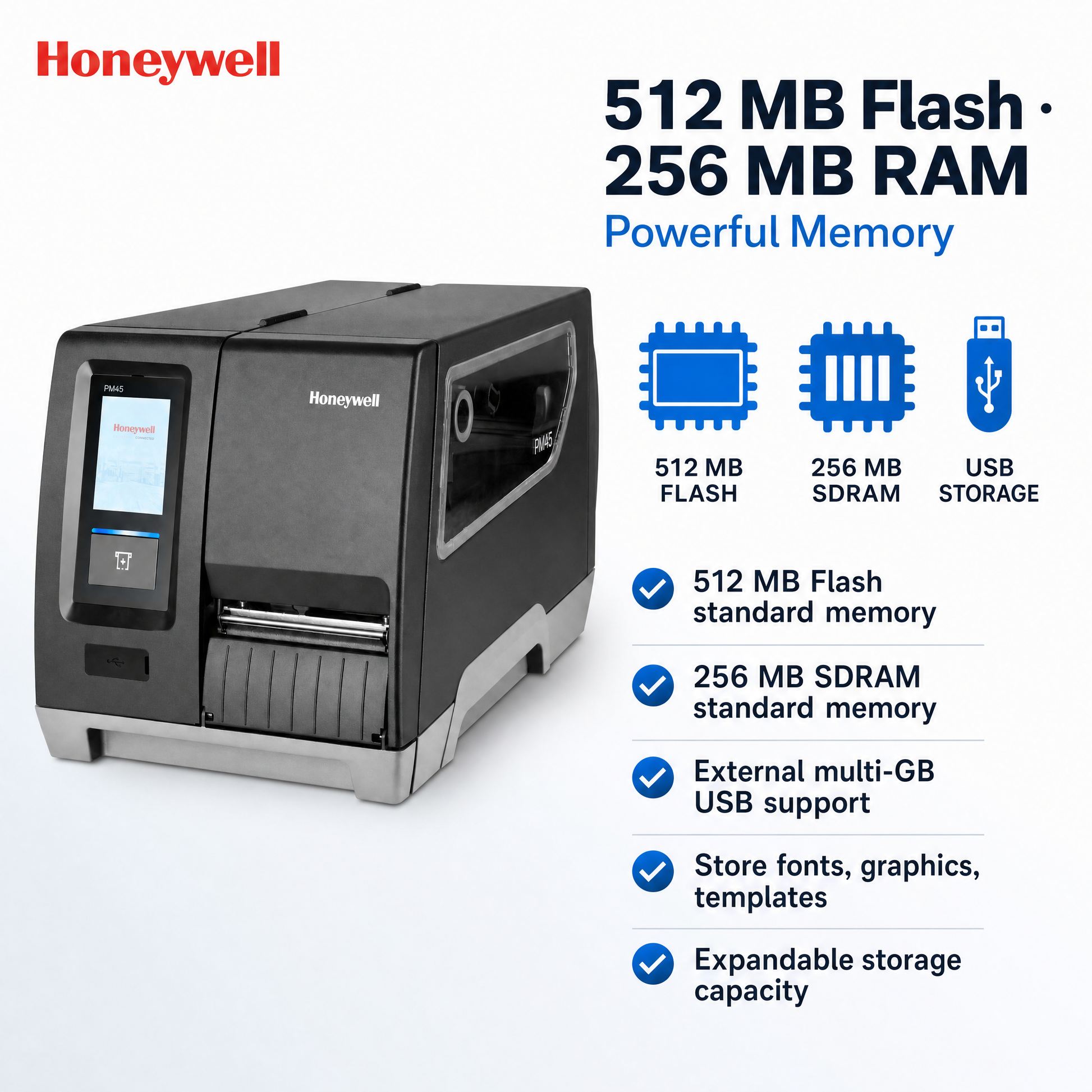

Memory	512 MB Flash, 256 MB SDRAM, USB storage support
Display	3.5-inch color LCD touchscreen or icon interface
Power	100-240V AC, 50-60 Hz; Standby 9.6W, Peak 270W
Operating Temperature	+5°C to +40°C (+41°F to +104°F)
Operating Humidity	20% to 85% non-condensing
Dimensions (PM45 Standard)	483 × 295 × 284 mm (19.0 × 11.6 × 11.2 in)
Dimensions (PM45c Compact)	432 × 181 × 253 mm (17.0 × 7.1 × 10.0 in)
Weight	PM45: 12.1 kg (26.7 lbs); PM45c: 11.5 kg (25.4 lbs)
Certifications	RoHS compliant (full list at honeywell.com/PSScompliance)

General Specifications
Brand	Honeywell
Model No.	PM45

Product Details
Color	Black, Gray
Print Technology	Thermal transfer
Printer Functions	Print

Q: What is the maximum print speed of the PM45 printer?

A: The Honeywell PM45 prints at speeds up to 14 inches per second (356 mm/s) with ±0.5 mm accuracy, ensuring high-quality output for demanding production environments requiring both speed and precision.

Q: What resolution options are available for the PM45?

A: The PM45 offers four resolution options: 203 dpi, 300 dpi, 406 dpi, and 600 dpi. The 600 dpi option is ideal for ultra-fine printing requirements such as small labels on electronics and medical devices, while lower resolutions support standard shipping and logistics applications.

Q: Does the PM45 support WWAN cellular connectivity?

A: Yes, the PM45 is the first industrial printer to feature optional WWAN connectivity with LTE Advanced CAT4 support for AT&T and Verizon networks. This enables M2M and IoT applications in locations without traditional network infrastructure, making it ideal for remote or distributed operations.

Q: What is the difference between PM45 and PM45c models?

A: The PM45c is a compact version designed for space-constrained workstations. The standard PM45 measures 483 × 295 × 284 mm and supports media rolls up to 8 inches OD with 450-meter ribbons, while the PM45c measures 432 × 181 × 253 mm with 6-inch media rolls (or 8.38 inches with Mega Door) and 229-meter ribbons. Both models offer the same print speeds and resolution options.

Q: What printing languages does the PM45 support?

A: The PM45 supports all major industrial printing languages including DPL, IPL (Intermec Printer Language), ZPL-II, Fingerprint, Direct Protocol, PDF, C# Smart Printing, and XML (enabled for SAP AII and Oracle WMS). This universal language support ensures seamless integration with existing enterprise systems.

Q: Can the PM45 print RFID labels?

A: Yes, the PM45 supports optional RFID interface capability, enabling encoding and printing of RFID smart labels for advanced tracking and inventory management applications requiring both visual and electronic identification.

Q: What is Smart Parse and how does it benefit operations?

A: Smart Parse is embedded Honeywell software that allows users to quickly change the position, size, or font type of label objects and barcodes without modifying backend systems or requiring programming skills. This enables rapid label format adjustments directly at the printer, reducing IT dependency and improving operational flexibility.

Q: What track-and-trace capabilities does the PM45 offer?

A: The PM45/PM45c includes built-in track-and-trace functionality designed to improve printing efficiency and supply chain transparency across food and beverage, pharmaceutical, and manufacturing industries. This supports serialization requirements and regulatory compliance for product traceability throughout distribution channels.

Q: What types of media and ribbons are compatible with the PM45?

A: The PM45 supports both direct thermal and thermal transfer printing with label widths from 19-114 mm (0.75-4.5 inches), rolls up to 8 inches OD on 3-inch cores, and media types including labels, tags, fan-fold, notched, gap, continuous, and black mark formats. Compatible ribbons include wax, wax-resin hybrid, and full resin formulations in both coil-in and coil-out configurations.

Q: What warranty and support options are available for the PM45?

A: Warranty details are not specified in the provided documentation. Enterprise buyers should contact EpicRise Electronics or their authorized Honeywell representative for information on standard warranty coverage, extended service plans, and technical support options specific to their deployment requirements.
