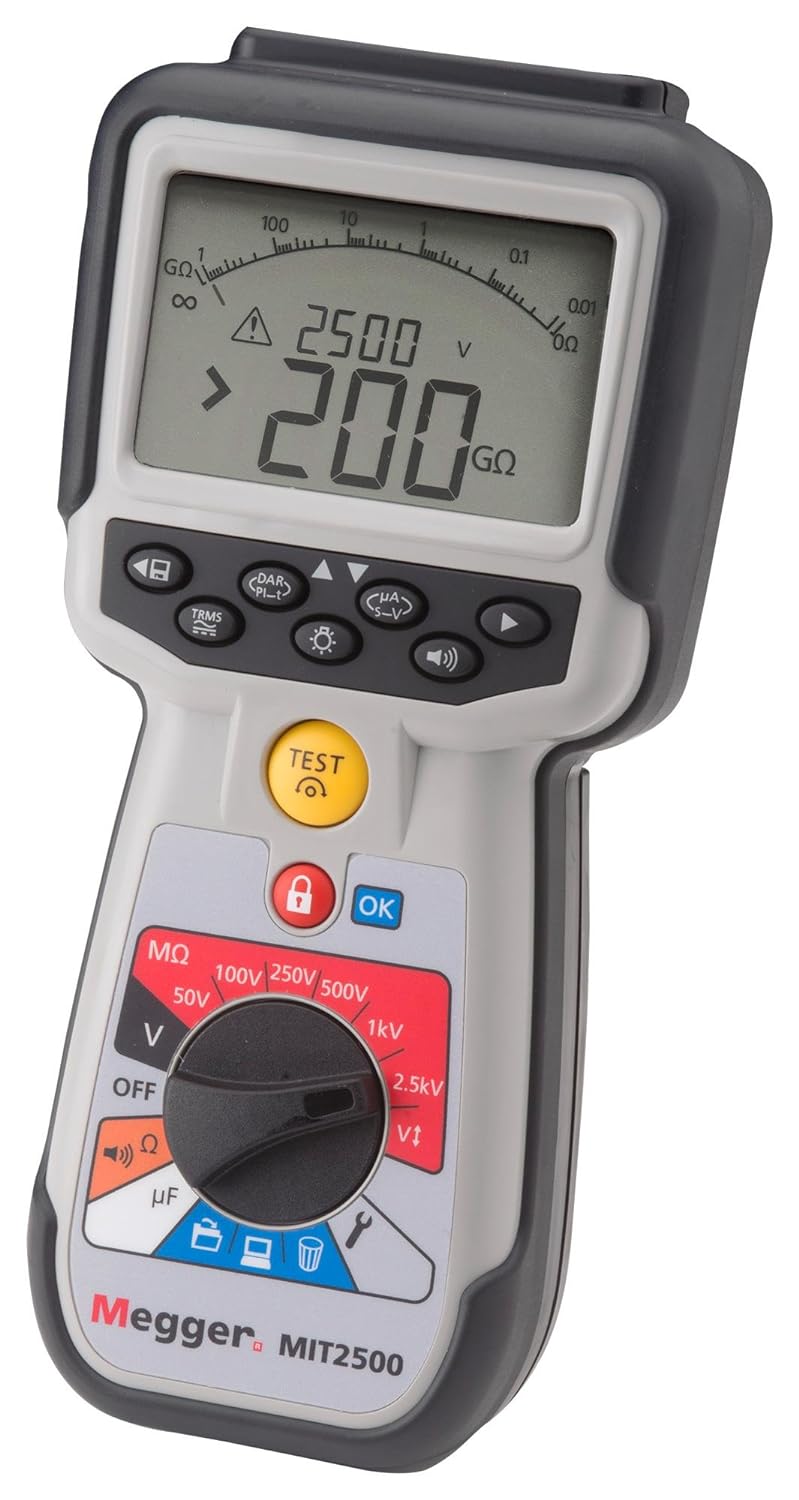

Megger MIT2500 Insulation Resistance Tester, 2.5 kV

Delivery Time: 0-3 days
Product Highlights
  • Insulation testing up to 2.5 kV and 200 GΩ range in a hand held instrument
  • Guard terminal for high resistance accuracy
  • Adjustable insulation test voltage from 50 V to 2500 V
  • Stabilized insulation test voltage
  • Rechargeable options for mains and car charging
  • Overview
  • Specifications
  • FAQ
  • User Guides

Megger MIT2500 Insulation testing up to 2.5 kV and 200 GO range in a hand held instrumentGuard terminal for high resistance accuracyAdjustable insulation test voltage from 50 V to 2500 VStabilized insulation test voltageRechargeable options for mains and car chargingSingle range, faster continuity testing from 0.01 O to 1 MO 2500V Insulation Tester The MIT2500 Insulation and Continuity Tester has been designed for motor and cable testing, specialist applications and electrical testing applications, where operation voltages exceed 1000 V and higher insulation test voltages are needed.The MIT2500 offers both fixed range voltages of 50 V, 100V, 250 V, 500 V, 1000 V and 2500 V, as well as a variable range that allows any voltage between 50 V and 2500 V to be “dialled in”. This is supported by the new test voltage feedback control, which maintains the output test voltage to within 2% of the selected range, even when under test.The MIT2500 uses the redesigned case, back-stand, and 6 cell battery compartment, as well as incorporating a Guard terminal to reduce surface tracking currents that reduce accuracy at higher voltages.All instruments are over-moulded for increased protection and achieve an IP54 weatherproof rating.Insulation Resistance TestingThe feedback controlled insulation test voltage is now accurate to +2% -0% compared to the original +20%, providing a more accurate test voltage without the risk of over-voltage damage to circuits.A variable range allows the exact test voltage to be selected from 50 V to 999 V in 1 V steps, (1KV to 2.5KV in 10 V steps) providing 1100 test voltage options.Variable Insulation Voltage (NEW)*The variable mode provides a unique solution for awkward insulation voltage measurement applications. The range option allows an insulation test voltage from 50 V to 999 V in 1 V steps, 1.0 KV to 2.5 KV in 10 V steps.

  • Insulation testing up to 2.5 kV and 200 GΩ range in a hand held instrument
  • Guard terminal for high resistance accuracy
  • Adjustable insulation test voltage from 50 V to 2500 V
  • Stabilized insulation test voltage
  • Rechargeable options for mains and car charging
Insulation testing up to 2.5 kV and 200 GΩ range in a hand held instrument
$1,900.00
$1,900.00
$1,900.00
$1,900.00
In stock

Get same day shipping on orders placed before 3 PM EST.

Get approved for Net 30 Terms today —> Apply Now!
Quantity Discount
2+
Sign in to view volume discount
5+
Quote request for more savings

Get 10% Off your First Order

Click to get coupon

Real Support from Real People

Contact us for help

Free 30-Day Returns

Return Policy
