Megger MIT420/2 (1006-740) Insulation/Continuity Tester w/Storage, PI, DAR 50V/100V/250V/500V/1000V (Copy)
- Designed for industrial, electrical, automotive, and avionics testing
- Accurate insulation test voltage within +2% / -0% for circuit protection
- Feedback-controlled output voltage for enhanced stability
- Variable insulation test voltage from 10 V to 1000 V
- Fast continuity testing with auto-ranging from 0.01 Ω to 1.0 MΩ
- Rugged over-molded case with IP54 weatherproof rating
- Integrated back-stand and easy-access 6-cell battery compartment
-
Overview
-
Specifications
-
FAQ
-
User Guides

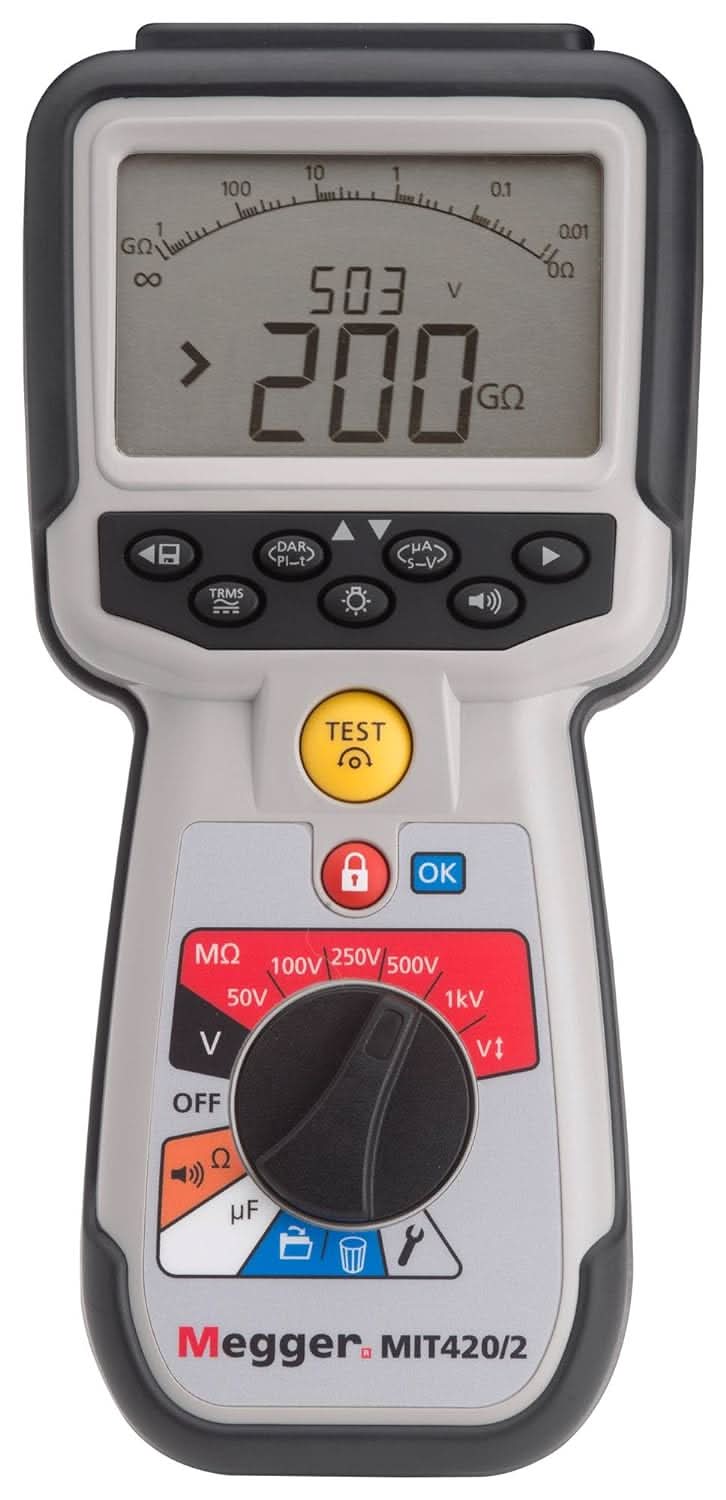

The Megger MIT420/2 (1006-740) is a high-performance insulation and continuity tester designed for both electrical and industrial applications, with extended versatility for use in cable testing, motor diagnostics, avionics, automotive, ESD, panel building, and general maintenance. Built for accuracy and durability, it features feedback-controlled insulation test voltages that maintain precision within +2%/-0%, significantly tighter than the typical industry tolerance of +20%. This minimizes the risk of over-voltage damage to sensitive components. Continuity testing is faster and more efficient with a single auto-ranging function from 0.01 ohms to 1.0 MΩ, replacing traditional fixed "ohms" and "kilo-ohms" ranges. The tester is housed in a rugged, over-molded IP54-rated case with a back-stand and a 6-cell battery compartment for field-ready performance in challenging environments.
- Designed for industrial, electrical, automotive, and avionics testing
- Accurate insulation test voltage within +2% / -0% for circuit protection
- Feedback-controlled output voltage for enhanced stability
- Variable insulation test voltage from 10 V to 1000 V
- Fast continuity testing with auto-ranging from 0.01 Ω to 1.0 MΩ
- Rugged over-molded case with IP54 weatherproof rating
- Integrated back-stand and easy-access 6-cell battery compartment
-
