Mitutoyo 156-101-10 Micrometer Stand | Fits Micrometers Up to 4-inch

Name: Mitutoyo 156-101-10 Micrometer Stand | Fits Micrometers Up to 4-inch
Brand: Mitutoyo
SKU: MTY-STA-156-101-10-NEW
Price: 66.0 USD
Availability: OutOfStock
Rating: 5 (47 reviews)

Product Highlights

package height : 11.8 cm
package length : 29.0 cm
package width :29.4 cm
Product type:CUTTING TOOLS
Large easy to use clamp knobs

Overview
Specifications
FAQ
User Guides

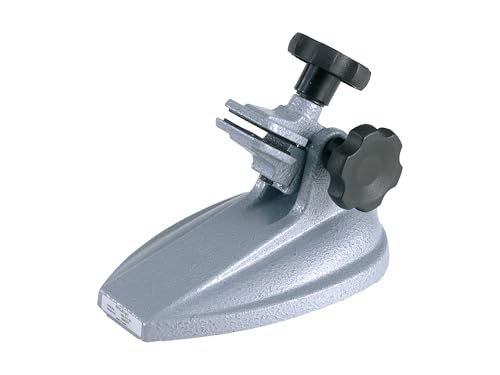

Mitutoyo 156-101-10 Micrometer Stand For Micrometers Up To 4"

package height : 11.8 cm
package length : 29.0 cm
package width :29.4 cm
Product type:CUTTING TOOLS
Large easy to use clamp knobs

package height : 11.8 cm

General Specifications
Model Number: 156-101-10
Product Name: Mitutoyo Micrometer Stand – Adjustable Angle

Measuring Range: Up to 4″ / 100mm

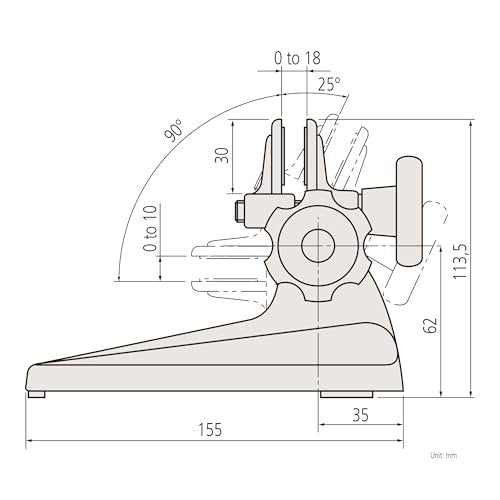

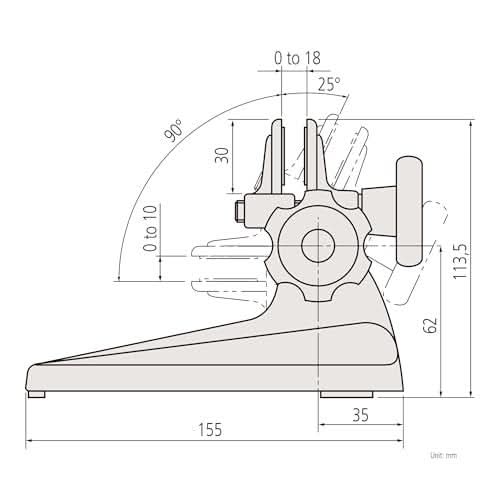

Height of Stand: 4.46″ / 113.5mm
Type: Adjustable Angle

Construction & Features:

Heavy steel base for a steady, stable bench-top platform.
Designed for batch or mass production measurements in manufacturing and quality assurance environments.
Easy-to-grip clamp and adjusting knobs for smooth locking and unlocking.
Provides hands-free, accurate bench-top measuring for micrometers and other gauges.
Available styles: Fixed angle, fixed angle with platform, vertical, and adjustable angle (this model is adjustable angle).

What is the Mitutoyo 156-101-10 Micrometer Stand used for?

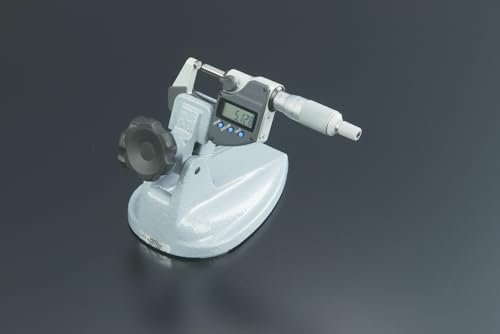

This stand is designed to facilitate bench-top use of hand micrometers or other gauges with frames suitable for clamping. It allows for hands-free operation, enhancing measurement accuracy and reducing the influence of body heat on the instrument.

What is the measuring range supported by this stand?
The stand accommodates micrometers ranging from 15 mm to 100 mm (0.6 in to 4 in).

Does the stand have an adjustable angle feature?
Yes, it features an adjustable angle mechanism, allowing the user to set the micrometer at a comfortable and practical angle for measurement tasks.

What are the dimensions and weight of the stand?
The stand measures approximately 4.13 x 6.1 x 4.47 inches and weighs about 2.8 pounds (1.27 kg).

What material is the stand made from?
It is constructed from cast iron, providing stability and durability during measurement operations.

Are there any special features to protect the micrometer?
Yes, the stand includes padded clamping jaws to prevent damage to the micrometer during use.

Is the stand compatible with digital micrometers?
Yes, it is compatible with both analog and digital micrometers, provided they fall within the supported size range.

Does the stand come with any accessories?
The standard package includes the micrometer stand itself. Micrometers and other accessories are typically sold separately.

Where is the Mitutoyo 156-101-10 manufactured?
While Mitutoyo is a Japanese company, some of its products, including this stand, are manufactured in facilities located in other countries, such as China.

Is there a warranty provided with the stand?
Warranty details can vary by retailer and region. It's advisable to check with the specific seller or Mitutoyo's official channels for warranty information.

Can the stand be used for applications other than micrometers?
While primarily designed for micrometers, the stand can also accommodate other gauges with compatible frame sizes, enhancing its versatility in measurement tasks.
