SNBC M300 9-Pin Impact Receipt Printer with Auto-Cutter for POS & Kitchen Applications

Name: SNBC M300 9-Pin Impact Receipt Printer with Auto-Cutter for POS & Kitchen Applications
Brand: SNBC
SKU: SNB-PRI-BTP-M300A-NEW
Price: 379.0 USD
Availability: InStock

Delivery Time: 0-3 days

Product Highlights

• High-reliability 9-pin impact printer with 180,000-hour MTBF and 1.8 million cut auto-cutter for demanding POS environments

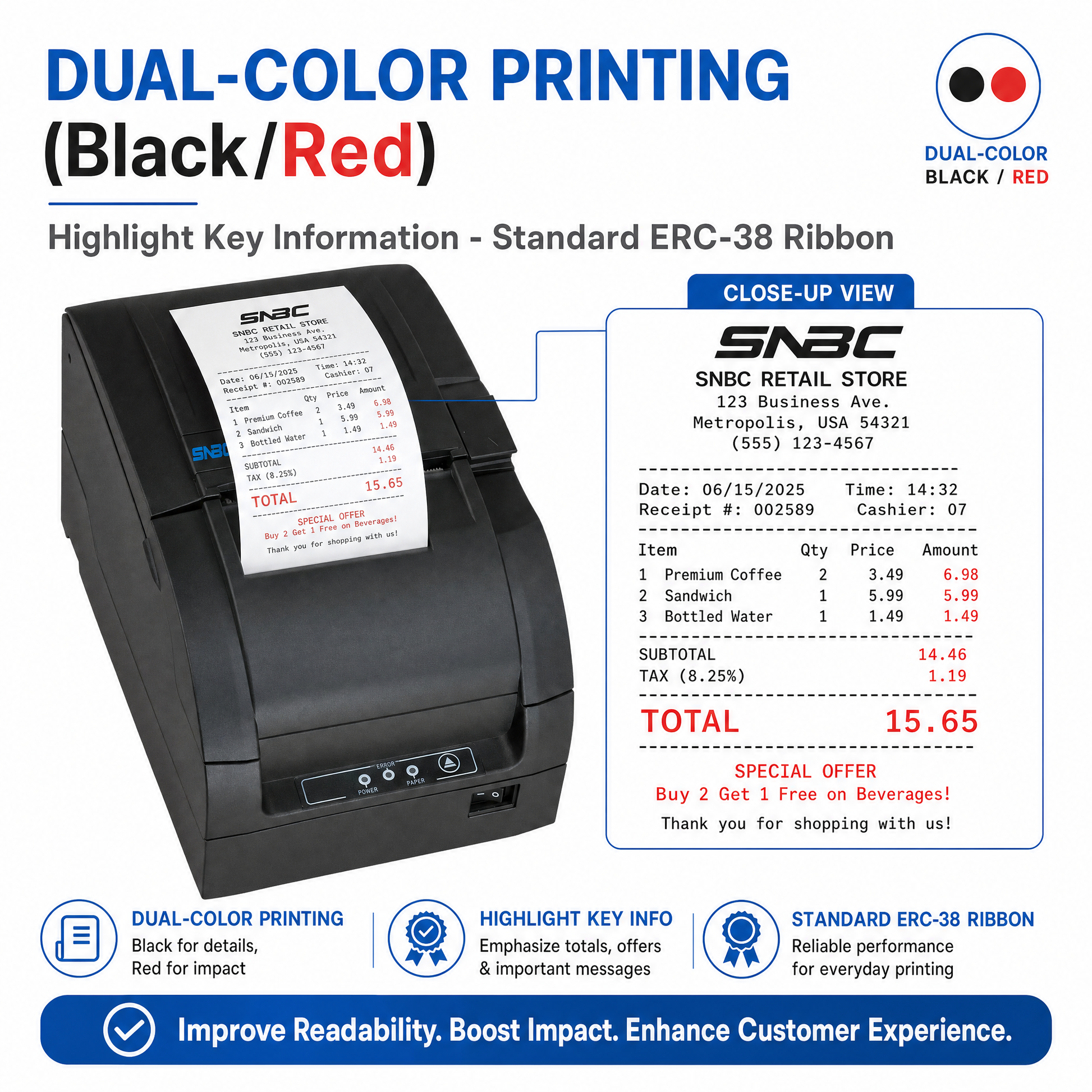

• Dual-color printing capability using standard ERC-38 ribbon cartridge for receipts with promotional highlights

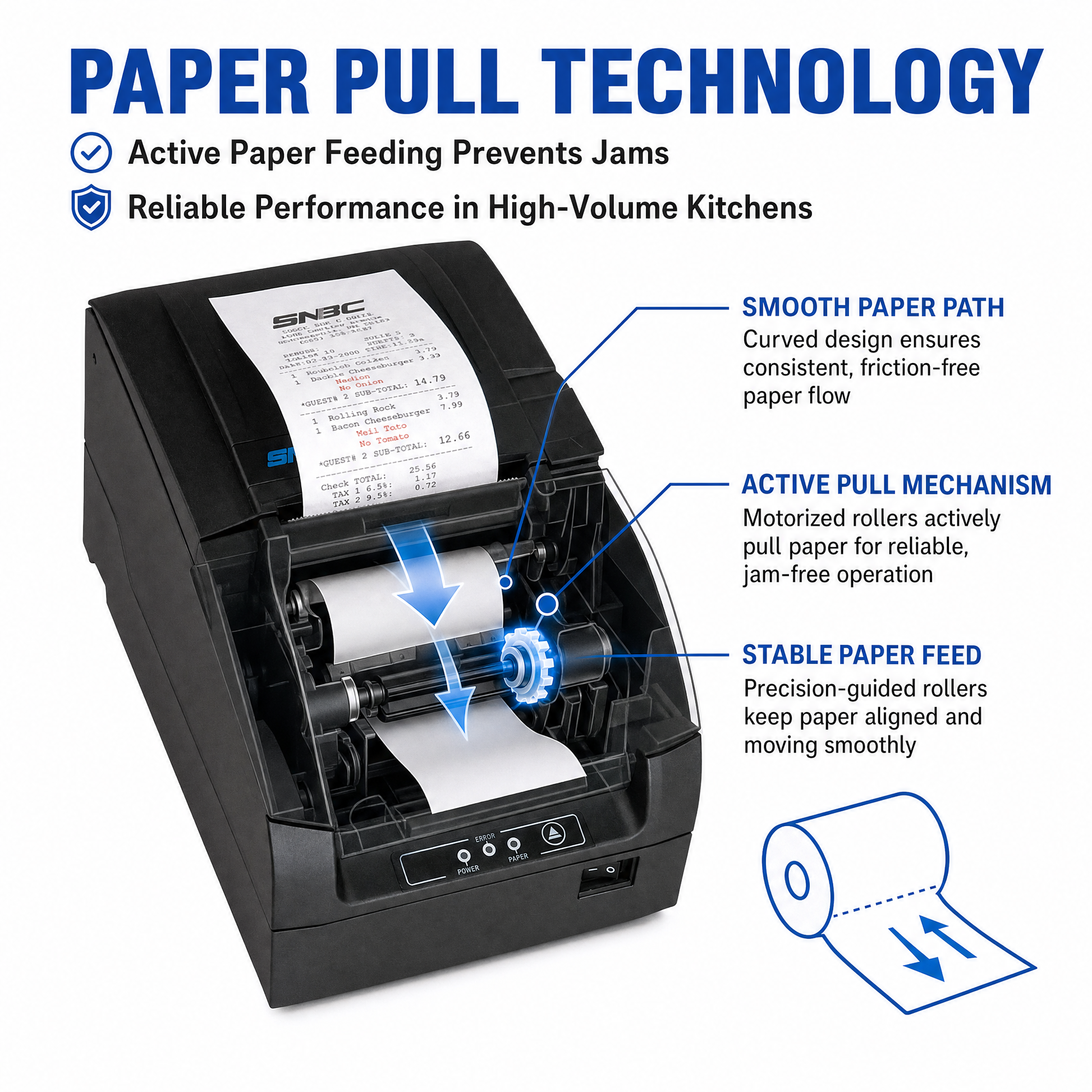

• Drop-in paper loading with paper pull technology eliminates jams and supports multiple paper widths from 57.5mm to 80mm

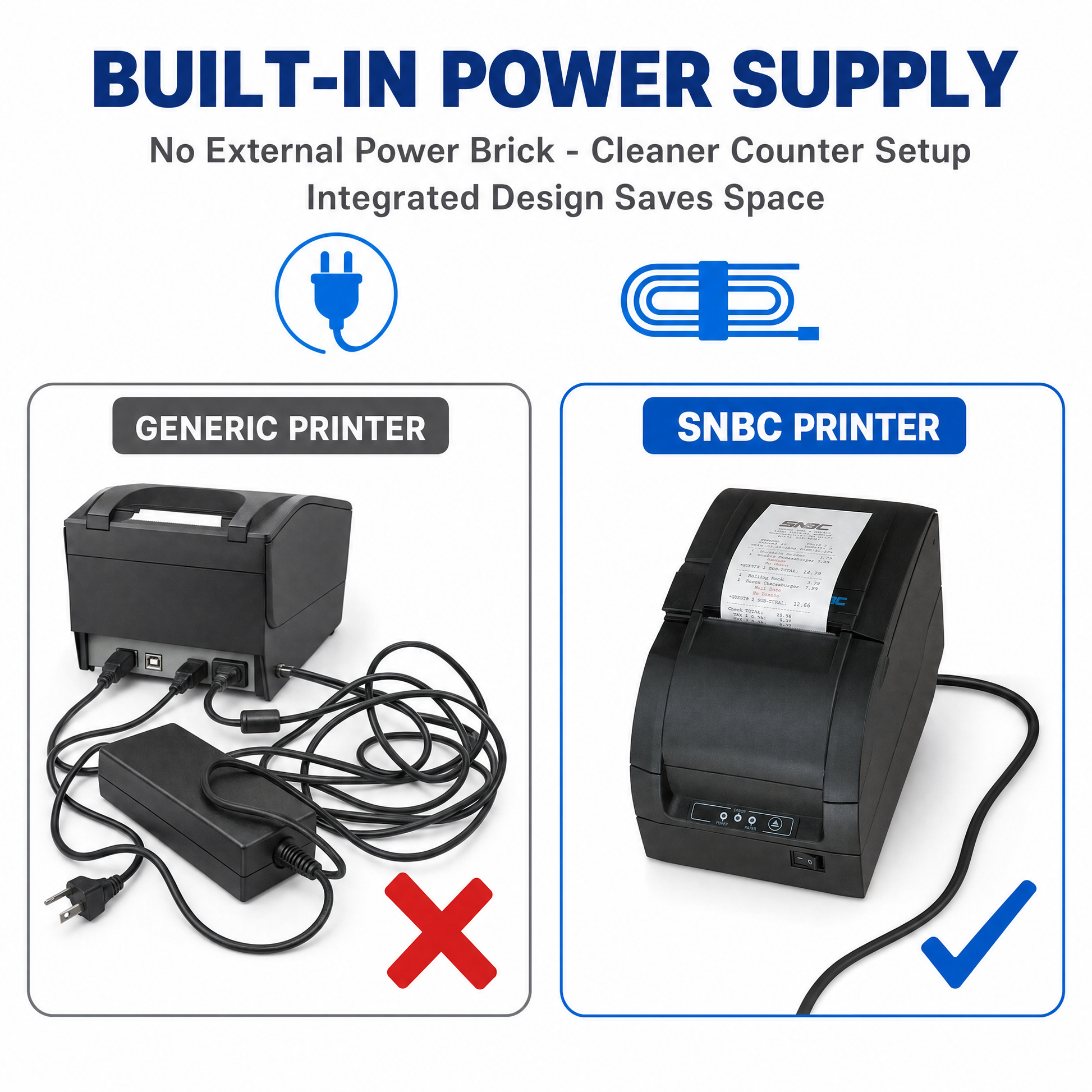

• Built-in power supply eliminates external adapters for cleaner installations with wall-mount option included

• Multiple interface options including USB, Serial, Ethernet, Bluetooth and WiFi for flexible POS system integration

Overview
Specifications
FAQ
User Guides
Reviews

The SNBC M300 is a 9-pin serial impact dot matrix receipt printer engineered for high-volume retail and hospitality environments where archival-quality documentation is essential. Unlike thermal printers, the M300 produces permanent, fade-resistant receipts that withstand heat, light, and time—critical for transactions requiring long-term record retention. Its robust impact printing mechanism delivers consistent output across multiple paper layers, making it ideal for applications requiring carbon copies or document permanence.

Built for demanding commercial environments, the M300 combines 4.7 lines/second print speed with industrial-grade reliability rated at 180,000 hours MTBF. The integrated auto-cutter provides 1.8 million cut lifecycle, while the paper pull technology eliminates jamming common in high-traffic POS stations. The built-in power supply and optional wall-mount capability enable flexible, space-saving installations in retail counters, kitchen environments, and ticketing stations where cable management is critical.

Best For

The SNBC M300 serves retail, hospitality, and industrial applications requiring permanent receipt documentation and multi-part form printing:

- Point-of-Sale Systems: Retail checkout stations requiring archival receipts with promotions, coupons, and offers printed in dual colors for customer attention

- Restaurant & Bar Kitchens: Kitchen order printing where heat and moisture resistance is essential, with wall-mount option for space-constrained prep areas

- Financial Services: Banking and payment processing applications requiring permanent transaction records that resist fading and tampering

- Ticketing Operations: Event venues, transportation terminals, and admission control points needing durable ticket stock with graphics and barcodes

- Industrial Data Logging: Manufacturing and warehouse environments requiring multi-part forms and carbon copy documentation for inventory and quality control

Key Features

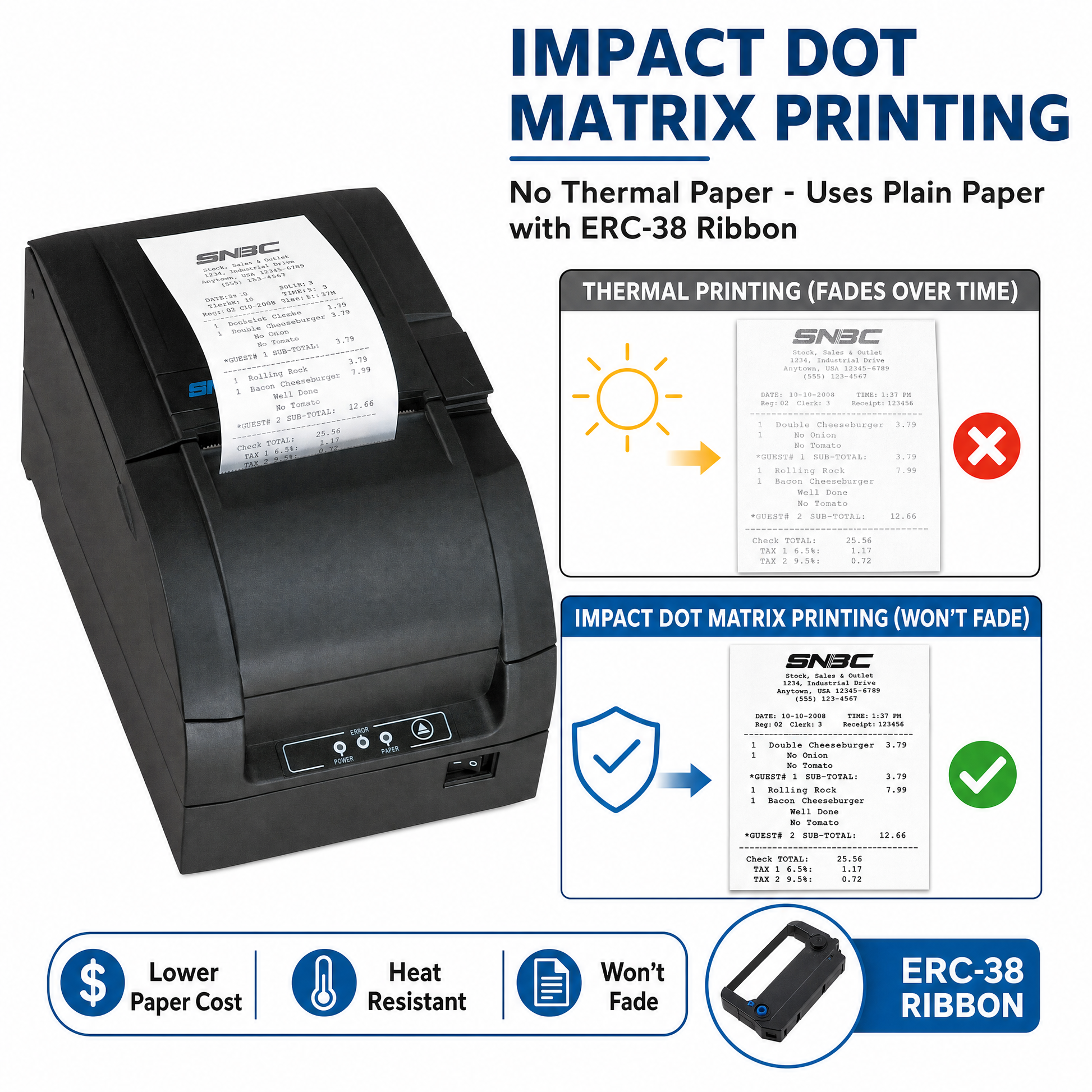

- 9-pin serial impact printing mechanism produces permanent, archival-quality receipts resistant to heat, light, and fading over time

- Dual-color printing capability with standard ERC-38 ribbon allows black text with red highlights for promotions and special offers

- Auto-cutter with 1.8 million cut lifecycle offers full or partial cut options for operator convenience and reduced paper waste

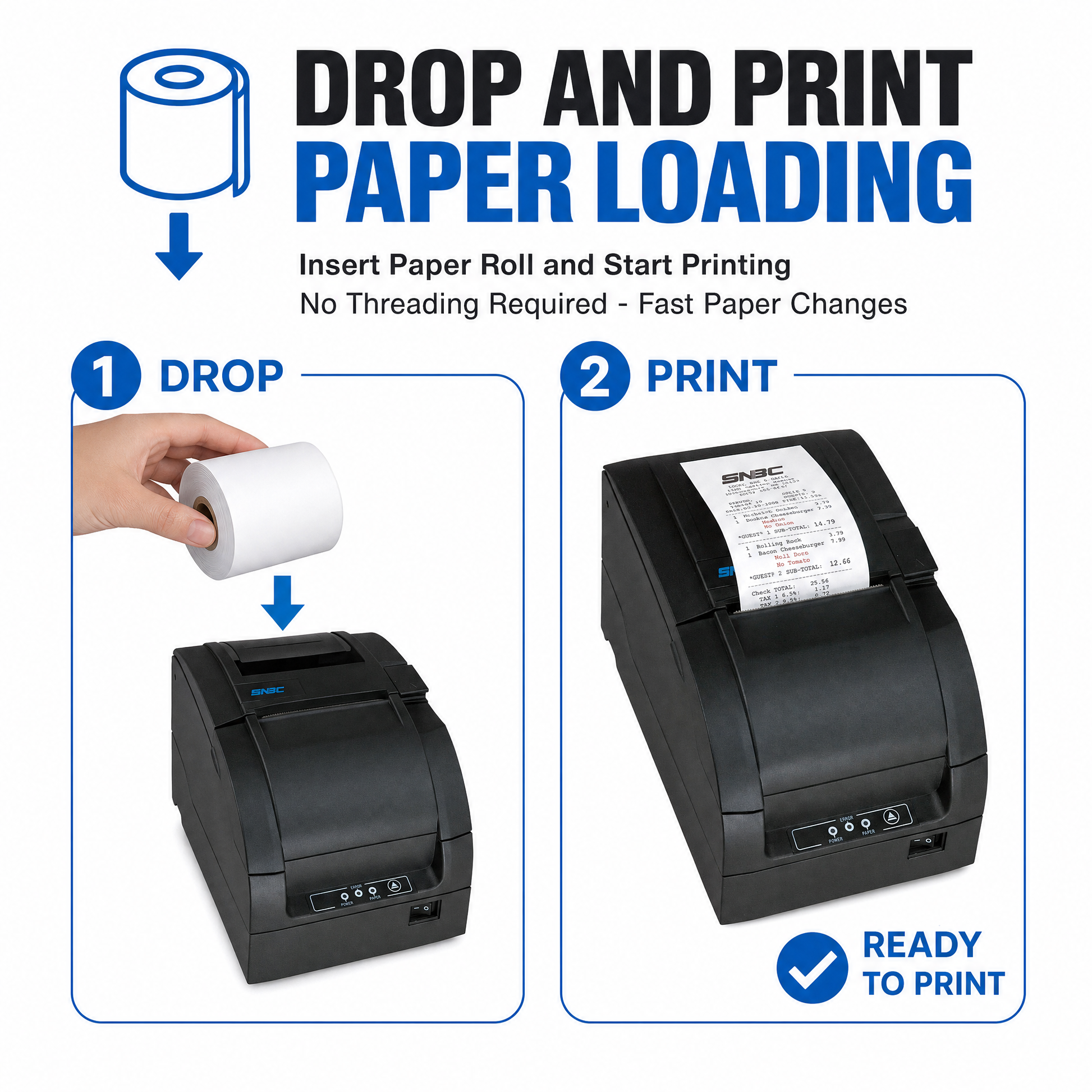

- Drop-in paper loading with pull technology accommodates 57.5mm to 80mm widths and supports continuous paper, marked paper, and multi-layer forms

- Built-in power supply eliminates external adapters, reducing cable clutter and simplifying installation in tight retail spaces

- Wall-mount capability with integrated brackets enables vertical installation in kitchens, service counters, and space-limited environments

- Multiple interface board options (USB, Serial, Parallel, Ethernet, Bluetooth, WiFi) provide compatibility across legacy and modern POS systems

- Epson TM-U220 compatibility for drop-in replacement in existing installations using same ribbon cartridges and mounting footprint

Quick Specs

Print Technology	9-pin serial impact dot matrix
Print Speed	4.7 lines/second (400 dots/line) / 19.6mm/second
Character Specifications	Font A: 33/35 characters/line (9x9), Font B: 40/42 characters/line (7x9)
Paper Width	57.5mm, 69.5mm, 76mm, 80mm (±0.5mm)
Paper Roll Diameter	83mm maximum
Paper Thickness	Single layer: 0.06-0.085mm; Dual layer: 0.05-0.08mm (total ≤0.14mm)
Ribbon Type	Industry standard ERC-38 cartridge (dual-color: black and red)
Standard Interface	USB 1.1 (Type B connector, onboard)
Optional Interfaces	Serial, Parallel, Ethernet, Bluetooth, WiFi
Operating System Support	Windows 98/NT4.0/2000/2003/XP
Command Set	ESC/POS™
Character Sets	Alphanumeric: 95; International: 37; Graphics: 128 x 12 pages / Traditional Chinese/Simplified Chinese/Thai/Japanese
MTBF (Mean Time Between Failures)	180,000 hours
MCBF (Mean Characters Between Failures)	18,000,000 lines
Print Head Life	150,000,000 characters
Auto-Cutter Life	1,800,000 cuts
Dimensions	160 x 239 x 157mm (W x D x H) / 6" x 10" x 6"
Power Supply	Built-in (internal power supply, no external adapter required)
Certifications	CE, CB, UL, FCC, EnergyStar
Compatibility	Epson TM-U220 compatible (same ribbon and interface boards)

General Specifications
Brand	SNBC
Model No.	M300

Product Details
Power Source	AC-powered
Connection Type	USB, Ethernet, WiFi, Bluetooth, Serial
Portability	Stationary
Print Technology	Impact
Printer Functions	Print
Printer/Copier Features	Paper storage
Receipt Paper Features	Other
