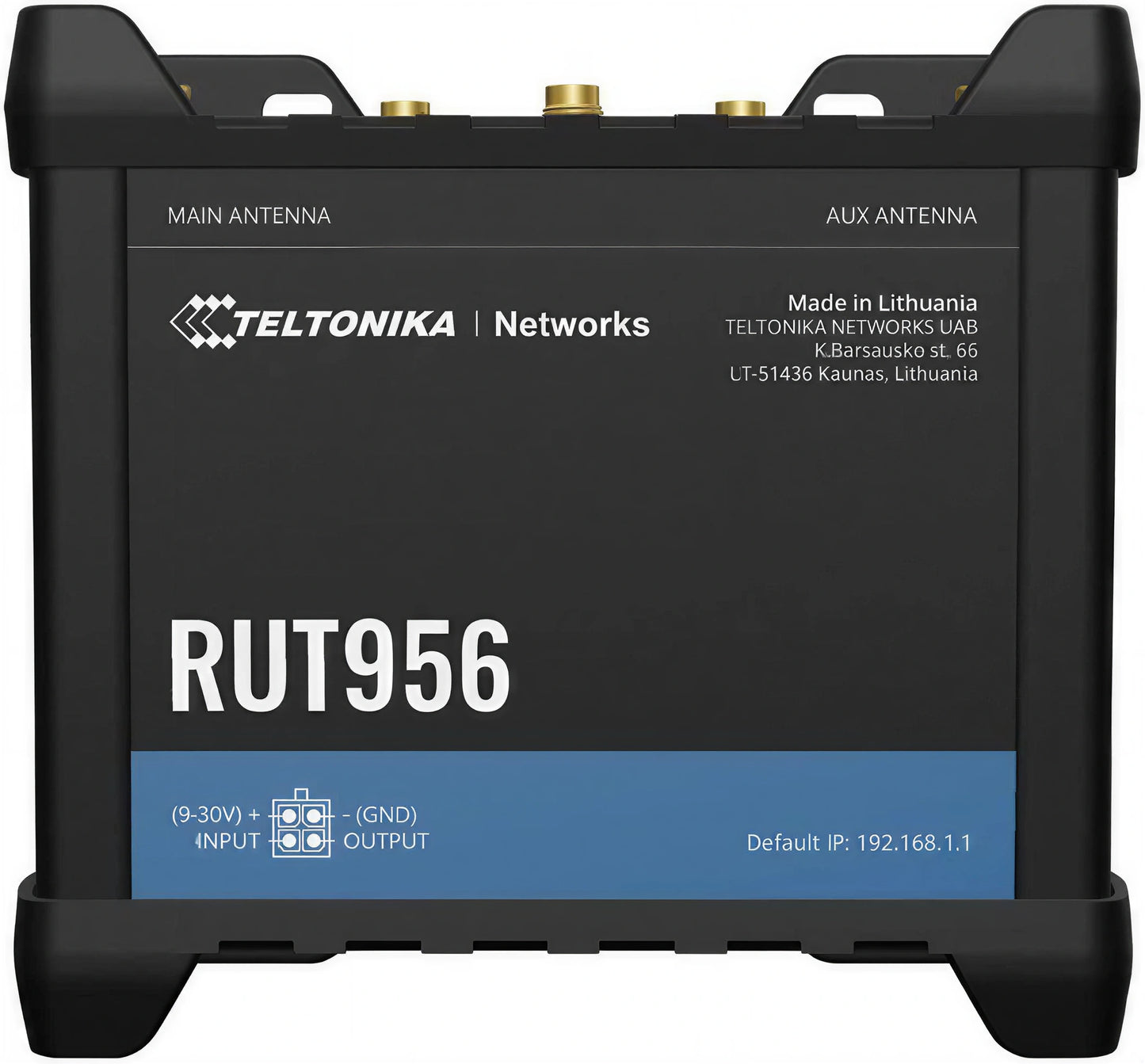

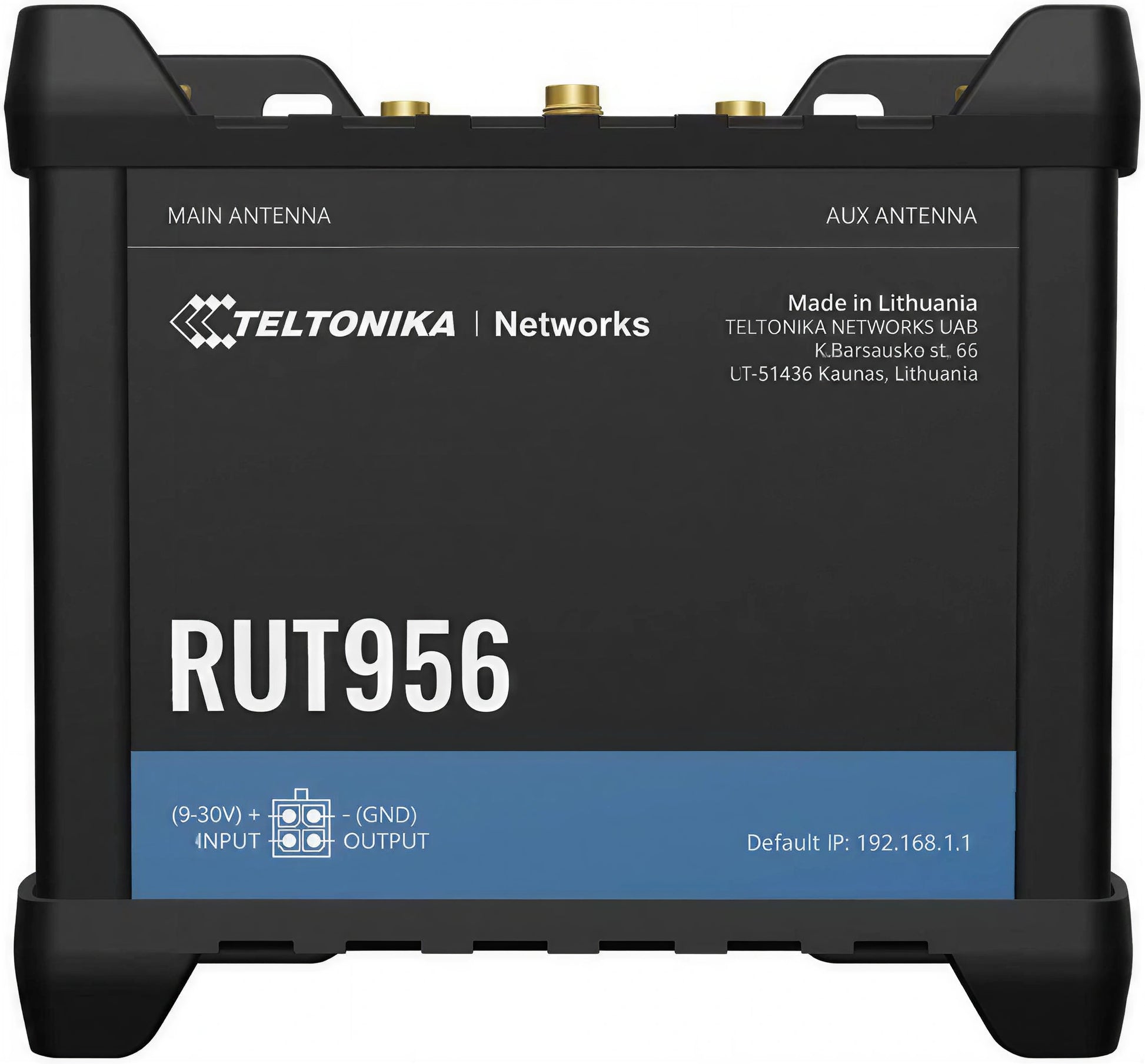

Teltonika RUT956A00A00 Industrial 4G LTE Router with Dual SIM, GPS, WiFi, and Serial Interfaces for North Amer

Name: Teltonika RUT956A00A00 Industrial 4G LTE Router with Dual SIM, GPS, WiFi, and Serial Interfaces for North Amer
Brand: Teltonika
SKU: TKA-RUT956A00A00
Price: 285.0 USD
Availability: InStock

Delivery Time: 0-3 days

Product Highlights

• Carrier-certified for Verizon, AT&T, T-Mobile with FirstNet Band 14 support for public safety and enterprise critical infrastructure

• Dual SIM automatic failover based on signal strength, data limits, roaming, or network failure ensures continuous connectivity

• Multi-GNSS support (GPS, GLONASS, BeiDou, Galileo, QZSS) with NTRIP for precise fleet tracking and asset location

• Industrial-grade design rated for -40°C to 75°C operation with IP30 aluminum enclosure for harsh environments

• Comprehensive VPN support including OpenVPN, IPsec, WireGuard, and DMVPN with advanced RutOS software and RMS remote management

Overview
Specifications
FAQ
User Guides
Reviews

The Teltonika RUT956A00A00 is an industrial-grade 4G LTE router engineered for enterprise and critical infrastructure deployments across North America. Certified by Verizon, AT&T, and T-Mobile, this router delivers reliable cellular connectivity with dual SIM failover, multi-band support including FirstNet Band 14, and comprehensive networking features. The RUT956A00A00 combines cellular, WiFi, and wired connectivity with serial interfaces (RS232/RS485), I/O controls, and GNSS positioning to support complex IoT, M2M, fleet management, and industrial automation applications.

Designed for harsh operating environments, the RUT956A00A00 features an aluminum IP30-rated enclosure capable of withstanding -40°C to 75°C temperatures. Its advanced RutOS software provides enterprise-grade security with multiple VPN protocols, firewall, DDoS protection, and extensive industrial protocol support including Modbus, MQTT, and SNMP. Remote management via Teltonika RMS enables efficient monitoring and configuration across distributed deployments.

Best For

The RUT956A00A00 is optimized for enterprise applications requiring carrier-certified cellular connectivity, positioning capabilities, and industrial interface integration:

- Fleet Management and Vehicle Telematics: Track assets in real-time using multi-GNSS positioning with NTRIP precision, integrate vehicle diagnostics via serial interfaces, and maintain connectivity with dual SIM failover across cellular networks

- Public Safety and FirstNet Infrastructure: Deploy on FirstNet Band 14 certified networks for emergency services, critical infrastructure monitoring, and priority communication systems requiring preemptive bandwidth

- Industrial Automation and SCADA: Connect remote equipment via RS232/RS485 for Modbus integration, control devices through I/O interfaces, and secure communications with IPsec or OpenVPN tunnels

- Smart City and Environmental Monitoring: Deploy outdoor sensors with ruggedized connectivity, utilize GPS for asset location, and aggregate data from multiple devices via WiFi or Ethernet interfaces

- Retail and Branch Office Connectivity: Provide primary or backup WAN connectivity with automatic failover, support POS systems and surveillance cameras, and centrally manage deployments via RMS

Key Features

- 4G LTE Cat 4 with 150 Mbps downlink and support for North American bands B2, B4, B5, B12, B13, B14, B66, B71 including FirstNet certification

- Dual SIM with intelligent failover triggered by signal strength, data limits, SMS limits, roaming, network rejection, or connection failure

- Four 10/100 Mbps Ethernet ports (1 WAN configurable as LAN, 3 dedicated LAN) with IEEE 802.3/802.3u compliance and auto-MDI/MDIX

- WiFi 4 (802.11b/g/n) access point and station modes with WPA3-SAE/EAP security supporting up to 100 concurrent clients

- Multi-GNSS receiver supporting GPS, GLONASS, BeiDou, Galileo, QZSS with NTRIP protocol for RTK correction and NMEA 0183 output

- RS232 and RS485 (full/half duplex) serial interfaces with 300-115200 baud rate for industrial protocol integration

- I/O module with 3 digital inputs (isolated/non-isolated), 1 analog input (0-24V), 1 relay output (40V/4A), and 2 open collector outputs

- Comprehensive VPN support: OpenVPN (multiple simultaneous tunnels), IPsec (IKEv1/IKEv2), WireGuard, DMVPN, GRE, PPTP, L2TP, SSTP, ZeroTier

- Industrial protocol support including Modbus TCP, MQTT, SNMP, TR-069 for M2M/IoT integration and remote management

- RutOS software with advanced routing, firewall, DDoS protection, SMS gateway, and compatibility with Teltonika RMS for centralized management

- Industrial operating temperature range -40°C to 75°C in IP30-rated aluminum enclosure suitable for vehicle and outdoor installations

Quick Specs

Specification	Details
Model	RUT956A00A00 (North America)
Cellular Technology	4G LTE Cat 4 (150/50 Mbps), 3G HSPA+ (21/5.76 Mbps), 2G GPRS/EDGE (236.8 kbps)
LTE Bands	B2, B4, B5, B12, B13, B14 (FirstNet), B66, B71
3G Bands	B2, B4, B5
Carrier Certification	Verizon, AT&T, T-Mobile, FirstNet, C1D2
SIM Cards	2 × Mini SIM (2FF) with automatic failover
WiFi	802.11b/g/n (WiFi 4), AP/STA modes, up to 100 clients
WiFi Security	WPA3-SAE, WPA3-EAP, WPA2-Enterprise (PEAP), WPA2-PSK, AES-CCMP, TKIP, OWE
Ethernet Ports	4 × 10/100 Mbps (1 WAN configurable, 3 LAN), IEEE 802.3/802.3u, auto-MDI/MDIX
GNSS	GPS, GLONASS, BeiDou, Galileo, QZSS; NTRIP, NMEA 0183
Serial Interfaces	1 × RS232, 1 × RS485 (full/half duplex), 300-115200 baud
I/O	3 digital inputs (0-30V), 1 analog input (0-24V), 1 relay (40V/4A), 2 open collector outputs
USB	USB 2.0 (external storage, modem, serial adapter support; FAT format)
VPN Protocols	OpenVPN, IPsec (IKEv1/IKEv2), WireGuard, DMVPN, GRE, PPTP, L2TP, SSTP, Stunnel, ZeroTier
Network Protocols	TCP/IP, IPv4, IPv6, DHCP, DNS, PPPoE, VRRP, SNMP, MQTT, HTTP/HTTPS, FTP, SSH, Telnet
Industrial Protocols	Modbus TCP, SNMP, TR-069, NTRIP, MQTT, SMPP
Security	Firewall, DDoS protection, IPsec encryption (DES/3DES/AES128/192/256), OpenVPN encryption (12 methods)
CPU	Mediatek MIPS 24Kc 580 MHz
Memory	128 MB RAM, 16 MB Flash
Power Input	9-30 VDC via 4-pin connector
Power Consumption	7 W
Operating Temperature	-40°C to 75°C
Enclosure	Aluminum, IP30 rated
Dimensions	110 × 50 × 100 mm (W × H × D)
Weight	280 g
Antenna Connectors	2 × SMA (LTE), 2 × RP-SMA (WiFi), 1 × SMA (GNSS)
LED Indicators	Connection type (dual-color), 5 signal strength, 4 Ethernet, 1 power
Management	WebUI, SMS, Teltonika RMS remote management platform
Certifications	FCC Part 15, FirstNet, AT&T, T-Mobile, Verizon, C1D2
Warranty	2 years hardware; lifetime software updates

What's Included

- RUT956A00A00 Router

- 9W Power Supply Unit (PSU)

- 2 × LTE Antennas (magnetic mount, SMA male, 3m cable)

- 2 × WiFi Antennas (magnetic mount, RP-SMA male, 1.5m cable)

- 1 × GNSS Antenna (adhesive mount, SMA male, 3m cable)

- RS485 Connector Module

- I/O Connector Module

- Ethernet Cable (1.5m)

- SIM Adapter Kit

- Quick Start Guide

General Specifications
Brand	Teltonika
Model No.	RUT956A00A00

Product Details
Color	Black
Power Source	DC-powered
Ethernet LAN Interface Type	Fast
Network Protocols Supported	DHCP, DNS, SNMP, TCP/IP
Networking Standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Wi-Fi Standard	802.11b, 802.11g, 802.11n
Security Algorithms	WPA2-PSK, WPA3-SAE, WPA3-EAP, AES-CCMP, TKIP, IPSec, SSH, SSL/TLS
Antenna Type	Dipole
