Teltonika RUTM54000000 5G Industrial Cellular Router with Dual-Band WiFi and Dual SIM Failover

Name: Teltonika RUTM54000000 5G Industrial Cellular Router with Dual-Band WiFi and Dual SIM Failover
Brand: Teltonika
SKU: Custom-Teltonika-RUTM54000000

Brand Teltonika

Model Number RUTM54000000

EpicRise Warranty First Year

Product Highlights

• 5G SA/NSA connectivity with download speeds up to 3.4 Gbps and backward compatibility with 4G LTE and 3G networks

• Dual Mini-SIM (2FF) and eSIM support with automatic failover for uninterrupted service and network redundancy

• Five Gigabit Ethernet ports and dual-band WiFi 5 (802.11ac) supporting up to 150 simultaneous connections

• Industrial-grade design with -40°C to 75°C operating temperature range and aluminum housing for harsh environments

• Advanced routing with RutOS supporting VPN protocols (OpenVPN, IPsec, WireGuard), QoS, dynamic routing, and data-to-server integration

Overview
Specifications
FAQ
User Guides
Reviews

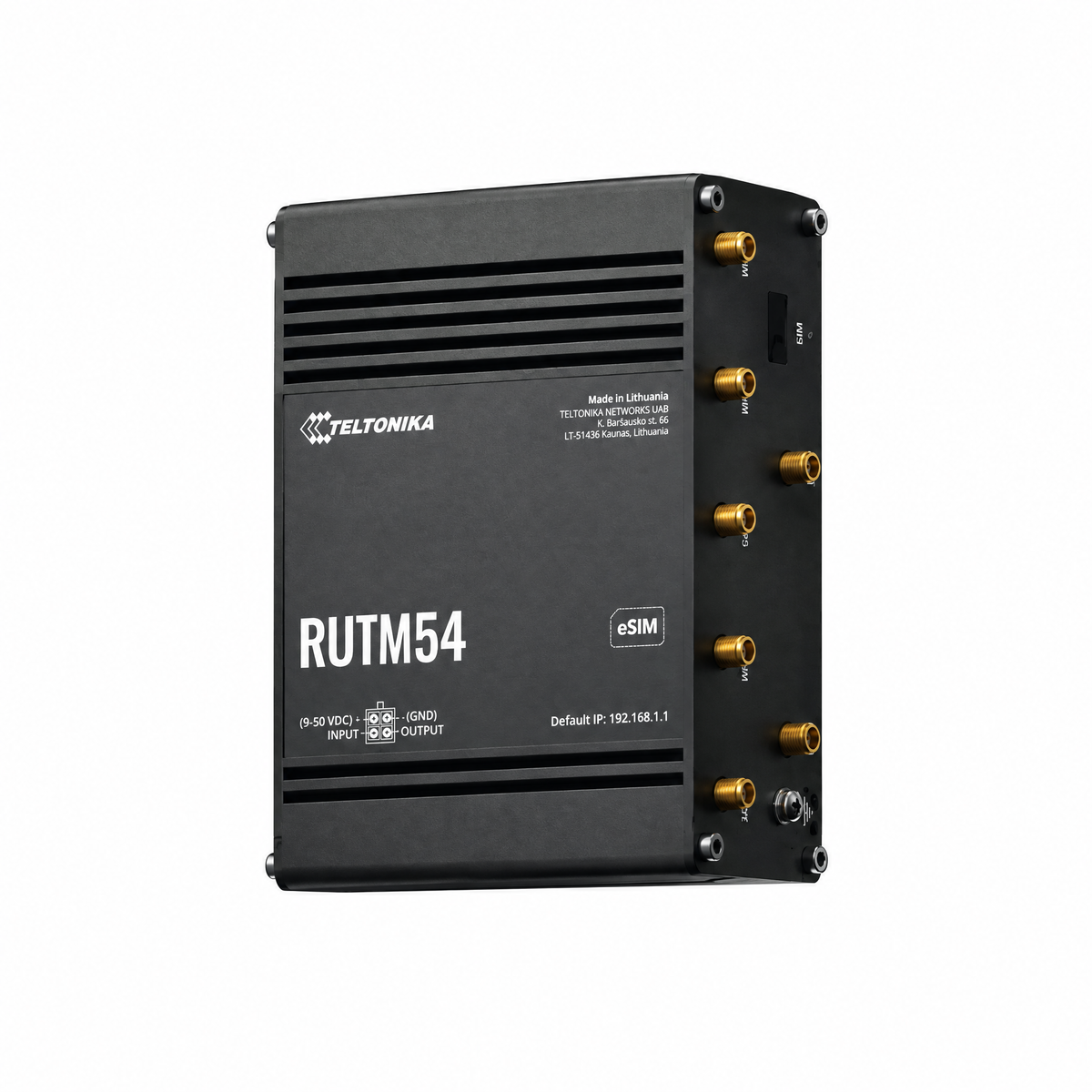

The Teltonika RUTM54000000 is an industrial-grade 5G cellular router designed for enterprise networks requiring high-speed, reliable connectivity with comprehensive failover capabilities. Built on Teltonika's RutOS platform, this router combines 5G SA/NSA support, dual SIM/eSIM functionality, and multiple wired and wireless interfaces to deliver uninterrupted network access for mission-critical applications.

Featuring a Telit 5G modem with global band support, the RUTM54 delivers cellular download speeds up to 3.4 Gbps (5G) and 1.6 Gbps (4G LTE Cat 19), with seamless fallback to 4G and 3G networks. The router's dual SIM slots and eSIM support (up to 7 profiles) enable automatic failover and backup WAN configurations, ensuring continuous operation even during carrier outages. Five Gigabit Ethernet ports and dual-band WiFi 5 provide additional connectivity options with automatic failover between cellular and wired/wireless interfaces.

Engineered for demanding environments, the RUTM54 operates in temperatures from -40°C to 75°C and features an anodized aluminum housing with IP30 rating. The device supports advanced routing protocols (BGP, OSPF, EIGRP), multiple VPN solutions, and data-to-server integration via MQTT, HTTP(S), and Azure IoT, making it ideal for industrial IoT deployments, remote site connectivity, and network infrastructure modernization.

Best For

The RUTM54 5G router is engineered for enterprise and industrial applications requiring high-bandwidth cellular connectivity with failover protection and advanced network management capabilities.

- Remote site connectivity: Branch offices, pop-up locations, and temporary facilities requiring instant high-speed network deployment without wired infrastructure

- Primary or backup WAN: Enterprise networks using 5G as primary connection or automatic failover backup for fiber/cable with dual SIM redundancy

- Industrial IoT and edge computing: Manufacturing facilities, utilities, and logistics operations requiring reliable data transmission from sensors, SCADA systems, and edge devices

- Mobile and transportation networks: Fleet management, public transit, and mobile command centers needing continuous connectivity across cellular networks

- Outdoor and harsh environments: Construction sites, oil and gas installations, and remote monitoring stations operating in extreme temperature conditions (-40°C to 75°C)

Key Features

- 5G SA/NSA cellular connectivity with Telit modem supporting download speeds up to 3.4 Gbps and upload speeds up to 900 Mbps (5G Sub-6GHz)

- Dual Mini-SIM (2FF) slots and eSIM support (up to 7 profiles) with automatic failover, backup WAN, and carrier blacklist/whitelist functionality

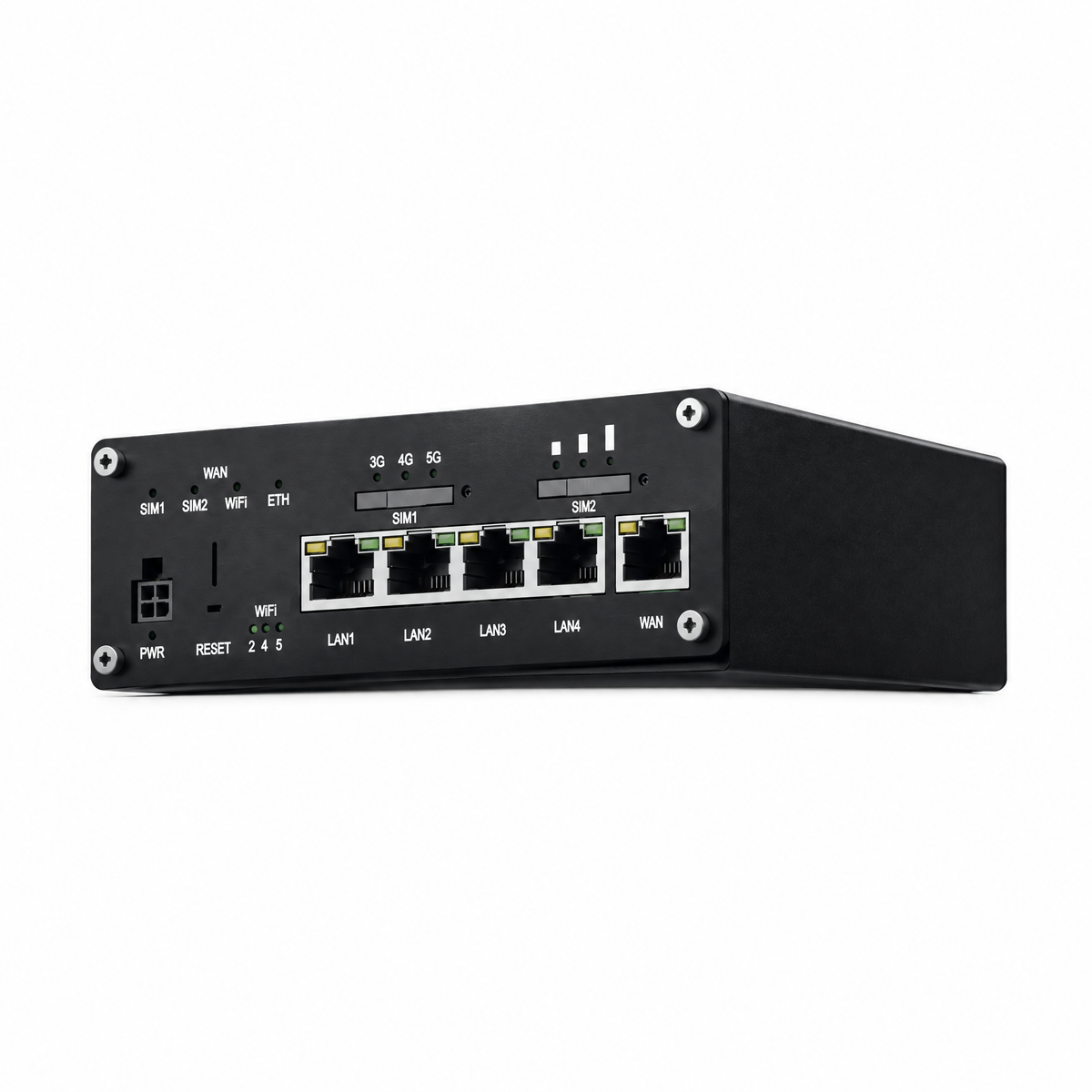

- Five Gigabit Ethernet ports (1 WAN, 4 LAN) with IEEE 802.3, 802.3u, 802.3az compliance and auto MDI/MDIX crossover

- Dual-band WiFi 5 (802.11ac Wave 2) with MU-MIMO supporting up to 867 Mbps and 150 simultaneous client connections

- Multi-GNSS support (GPS, GLONASS, BeiDou, Galileo, QZSS) for location-based services and asset tracking applications

- RutOS operating system based on OpenWrt Linux with support for OpenVPN, IPsec, WireGuard VPN protocols and 27 encryption methods

- Advanced routing capabilities including BGP, OSPF v2, RIP v1/v2, EIGRP, policy-based routing, and VRRP for high availability

- Data-to-server protocols (MQTT, HTTP(S), Azure IoT Core) with custom LUA scripting for IoT platform integration

- Industrial operating temperature range (-40°C to 75°C) with anodized aluminum housing and IP30 rating

- USB 2.0 port for external storage (Samba sharing), USB-to-serial adapters, and peripheral device connectivity

- Digital I/O (1 input, 1 output) for remote monitoring, automation triggers, and integration with industrial control systems

- Passive PoE input on LAN1 port (9-50 VDC, Mode B) for flexible power options in field installations

Quick Specs

Specification	Details
Cellular Technology	5G Sub-6GHz SA/NSA, 4G LTE Cat 19/18, 3G WCDMA
5G Bands	n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79
4G LTE Bands	FDD: B1-B5, B7, B8, B12-B14, B17-B20, B25-B26, B28-B30, B32, B66; TDD: B34, B38-B43, B46, B48, B71
Cellular Speeds	5G: 3.4 Gbps DL / 900 Mbps UL; 4G: 1.6 Gbps DL / 211 Mbps UL; 3G: 42 Mbps DL / 5.7 Mbps UL
SIM Support	2x Mini-SIM (2FF) slots, 1x eSIM (up to 7 profiles), automatic failover
Ethernet Ports	5x Gigabit (1 WAN, 4 LAN), 10/100/1000 Mbps, auto MDI/MDIX
WiFi	802.11b/g/n/ac Wave 2 (WiFi 5), dual-band 2.4/5 GHz, up to 867 Mbps, MU-MIMO, 150 concurrent users
WiFi Security	WPA2/WPA3, AES-CCMP, TKIP, EAP-TLS, 802.11r fast roaming
GNSS	GPS, GLONASS, BeiDou, Galileo, QZSS
Processor	MediaTek dual-core 880 MHz MIPS1004Kc
Memory	256 MB DDR3 RAM, 16 MB NOR + 256 MB NAND flash
Operating System	RutOS (OpenWrt-based Linux)
VPN Support	OpenVPN (27 encryption methods), IPsec, WireGuard
Routing Protocols	Static, BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, policy-based routing
Network Protocols	TCP/IP, IPv4/IPv6, DHCP, DNS, VRRP, PPPoE, SNMP, MQTT, VXLAN
USB	1x USB 2.0 (external storage, USB-to-serial, Samba sharing)
Digital I/O	1x input (0-6V low, 8-30V high), 1x output (open collector, max 30V 300mA)
Power Input	9-50 VDC via 4-pin industrial connector or passive PoE (LAN1, Mode B)
Power Consumption	4W idle, 14W maximum

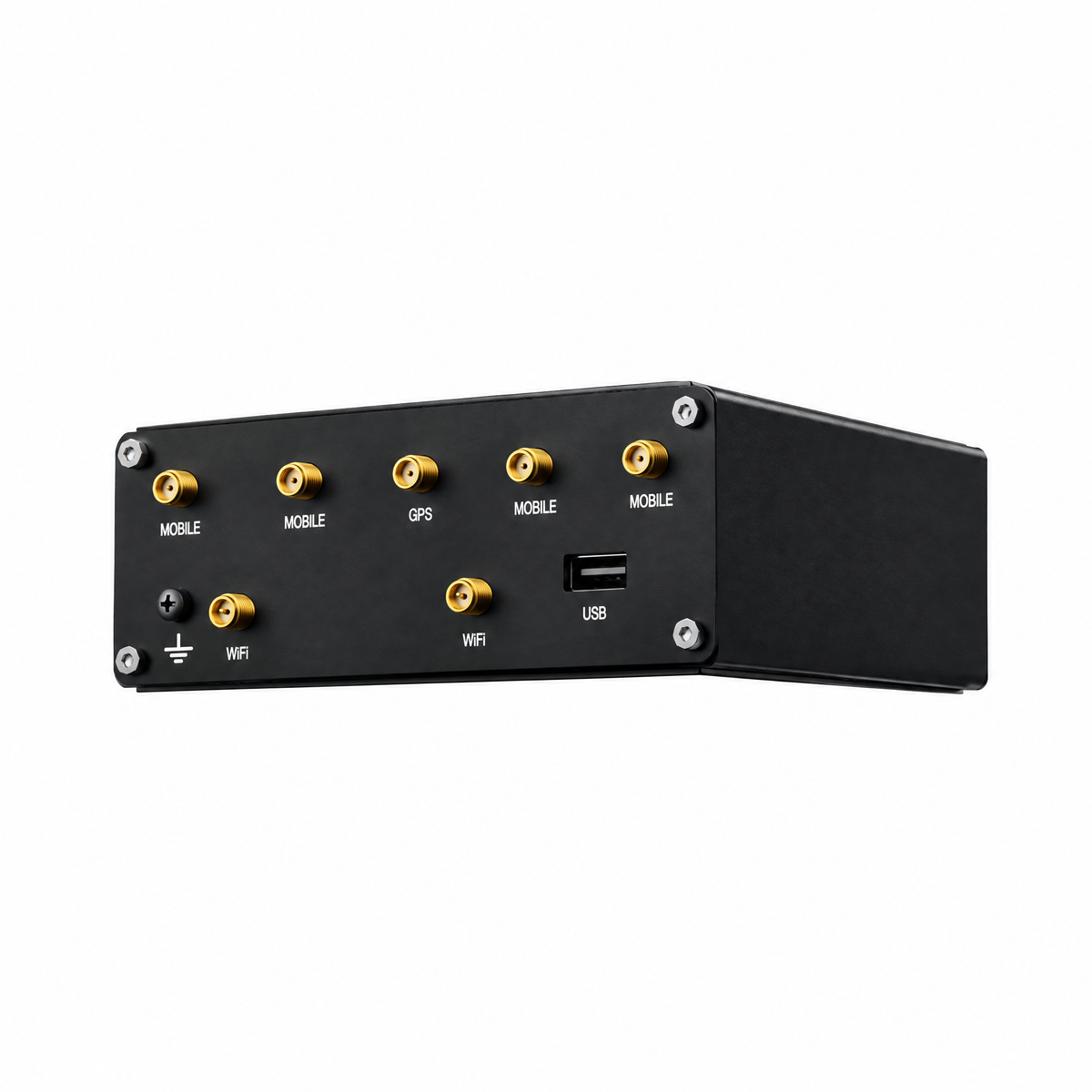

Antennas	4x SMA (cellular), 2x RP-SMA (WiFi), 1x SMA (GNSS)
Operating Temp	-40°C to 75°C (-40°F to 167°F)
Housing	Anodized aluminum, IP30 rating
Dimensions (WxHxD)	132 x 44.2 x 95 mm
Weight	530 g
Mounting	DIN rail (included), optional wall/surface mount kit

Product Details
Power Source	DC-powered

What environments and use cases is the RUTM54 5G router best suited for?

The RUTM54 is designed for industrial and enterprise environments requiring high-speed cellular connectivity with extreme temperature tolerance. It operates reliably in -40°C to 75°C conditions, making it suitable for outdoor installations, remote monitoring sites, manufacturing facilities, and transportation networks. The device excels in scenarios requiring automatic failover between cellular carriers and wired/wireless connections, such as backup WAN for branch offices or primary connectivity for temporary sites.

How does the RUTM54 compare to other Teltonika industrial routers in terms of connectivity and performance?

The RUTM54 is Teltonika's flagship 5G router offering the highest cellular speeds in their product line (3.4 Gbps download vs. 1.6 Gbps on 4G-only models). It includes dual SIM plus eSIM support with up to 7 profiles, providing more carrier options than standard dual-SIM routers. The device combines 5G with five Gigabit Ethernet ports, dual-band WiFi 5 supporting 150 users, and GNSS capabilities, delivering a comprehensive connectivity platform for enterprises transitioning to 5G infrastructure.

Is the investment in a 5G industrial router justified compared to 4G alternatives for enterprise deployments?

The RUTM54 delivers value for enterprises requiring bandwidth-intensive applications, multiple simultaneous connections, or future-proofing network infrastructure. With 5G speeds up to 3.4 Gbps (vs. 1.6 Gbps on 4G Cat 19), it supports higher throughput for video surveillance, IoT device aggregation, and backup WAN scenarios where fiber-equivalent speeds are needed. The device maintains backward compatibility with 4G and 3G, protecting the investment in areas where 5G coverage is still expanding.

What systems and network configurations is the RUTM54 compatible with?

The RUTM54 supports standard IPv4/IPv6 networks and integrates with enterprise infrastructure via BGP, OSPF, EIGRP routing protocols. It connects to cloud platforms through MQTT, HTTP(S), and Azure IoT Core protocols. The device works with RADIUS/TACACS+ authentication servers and supports VPN connections via OpenVPN, IPsec, and WireGuard. USB ports accept external storage (FAT/FAT32/exFAT/NTFS/ext2/ext3/ext4) and USB-to-serial adapters for legacy equipment integration. Passive PoE input accepts 9-50 VDC but is not compatible with standard IEEE 802.3af/at/bt PoE switches.

What is the maximum number of WiFi clients the RUTM54 can support simultaneously?

The RUTM54 supports up to 150 simultaneous WiFi connections across its dual-band 802.11ac Wave 2 (WiFi 5) radio. The device uses MU-MIMO technology to handle multiple clients efficiently, with maximum throughput of 867 Mbps on the 5 GHz band. This capacity makes it suitable for high-density environments such as warehouses, office branch locations, or temporary event sites requiring guest network access alongside operational connectivity.

How does the dual SIM and eSIM functionality work for carrier failover?

The RUTM54 includes two physical Mini-SIM (2FF) slots plus an embedded eSIM that stores up to 7 carrier profiles. You can configure automatic failover between SIM cards based on connection quality, carrier availability, or manual priority settings. The router supports carrier blacklist/whitelist functions and can route different traffic types through different SIMs (multi-PDN access). Failover switching happens automatically when the active connection degrades or fails, ensuring continuous network availability.

Can the RUTM54 function as a primary router with advanced routing protocols for enterprise networks?

Yes, the RUTM54 runs RutOS (OpenWrt-based) and supports enterprise routing protocols including BGP, OSPF v2, RIP v1/v2, EIGRP, and NHRP for dynamic routing. It handles policy-based routing, static routes, VRRP for high availability, and VLAN configurations. The device includes comprehensive firewall capabilities (NAT, NAT-T, NAT64, DMZ), QoS/SQM traffic management, and supports simultaneous VPN tunnels (OpenVPN, IPsec, WireGuard) with 27 encryption methods. This feature set makes it suitable as a primary router for branch offices or edge network locations.

What power options are available for field installations?

The RUTM54 accepts 9-50 VDC input via a 4-pin industrial DC connector with reverse polarity and surge protection. It can also receive power via passive PoE on the LAN1 port (Mode B, 9-50 VDC), allowing installation in locations where only Ethernet cabling is available. Note that the passive PoE is not compatible with standard IEEE 802.3af/at/bt PoE switches—it requires a passive PoE injector. A 12V 1.5A power adapter is included. Power consumption ranges from 4W idle to 14W maximum.
