TSC TTP-244CE Desktop Thermal Transfer Label Printer | 4.25", 203 dpi, USB Only, Navy Blue

Product Highlights

Durable design for demanding environments
Includes Windows drivers and Bartender Ultra-Lite label design software
Manufactured in a company-owned factory with strict quality standards
Consistent performance with Genuine Supplies
No Ethernet or Bluetooth ports

Overview
Specifications
FAQ
User Guides

This thermal barcode label printer is built to withstand the most demanding environments, ensuring long-lasting durability and reliable performance. It comes equipped with Windows drivers and Bartender Ultra-Lite label design software by Seagull Scientific, making label design easy without the need for a database connection. The printer's high-quality construction is backed by a company-owned factory that adheres to strict quality management standards, ensuring process efficiency, regulatory compliance, and continuous innovation. For optimal performance, the printer works best with Genuine Supplies, providing consistent, premium-quality results. Please note that this model does not include Ethernet or Bluetooth ports.

Durable design for demanding environments
Includes Windows drivers and Bartender Ultra-Lite label design software
Manufactured in a company-owned factory with strict quality standards
Consistent performance with Genuine Supplies
No Ethernet or Bluetooth ports

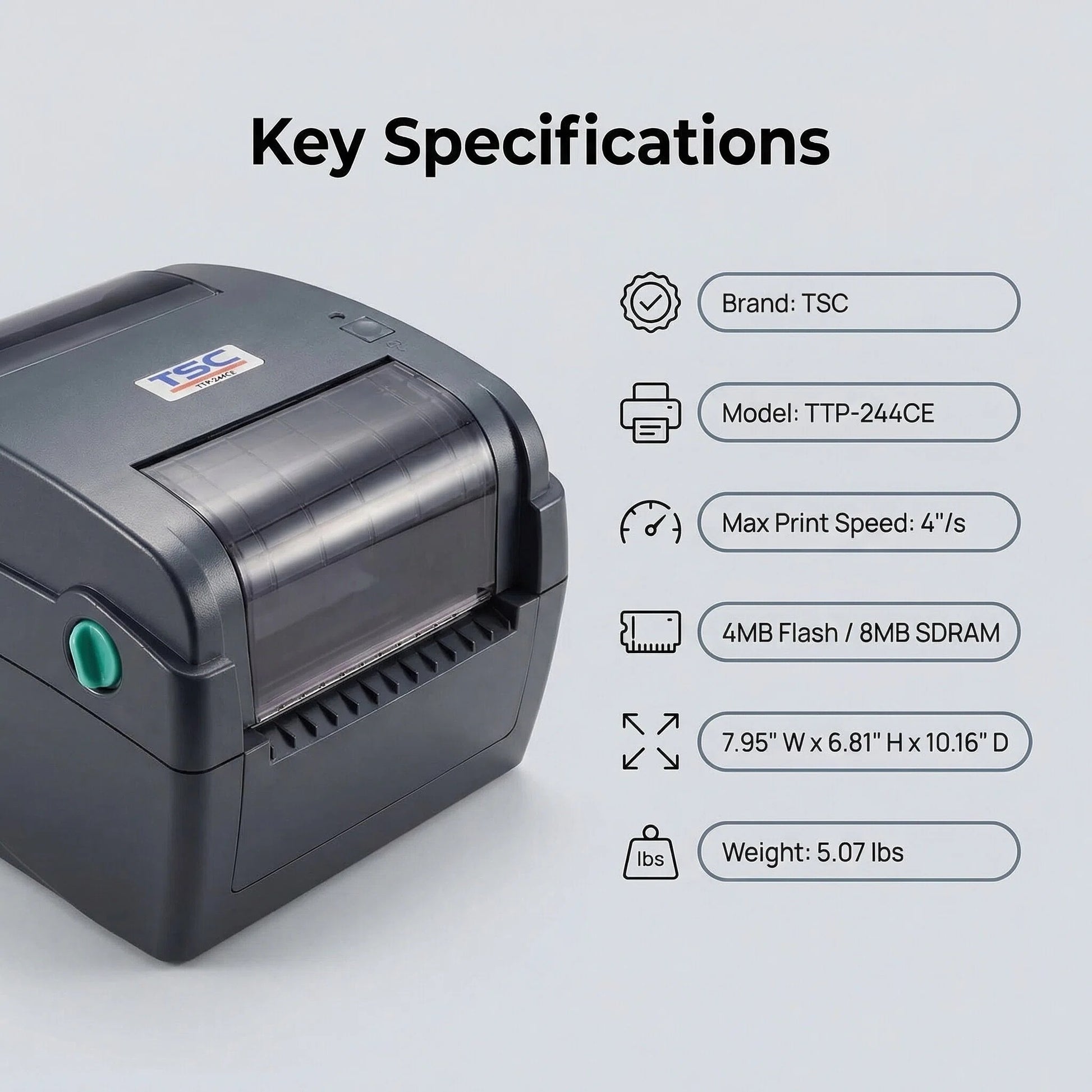

General Specifications

Model: TTP-244CE (Basic and Advanced versions)
Print Method: Thermal Transfer & Direct Thermal
Resolution: 203 DPI (8 dots/mm)
Processor: 32-bit RISC CPU

Physical Characteristics

Dimensions: 7.95 in (W) × 6.81 in (H) × 10.16 in (D)
Weight: 5.07 lbs (2.3 kg)
Enclosure: Double-walled plastic

Performance

Max Print Speed: 4 inches/sec (102 mm/sec)
Max Print Width: 4.25 inches (108 mm)
Max Print Length: 90 inches (2,286 mm)
Memory:

4 MB Flash memory
8 MB SDRAM
SD card slot (Advanced version) supports up to 4 GB

Connectivity

Basic Version: USB 2.0
Advanced Version: USB 2.0, RS-232, Centronics Parallel, Ethernet (10/100 Mbps), Bluetooth (optional)

Media Handling

Label Roll Capacity: 5" (127 mm) OD
Ribbon Length: 110 meters (max OD 40 mm, 0.5" core)
Media Width: 0.79" – 4.4" (20 – 112 mm)
Media Thickness: 2.36 – 7.48 mil
Media Core Diameter: 1" – 1.5" (25.4 – 38.1 mm)

Sensing and Control

Sensors:

Gap transmissive sensor
Black mark reflective sensor (adjustable)
Head open sensor
Ribbon end sensor

Operation: 1 Power switch, 1 Feed button, 1 Tri-color LED (Green, Amber, Red)

Software & Barcodes

Printer Language: TSPL-EZ™ (compatible with EPL, ZPL, ZPL II)
Internal Fonts: 8 bitmap fonts + scalable TrueType fonts (Monotype Image® engine)
1D Barcodes: Code 39, Code 128, EAN-13, UPC-A, etc.
2D Barcodes: PDF417, DataMatrix, QR Code, MaxiCode, Aztec

Power

External Adapter:

Input: 100-240V AC, 2.5A, 50-60Hz
Output: 24V DC, 2.5A, 60W

Environmental

Operating Temperature: 5°C to 40°C (41°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 25% to 85% RH (operating), 10% to 90% RH (storage)

Compliance

Safety Certifications: FCC Class B, CE Class B, C-Tick, UL, CUL, TÜV, CCC
Environmental: RoHS, WEEE compliant

📥 Download Product Manual (PDF)

What printing methods does the TTP-244CE support?
The TTP-244CE supports both thermal transfer and direct thermal printing methods.

What is the maximum print speed and resolution?
It offers a maximum print speed of 4 inches per second and a resolution of 203 dpi (8 dots/mm).

What are the connectivity options available?
The printer includes USB 2.0, RS-232 serial, and Centronics parallel interfaces. Some advanced models also offer internal Ethernet and USB Host options.

What types of media can the TTP-244CE handle?
It can handle continuous, die-cut, tag, and fan-fold labels with a media width ranging from 20 mm to 112 mm (0.79" to 4.4").

What is the maximum label roll capacity?
The printer supports a maximum label roll diameter of 127 mm (5").

Does the printer require a ribbon for printing?
For thermal transfer printing, a ribbon is required. However, for direct thermal printing, no ribbon is needed.

What is the maximum ribbon length supported?
The TTP-244CE supports ribbons up to 110 meters in length with a maximum outer diameter of 40 mm.

Can I use the TTP-244CE for printing barcodes?
Yes, it supports various barcode formats and can print barcodes using compatible label design software.

Is the printer compatible with different operating systems?
The TTP-244CE is compatible with Windows operating systems. Drivers and software can be downloaded from the TSC website.
