Vertiv Liebert GXT5-1500LVRT2UXL 1500VA/1350W Online Double Conversion UPS with 2U Rack/Tower Design
Media gallery

Vertiv Liebert GXT5-1500LVRT2UXL 1500VA/1350W Online Double Conversion UPS with 2U Rack/Tower Design
Media gallery

Vertiv Liebert GXT5-1500LVRT2UXL 1500VA/1350W Online Double Conversion UPS with 2U Rack/Tower Design

Vertiv Liebert GXT5-1500LVRT2UXL 1500VA/1350W Online Double Conversion UPS with 2U Rack/Tower Design

Name: Vertiv Liebert GXT5-1500LVRT2UXL 1500VA/1350W Online Double Conversion UPS with 2U Rack/Tower Design
Brand: Vertiv Liebert
SKU: VL-GXT5-1500LVRT2UXL

Brand Vertiv Liebert

Model Number GXT5-1500LVRT2UXL

EpicRise Warranty First Year

Product Highlights

• Online double conversion topology with zero transfer time ensures continuous power conditioning and protection for mission-critical systems

• 2U rack/tower convertible design with gravity-sensing color LCD provides flexible installation in data centers and edge network locations

• Hot-swappable sealed lead-acid batteries deliver 18.8 minutes runtime at half load with user-replaceable maintenance

• Up to 95% online efficiency and 98% in Active ECO mode reduces operating costs and heat generation in IT environments

• Four programmable outlets enable load shedding and equipment control to optimize battery runtime during power events

Overview
Specifications
FAQ
User Guides
Reviews

The Vertiv Liebert GXT5-1500LVRT2UXL delivers enterprise-grade power protection for critical IT infrastructure through online double conversion topology. This 1500VA/1350W UPS provides zero transfer time and continuous power conditioning, protecting servers, networking equipment, and storage systems from utility disturbances, voltage fluctuations, and power outages. The 2U form factor offers rack/tower convertibility for deployment flexibility in data centers, server rooms, and edge computing sites.

Designed for organizations requiring maximum uptime, the GXT5-1500LVRT2UXL features hot-swappable batteries, four programmable outlets for load management, and auto-detection of external battery cabinets for extended runtime. The gravity-sensing color LCD simplifies configuration and monitoring, while USB and serial ports enable integration with power management software. Energy Star 2.0 certification and up to 98% efficiency in Active ECO mode reduce operational costs.

Best For

The GXT5-1500LVRT2UXL serves IT decision makers and enterprise purchasers across sectors requiring reliable power infrastructure protection:

- Data Center and Server Room Protection: Safeguards rack-mounted servers, storage arrays, and network switches with online double conversion and zero transfer time

- Healthcare IT Systems: Ensures continuous operation of electronic medical records systems, PACS workstations, and clinical applications with pure sine wave output

- Financial Services Infrastructure: Protects transaction processing systems, trading workstations, and database servers with generator-friendly design and EPO capability

- Education Network Equipment: Maintains campus network connectivity and administrative systems during power events with programmable outlet control

- Retail Point-of-Sale and Inventory Systems: Prevents transaction data loss and maintains business continuity with scalable runtime through external battery cabinets

Key Features

- Online double conversion UPS topology isolates connected equipment from utility power disturbances while providing voltage and frequency regulation with zero transfer time

- 1500VA/1350W capacity with 0.9 power factor supports higher wattage IT equipment and maximizes available power for connected loads

- 2U rack/tower convertible chassis includes all mounting hardware for installation flexibility in 4-post racks or freestanding tower configuration

- Hot-swappable sealed lead-acid batteries enable maintenance without powering down connected equipment; 18.8 minutes runtime at 675W half load

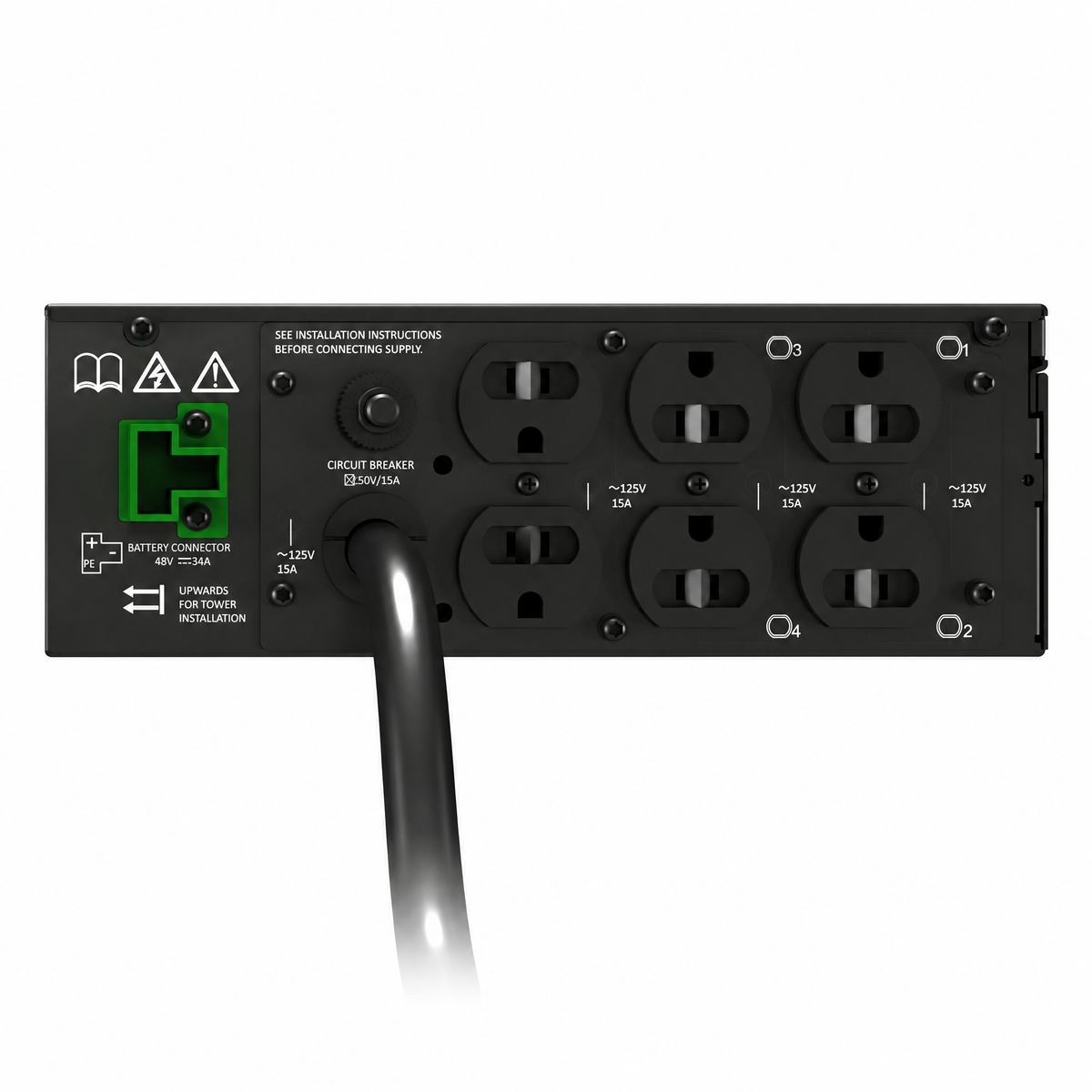

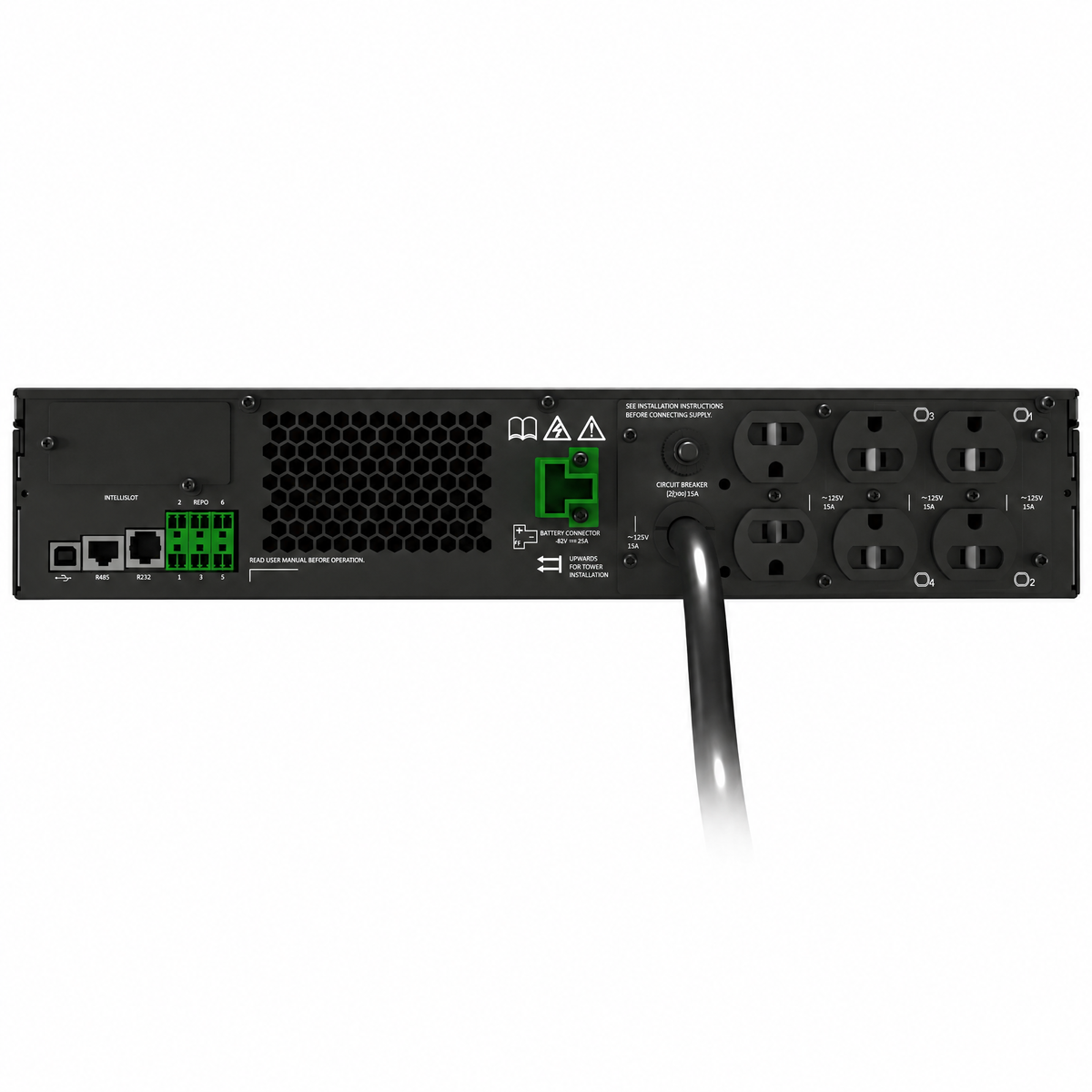

- Four programmable 5-15R outlets and two non-programmable outlets provide load shedding capability and equipment power sequencing control

- Auto-detection of external battery cabinets extends runtime up to 79.7 minutes at half load when connected to GXT5-EBC48VRT2U

- Gravity-sensing color LCD automatically rotates display orientation for tower or rack installation with intuitive local configuration interface

- USB and RS-232/RS-485 serial communication ports support SNMP management via optional IntelliSlot RDU120 network card

- Generator-friendly input design with resettable circuit breaker integrates seamlessly into backup power infrastructure with 60-150V input range

- Emergency Power Off terminal block port enables remote UPS shutdown for fire suppression system integration and facility safety protocols

- Up to 95% online efficiency and 98% in Active ECO mode reduces heat generation and cooling requirements in temperature-controlled environments

- Network grade surge protection meets ANSI C62.41 Category B standards for comprehensive input transient suppression

Quick Specs

Specification	Details
Model Number	GXT5-1500LVRT2UXL
Power Rating	1500VA / 1350W
UPS Topology	Online Double Conversion
Input Voltage	120VAC nominal (60-150V range)
Input Frequency	40-70Hz auto-sensing
Input Connection	NEMA 5-15P with 10 ft attached cord
Output Voltage	110/115/120/125VAC user-configurable ±3%
Output Waveform	Pure sine wave
Output Receptacles	6× NEMA 5-15R (4 programmable, 2 non-programmable)
Battery Type	Sealed Lead-Acid VRLA, hot-swappable
Runtime (Full Load)	6.7 minutes at 1350W
Runtime (Half Load)	18.8 minutes at 675W
Recharge Time	3 hours to 90% capacity
External Battery	GXT5-EBC48VRT2U (extends to 79.7 min at half load)
Replacement Battery	GXT5-48VBATKIT
Efficiency (Online)	Up to 95%
Efficiency (ECO Mode)	Up to 98%
Communication Ports	USB-B HID, RS-232 RJ45, RS-485, IntelliSlot
Display	Gravity-sensing color LCD
EPO	Yes, terminal block
Form Factor	2U rack/tower convertible
Dimensions (H×W×D)	3.4" × 16.9" × 18.6" (85×430×470mm)
Weight	46.2 lb (21 kg)
Operating Temperature	32-104°F (0-40°C)
Operating Humidity	0-95% non-condensing
Acoustic Noise	<46 dBa
Operating Altitude	Up to 9,842 ft (3,000m)

What's Included

- Vertiv Liebert GXT5-1500LVRT2UXL UPS unit

- Tower stand for freestanding installation

- 4-post rack mounting kit with hardware

- USB cable for local management connection

- Vertiv Power Insight Management Software

- User guide and safety instruction manual

Product Details
Power Source	AC-powered

What IT environments is the GXT5-1500LVRT2UXL best suited for?

This UPS is designed for small to medium enterprise server rooms, network closets, and edge computing sites requiring 1350W of protected power. The 2U rack/tower design fits standard 19-inch equipment racks or operates as a freestanding tower unit. Online double conversion topology makes it ideal for environments with unstable utility power, generator backup systems, or equipment sensitive to voltage fluctuations.

How does the 1500VA GXT5 model compare to the 3000VA model in the same series?

The 1500VA model provides 1350W output versus 2700W in the 3000VA unit, making it suitable for lighter server loads or smaller equipment configurations. Both share the same 2U form factor, online double conversion topology, and hot-swappable battery design. Choose the 1500VA for single server protection or small network equipment clusters where power requirements stay below 1350W.

Is the 1500VA capacity worth the investment compared to line-interactive UPS models?

Online double conversion topology provides zero transfer time and continuous power conditioning that line-interactive units cannot match, making it essential for critical servers and networking equipment. The higher efficiency (95% online, 98% ECO mode) and programmable outlets justify the investment for organizations requiring maximum uptime. The hot-swappable batteries and external battery cabinet compatibility also reduce long-term maintenance costs.

What equipment and management systems work with this UPS?

The unit connects to any 120VAC equipment using standard NEMA 5-15R outlets and supports loads up to 1350W total. USB and serial ports enable communication with Windows, Linux, and VMware systems running Vertiv Power Insight software. The optional IntelliSlot RDU120 card adds SNMP network management for integration with enterprise monitoring platforms. The 10-foot attached input cord connects to standard NEMA 5-15 wall outlets or PDUs.

How long does the internal battery provide backup power?

Internal sealed lead-acid batteries deliver 6.7 minutes at full 1350W load or 18.8 minutes at 675W half load. Adding the GXT5-EBC48VRT2U external battery cabinet extends runtime to 32.4 minutes at full load or 79.7 minutes at half load. The UPS recharges batteries to 90% capacity within three hours after discharge.

Can the batteries be replaced without shutting down connected equipment?

Yes, the GXT5-1500LVRT2UXL features hot-swappable batteries that allow replacement during operation without transferring connected equipment to utility power. Use the GXT5-48VBATKIT replacement battery kit for internal battery maintenance. The user-replaceable design eliminates the need for service technician visits for routine battery changes.

What mounting hardware is required for rack installation?

The included 4-post rack mounting kit (RMKIT18-32) provides all hardware needed for standard 19-inch equipment racks with adjustable depth rails. The unit installs in 2U of rack space and supports front flush or center mounting. For 2-post racks, the optional 2POSTRMKIT enables front flush or center mount installation, while the 2UTELECOMRKIT fits 19-inch telecom racks with center mount only.

How does the programmable outlet feature work?

Four of the six NEMA 5-15R outlets are programmable through the LCD interface or management software for load shedding and power sequencing. Program these outlets to shut down non-critical equipment during extended outages to preserve battery runtime for essential systems. The two non-programmable outlets remain energized as long as battery power is available, ensuring critical equipment stays protected.
