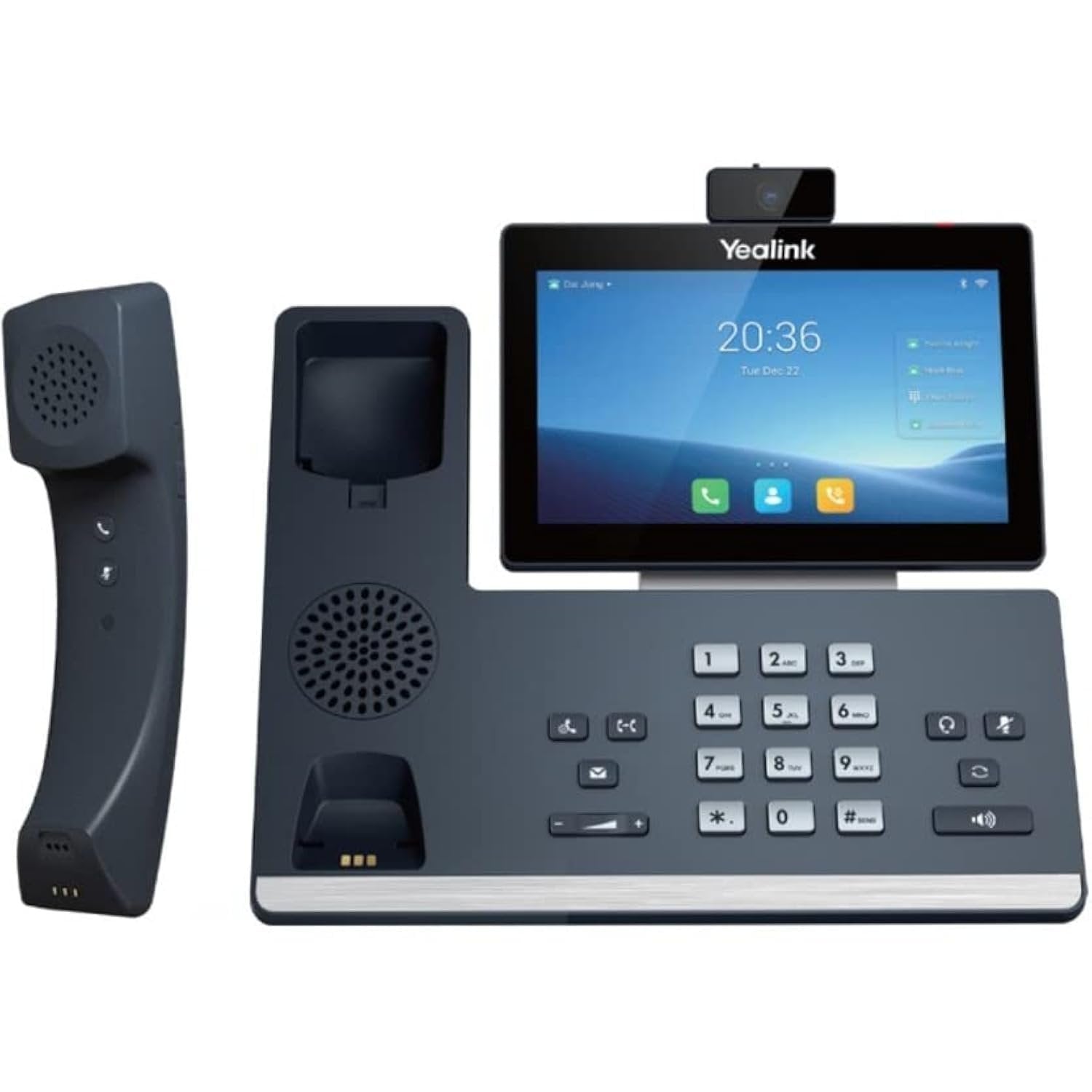

Yealink T58W Pro IP Phone - Corded/Cordless - Corded/Cordless - Wi-Fi, DECT, Bluetooth - Desktop, Wall Mountable - Classic Gray

Audio Features

HD Voice (handset & speaker)
Hearing Aid Compatible (HAC)
Acoustic Shield, Noise Proof, Smart Noise Filtering
Audio Codecs: G.722, PCMU (G.711µ), PCMA (G.711A), G.729, G.729A/B/AB, G.726, G.723.1, iLBC
DTMF: In-band, Out-of-band (RFC 2833), SIP INFO
Full-duplex speakerphone with AEC
Audio Technologies: VAD, CNG, AEC, PLC, AJB, AGC

Video Features

Codecs: H.264 High Profile, H.264, VP8
Resolution: 720P (1280x720) @ 30fps (≥ 512 kbps)
Yealink CAM50 Camera:

• 5 MP, Plug & Play
• Privacy shutter with LED indicator
• Vertical tilt: 47° ±3°, FOV: 75° ±5°
• Self-view (local video preview)

Display & Indicators

7" adjustable capacitive touch screen (1024 x 600 resolution)
Vertical tilt: 48°
5-point multi-touch
Screensaver and wallpaper options
LED indicators for call/message waiting
Icon-based UI with soft keys
Multilingual UI
Caller ID with name, number & photo

Built-in Android Applications

File Manager, Email, Calendar, Camera, Gallery, Recorder, Calculator, Browser, Messaging
Supports third-party Android apps

Phone Features

16 SIP accounts
Standard functions: hold, forward, waiting, transfer, redial, return, auto-answer, mute, DND
Group listening, emergency call, direct IP call
Ringtone import/delete, manual/auto date & time setting
Action URL/URI, Dial plan
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
10-party audio conferencing
Data transfer via Bluetooth, email, etc.
DoorPhone: Preview, Monitor, One-button Open
USB/Bluetooth support for CP900/CP700, UH36 headsets with advanced audio controls
Analog PSTN via CPN10
Wireless Access Point (AP mode)

Corded-Cordless Phone Support (via DECT Dongle DD10K)

Connect up to 4 DECT handsets
Support 4 concurrent calls
Compatible with Yealink W73H/W53H/W56H/W59R/DDPhone/CP930W
Slave handset configuration available

IP-PBX Features

Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
Anonymous call handling & rejection
Remote office, hot desking, intercom, paging
Call completion, call pickup/park, voicemail
Message Waiting Indicator (MWI), music on hold, call recording

Directory & Call History

Local phonebook: up to 1000 entries
Block list, Smart dialing
Remote XML/LDAP phonebook, Google Contacts
Import/export & search support
Call history: dialed, received, missed, forwarded

Feature Keys

27 one-touch DSS keys
7 feature keys: hold, transfer, message, headset, mute, redial, speakerphone
Volume control keys
Illuminated mute/headset/speakerphone keys

Interfaces

Dual-port Gigabit Ethernet
Power over Ethernet (IEEE 802.3af, Class 3)
Built-in dual-band Wi-Fi (2.4GHz / 5GHz; IEEE 802.11a/b/g/n)
Built-in Bluetooth 4.2 (supports handset, headset, phone pairing)
USB Ports:

• Top USB 2.0: CAM50 camera
• Rear USB 2.0: Flash drive, USB headset, Expansion Modules, EHS40

Other Ports:

• 1 × Security lock
• 1 × RJ9 handset
• 1 × RJ9 headset

Supports up to 3 color-screen expansion modules

Management

Provisioning:

• Web GUI, Phone UI, Auto-Provision
• FTP/TFTP/HTTP/HTTPS
• PnP, Zero-Sp-Touch, TR-069

Admin controls for app install/uninstall
Phone lock & Setup Assistant
Export logs & trace packages
Supports Yealink Device Management (YMDP/YMCS) & Unify Square

Network & Security

IPv4/IPv6 dual stack
SIP v1/v2
NAT traversal (STUN), Proxy/Peer SIP modes
Static/DHCP IP assignment
SNTP time sync
DNS-SRV, HTTP/HTTPS server
QoS: 802.1p/Q VLAN tagging, Layer 3 ToS DSCP
Security:

• TLS 1.3, SRTP, HTTPS certificate manager
• AES256 config file encryption, ADB encryption
• Digest auth (MD5, MD5-sess), OpenVPN, IEEE 802.1X, L2TP VPN
• WPA2/WPA3, Secure boot, GARP

Physical Features

Color: Classic Grey
Optional wall mount
Optional AC Adapter: AC 100–240V input / DC 5V 2A output
USB output: 5V 500mA
Power Consumption:

• PSU: 2.5W ~ 10W
• PoE: 3.3W ~ 9W

Dimensions (W × D × H × T): 259.4 × 220 × 239 × 42.6 mm
Operating Conditions:

• Temperature: -10 to +45°C (14–113°F)
• Humidity: 5% to 90% (non-condensing)

📥 Download Product Manual (PDF)

What operating system does the Yealink T58W Pro use?
The T58W Pro runs on Android 9.0, offering a user-friendly interface and compatibility with various applications. ​

What are the display specifications?
It features a 7-inch (1024 x 600) capacitive adjustable touch screen, providing clear visuals and easy navigation. ​

How many SIP accounts can it support?
The phone supports up to 16 SIP accounts, allowing for multiple lines and extensions. ​

Does it include a wireless handset?
Yes, the T58W Pro comes with the Yealink Bluetooth Handset BTH58, offering up to 17 hours of talk time and 46 hours of standby time.

Is video calling supported?
Yes, with the optional CAM50 camera, it supports 720p30 HD video calls, enhancing communication with visual interactions.

What audio features are included?
The phone offers Optimal HD audio, Yealink Noise Proof Technology, and supports the Opus codec for superior sound quality.

What connectivity options are available?
It includes built-in Bluetooth 4.2, dual-band 2.4G/5G Wi-Fi, dual USB 2.0 ports, and dual-port Gigabit Ethernet with PoE support. ​

Can it be wall-mounted?
Yes, the T58W Pro is wall-mountable, providing flexibility in installation. ​

Are expansion modules supported?
Yes, it supports up to 3 Yealink EXP50 Expansion Modules, allowing for additional programmable keys and enhanced functionality. ​

What security features are included?
The phone incorporates Arm TrustZone technology, enhancing security for data and applications.
