Yealink W56H DECT Wireless Handset with 2.4" Color Display and HD Audio for Business IP Telephony

Name: Yealink W56H DECT Wireless Handset with 2.4" Color Display and HD Audio for Business IP Telephony
Brand: Yealink
SKU: Custom-Yealink-W56H

Delivery Time: 0-3 days

Brand Yealink

Model Number W56H

Manufacture Warranty 1 Year

EpicRise Warranty First Year

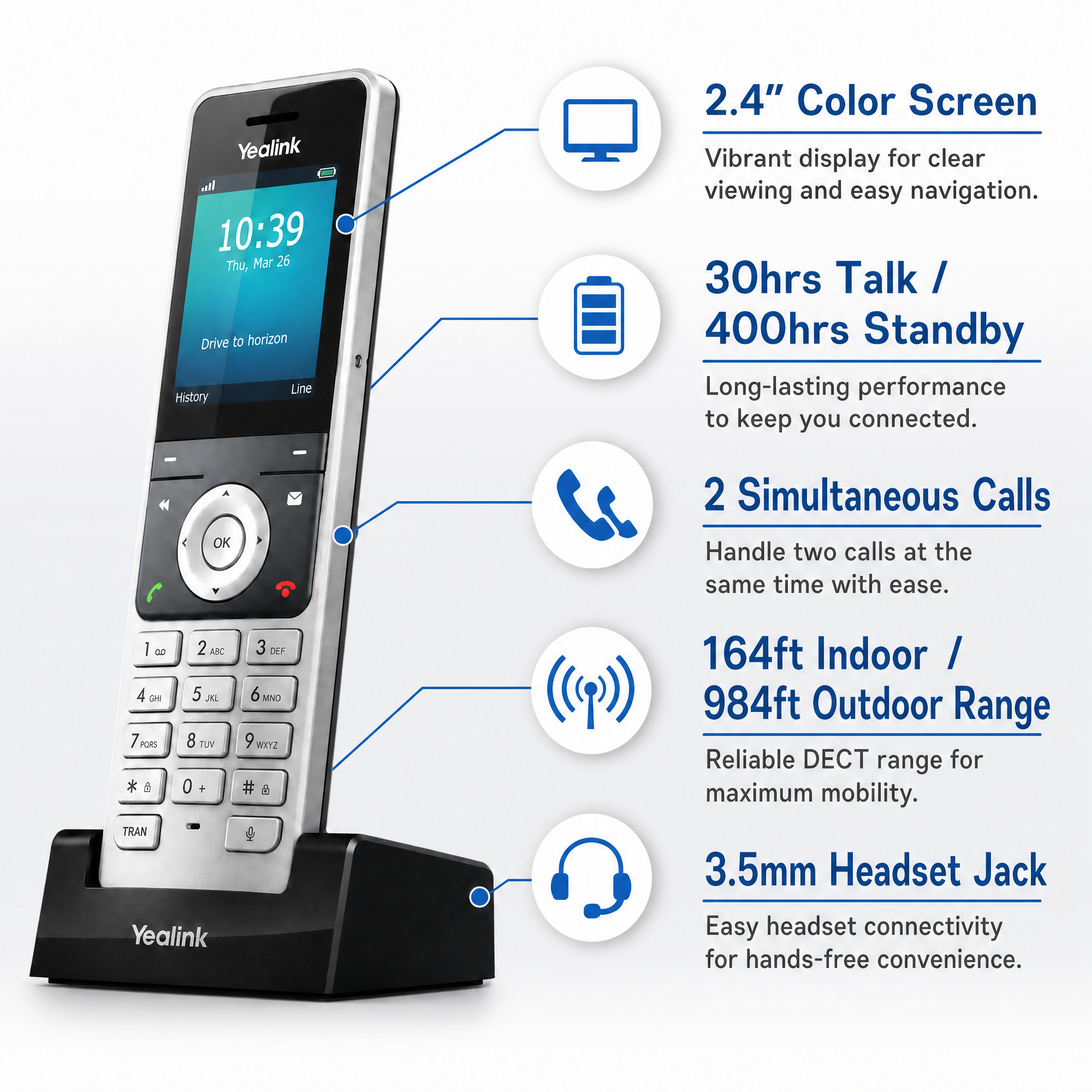

Product Highlights

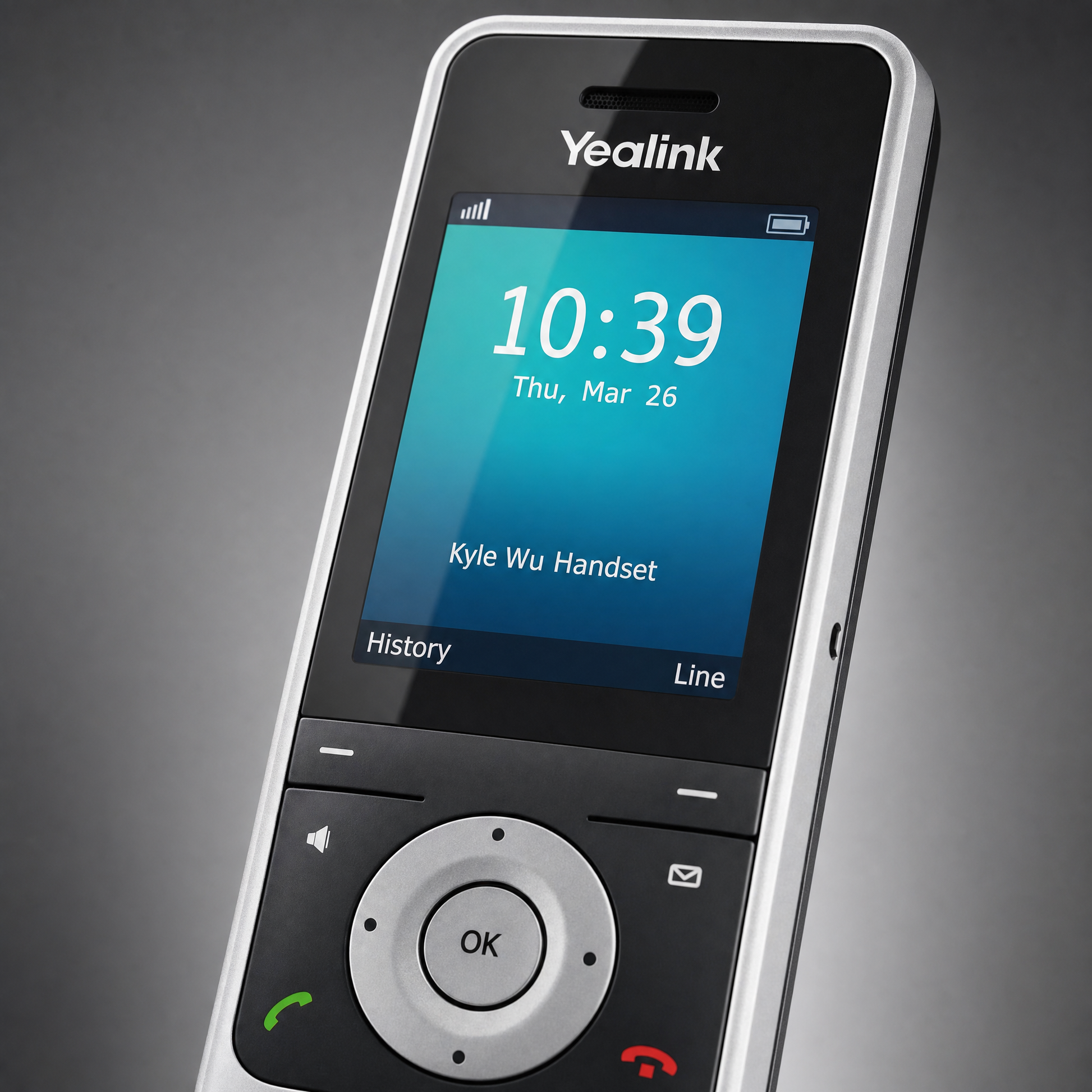

• 2.4-inch color display (240x320) with intuitive interface and backlit keypad for easy navigation in any lighting condition

• Up to 30 hours talk time and 400 hours standby with fast-charging lithium-ion battery for all-day business communication

• HD audio quality with Opus codec and Yealink noise cancellation system plus hearing aid compatibility (HAC) for crystal-clear calls

• Indoor range up to 50 meters and outdoor range up to 300 meters with DECT technology for mobile workforce coverage

• Compatible with Yealink W60B/W70B/W80B base stations supporting up to 2 concurrent calls per handset with 3-way conferencing

Overview
Specifications
FAQ
User Guides
Reviews

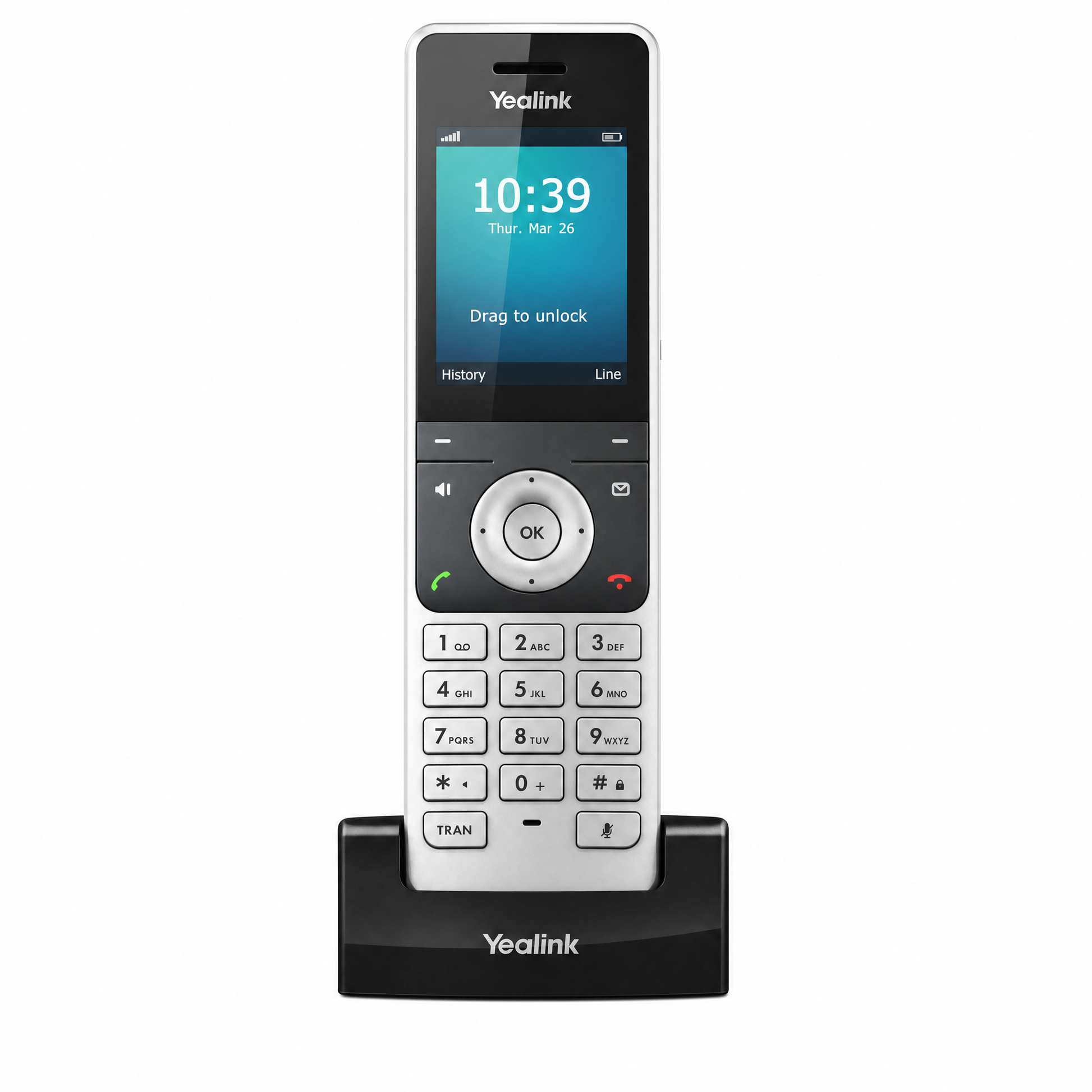

The Yealink W56H is a next-generation wireless DECT handset engineered for business environments that demand reliable mobile communication without compromising audio quality. Built on CAT-iq 2.0 DECT standards, the W56H delivers enterprise-grade voice clarity with HD audio codecs while providing the freedom to move throughout your facility. Its robust battery life and extended coverage range make it an ideal solution for teams who need to stay connected while on the move.

Designed with the busy professional in mind, the W56H combines a vibrant 2.4-inch color display with an ergonomic design that fits comfortably in your hand during extended use. The handset seamlessly integrates with Yealink DECT base stations (W60B, W70B, W80B) to create a scalable wireless communication system that grows with your business needs. With support for advanced telephony features including call transfer, conferencing, and remote phonebook access, the W56H brings desk phone functionality to a portable form factor.

Best For

The Yealink W56H is purpose-built for environments where mobility and reliable communication are essential business requirements.

- Healthcare facilities: Nurses and medical staff can stay connected throughout hospital floors and clinics while maintaining HIPAA-compliant communication through secure VoIP protocols

- Warehouses and light manufacturing: Supervisors and inventory managers can coordinate operations across large floor spaces with extended indoor/outdoor range coverage

- Retail stores: Sales associates and store managers can assist customers anywhere on the sales floor while accessing phonebook and caller ID information

- Hospitality venues: Hotel staff, restaurant managers, and event coordinators can maintain guest services communication while moving between facilities and outdoor areas

- Corporate offices: Employees who frequently move between conference rooms, shared workspaces, and office areas benefit from continuous connectivity without desk phone limitations

Key Features

- CAT-iq 2.0 DECT technology with dual-band support (1880-1900 MHz Europe, 1920-1930 MHz US) for stable wireless connectivity

- Wideband audio codecs including Opus, AMR-WB, and G.722 plus narrowband support for PCMU, PCMA, G.729, and iLBC for universal compatibility

- 100-entry phonebook storage on base station with remote phonebook support and call history tracking (dialed/missed/received calls)

- Advanced telephony features including call hold, transfer, 3-way conferencing, call waiting, DND, auto-answer, and voicemail integration

- 3.5mm headset jack for hands-free operation with support for wired headsets and hearing aid compatibility for accessibility

- Enterprise security features including TLS, SRTP, HTTPS, digest authentication, AES-encrypted configuration files, and OpenVPN support

- USB charging cradle with DC 5V/600mA output and fast-charging capability for rapid battery replenishment between shifts

- Multi-language support with customizable LCD and keypad backlighting, screensaver options, and date/time synchronization (manual or automatic)

Quick Specs

Display	2.4" color LCD, 240×320 pixels with backlight
DECT Standard	CAT-iq 2.0
Frequency Band	1880-1900 MHz (Europe), 1920-1930 MHz (US)
Range	Up to 50m indoors, up to 300m outdoors
Battery Life	Up to 30 hours talk time, up to 400 hours standby (V0-V3)
Concurrent Calls	Up to 2 per handset
Audio Codecs	Wideband: Opus, AMR-WB, G.722 \| Narrowband: AMR-NB, PCMU, PCMA, G.726, G.729, iLBC
Phonebook Capacity	100 entries (stored on base station)
Headset Connection	3.5mm jack
Hearing Aid Compatible	Yes (HAC compliant)
VoIP Protocols	SIP v1 (RFC2543), SIP v2 (RFC3261)
Security	OpenVPN, TLS, HTTPS, SRTP (RFC3711), AES encryption, SHA256/SHA512/SHA384
Network Features	VLAN (802.1Q/802.1P), 802.1x, LLDP, STUN, UDP/TCP/TLS
Keypad	12-key numeric, 5 navigation keys, 2 soft keys, 6 function keys, 6 shortcut keys
Dimensions	175mm × 53mm × 20.3mm
Color	Alabaster Silver
Operating Temperature	0°C to +40°C (alternative spec: 10°C to +50°C)
Operating Humidity	10% to 95%
Power Output	Maximum 10 mW transmission power
Charging	DC 5V/600mA, fast charging support
Upgrade Method	OTA (Over-the-Air)
Base Compatibility	Yealink W60B, W70B, W80B DECT base stations
Certifications	REACH

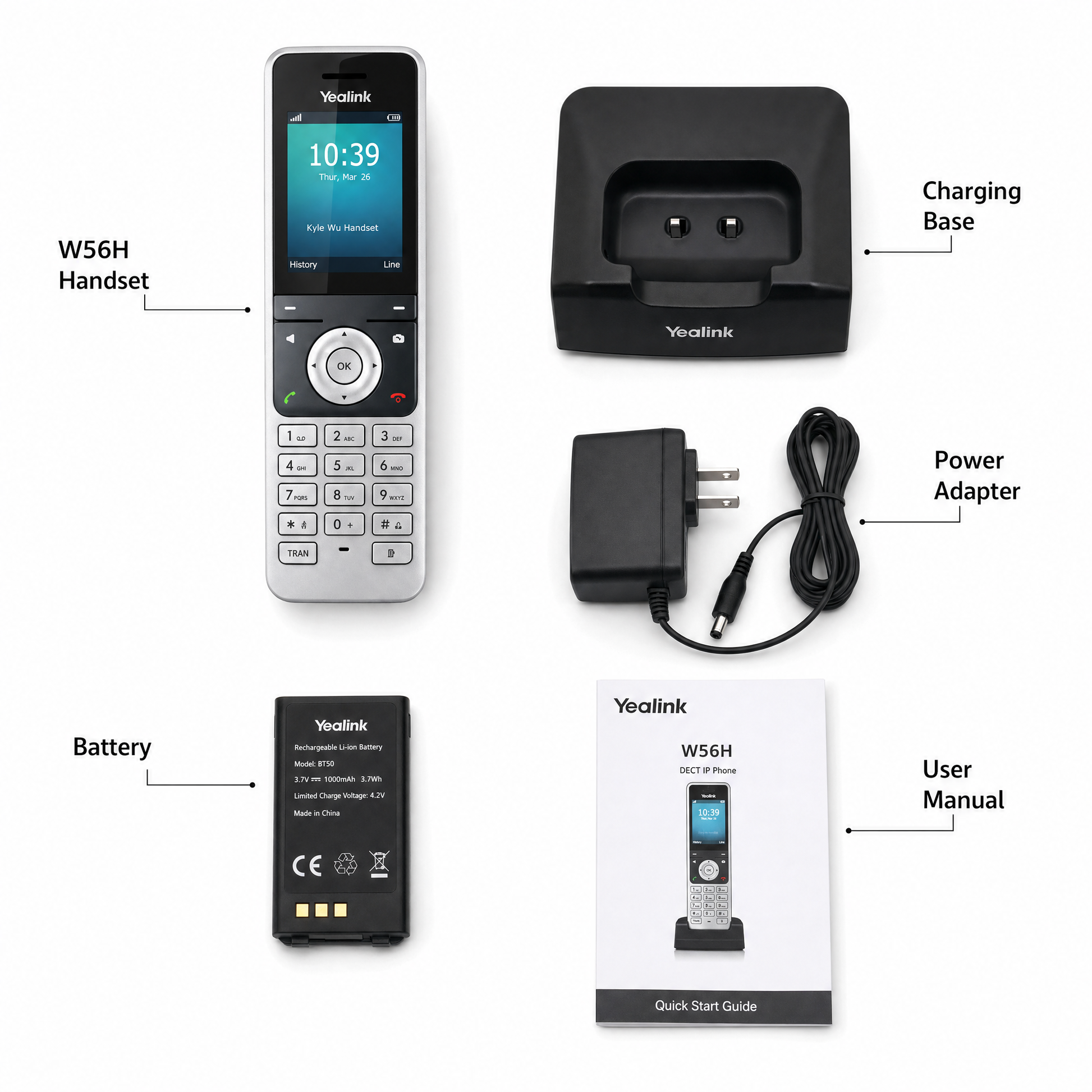

What's Included

- W56H wireless handset

- Rechargeable lithium-ion battery

- USB charging cradle

- Power adapter (DC 5V/600mA)

- Belt clip

Product Details
Connection Type	USB, Wireless, Wired
Power Source	Rechargeable

What business environments is the Yealink W56H best suited for?

The W56H is designed for healthcare facilities, warehouses, retail stores, hospitality venues, and corporate offices where employees need mobile communication across large areas. Its 50-meter indoor range and 300-meter outdoor range make it ideal for environments requiring coverage beyond traditional desk phone locations. The handset supports up to 2 concurrent calls and integrates with Yealink DECT base stations for scalable deployment.

How does the W56H compare to other Yealink DECT handsets?

The W56H is a high-end wireless handset featuring a 2.4-inch color display, advanced HD audio with Opus codec support, and extended battery life (30 hours talk time). It supports 2 concurrent calls per handset and offers comprehensive telephony features including 3-way conferencing and remote phonebook access. The W56H works with W60B, W70B, and W80B base stations, with the W70B supporting up to 10 handsets and 20 concurrent calls system-wide.

Is the W56H worth the investment for small to mid-size businesses?

The W56H delivers enterprise-grade features including HD audio quality, hearing aid compatibility, advanced security (OpenVPN, TLS, SRTP), and up to 30 hours of talk time per charge. Businesses requiring mobile workforce connectivity across warehouses, retail floors, or healthcare facilities gain professional telephony capabilities without traditional desk phone limitations. The handset's compatibility with scalable Yealink base stations allows you to start small and expand as needed.

What base stations and systems is the W56H compatible with?

The W56H is compatible with Yealink W60B, W70B, and W80B DECT base stations. The W60B supports up to 8 handsets and 8 concurrent calls, the W70B supports up to 10 handsets and 20 concurrent calls, and the W80B offers extended capacity. The handset supports SIP v1 and v2 protocols and works with standard VoIP systems through compatible base stations. It requires a Yealink DECT base station to function and cannot connect directly to phone systems.

What is the actual battery life under typical business usage?

The W56H provides up to 30 hours of talk time and up to 400 hours of standby time under ideal conditions with V0-V3 battery versions. V4 battery versions offer up to 30 hours talk time and 350 hours standby. Actual battery performance varies based on DECT signal strength, call frequency, and environmental factors. Fast charging support allows quick battery replenishment between shifts.

Can the W56H work with headsets for hands-free operation?

The W56H features a 3.5mm headset jack for wired headset connectivity. The handset is hearing aid compatible (HAC compliant) and supports hands-free operation with compatible wired headsets. Wireless Bluetooth headset connectivity is not mentioned in official specifications.

What security features does the W56H support for enterprise deployments?

The W56H supports OpenVPN, TLS, HTTPS (server/client), SRTP (RFC3711), digest authentication, and AES-encrypted configuration files. The handset also supports SHA256/SHA512/SHA384 encryption and offers three-level configuration modes (administrator/variable/user) for IT management. All security features are implemented through the compatible Yealink base station.

Does the W56H support PoE and what network protocols are included?

PoE support is implemented at the base station level, not the handset itself. The W56H connects wirelessly to Yealink base stations that may support PoE depending on the base model. The handset supports SIP v1/v2, VLAN (802.1Q/802.1P), 802.1x, LLDP, STUN for NAT traversal, and UDP/TCP/TLS transport protocols through the base station connection.
