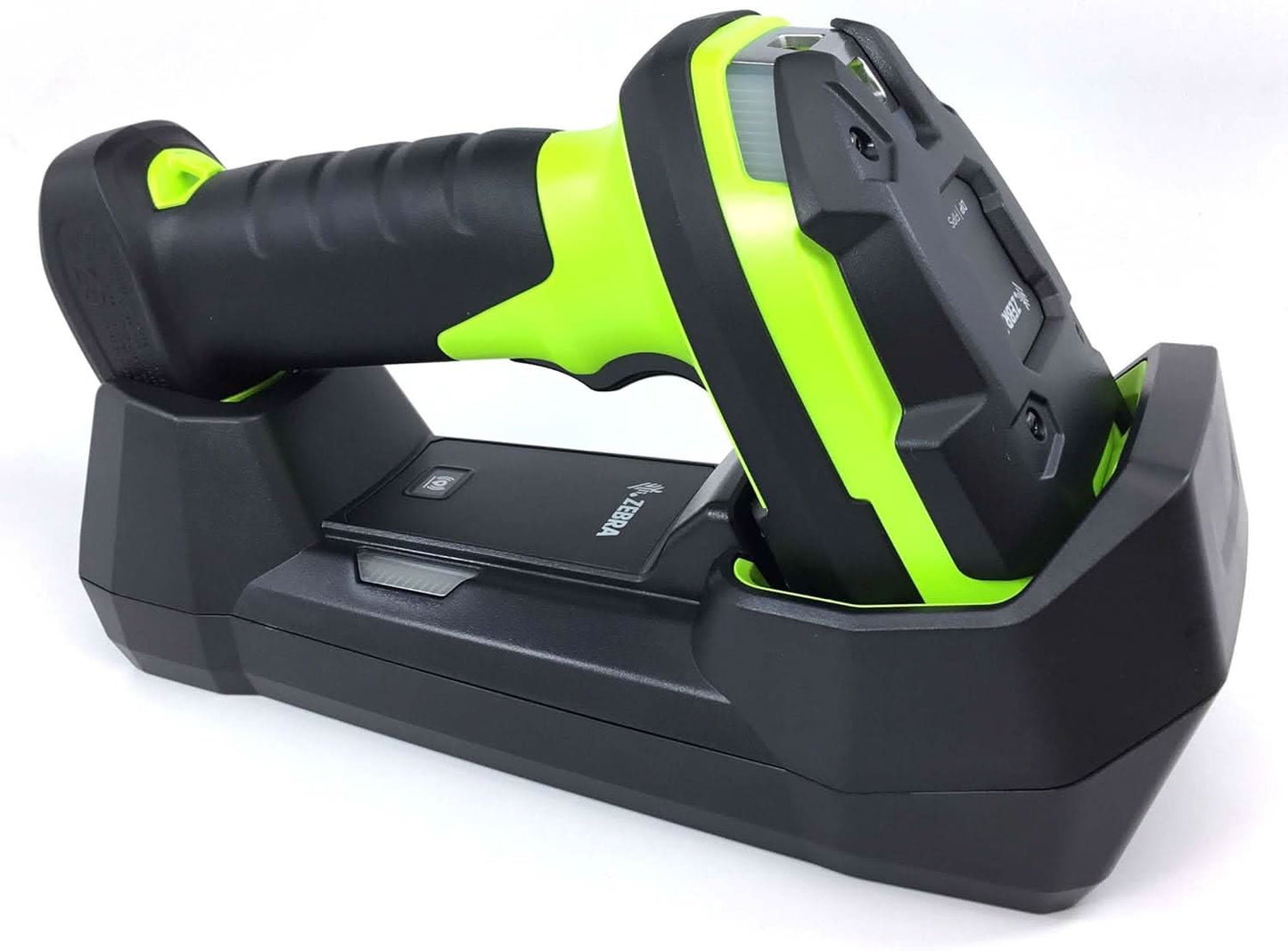

Zebra, DS3678-DP Ultra-Rugged Cordless Scanner | DPM 2D/1D Imager, Bluetooth, FIPS, Cradle, Power Supply, USB Cable

Name: Zebra, DS3678-DP Ultra-Rugged Cordless Scanner | DPM 2D/1D Imager, Bluetooth, FIPS, Cradle, Power Supply, USB Cable
Brand: Zebra
SKU: ZEB-SCA-DS3678-DP-NEW
Price: 899.0 USD
Availability: InStock

Delivery Time: 0-3 days

Brand ZEBRA

Model Number DS3678-DP

UPC 758399858985

EpicRise Warranty First Year

Product Highlights

Superior scanning performance on DPM and standard 1D/2D barcode, in any condition------Comprehensive patented features enable the capture of literally every type of direct part mark(DPM) and printed 1D/2D barcode. DPM codes can be captured, regardless of size, surface, contrast or density---including the most challenging mark, dot peen, as well as laser etch, ink mark, chemical etch, inkjet mold, cast and thermal spray.
Ultra-rugged, the most indestructible design in its class------The DS3678-DP is the most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3678-DP is built to survive an 8 ft./2.4 m drop to concrete, 23 percent more durable than any other scanner in this class. It is dustproof, sprayproof and waterproofed to IP67, it can be sprayed down with jetting water and even submersed in water for up to 30 minutes.
Advanced illumination system------Advanced illumination provides the multiple lighting effects required to capture marks on any type of surface— including reflective, irregular and curves as well as low and high contrast marks. The built-in diffuser provides the indirect light required to capture marks printed on very shiny and reflective surfaces. The proprietary design of the diffuser also directs additional lighting to the edges of barcodes marked on a curved surface.
Easy management with our complimentary industry-best tools------Remotely configure scanners, upgrade firmware, format data properly for your back end and monitor PowerPrecision+ battery statistics and more with 123Scan2 and Scanner Management Service (SMS).
A Bluetooth model in a class of its own provides lightning fast wireless communication and maximum energy efficiency.------Zebra Wi-Fi Friendly Mode eliminates the wireless interference that Bluetooth devices can often create in your Wi-Fi environment. The ‘go anywhere’ rugged cradle offers superior versatility and durability. The DS3678-DP cradle is the only one in its class to offer IP65 sealing. And its industrial charging contacts withstand 250,000 insertions.

Overview
Specifications
FAQ
User Guides
Reviews

Superior scanning performance on DPM and standard 1D/2D barcode, in any condition------Comprehensive patented features enable the capture of literally every type of direct part mark(DPM) and printed 1D/2D barcode. DPM codes can be captured, regardless of size, surface, contrast or density---including the most challenging mark, dot peen, as well as laser etch, ink mark, chemical etch, inkjet mold, cast and thermal spray.
Ultra-rugged, the most indestructible design in its class------The DS3678-DP is the most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3678-DP is built to survive an 8 ft./2.4 m drop to concrete, 23 percent more durable than any other scanner in this class. It is dustproof, sprayproof and waterproofed to IP67, it can be sprayed down with jetting water and even submersed in water for up to 30 minutes.
Advanced illumination system------Advanced illumination provides the multiple lighting effects required to capture marks on any type of surface— including reflective, irregular and curves as well as low and high contrast marks. The built-in diffuser provides the indirect light required to capture marks printed on very shiny and reflective surfaces. The proprietary design of the diffuser also directs additional lighting to the edges of barcodes marked on a curved surface.
Easy management with our complimentary industry-best tools------Remotely configure scanners, upgrade firmware, format data properly for your back end and monitor PowerPrecision+ battery statistics and more with 123Scan2 and Scanner Management Service (SMS).
A Bluetooth model in a class of its own provides lightning fast wireless communication and maximum energy efficiency.------Zebra Wi-Fi Friendly Mode eliminates the wireless interference that Bluetooth devices can often create in your Wi-Fi environment. The ‘go anywhere’ rugged cradle offers superior versatility and durability. The DS3678-DP cradle is the only one in its class to offer IP65 sealing. And its industrial charging contacts withstand 250,000 insertions.

Superior scanning performance on DPM and standard 1D/2D barcode, in any condition------Comprehensive patented features enable the capture of literally every type of direct part mark(DPM) and printed 1D/2D barcode. DPM codes can be captured, regardless of size, surface, contrast or density---including the most challenging mark, dot peen, as well as laser etch, ink mark, chemical etch, inkjet mold, cast and thermal spray.

Product Details
Color	Green, Black
Connection Type	Bluetooth, USB, Wi-Fi
Scanner Interface	Bluetooth, USB
Barcode Supported	1D, 2D
Scanner Sensor Type	Linear imager, 2D imager
Power Source	USB, Battery-powered

General Specifications

Model: Zebra DS3678-DP
Type: Cordless Ultra-Rugged DPM 2D Imager
Use Case: Direct Part Mark (DPM) capture and 1D/2D barcode scanning in manufacturing

Performance & Features

Scan Targets: Direct Part Marks, 1D/2D barcodes on labels
Illumination Modes: Direct, Diffuse (for shiny/curved surfaces)
Scanning Speed: Lightning fast DPM and standard barcode capture
Feedback: Vibration, Red/Green LEDs, Beeper

Ruggedness

Drop Spec: Multiple 8 ft./2.4 m drops to concrete
Tumble Spec: 5000 tumbles @ 3.3 ft. (1 m)
Sealing: IP65 and IP67 (dustproof, waterproof, spray proof)
Temperature Range: Cordless: -4°F to 122°F (-20°C to 50°C)

Connectivity

Wireless: Bluetooth 4.0 LE, Class 1, 300 ft./100 m range
Host Interfaces: USB, RS232, Keyboard Wedge, Industrial Ethernet (EtherNet/IP, Profinet, Modbus TCP, Std TCP/IP)

Battery

Type: PowerPrecision+ 3100 mAh Li-Ion
Scans per Charge: 100,000+ scans
Battery Monitoring: Charge status, health indicators, State of Health meter

Decode Capability

1D Codes: Code 39, Code 128, UPC/EAN, Codabar, GS1 DataBar, etc.
2D Codes: PDF417, DataMatrix, QR Code, Aztec, Micro QR, Han Xin, Postal Codes
IUID Support: Parsing and separation per application needs

Physical Characteristics

Dimensions: 7.3 in. H x 3.0 in. W x 5.6 in. D (18.5 cm x 7.7 cm x 14.3 cm)
Weight: 14.18 oz. / 402 g
Color: Industrial Green

Software & Management Tools

123Scan: Device configuration and reporting
Scanner SDK: Full software development kits for custom apps
Scanner Management Service (SMS): Remote management
Network Connect: Direct Industrial Ethernet connection

Special Technologies

DataCapture DNA: Productivity, visibility, management, and development tools (e.g., PRZM Intelligent Imaging, Scan-to-Connect, Wi-Fi Friendly Mode)
