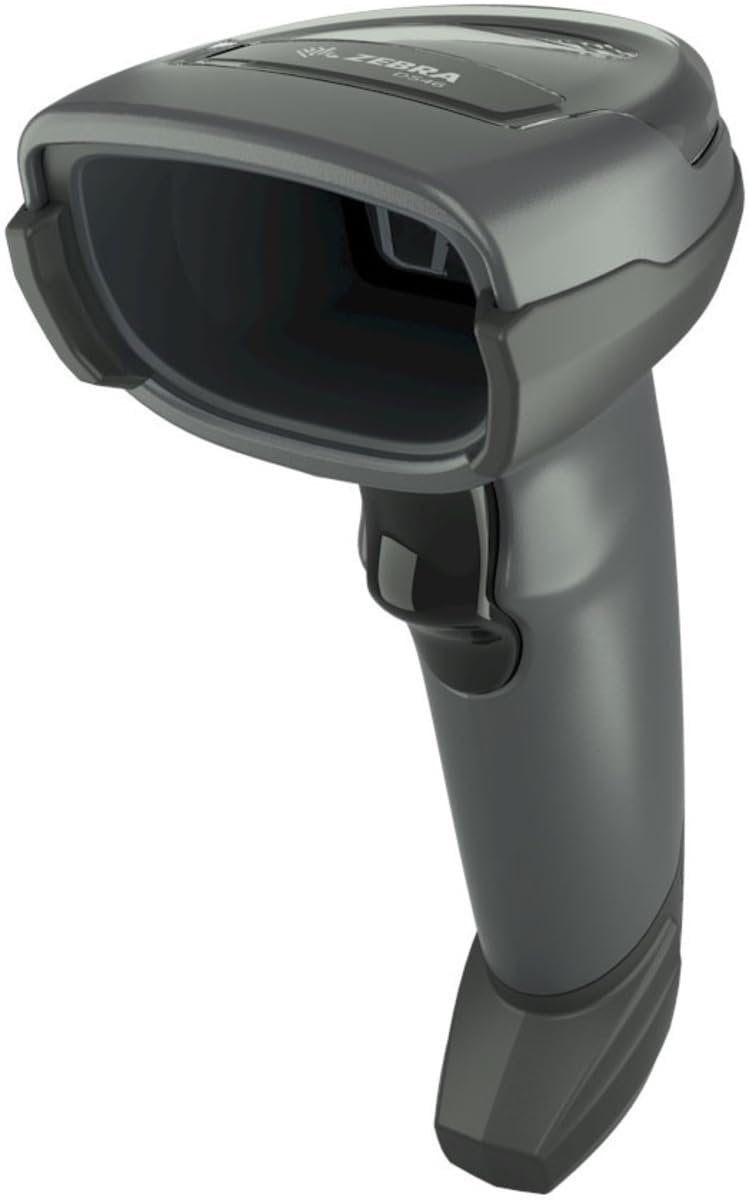

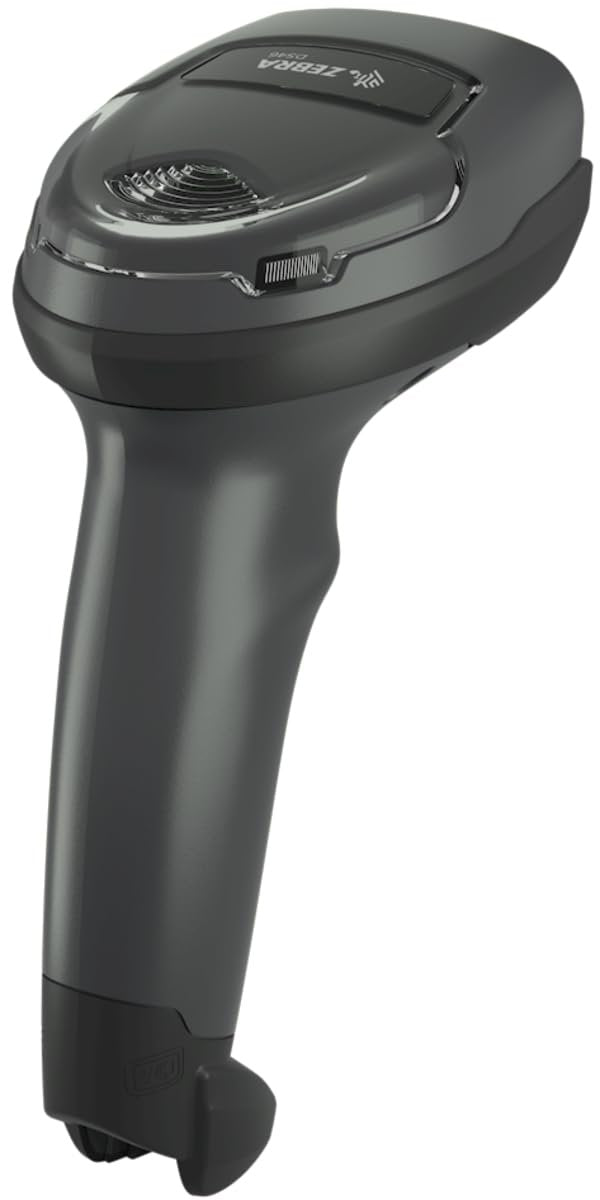

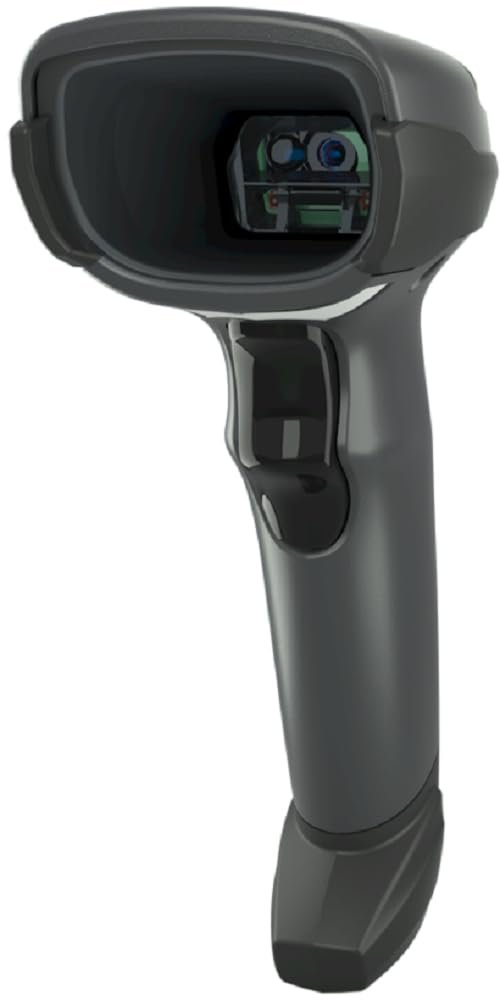

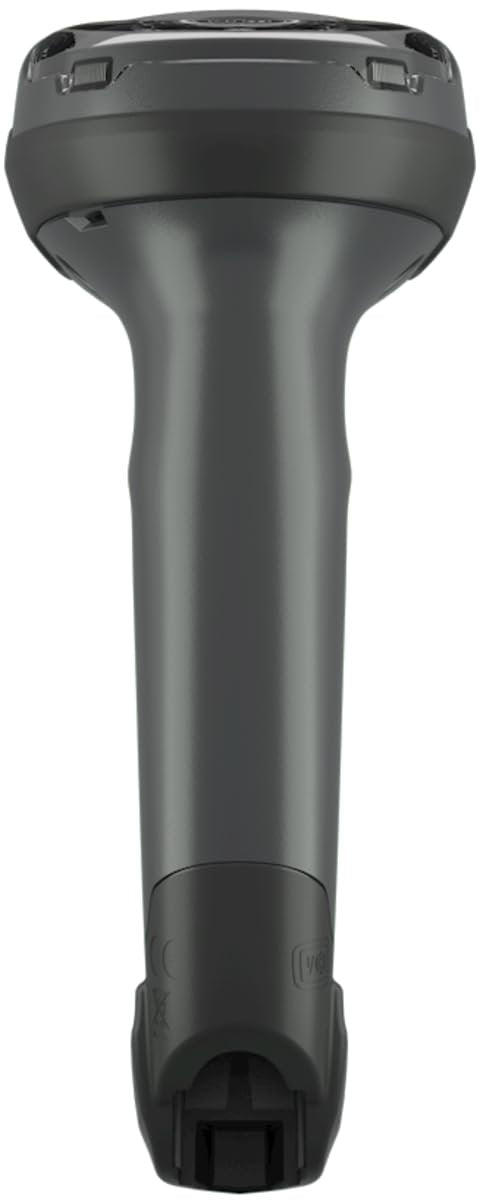

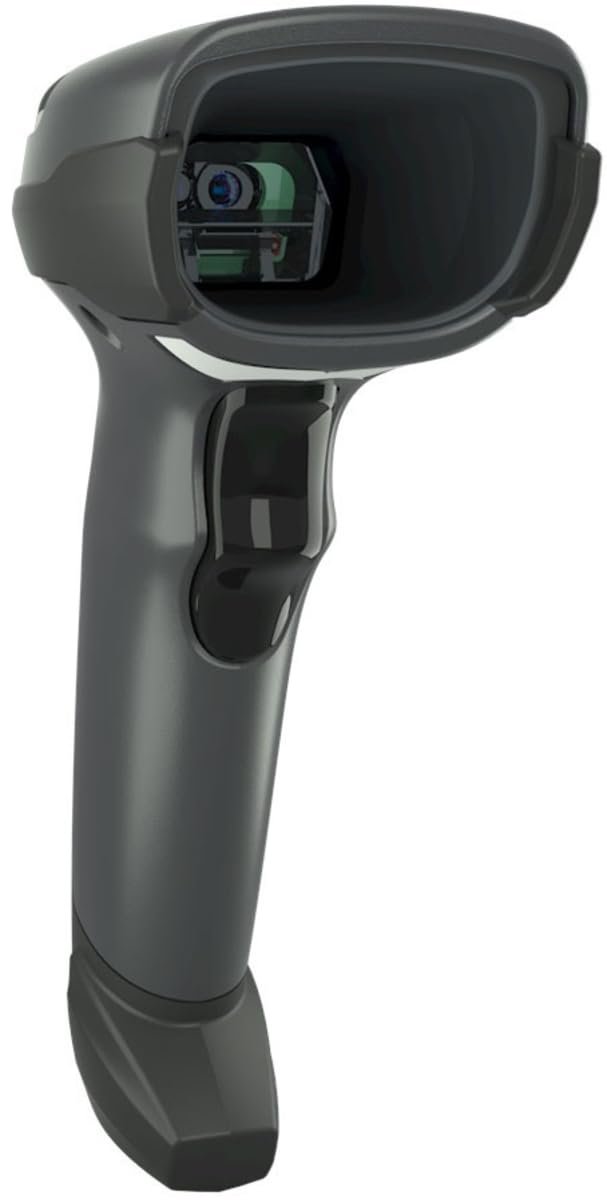

ZEBRA DS4608-SR7U2100SGW 1D/2D Imager, Barcode Scanner, Black, General Purpose, Handheld, Includes Cable and Stand, Multi-Interface, Standard Range (SR), USB

Product Highlights

1D/2D IMAGER
BARCODE SCANNER
BLACK
GENERAL PURPOSE
HANDHELD

Overview
Specifications
FAQ
User Guides

1D/2D IMAGER, BARCODE SCANNER, BLACK, GENERAL PURPOSE, HANDHELD, INCLUDES CABLE AND STAND, MULTI-INTERFACE, STANDARD RANGE (SR), USB; Part Number: DS4608-SR7U2100SGW; Category: Bar Code Equipment; Subcategory: Bar Code Scanner Hand Held

1D/2D IMAGER
BARCODE SCANNER
BLACK
GENERAL PURPOSE
HANDHELD

1D/2D IMAGER

General Specifications

Form Factor: Handheld
Scan Technology: 1D/2D Imager
Color: Twilight Black
Included: USB Cable and Stand
Mount Option: Hands-free stand capable
Model: Standard Range (SR)
Connection Type: USB, RS232, TGCS (IBM)
Keyboard Support: Supports over 90 international keyboards

Performance Characteristics

Image Sensor: 1280 x 800 pixels
Light Source: 617nm amber LED (aiming), 660nm red LEDs (illumination)
FOV: 36.1° H x 22.6° V nominal
Print Contrast: 15% minimum reflective difference
Tolerance (Skew/Pitch): +/- 60°
Tolerance (Roll): 0° - 360°

Decode Capability

1D Barcodes: Code 39, Code 128, UPC/EAN, etc.
2D Barcodes: PDF417, DataMatrix, QR Code, etc.
OCR Support: OCR-A, OCR-B, MICR, US Currency

Physical Characteristics

Dimensions: 6.5 in. H x 2.6 in. W x 3.9 in. D
Weight: 5.7 oz / 161.9 g
Operating Voltage: 4.5 to 5.5 VDC
Operating Current: 340 mA typical
Idle Current: 150 mA typical

Environmental Specs

Operating Temp: 32°F to 122°F (0°C to 50°C)
Storage Temp: -40°F to 158°F (-40°C to 70°C)
Humidity: 5% to 95% RH, non-condensing
Drop Spec: Multiple 6 ft./1.8 m drops to concrete
Tumble Spec: 2,000 tumbles at 1.5 ft./0.5 m
Sealing: IP52
Ambient Light: 0 to 10,000 foot candles / 107,000 Lux

Extra Features

Smart Capture: Intelligent Document Capture, OCR, Driver’s License Parsing
Multi-Code Scan: Scans multiple barcodes with one trigger
EAS Tag Support: Optional on DS4608-HD/HL models
Management Tools: 123Scan, SMS, DataCapture DNA

Regulatory Compliance

EMI/RFI: FCC, ICES-003, EN 55032/55024/55035
Safety: UL, IEC 60950/62368, EN 62471

📥 Download Product Manual (PDF)

What barcode types does the DS4608-SR support?
The DS4608-SR supports a wide range of 1D and 2D barcodes, including QR codes, PDF417, Data Matrix, UPC, EAN, and more.

What is the typical scanning range of the DS4608-SR?
This scanner is optimized for standard-range (SR) scanning, ideal for most retail and general-purpose applications.

Can this scanner read barcodes from mobile devices?
Yes, the DS4608-SR is capable of reading barcodes displayed on mobile phone screens, including loyalty cards, tickets, and coupons.

What interface options are supported?
The scanner supports multiple interface options including USB, RS-232, and keyboard wedge, making it versatile for different system setups.

Is a stand included with the scanner?
Yes, the DS4608-SR7U2100SGW package includes a stand, which enables hands-free scanning.

Does it support omnidirectional scanning?
Yes, the DS4608-SR features omnidirectional scanning, allowing users to scan barcodes from any angle without alignment.

Is this scanner durable enough for industrial environments?
While designed primarily for retail and light industrial use, the DS4608-SR is built to withstand multiple drops to concrete and is sealed against dust and spills.

How is the scanner powered?
It is powered via the host device through the USB connection or external power supply (when using RS-232 or keyboard wedge interfaces).

Regular price: $168.00
Sale price: $168.00
