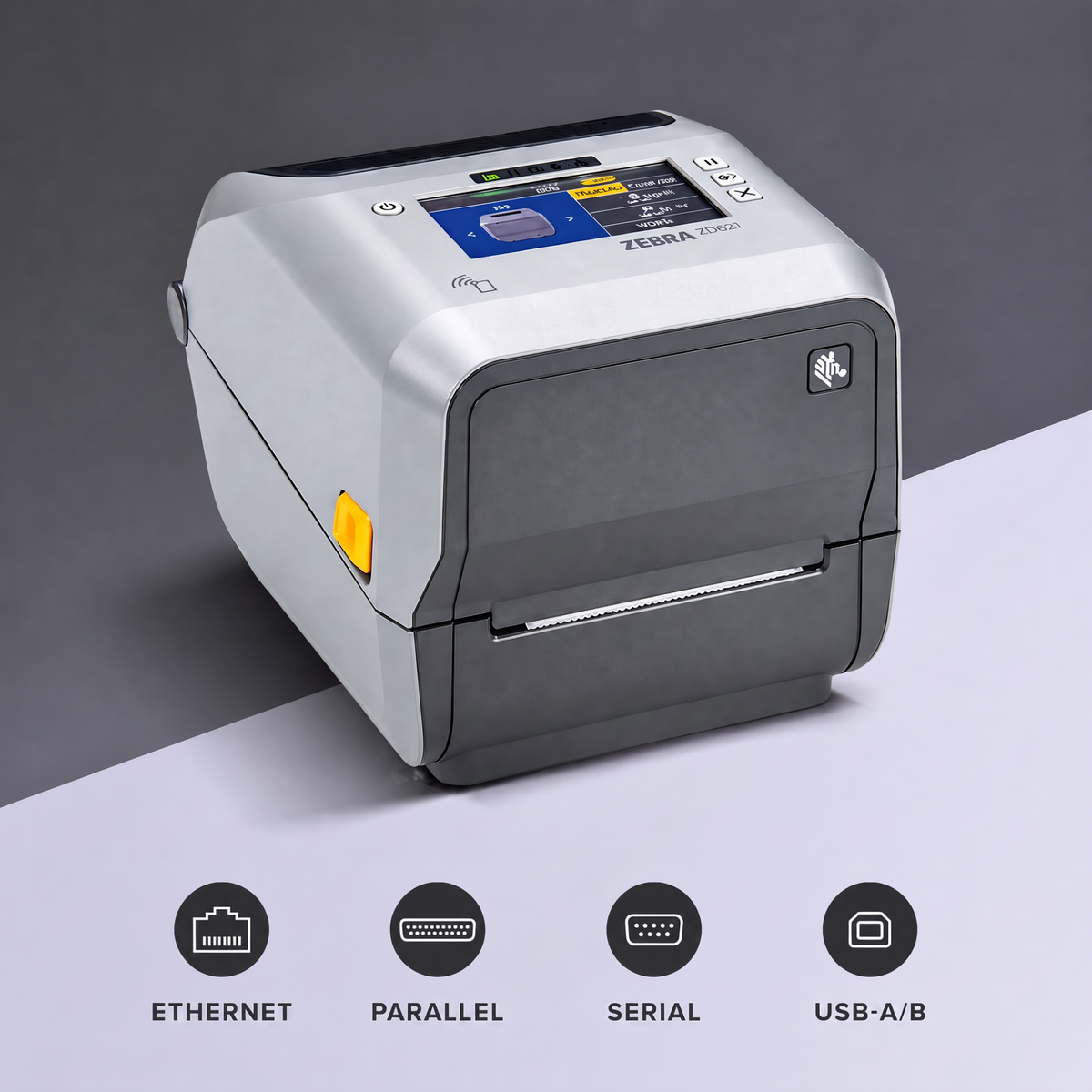

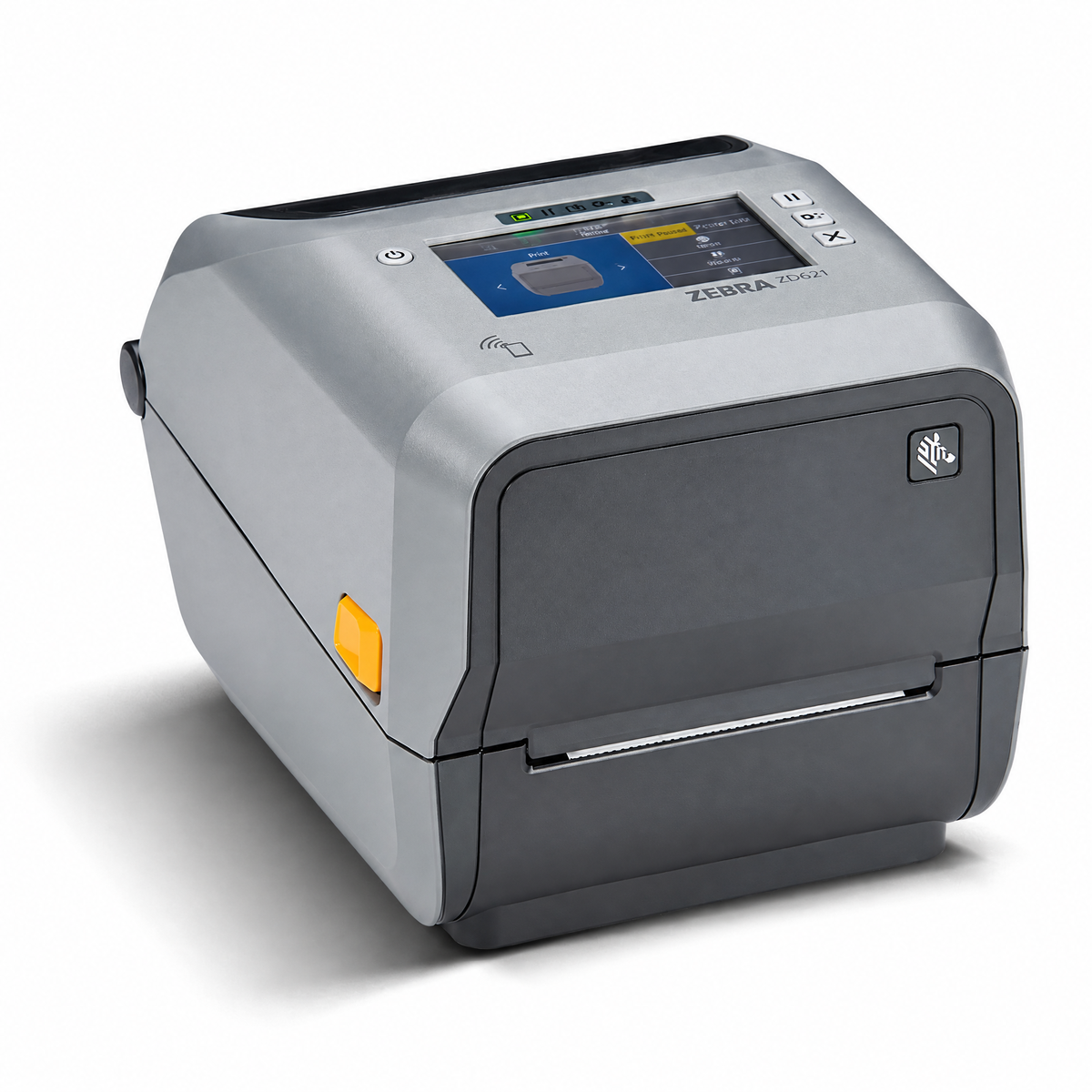

Zebra ZD621 Thermal Transfer Desktop Printer ZD6A143-301F00EZ with 300 dpi Resolution and Color Touch LCD

Name: Zebra ZD621 Thermal Transfer Desktop Printer ZD6A143-301F00EZ with 300 dpi Resolution and Color Touch LCD
Brand: Zebra
SKU: ZEB-ZD6A143-301F00EZ

Brand Zebra

Model Number ZD6A143-301F00EZ

EpicRise Warranty First Year

Product Highlights

• 300 dpi high-resolution thermal transfer printing delivers sharp barcodes and text for compliance and asset labeling applications

• 4.3-inch full-color touch LCD with intuitive menu simplifies setup and reduces training time for staff

• Multiple connectivity options including USB, Ethernet, Serial, and Bluetooth Low Energy for flexible enterprise integration

• Link-OS operating system enables advanced remote management and configuration across distributed printer fleets

• OpenACCESS design and dual-wall frame construction ensure fast media loading and years of reliable operation

Overview
Specifications
FAQ
User Guides
Reviews

The Zebra ZD621 ZD6A143-301F00EZ brings industrial-grade printing performance to a compact desktop footprint. This thermal transfer printer delivers 300 dpi resolution at speeds up to 6 inches per second, producing crisp barcodes, text, and graphics for applications requiring exceptional print quality. The intuitive 4.3-inch color touch LCD display streamlines printer setup and operation, while the Link-OS platform provides powerful remote management capabilities that simplify fleet administration across multiple locations.

Designed for demanding enterprise environments, the ZD621 combines versatile connectivity options—USB, Ethernet, Serial, and Bluetooth Low Energy—with field-upgradeable wireless capabilities. The dual-wall frame construction and OpenACCESS media loading system ensure reliable performance and minimal downtime. With 512 MB Flash memory and support for ZPL II, EPL2, and other standard programming languages, this printer integrates seamlessly into existing workflows while supporting future expansion needs.

Best For

The ZD621 thermal transfer printer excels in environments requiring durable, high-quality labels and tags across multiple industries and operational settings.

- Healthcare facilities needing patient wristbands, specimen labels, and pharmacy labels that withstand sterilization and handling

- Manufacturing operations producing component tags, work-in-process labels, and compliance markings for traceability

- Retail backrooms and distribution centers printing price tags, shelf labels, and shipping labels for inventory management

- Asset management departments creating durable asset tags and identification labels for equipment tracking

- Transportation and logistics generating shipping labels, packing slips, and routing tags for package handling

Key Features

- 300 dpi print resolution produces high-definition barcodes and small text for regulatory compliance and detailed labeling

- 6 ips print speed at 300 dpi maintains productivity in high-volume labeling environments

- 4.3-inch color touch LCD (480 x 272 pixels) with 3-button interface provides intuitive operation and status monitoring

- Link-OS operating system delivers advanced device management, cloud connectivity, and application development capabilities

- Multiple standard interfaces (10/100 Ethernet, RS-232 Serial, USB 2.0, USB Host, BLE 5.0) support diverse network architectures

- 512 MB Flash and 256 MB SDRAM with 64 MB user-available storage accommodate complex label formats and graphics

- Media handling supports label widths from 0.585 to 4.65 inches with maximum roll diameter of 5 inches

- Field-upgradeable design accepts optional wireless modules and media handling accessories for future expansion

- OpenACCESS top-loading design enables fast media changes without removing ribbon cartridge

- ENERGY STAR certified power supply (100-240VAC auto-detect) reduces operating costs

Quick Specs

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	300 dpi (12 dot/mm)
Print Speed	6 ips (152 mm/s) at 300 dpi
Maximum Print Width	4.27 in. (108 mm) at 300 dpi
Display	4.3 in. full-color touch LCD (480 x 272 pixels)
Memory	512 MB Flash, 256 MB SDRAM, 64 MB user storage
Operating System	Link-OS
Programming Languages	ZPL II, EPL 2, XML, ZBI, PDF Direct
Connectivity	USB 2.0, USB Host, 10/100 Ethernet, RS-232 Serial, Bluetooth Low Energy 5.0
Media Width	0.585 - 4.65 in. (15 - 118 mm)
Label Length	0.25 - 39 in. (6.4 - 991 mm)
Maximum Roll Diameter	5.0 in. (127 mm)
Core Diameter	0.5 in., 1.0 in. standard; 1.5 in., 2.0 in., 3.0 in. with optional adapter
Media Thickness	0.024 - 0.0075 in. (0.06 - 0.1905 mm)
Sensors	Full-width movable reflective/black mark, multi-position transmissive/gap
Dimensions (L × W × H)	10.5 × 8.0 × 7.5 in. (267 × 202 × 192 mm)
Weight	5.5 lb. (2.5 kg)
Operating Temperature	40°F - 105.8°F (4.4°C - 41°C)
Operating Humidity	10% - 90% non-condensing
Power Supply	100-240VAC, 50-60Hz auto-detect (PFC compatible)

What's Included

- Zebra ZD621 Thermal Transfer Printer (ZD6A143-301F00EZ)

- 4.3-inch color touch LCD display

- Power cord (US)

- USB data cable

- Ribbon core adapter (300M)

- Quick start guide

- Regulatory guide

Product Details
Color	Gray

What applications and environments is the ZD621 ZD6A143-301F00EZ best suited for?

This printer is designed for applications requiring high-resolution, durable labels in healthcare, manufacturing, retail, and logistics environments. The 300 dpi resolution handles small text and detailed graphics needed for compliance labeling, specimen tracking, and asset identification. The thermal transfer capability produces labels that withstand exposure to chemicals, heat, and abrasion.

How does the ZD621 compare to other Zebra desktop printers?

The ZD621 replaces the ZD620, GX series, and ZD500 with enhanced features including the Link-OS platform, optional color touch LCD, and field-upgradeable design. This model offers the same industrial-grade durability as larger Zebra printers but in a compact desktop form factor. The 300 dpi configuration provides higher resolution than standard 203 dpi models for applications requiring finer detail.

Is the 300 dpi thermal transfer configuration worth the investment?

The 300 dpi thermal transfer capability justifies the investment for operations printing small barcodes, regulatory text, or graphics requiring fine detail. Thermal transfer delivers superior label durability compared to direct thermal, making it cost-effective for labels exposed to harsh conditions or requiring long shelf life. The color touch LCD and multiple connectivity options reduce setup time and ongoing management costs.

What systems and software does the ZD6A143-301F00EZ work with?

The printer supports ZPL II, EPL2, XML, ZBI, and PDF Direct programming languages, ensuring compatibility with most enterprise labeling software and ERP systems. Standard Ethernet, USB, and Serial interfaces connect to Windows, Mac, and Linux systems. The Link-OS platform provides drivers and SDKs for application integration, while BLE 5.0 enables mobile device setup via Zebra setup apps for Android and iOS.

What is the maximum media width this printer can handle?

The ZD621 thermal transfer model accepts media widths from 0.585 inches (15 mm) to 4.65 inches (118 mm). The maximum print width at 300 dpi resolution is 4.27 inches (108 mm). This range accommodates standard label sizes from small asset tags to full-width shipping labels.

Can the printer be upgraded with wireless connectivity?

The ZD621 supports field-installable wireless upgrade kits including Wi-Fi 6 (802.11ax) with Bluetooth 5.3 or Wi-Fi 5 (802.11ac) with Bluetooth 4.2. The base model ZD6A143-301F00EZ includes Bluetooth Low Energy 5.0 standard, which supports printer setup and lightweight data transfer but not full-speed printing over Bluetooth Classic.

What optional media handling accessories are available?

Field-installable options include a label dispenser/peeler for automatic label presentation and a cutter for continuous media, padded labels, and tag stock up to 0.0075 inches thick. Additional ribbon core adapters support 1.5-inch, 2-inch, and 3-inch cores beyond the standard 0.5-inch and 1-inch cores. These accessories expand application flexibility without requiring a new printer.

How much onboard storage does the printer have for label formats and graphics?

The ZD621 includes 512 MB Flash memory and 256 MB SDRAM, with 64 MB of user-accessible non-volatile storage. This memory capacity stores label templates, fonts, graphics, and configuration files directly on the printer. Complex label formats and high-resolution images can be retained for fast recall without resending data from the host system.

Regular price: $820.00
Sale price: $820.00
Unit price: per
